24″ LED Monitor TV

24MT48AF-PT

Key Features

  • PANEL VA | WALL MOUNT | USB | WIDE VIEWING ANGLE
24″ LED Monitor TV
24MT48AF-PT
  • Features
  • Tech Specs
  • Support

MORE PRACTICAL AND COMFORTABLE IN YOUR ROOM

If it is more comfortable for you, you can put your TV monitor on your wall, giving you saved space to enjoy better.

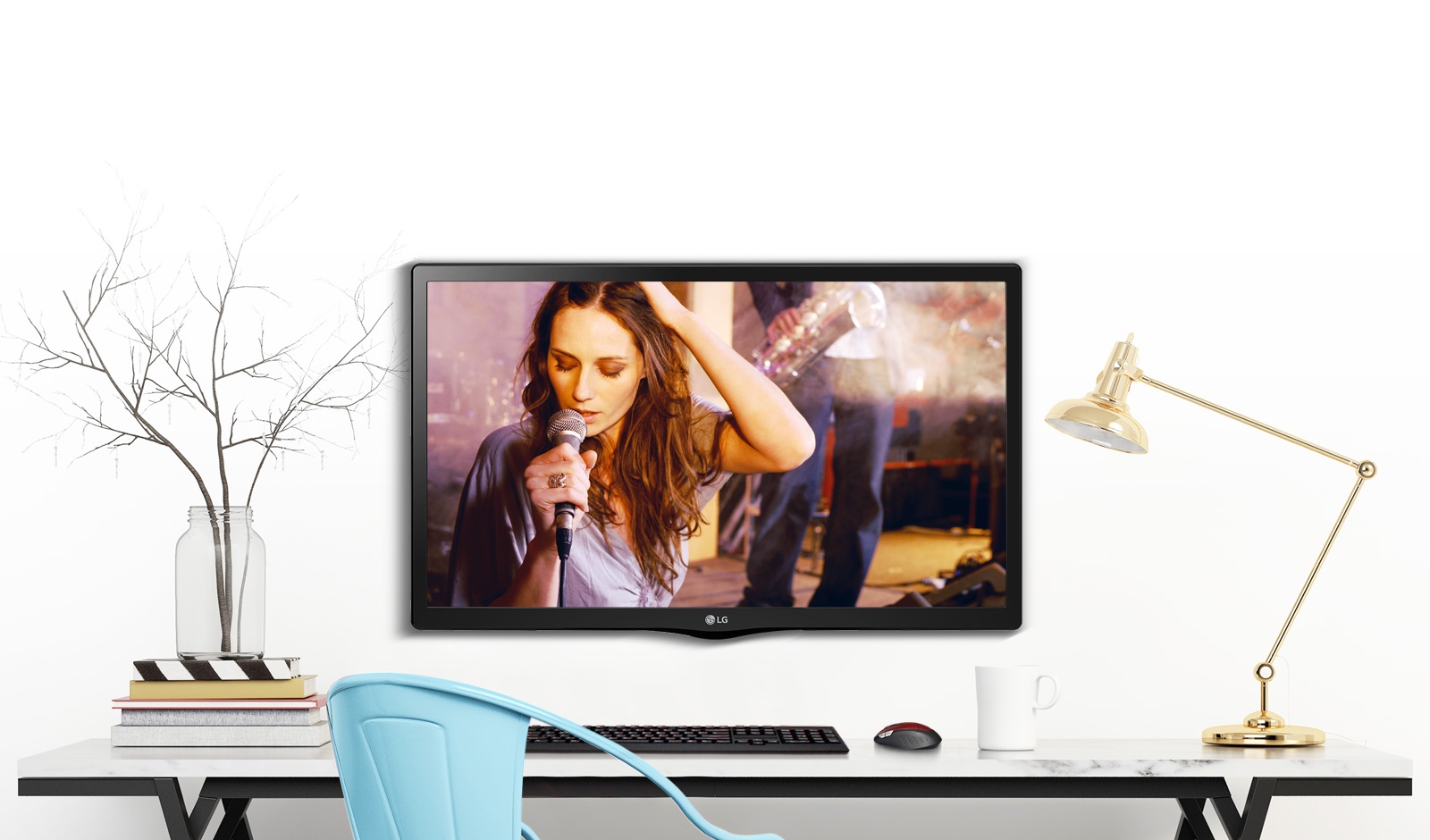

Wall Mount

Try mounting your monitor TV according to your interior situations and take advantage of the space saving effect.

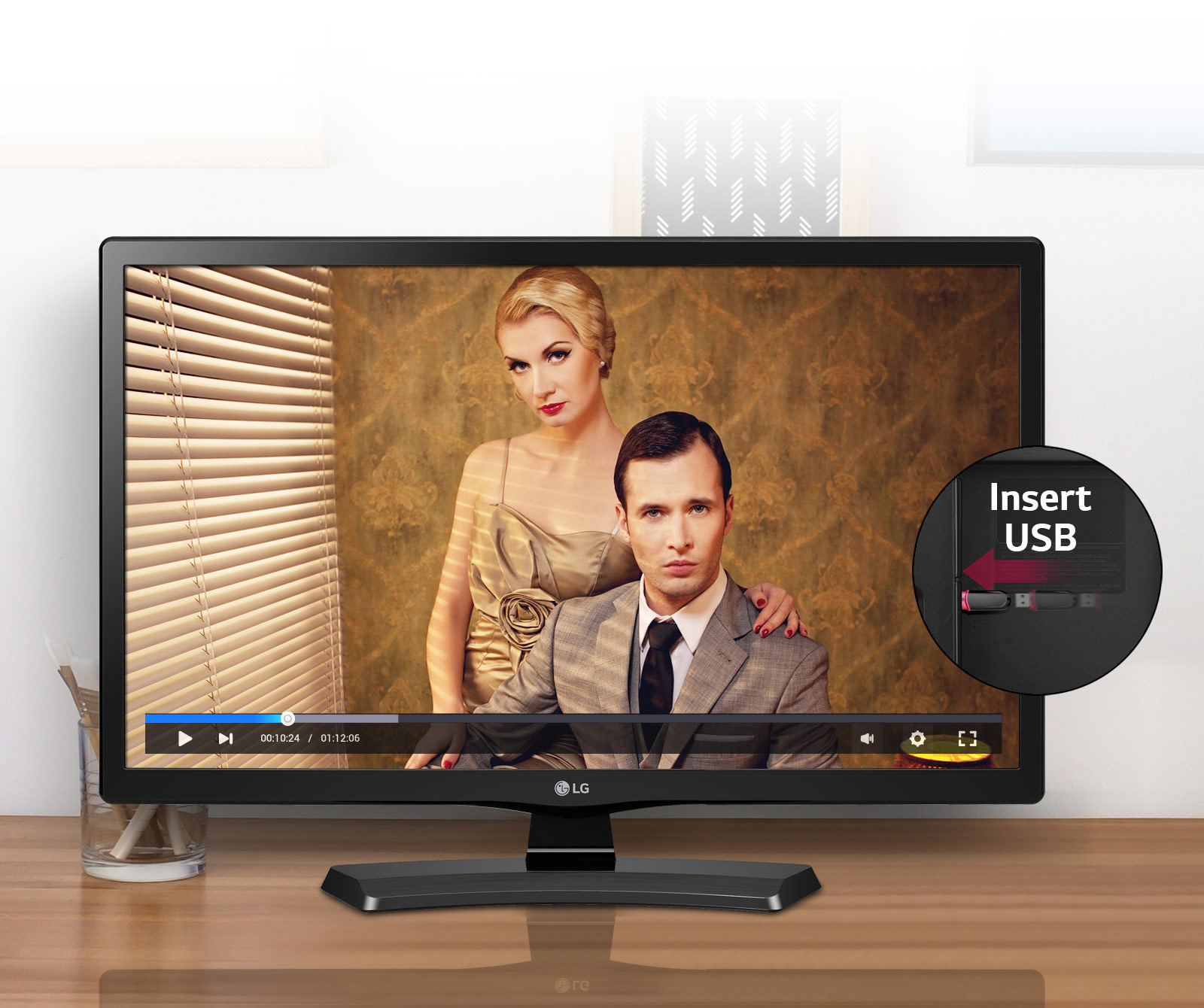

USB AutoRun

USB AutoRUN offers more handy usages - the contents start as soon as you turn on the monitor by connecting them with USB.

Specifications

Feature
Multi - Size (Inch / cm) 23.6" / 59.82 cm
Multi - Panel Type Wide Viewing Angle
Multi - Color Gamut (CIE1931) 72%
Multi - Color Bit 8bit (6bit+FRC)
Multi - Color Depth (Number of Colors) 16.7M
Multi - Pixel Pitch(mm) 0.38175x0.38175
Multi - Aspect Ratio 16:9
Multi - Resolution 1366x768
Multi - Brightness (Typ.) 250 cd/m2
Multi - Contrast Ratio (Original) 1000:1
Multi - Contrast Ratio (DFC) 5M:1
Multi - Response Time_Typ. (GTG) 14ms
Multi - Viewing Angle(CR≥10) R/L 178 (Typ.), U/D178 (Typ.)
Multi - Surface Treatment(Glare/non Glare) Hard coating(3H), Anti-glare
Jack Input / Output
Signal Input - D-Sub Yes
Signal Input - Composite Yes
Signal Input - HDMI (Ver.) Yes (HDMI1.3)
Signal Input - USB (Ver.) Yes (USB2.0)
Signal Input - [ Jack Location ] Rear/Side
Audio Input - RCA Yes
Audio Input - [ Jack Location ] Rear
Audio Output - RCA Yes
Audio Output - [ Jack Location ] Rear
Tuner Input - Analog PAL Multi
Tuner Input - [ Jack Location ] Rear
Speaker
Type Internal
Audio output 5W x 2
Power
Input/Output - Type (w/ Watt) Adapter (32W)
Input/Output - Input 100~240V
Consumption - Normal On(Typ.) 30W
Consumption - DC Off(Max) 0.5W
Frequency
D-sub(H-Frequency) 30kHz~69kHz
D-sub(V-Frequency) 56Hz~61Hz
HDMI - H-Frequency 30kHz~69kHz
HDMI - V-Frequency 56Hz~61Hz
Resolution
PC (D-sub) 1366x768
Video - HDMI 480p, 576p 720p, 1080i, 1080p
Video - Composit 480i/576i
Control Key
Key Number (Power Key Included) 1Key
Key Type JOYSTICK KEY
LED Color(On mode) Off
LED Color(Standby) Red
[ Key Location ] BOTTOM
OSD
Number of Language 18 Language (English/French/Spanish/Portuguese/Russian/Thai Malay/Indonesian/Hebrew/Farsi/Arabic/Kurd Vietnam, Hindi, Marathi, Telugu, Bengali, Tamil)
Special Feature
General Function - HDCP Yes
General Function - Intelligent Auto Yes
General Function - Remote Control Yes
General Function - Plug & Play DDC2B
Accessibility - Teletext Yes
Special Function - Flicker Safe Yes
Special Function - Eye Comfort Mode Yes
Special Function - Divx HD player (USB Media Player) Yes (Video, Music, Picture)
Special Function - USB Auto Play Yes
Special Function - Smart Energy Saving Yes
Special Function - Motion Eye Care Yes
Special Function - Built-in Game Yes (Egg Catcher, Space Wars, Cookie Cookie, Jungle Hunter, Bubble Pot)
Picture - Picture Mode Vivid, Standard, Cinema, Soccer, Game
Picture - ARC-PC 16:9, 4:3
Picture - ARC-Video 16:9 - ATV, AV, RGB, HDMI | Just Scan – HDMI | Original - ATV, AV, HDMI | 4:3 - ATV, AV, RGB, HDMI | 14:9 - ATV, AV, HDMI | Zoom - ATV, AV, HDMI | Cinema Zoom - ATV, AV, HDMI
Sound - AVL (Auto Volume) Yes
Time / Clock - Auto / Manual Clock Yes (Manual Only)
Time / Clock - On/ Off Time Yes
Time / Clock - Sleep Timer Yes
Time / Clock - Auto Off / Auto Sleep Yes
Hotel mode - Hotel Mode Yes
Color
Front Black Glossy
B/Cover texture
Stand Black Glossy
Base Black Glossy
Stand
Base Detchable Detachable
Size / Weight
Dimension - Set (with Stand) 556.0 x 146.3x 387.3
(W*D*H) - Set (without Stand) 556.0 x 53.1 x 345.2
(mm) - Box 700 x 402 x 126
Wall Mount 75*75
Weight - Set (with Stand) 3.4
(Kg) - Set (without Stand) 3.2
Box 4.4
Stuffing - Pallet(20ft/40ft/40ft HC) 704 / 1408 / 1672
Wrap
Packing Material EPS
Stacking Type Face down
Stand Packing Type Base Detach
Box Printing Type Flexo 1 color
Accessory
Power Cord Yes
Remote Controller Yes
Adaptor Yes
