LSBE015
LG Indoor LED
Key Features
- Pixel Pitch : 1.56 mm
- Brightness : 600 nit
- Easy Installation and Maintenance
- Durable Frame Design
- Compatibility with LG Software Solutions
- IP Rating : IP50 / IP50 (Front / Rear)
Contact us
GGEAR Commercial
LSBE Indoor LED Series

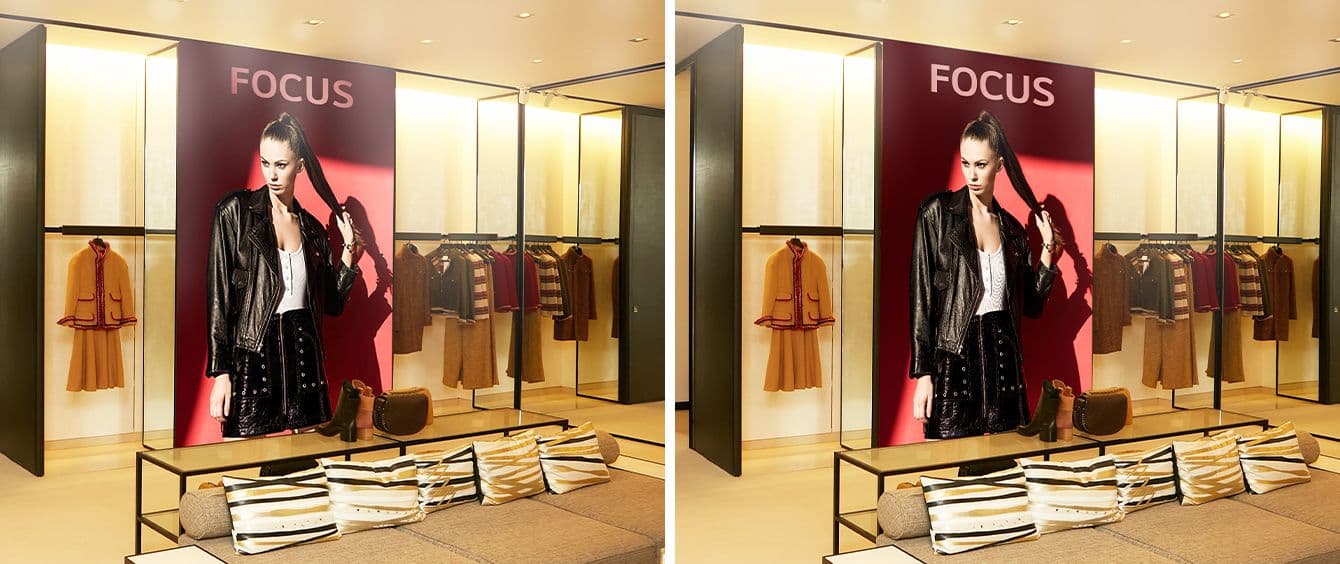

Brightness
With a great brightness of 600 nits, it clearly delivers content and attracts public attention, making it ideal for achieving bright indoor visibility.

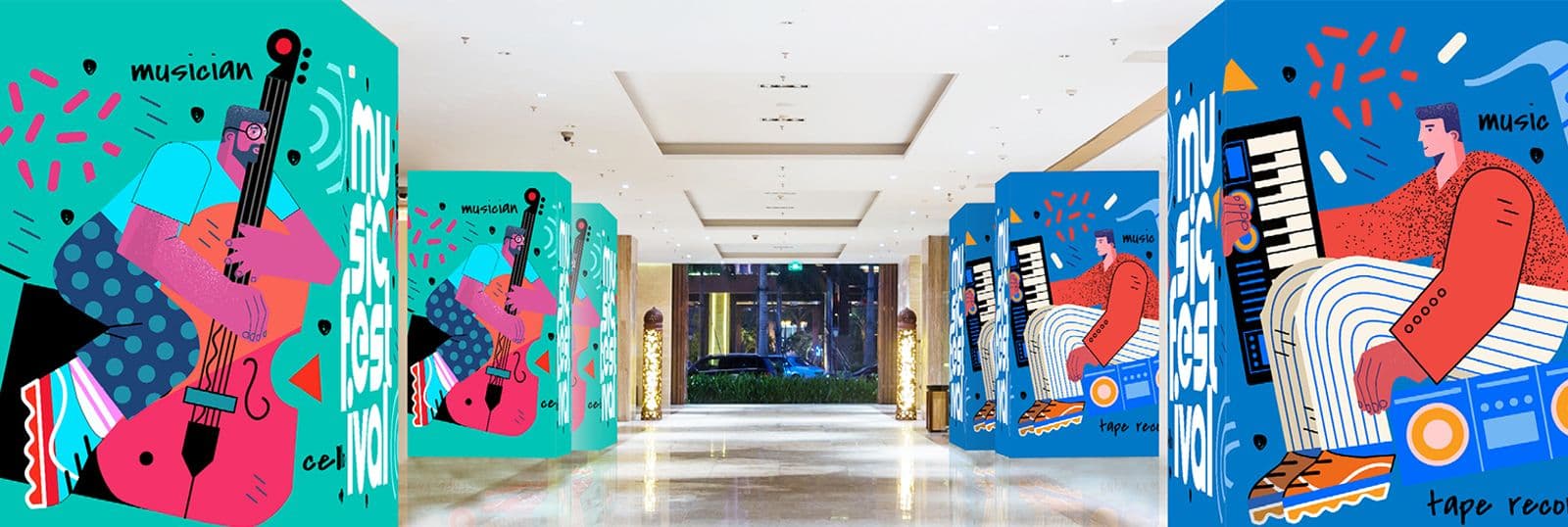

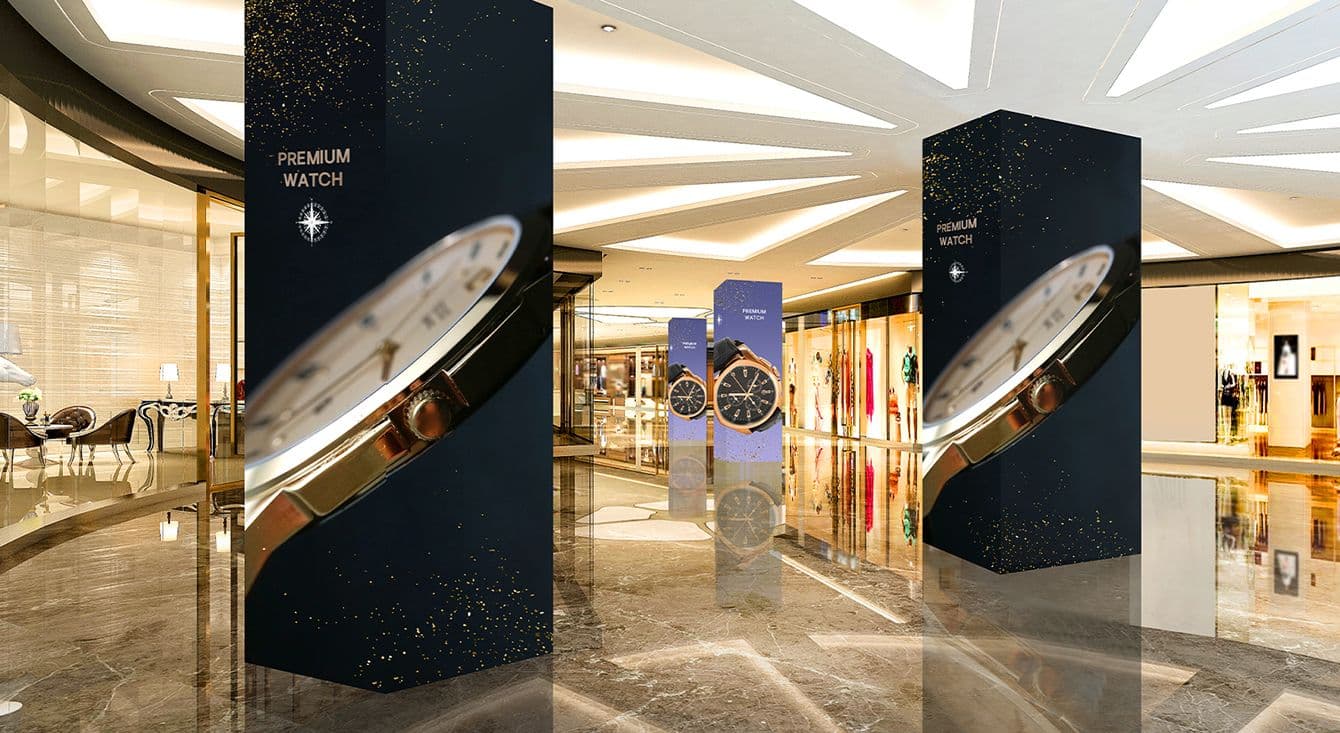

90° Corner Design Available
If you add 90° corner option, the LSBE series fits naturally into the space and delivers smooth content to customers.

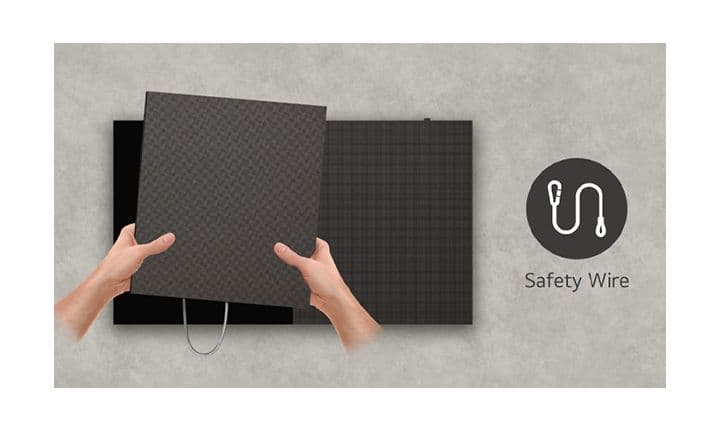

More Secure Maintenance with the Use of Safety Wire
When removing a module from the cabinets, the safety wire helps secure maintenance by preventing screen and module drops.
Durable Frame Design
LSBE incorporates an aluminum cabinet that enhances durability, and its high-strength frame, surpassing that of plastic, allows for stable operation.

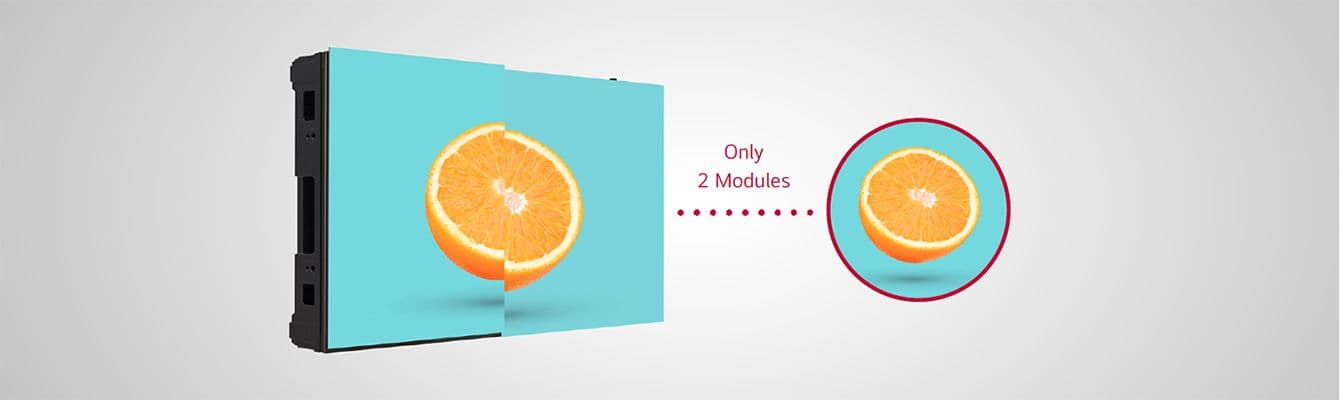

Improved Flatness and Easy Maintenance
LSBE utilizes two modules to form a single cabinet, which helps minimize the gaps between modules compared to cabinets composed of multiple modules resulting in a smoother screen with fewer visible gaps. Moreover thanks to its structural advantage, LSBE allows for easy maintenance.

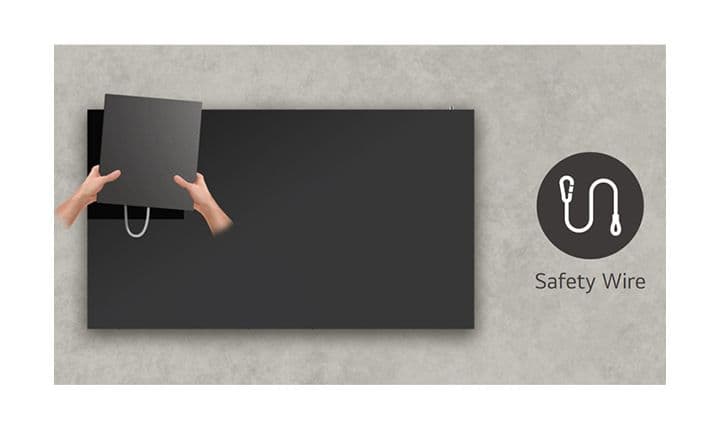

More Secure Maintenance with the Use of Safety Wire
When removing a module from the cabinets, the safety wire helps secure maintenance by preventing screen and module drops.

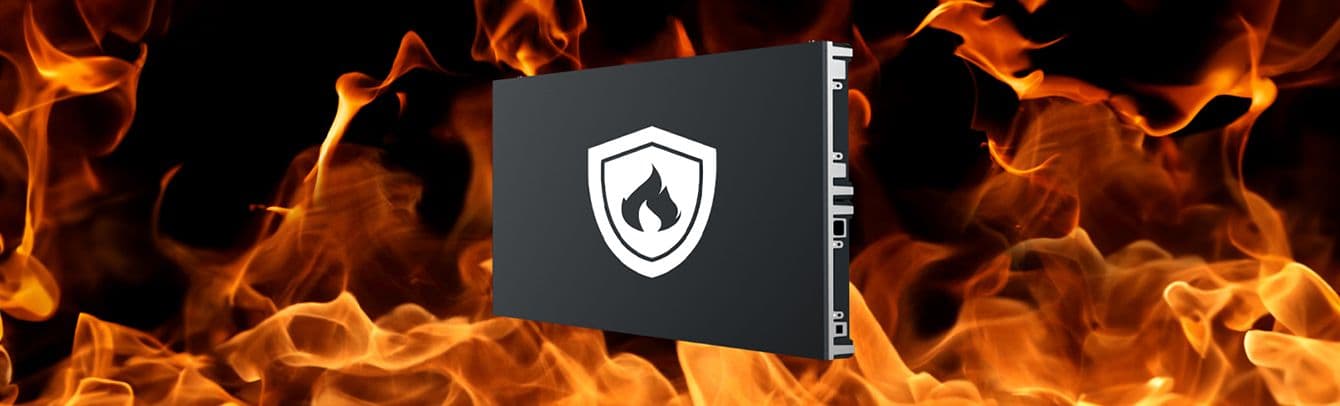

Flame Spread Protection
LSBF is compliant with the standard for assessing flame spread, receiving a Class C rating according to the EN 13501-1:2018 test. With its fire resistance, LSBF contributes to the safety of your space.

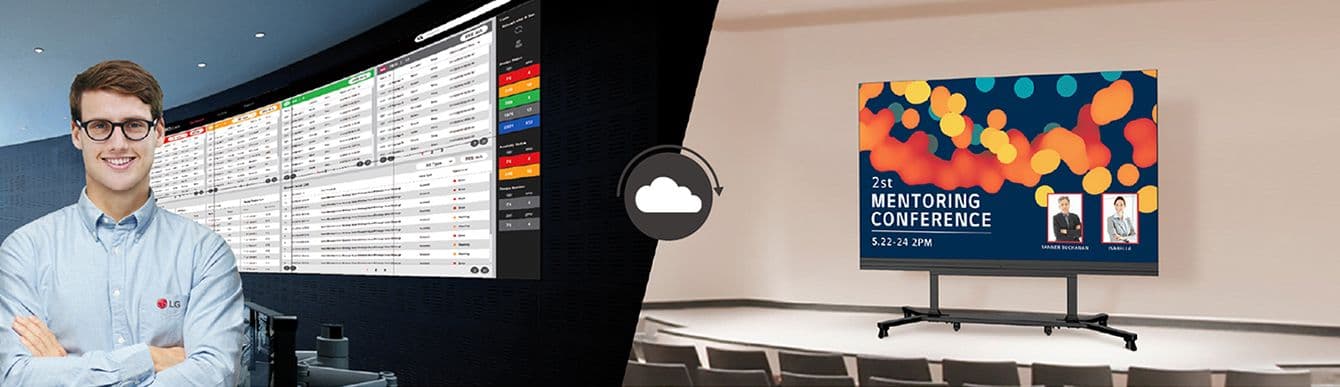

Compatibility with LG Software Solutions
When connected with LG's CVBA system controller, the LSBF series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
Pixel Pitch (mm)
1.56
Pixel Configuration
Single SMD
Module Resolution (W x H)
192 × 216
Module Dimensions (W x H, mm)
300 × 337.5 ×13
Weight per Module (kg)
0.95
Cabinet Resolution (W × H)
384 × 216
Cabinet Dimensions (W × H × D, mm)
600 × 337.5 × 72
No. of Modules per Cabinet (W × H)
2 × 1
Cabinet Surface Area (m²)
0.203
Weight per Cabinet (kg/cabinet)
6.5
Weight per Square Meter (kg/m²)
32.0
Physical Pixel Density (pixels/m²)
409,600
Flatness of Cabinet
±0.3
Cabinet Material
Die-casting Aluminum
Service Access
Front
Max. Brightness (After Calibration)
600
Color Temperature
3,200~9,300
Visual Viewing Angle (Horizontal/Vertical)
160 × 150
Brightness Uniformity
97%
Color Uniformity
±0.003 Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
14
