105BM5N

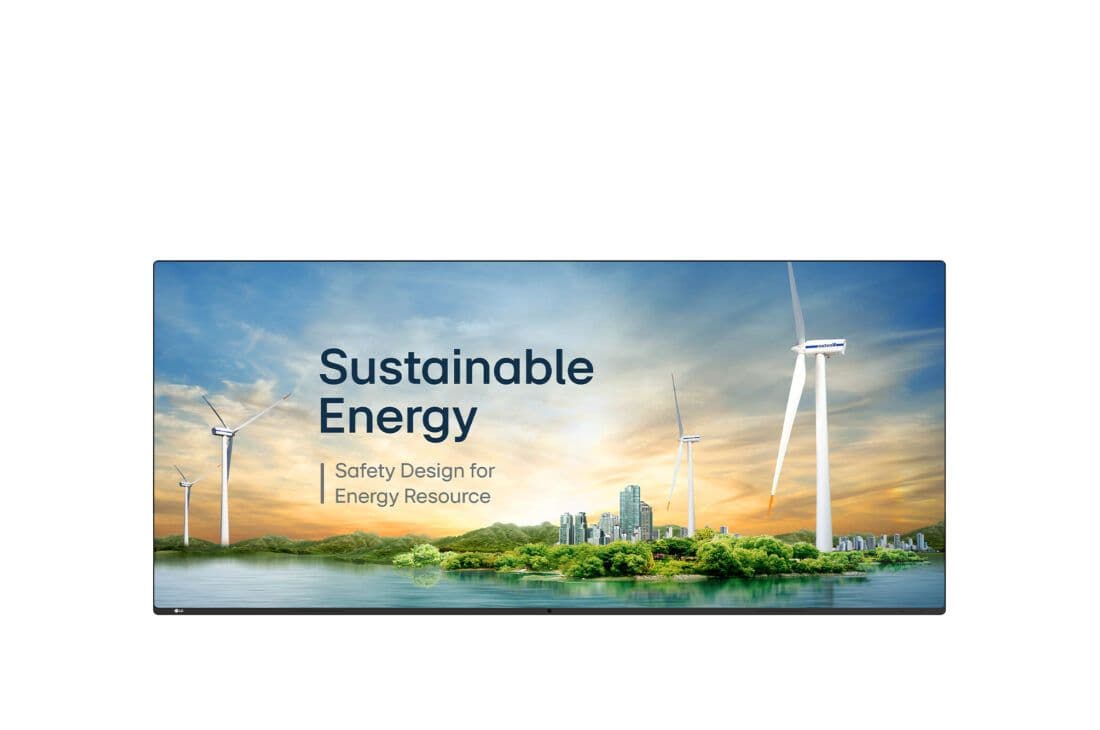

105" Strecth Signage
Key Features
- Screen Size : 105”
- Resolution : 5,120 × 2,160 (5K)
- Brightness (Typ.) : 400 nit
- 21:9 Wide Screen
- Proximity Sensor
- Wireless ScreenShare
Contact us
GGEAR Commercial

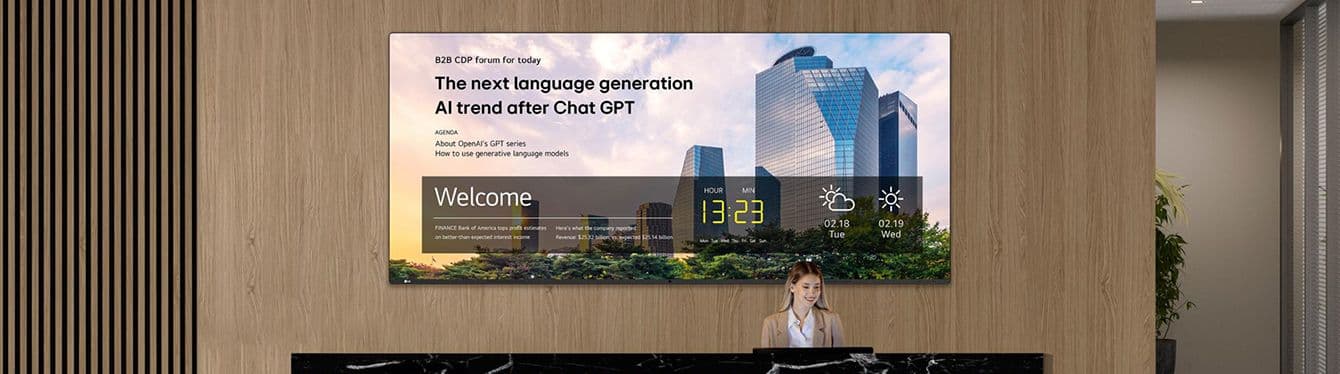

21:9 Widescreen Display Optimized for Business Environments

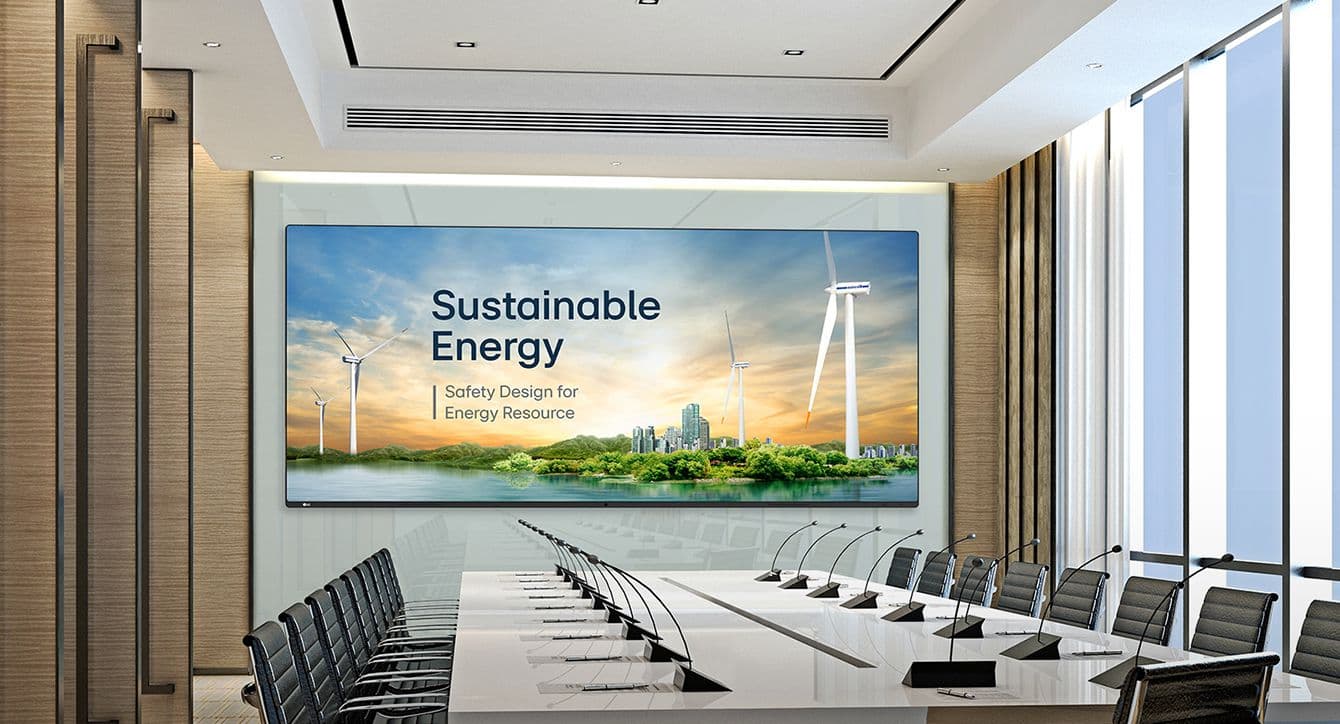

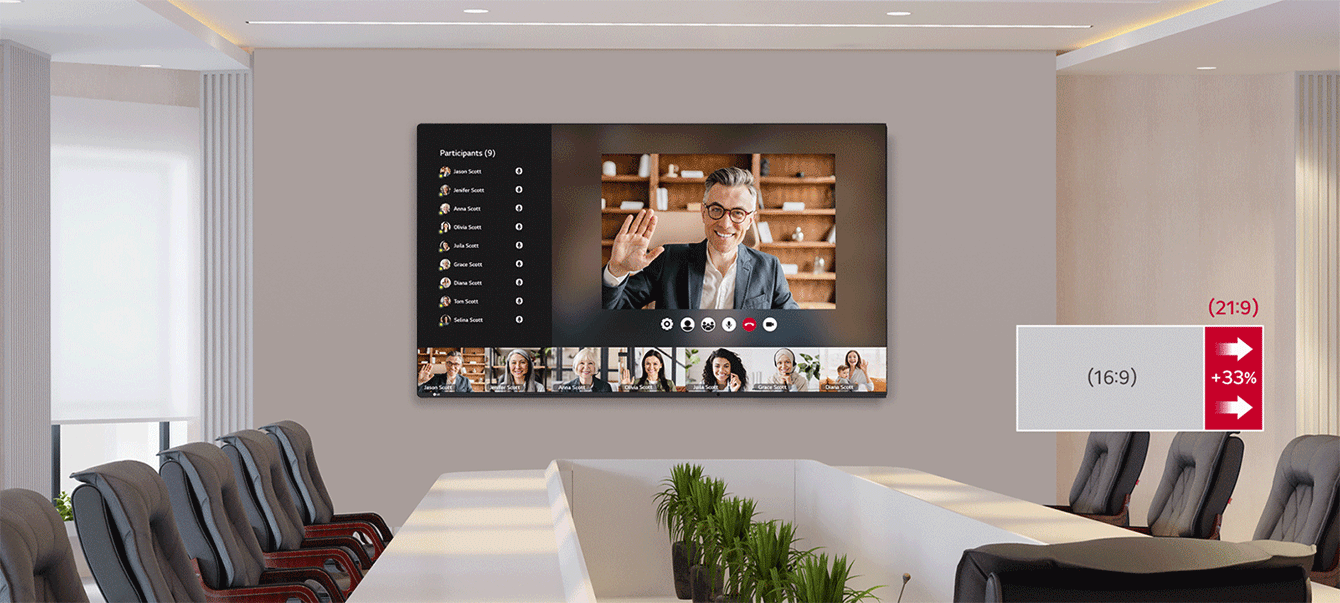

21:9 Extended Wide Format
With support for a 21:9 widescreen aspect ratio, 105BM5N provides an immersive viewing experience with the wider screen than 16:9 display. Its screen specialization helps display 21:9 content including widescreen videoconferencing platforms with the natural details.

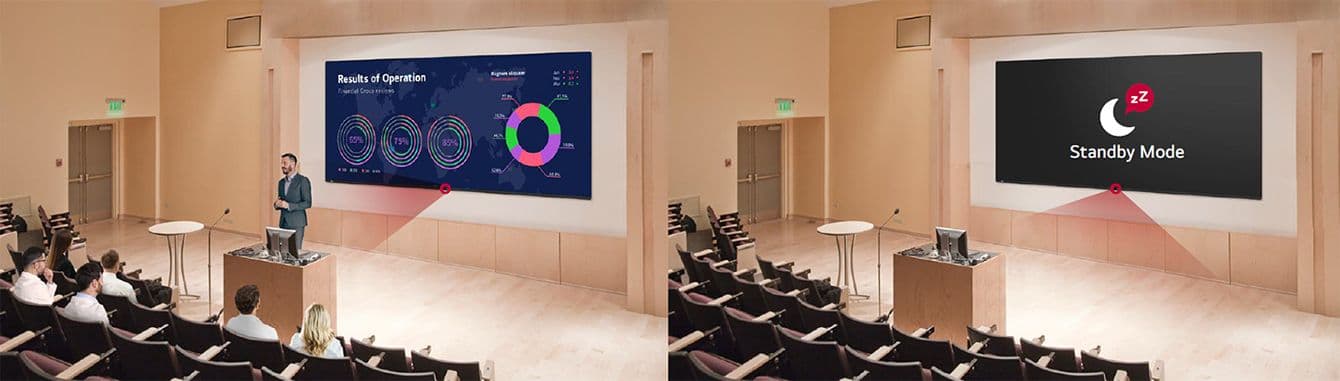

Proximity Sensor
The 105BM5N features a Proximity Sensor positioned in the middle of its base. This sensor monitors for human activity, and when no movement is observed, it transitions the power to a standby mode.

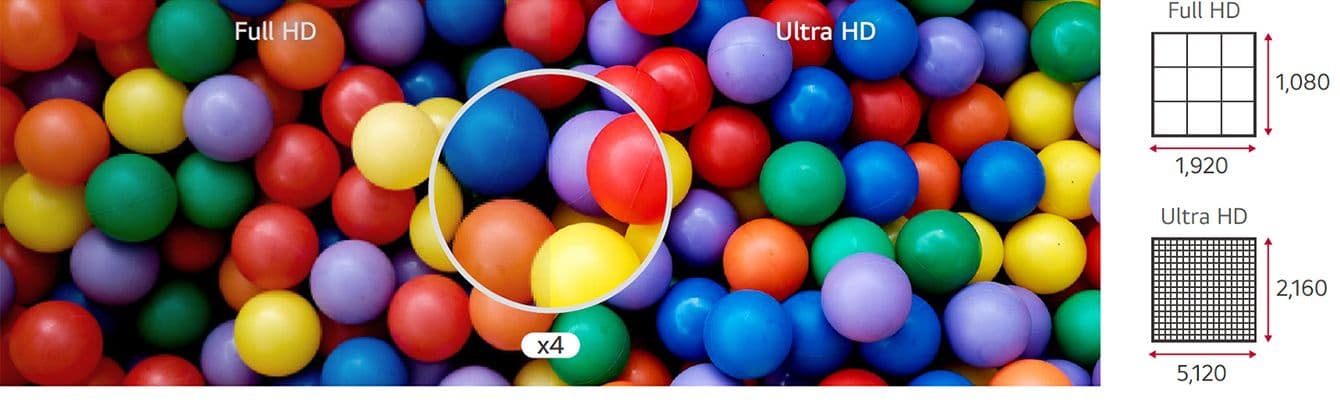

High Resolution Display
It provides a resolution that's more than 4 times higher than FHD, making the viewer satisfied visually. With a resolution of 5,120 × 2,160 and a high pixel density, every single detail of the display screen is conveyed accurately and vividly.

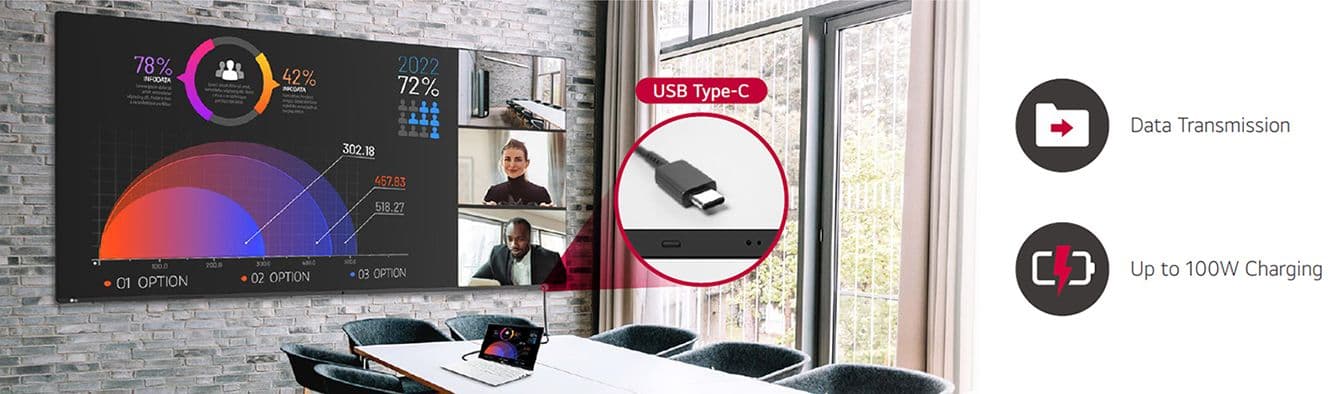

Easily Connect & Charge with USB Type-C
USB Type-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.

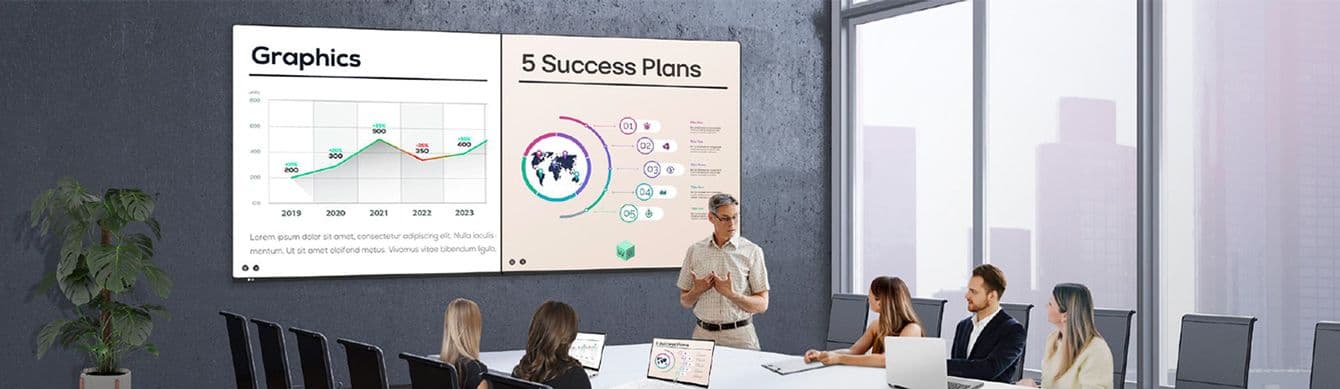

Wireless ScreenShare
Using the LG CreateBoard Share allows for the seamless wireless screensharing of presentation materials, eliminating the clutter of wires and leading to a more streamlined meeting space. This enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the app.

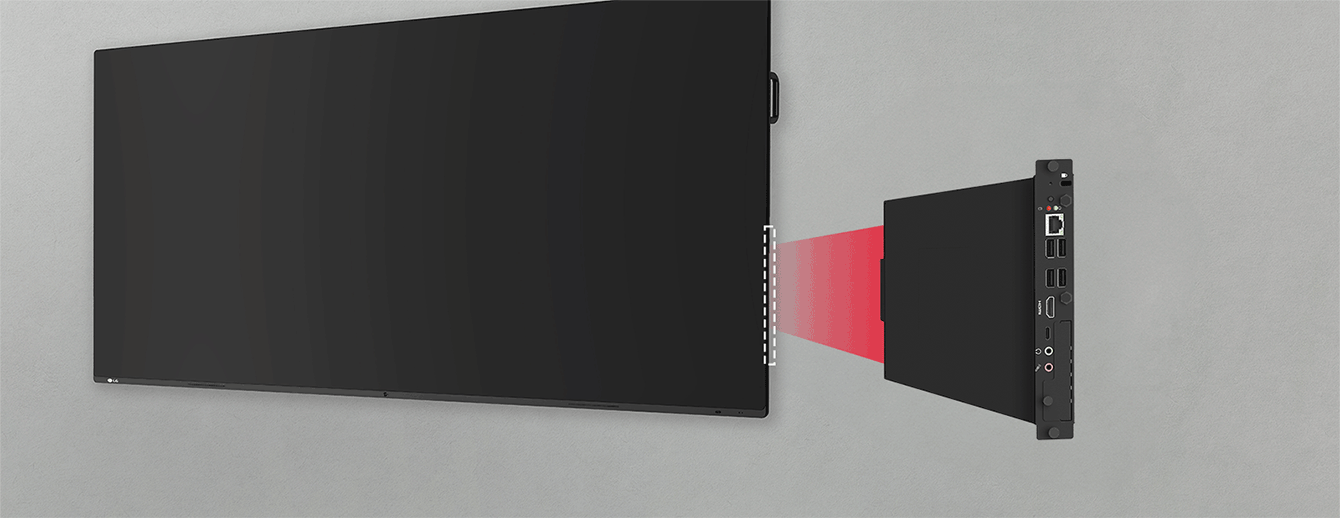

OPS Slot
105BM5N supports OPS slots, allowing you to conveniently mount OPS Module at the back of the screen without the hassle of connecting to an external desktop, enabling various PC functions and Windows software even on the 105BM5N.

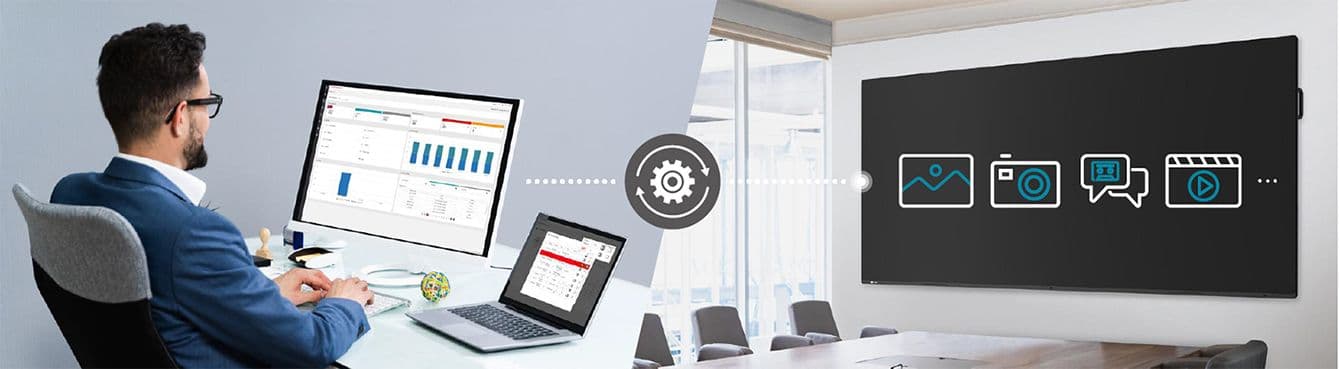

Remote Control
Thanks to LG ConnectedCare DMS, IT manager can select specific devices to be controlled remotely and update their settings all at once. General settings, power settings, application management, and multimedia can all be effectively managed and controlled simultaneously, enabling the stable operation of clients' businesses.
Broadcast / Alert Message
Messages and a range of other content can be sent from the main system's hub to individual devices connected to LG ConnectedCare DMS and you can easily display important company notices or schedules right on your device. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which helps people promptly take a safety action.
Product
Standard (UHD)
Year
Y23
Month
M12
Screen Size (Inch)
105"
Panel Technology
VA, Direct
Aspect Ratio
21:9
Native Resolution
5120 X 2160 (5K)
Refresh Rate
60Hz
Brightness
400nit (Typ.) 350nit (Min.)
Contrast Ratio
4000:1
Dynamic CR
5000:1
Color gamut
NTSC 72%
Viewing Angle(H x V)
178 X 178
Color Depth (Number of Colors)
10bit(8bit + FRC)
Response Time
6.5ms
Surface Treatment (Haze)
25%
Life time
30,000 Hours (Min)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
Yes / Yes
Input
HDMI((4) HDCP 2.3 ※ O(1, HDMI2.1), O(3, HDMI2.0)), DP((1) HDCP 2.3), Audio In, RS232C IN, RJ45(LAN), USB(USB Type C(1)(100W PD, DP-Alt), USB3.0 Type A(4), USB2.0 Type A(3), USB2.0 Type B out (3))
Output
Audio Out(1, Optical 1(SPDIF)), RJ45(LAN)
Bezel Color
Black
Bezel Width
T/R/L/B : 3.5/3.5/3.5/23mm
Weight (Head)
90.1Kg
Packed Weight
122.9Kg
Monitor Dimensions (W x H x D)
2510.6 X 1123.1 X 93.6mm
Carton Dimensions(W x H x D) (Box outer size)
2668 × 280 × 1305 mm
Handle
Yes
VESA™ Standard Mount Interface
1000 X 400mm
Protection Glass-Depth
4mm
Protection Glass-Degree of Protection
Full Toughening
Protection Glass-Tempered / Chemical strengthening
Thermal Tempering
Protection Glass-Anti-Reflective
5%
Protection Glass-Shatter-Proof
Yes
HW
Internal Memory(64GB), Built-in(Slot type), Auto Brightness sensor, Proximity Sensor, Power Indicator, Local Key Operation(Power Key)
SW
webOS ver.(Android 13.0 (AOSP)), USB Plug & Play, Screen Share(LG CreatBoard Share), Wake on LAN, Network Ready, HDMI-CEC
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 90 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
350W
Max.
850W
BTU (British Thermal Unit)
1194 BTU/Hr(Typ.), 2900 BTU/Hr(Max)
DPM
≤0.5W
Power off
≤0.5W
Speaker
16W x 2 + 15W
Safety
CB / NRTL (cULus)
EMC
FCC Class "A" / CE
ErP / Energy Star
Yes / Yes
OPS Type Compatible
Yes (Slot)
OPS Power Built In
Yes
LG ConnectedCare DMS
Yes
Optional
Stand(ST-653T), Wall bracket(LSW240B), OPS Kit(KT-OPSF)
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
SoC
A76x4 + A55x4
GPU
Mali-G610 MP4
Internal Memory - Storage
64GB
Internal Memory - RAM
8GB
Wi-Fi
802.11a/b/g/n/ac/ax (WiFi 6)
LAN
Gigabit LAN
Bluetooth
Bluetooth 5.2
DPM
Yes
Power On/Off Schedule
Yes
Power On Default (Power On)
Yes
Customized Background
Yes
Input Auto Switching
Yes
LG RS232C Command
Yes
Power on Status
Yes
No Signal Power Off
Yes
No IR Power Off
Yes
100W PD (w/USB-C)
Yes
