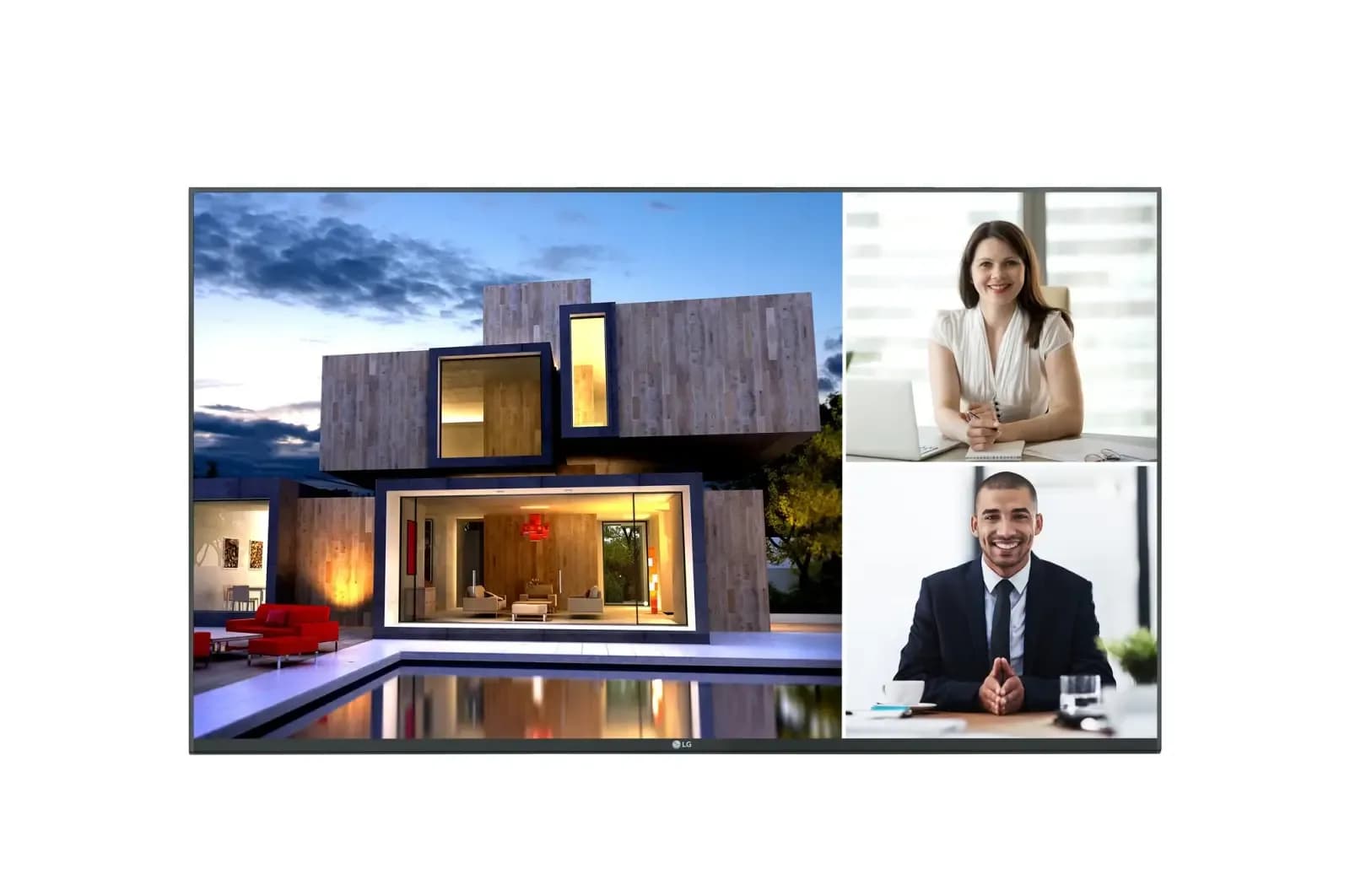

LAA015F
130″ All-in-one Premium Series
Key Features
- Pixel Pitch: 1.5mm
- Screen Size: 130"
- Brightness: 500 cd/m²
- HDR (HDR10/HDR10 Pro) / Surface Sound
- Embedded System Controller
Contact us
GGEAR Commercial

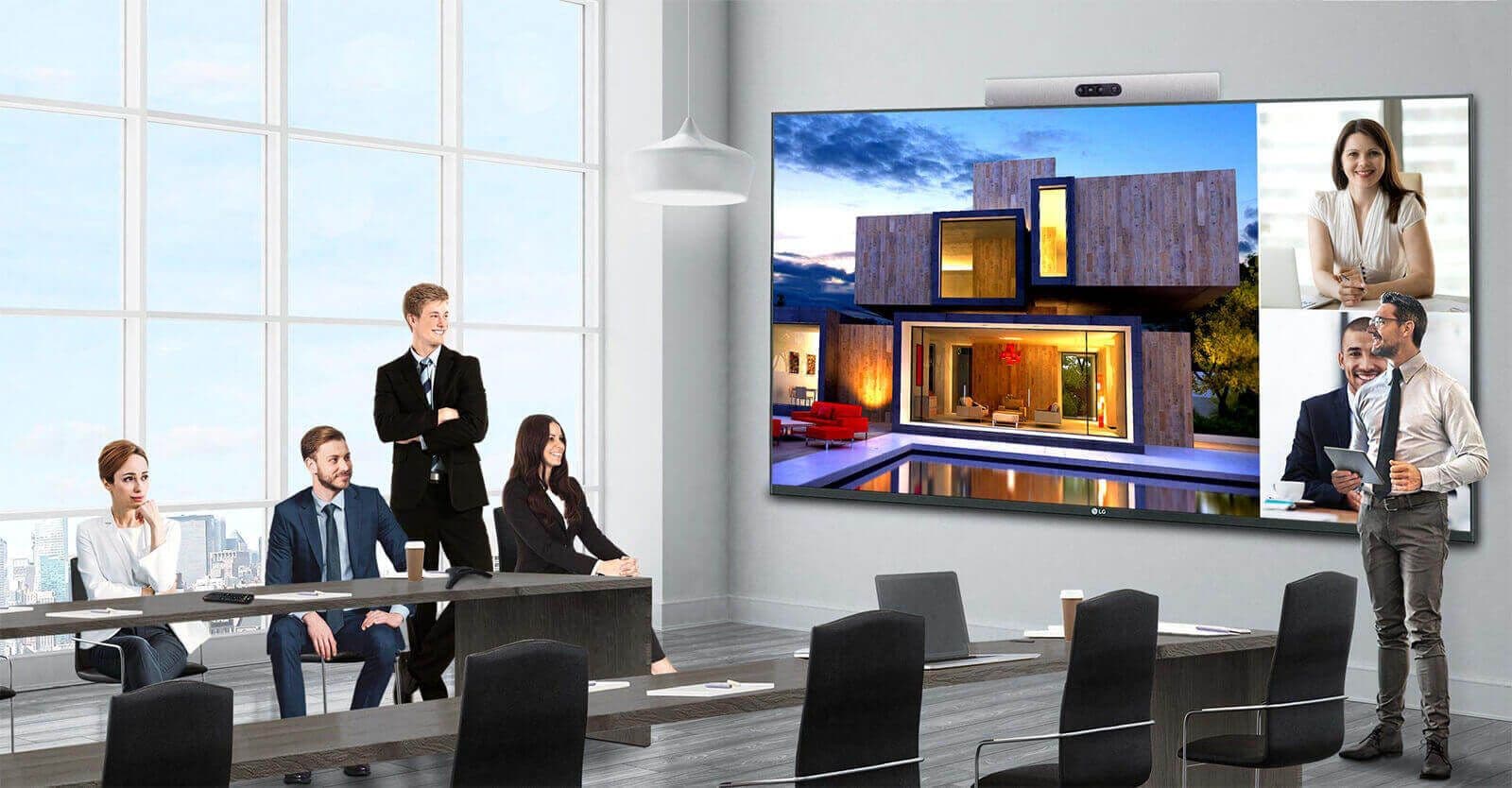

130" Large Screen with No Bezel
The greatest advantage of LG's LED screen is the 130-inch large-sized screen with no bezel. Even bigger than four 55-inch conventional LCD displays combined, it displays content without lines or distortions and provides a more immersive visual experience.

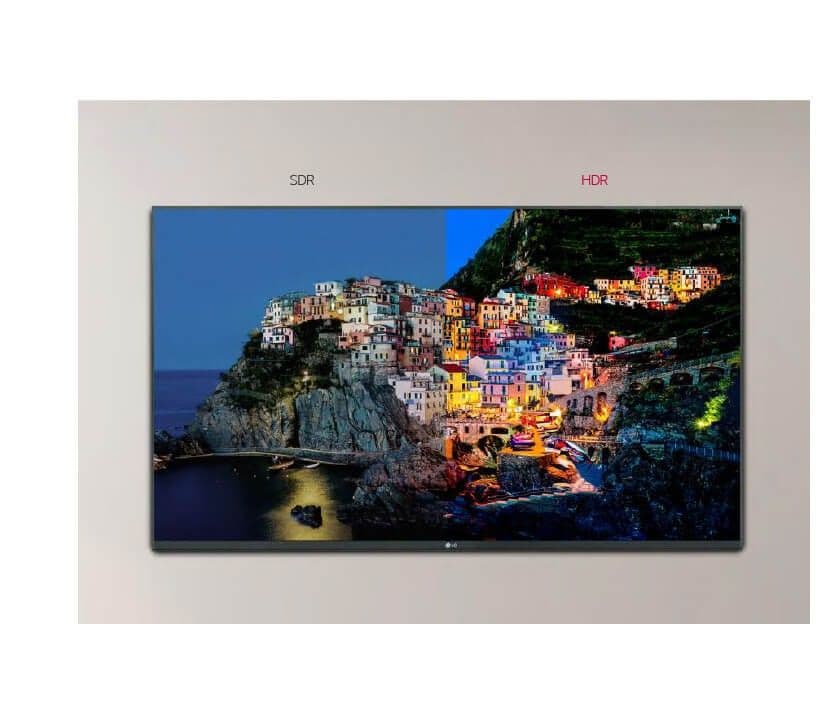

Vivid Color Expression Powered by HDR
With HDR (HDR10, HDR10 Pro*) support, content becomes more vivid and has greater visual impact. The wider color spectrum and greater contrast ratio allows viewers to fully enjoy content as it appears in real life.
Immersive Surface Sound
The 130" All-in-one LED Screen doesn't require any additional speakers for its impactful audio effect. Its embedded Surface Sound comes from the entire screen with 162W (4.5W x 36points) and is able to reach all meeting attendees, including people seated far from the screen.

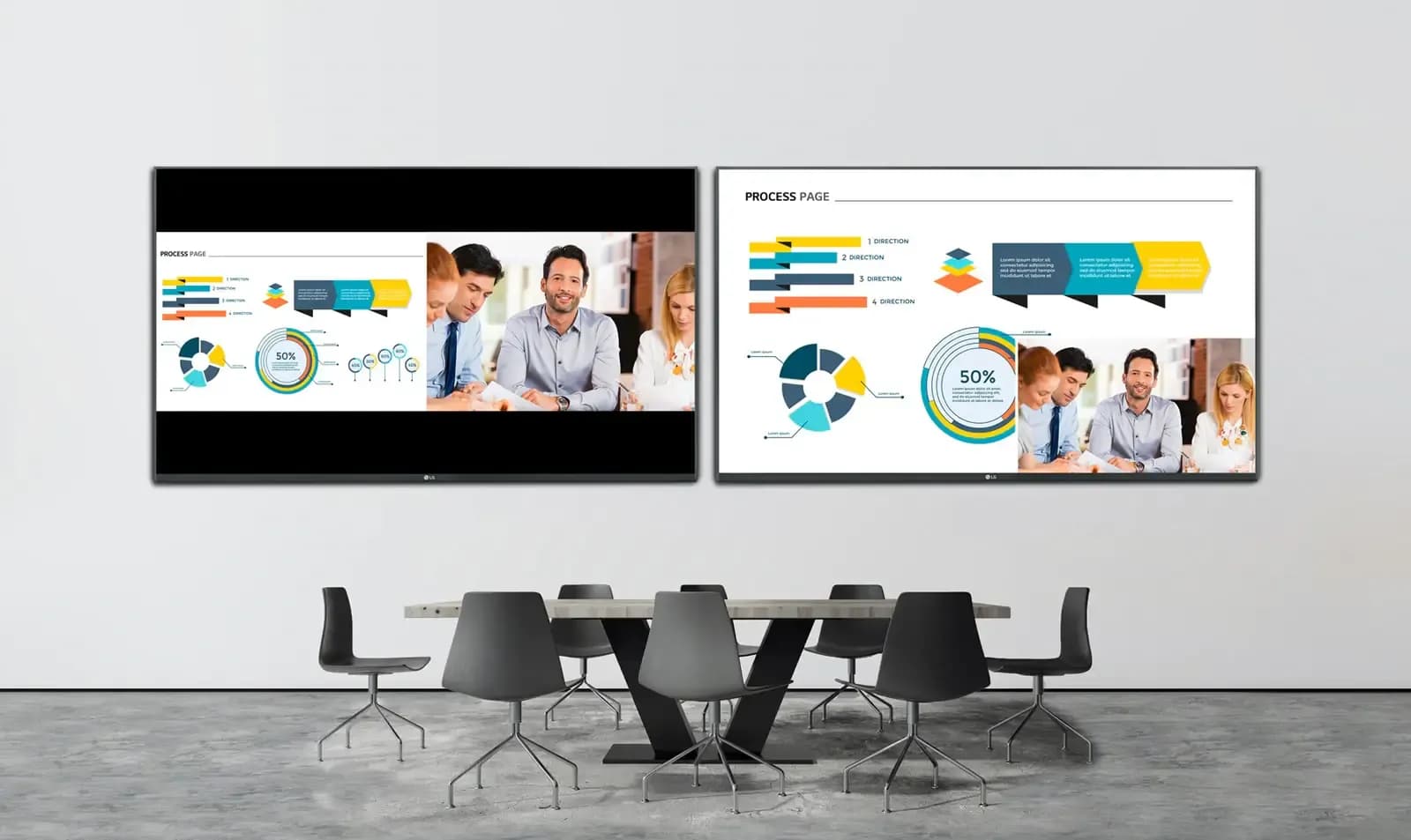

Multi Screen with PBP/PIP
PBP (Picture-By-Picture) features multi screen in a single display with upto 2 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

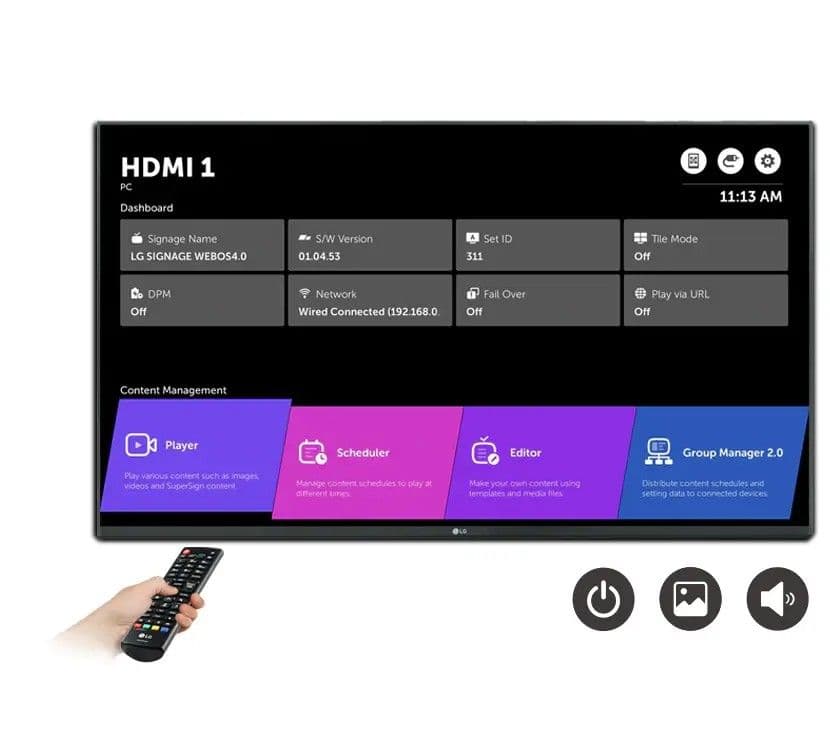

Easy Remote Control Support
The 130" All-in-one LED Screen allows the user to easily access the settings, such as picture mode, volume, etc. using a remote control instead of needing to connect to a PC. It uses the same UI as general LG digital signages, so users can easily learn how to use it.

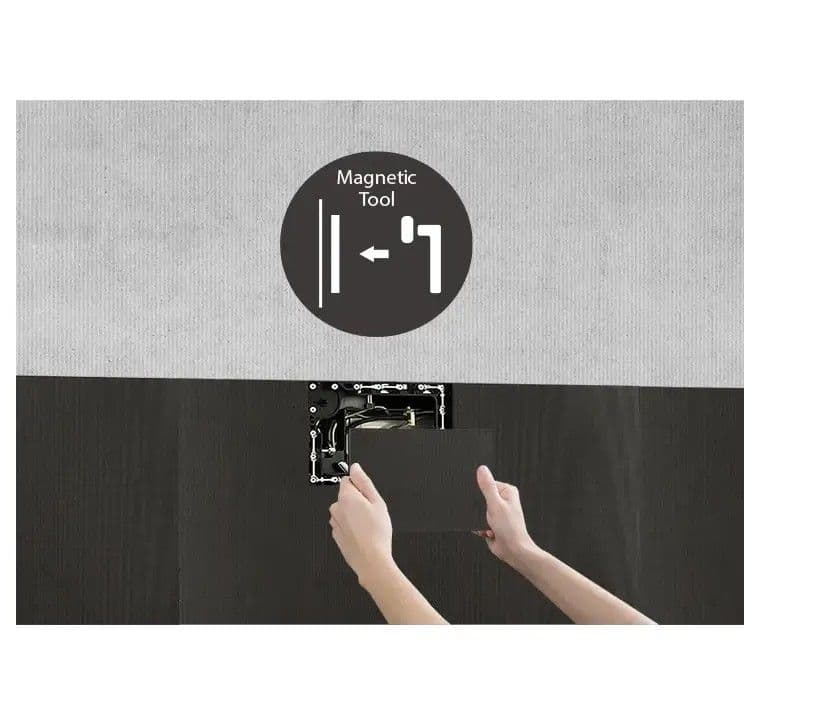

Front Serviceability
The LED screen can be easily installed and managed from the front side for easy operation. Its LED modules can also be simply attached or detached by hand or with a magnetic tool.

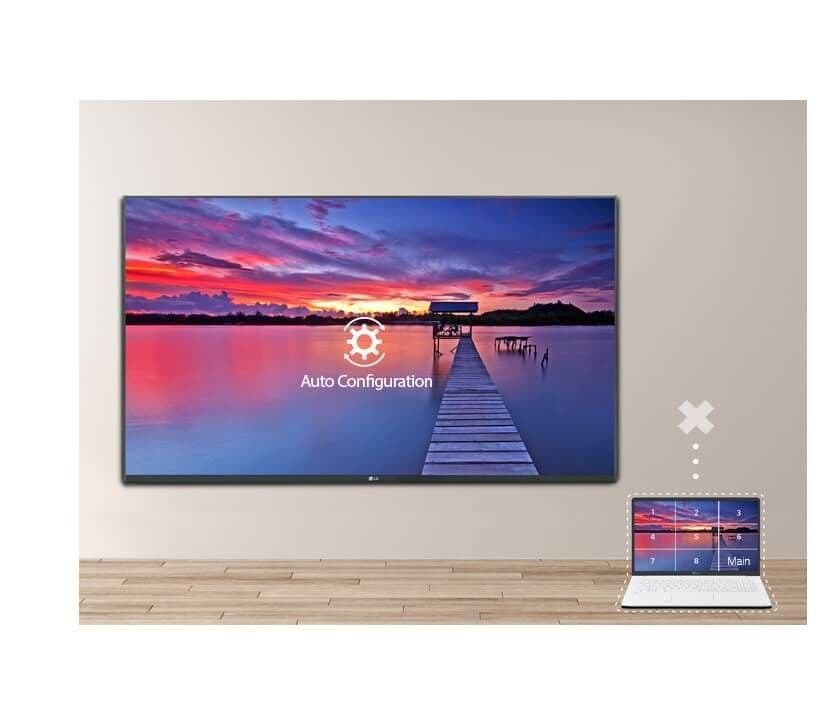

Auto Configuration
LG's 130" All-in-one LED Screen is composed of one main cabinet and eight secondary cabinets. Each cabinet automatically recognizes its location and setting values, so the screen doesn't require any complicated screen setup process. All you need to do is turn on the screen.

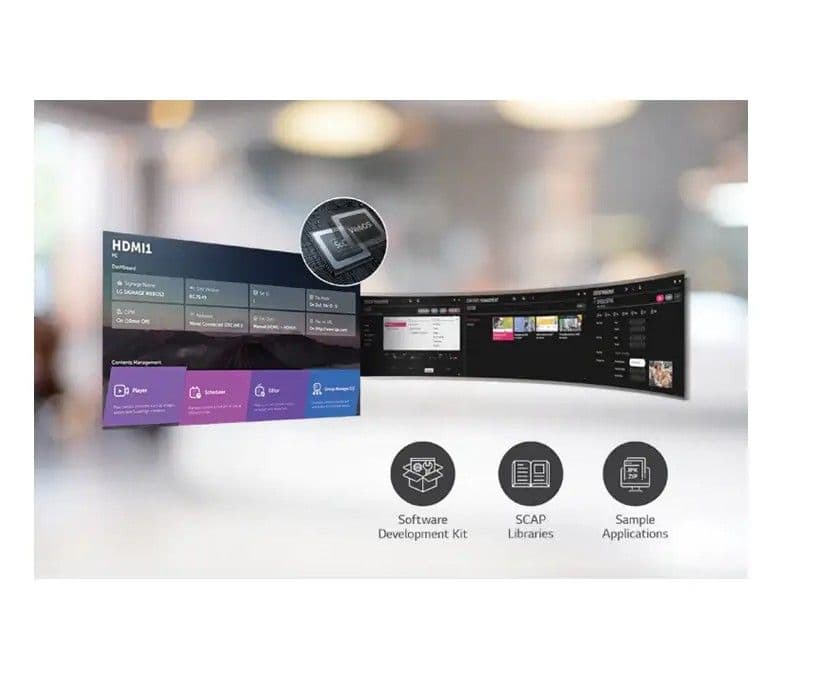

High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

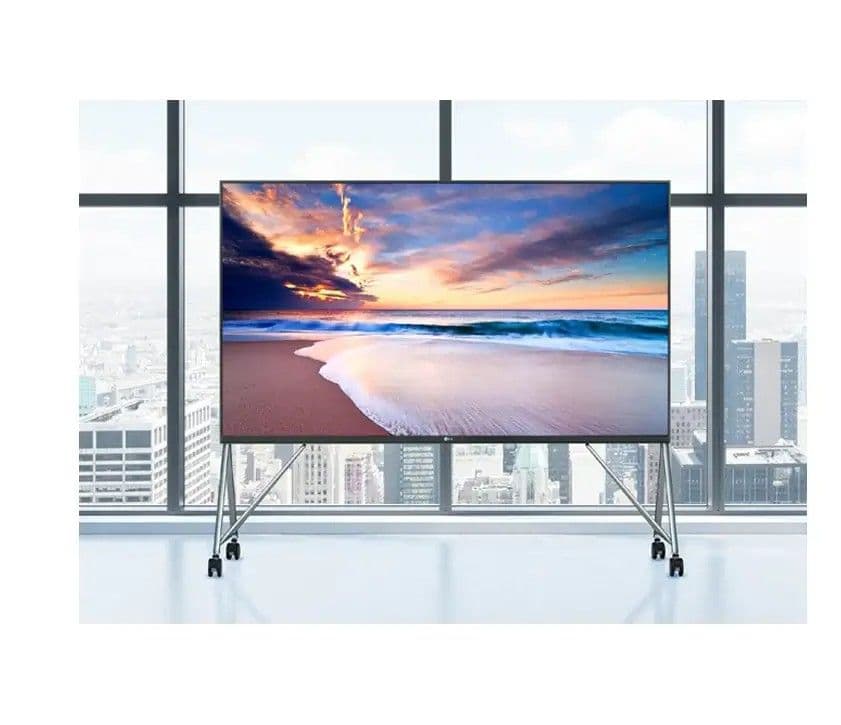

Free Standing Option
LG offers an optional stand accessory for customers who can’t choose a wall mount installation. It makes them move this 130-inch large screen easily and provides a sleek design that harmonizes with any space.

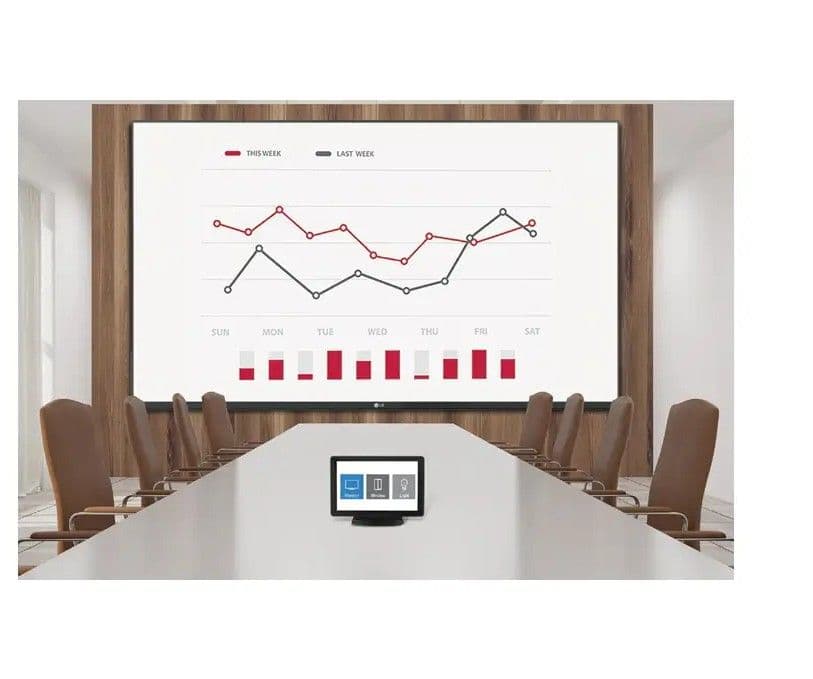

Compatibility with AV Control Systems
The LED screen has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network-based control

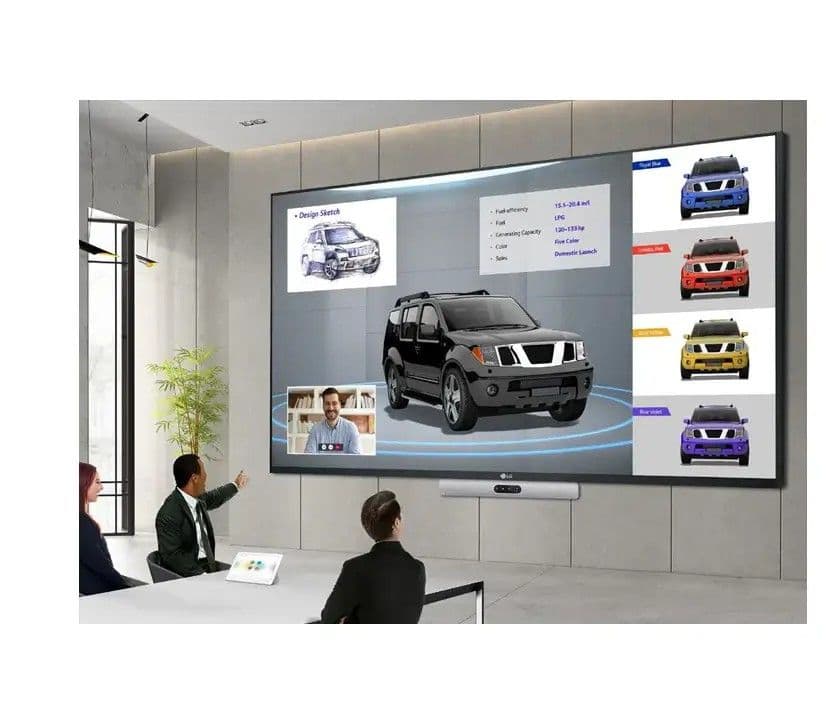

Compatibility with Video Conference System
For the optimum visual meeting, the 130" All-in-one LED Screen has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
* Using an HDMI cable connection
SuperSign Solution
The LED screen is compatible with LG SuperSign CMS, which is a comprehensive software solution for integrated content management. This makes content creation and distribution much easier, helping your business save time and operate more effectively across its locations.
iF DESIGN AWARD 2020 Winner
Red Dot Design Award 2020
Pixel Configuration
3 in 1 SMD
Screen Resolution (W × H)
1,920 × 1,080
Screen Weight (kg)
162.1 kg (w / o Screen Frame)
No. of Modules per Cabinet (W × H
4 × 3
Cabinet Dimensions (W × H × D)
960 × 540 × 128.5 mm
Weight per Cabinet (kg/unit)
Main: 19.3 Secondary: 17.8
Physical Pixel Density (pixels/m²)
444,444
Cabinet Material
Front: Die Casting Aluminum Rear: PC+ABS
Pixel Pitch (mm)
1.50
Screen Dimension (W × H × D,mm)
2,880 × 1,620 × 128.5 mm (w / o Screen Frame)
No. of Cabinet per Screen (W × H)
3 × 3
Cabinet Resolution (W × H)
640 × 360
Cabinet Surface Area (m²)
0.52
Weight per Square Meter (kg/m²)
34.7
Flatness of Cabinet
± 0.2 mm
Service Access
Front and Rear
Brightness (Max.)
500 nit
Visual Viewing Angle (Horizontal)
160
Brightness Uniformity
95%
Contrast Ratio
5,000 : 1
HDR Compatibility
HDR10, HDR10 Pro ※ HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
Color Temperature
6,500
Visual Viewing Angle (Vertical)
140
Color Uniformity
±0.015Cx,Cy
Processing Depth
16 bit
Operation Temperature
0℃ to 40℃
Operation Humidity
10 % to 80 %
Lifetime (Hours to Half Brightness)
100,000
Video Inputs
HDMI In (3), DP In, USB 2.0
Special Features
Temperature Sensor, Ambient Light Sensor, Crestron Connected®(Network based control)
Control
RJ45 In, RS232C In/out
Sound Output (Max.)
162W
Power Consumption (W/Screen, Avg.)
980
Power Supply (V)
AC 100 - 240 V
Refresh Rate (Hz)
3,840
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
Environment
RoHS
EMC
FCC Class A / CE / KC
Basic
Data Cable, LAN Cable, Power Cord, RS232C Gender (9 Pin to Phone Jack), Remote Controller, IR Receiver, Manual
Optional
Screen Frame (ACC-LAASF15), Floor Stand (ST-1300F)
Platform
webOS 4.0
Support
Signage365Care (The availability differs by region), SuperSign CMS, LED Assistant
