LSBB015
1.56 mm LG Indoor LED
Key Features
- Pixel Pitch: 1.56 mm
- Brightness: 600 nit
- Status Indicator of Signal Detection
- Front Serviceability
- Easy-handling Lightweight Cabinet
- Compatibility with LG Software Solutions
Contact us
GGEAR Commercial
Fine-pitch Essential Series

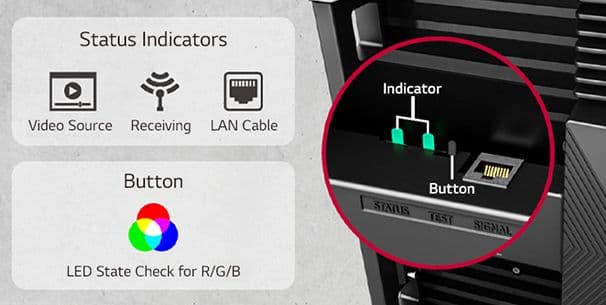

Status Indicator of Signal Detection
Status indicators and button are in the main frame of the cabinet structure, and can be accessed from both front and back.

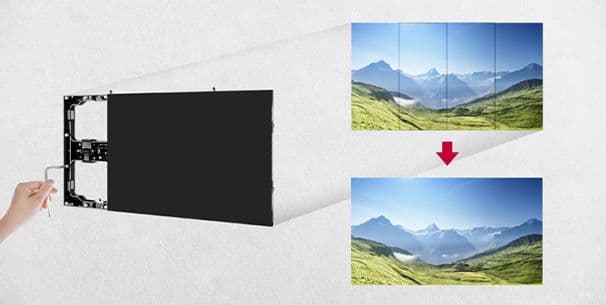

Easy Alignment in Z-direction
A uniform tool can be used for X/Y/Z 6-axis adjustment between panels. Module can be easily adjusted in Z-direction, and flatness can be optimized again.

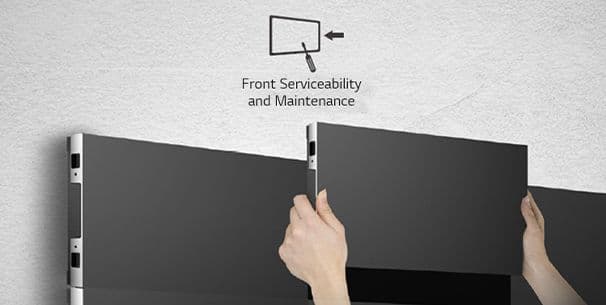

Front Serviceability
The product offers front access, freeing customers from needing rear access space.
Easy-handling Lightweight Cabinet
It’s lightweight and easy to install, effectively reducing the risk of damage during installation. A full set of LED screens is still light, reducing strain on the structure holding the screens.

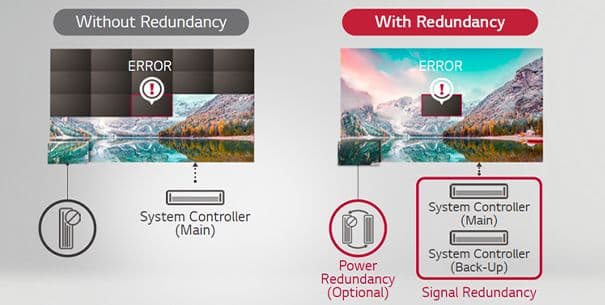

Signal Redundancy
With an additional controller, a back-up controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy).

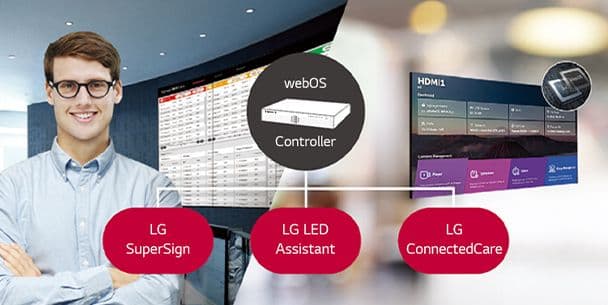

Compatibility with LG Software Solutions
Powered by LG’s high performance system controller, the LSBB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
Piexel Configuration
3 in 1 SMD
Pixel Pitch (mm)
1.563
Module Resolution (W x H)
96 × 216
Module Dimensions (W x H, mm)
150 × 337.5
Weight per Module (Kg)
0.50
No. of Module per Cabinet (W x H)
4 × 1
Cabinet Resolution (W x H)
384 × 216
Cabinet Dimensions (W x H x D, mm)
600 × 337.5 × 56
Cabinet Surface Area (m²)
0.203
Weight per Cabinet (kg/cabinet)
6.0
Weight per Square Meter (kg/m²)
30.0
Physical Pixel Density (pixels/m²)
409,600
Flatness of Cabinet
0.5
Cabinet Material
Die Casting Aluminum
Service Access
Front
Max. Brightness (After Calibration)
600
Color Temperature
3,200-9,300
Visual Viewing Angle (Horizontal/Vertical)
160 × 140
Brightness Uniformity
97%
Color Uniformity
±0.003 Cx,Cy
Contrast Ratio
5,000 : 1 (Typ.)
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
120
Power Consumption (W/Cabinet, Avg.)
40
Power Consumption (W/m², Max.)
600
Power Consumption (BTU/Cabinet, Max.)
409
Power Consumption (BTU/Cabinet, Avg.)
136
Power Consumption (BTU/㎡, Max.)
2,047
Power Supply (V)
AC 100-240 V (50-60 Hz)
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-20 to +40
Operating Humidity
10-80% RH
IP rating Front / Rear
IP5X / IP5X
