LAEC018
All-in-One LED Display with webOS
Key Features
- Pixel Pitch: 1.88 mm
- Screen Size: 163” (Full HD)
- Brightness: 500 nit (Max., after calibration)
- Embedded System Controller
- Built-in Speaker
- Dedicated Accessories : Wall Mount, Dedicated Stand (Optional)
Contact us
GGEAR Commercial
All-in-One LED Display with webOS
All-in-One LED Screen with Built-in Speaker
All-in-One LED Screen with Built-in Speaker

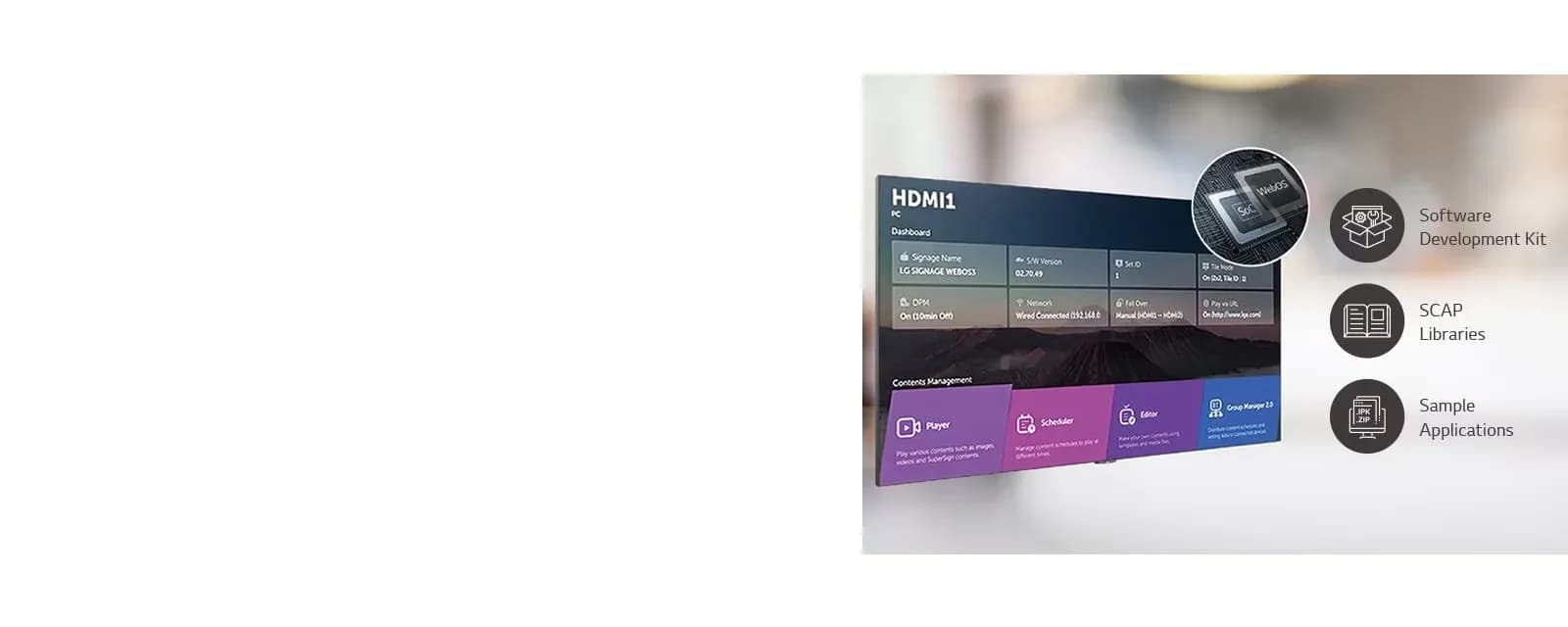

High Performance with webOS
High Performance with webOS

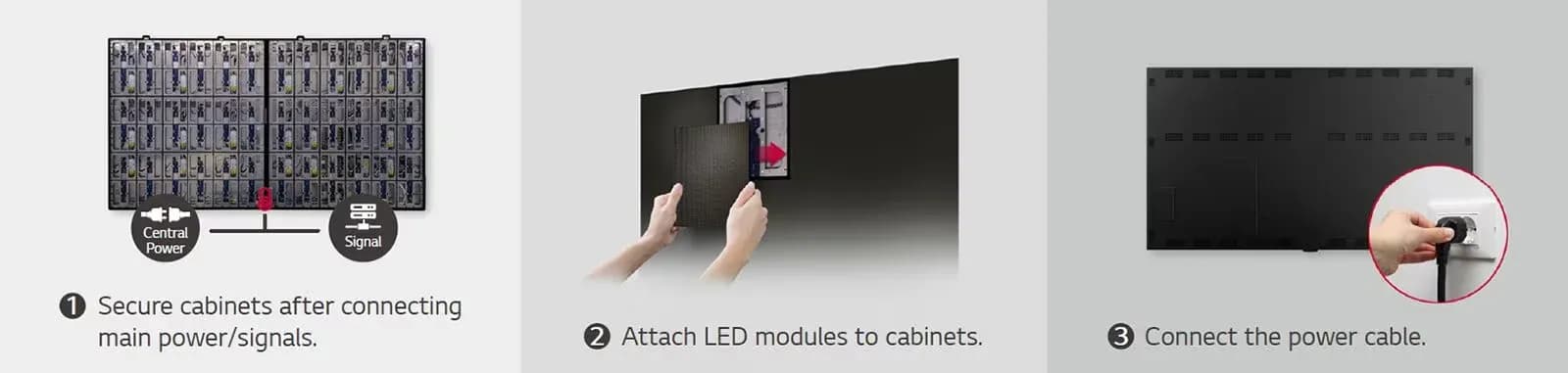

Easy Installation
The installation process of the All-in-One Smart series is very simple. After securing cabinets (two for LAEC015, three for LAEC018), attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.

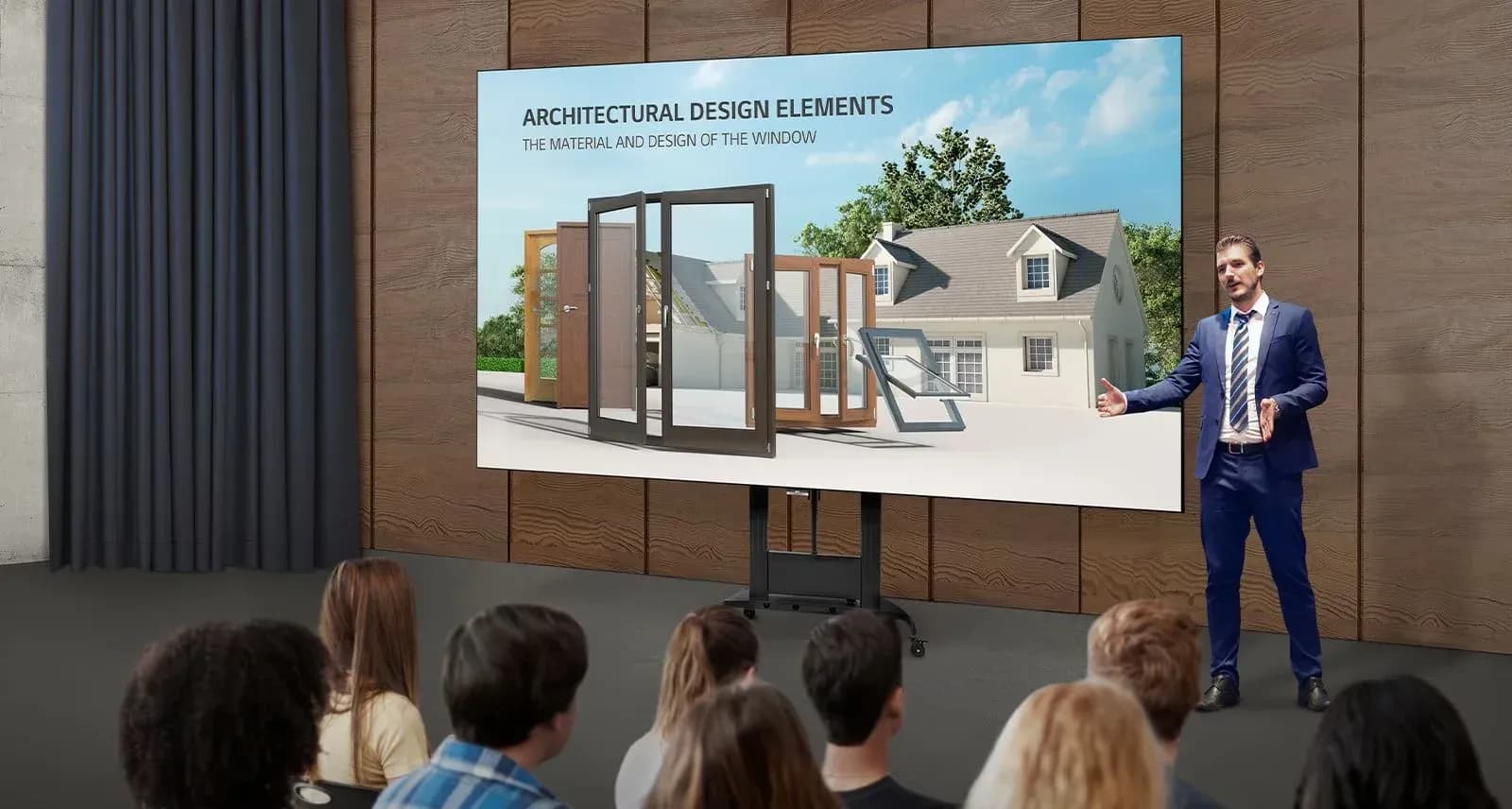

Versatile Installation with Dedicated Accessories
The product is offered with the necessary component including the landscape wall mount and tools for installation. The dedicated stand* is provided as an option, so that you can easily place it depending on your installation sites. Also, the LAEC series can be installed side by side in the form of 1 × N or 2 × N, up to 14 screens, suitable for its installation site and its purposes.

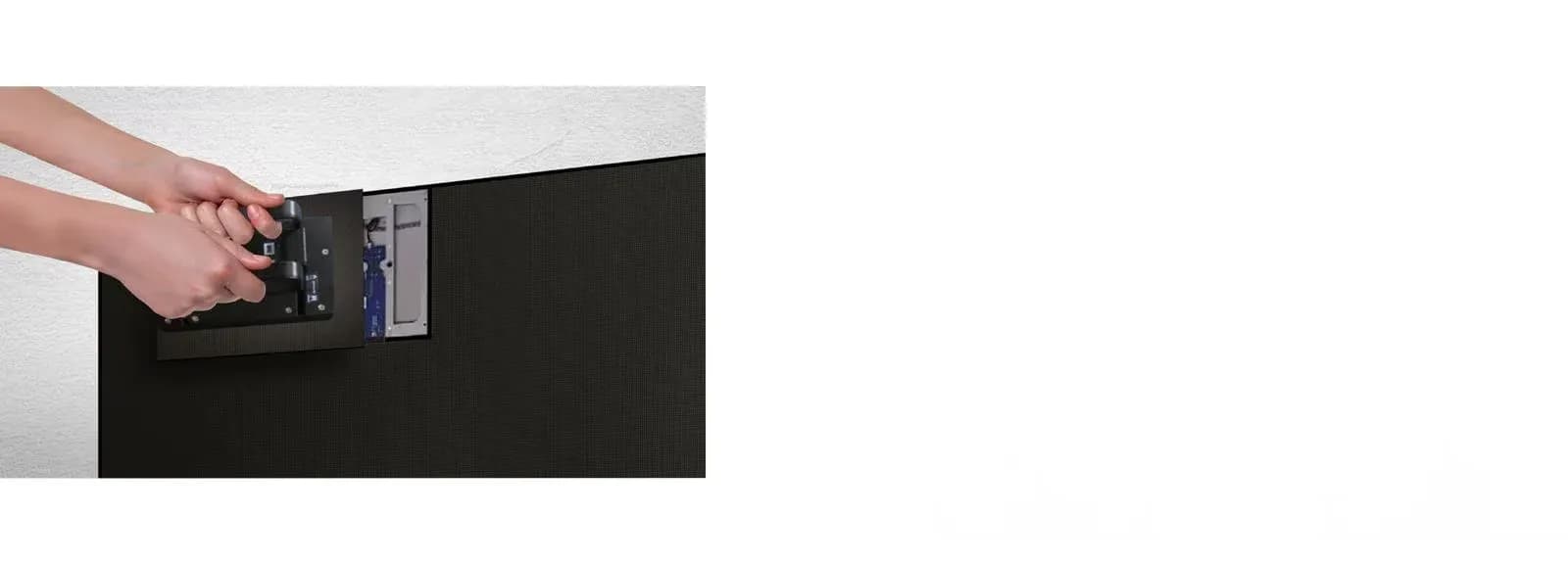

Quick Maintenance
Quick Maintenance
Real-time LG ConnectedCare
Real-time LG ConnectedCare
Compatible with AV Control Systems
Compatible with AV Control Systems
Wireless Screen Sharing
Wireless Screen Sharing

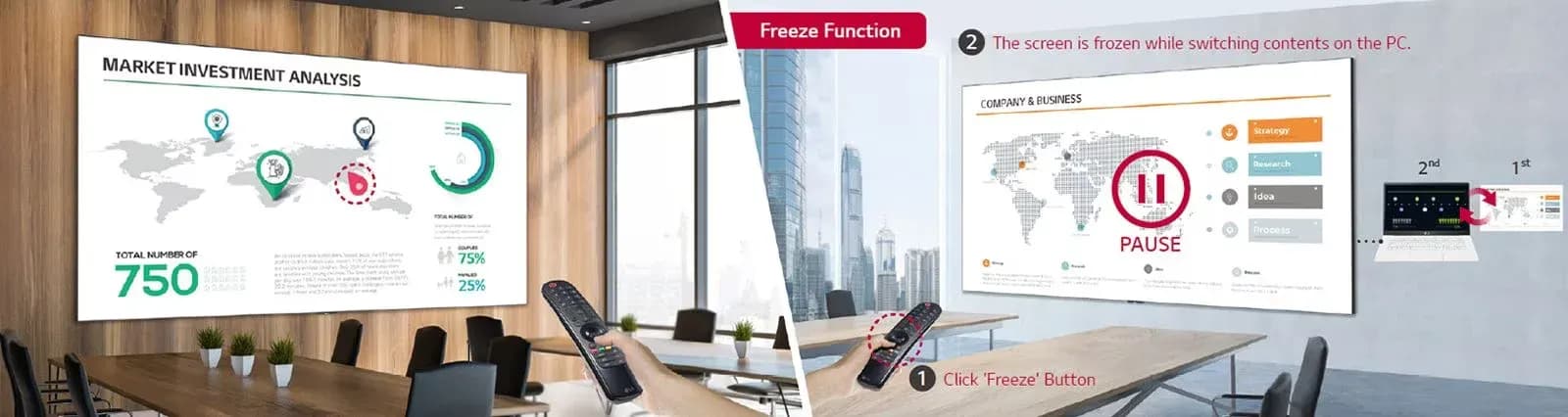

Magic Remote for Easy of Use
With the LG Magic Remote, you can select and run the menu of the signage just like using a mouse and its cursor can be used as a laser pointer. In addition, through the newly added 'FREEZE' button on the remote control, users can temporarily freeze the screen while switching contents on the PC, so that users are able to have uninterrupted meetings without exposing its switching process.
Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.88
Screen Resolution (WxH)
1,920 x 1,080
Module Dimensions (W × H, mm)
300 × 168.75
No. of Modules per Screen (WxH)
12 × 12 (Total 144)
Screen Dimensions (W x H x D, mm)
3,604 × 2,029 × 45.5 (Thickest 81)
Screen Surface Area (㎡)
7.29
Screen Weight (kg)
190
Physical Pixel Density (pixels/m²)
284,444
Flatness of Cabinet (mm)
±0.2
Cabinet Material
Die-casting Aluminum
Service Access
Front
Max. Brightness (nit, after calibration)
500
Color Temperature (K)
3,200 - 9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
98%
Color Uniformity
±0.015 Cx, Cy
Contrast Ratio
3,000:1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/screen, Max.)
2,200
Power Consumption (W/screen, Avg.)
880
Power Consumption (W/m², Max.)
302
Power Consumption (BTU/h/Screen, Max.)
7,506
Power Consumption (BTU/h/Screen, Avg.)
3,004
Power Consumption (BTU/h/㎡, Max.)
1,030
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,000
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
0 to +40
Operating Humidity
10-80% RH
IP Rating (Front / Rear)
IP30 / IP20
Speaker
Built-in (9 W + 9 W)
Certification
CE,FCC,ETL,CB
Environment
RoHS, REACH
Controller
Embedded
Datasheet
Leaflet
LAEC_Datasheetlow_LG-All-in-One-Smart-LED_230320
