32″ Standard Digital Signage SM5KE Series

Share:

32SM5KE

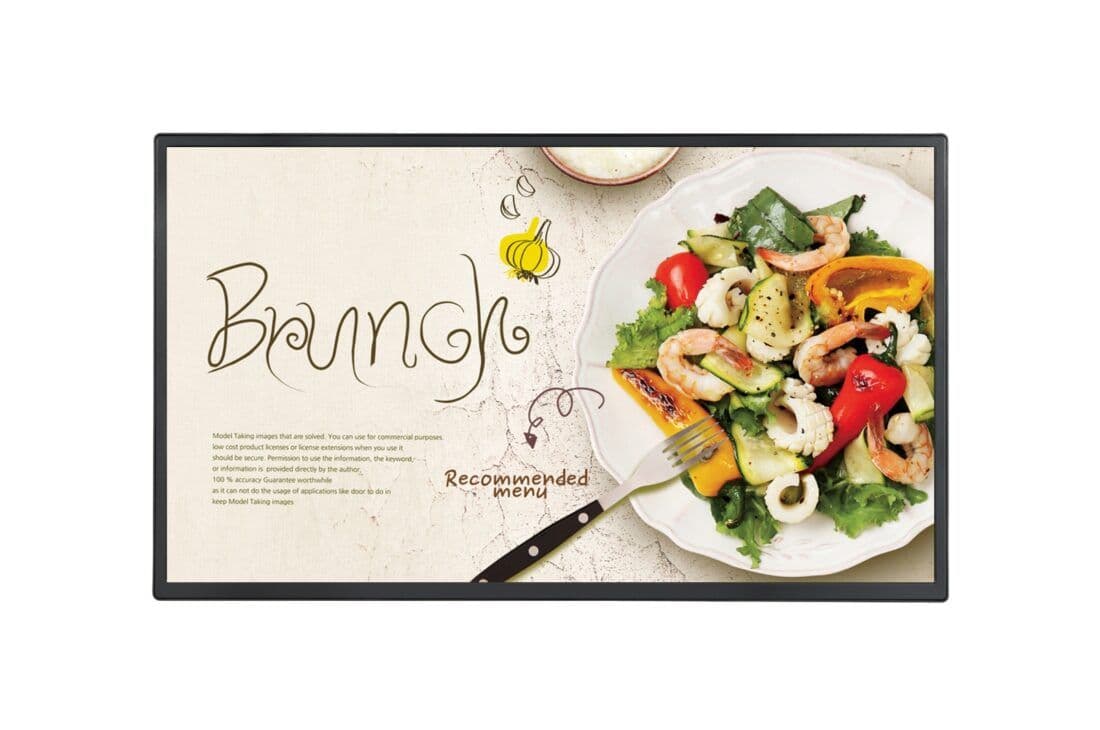

32″ Standard Digital Signage SM5KE Series

Key Features

  • Brightness(Typ.) : 400 cd/m²
  • Bezel : 13 mm (T/R/L), 18 mm (B)
  • Depth : 55.5 mm
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 3.0/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker : 10W + 10W





Contact us

GGEAR Commercial

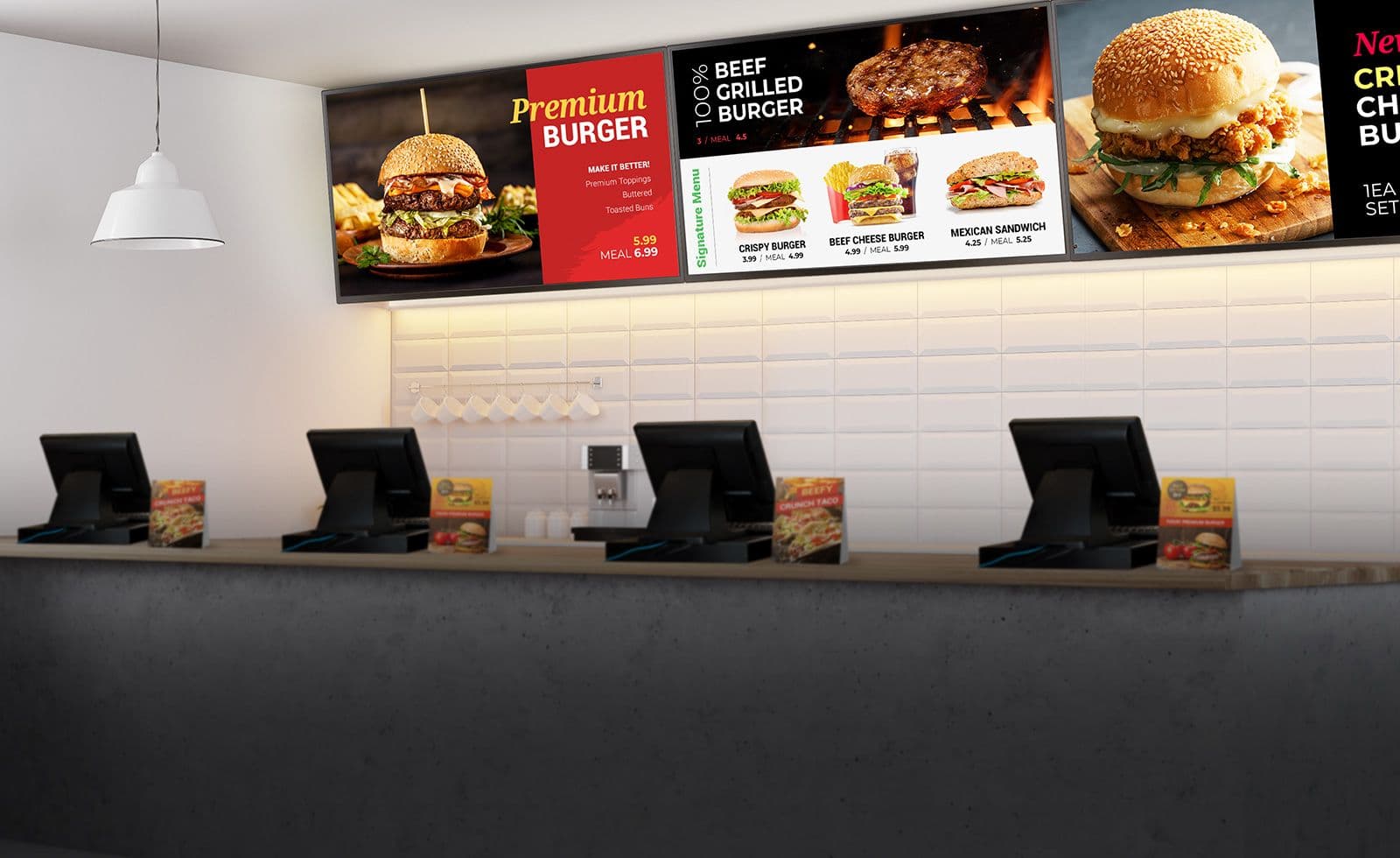

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.
High Performance Smart Platform

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.

Easy Contents Management

Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.
Easy Contents Management

Easy Contents Management

Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.

Enhanced Usability

A B2B dedicated GUI for portrait and long range environment modes provides convenient user management. With the 'EZ setting', users get integrated management of signage special features through a unifying access point.

Enhanced Usability

Real-time Streaming

Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts. * Image is for illustration-purposes only.
Real-time Streaming

Real-time Streaming

Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts. * Image is for illustration-purposes only.
Seamless Content Playback

Seamless Content Playback

During playback of diverse content such as videos, images, and HTML, enjoy seamless transition between screens with no black screen gaps with webOS.

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

Multiple Screen Composition
Suited for Industrial Design

Suited for Industrial Design

The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.

Wireless Solutions



Content Sharing

Content Sharing

Mirroring among devices is more convenient on a Wi-Fi network.



Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.



Real-time Promotion

Support for Network Protocol

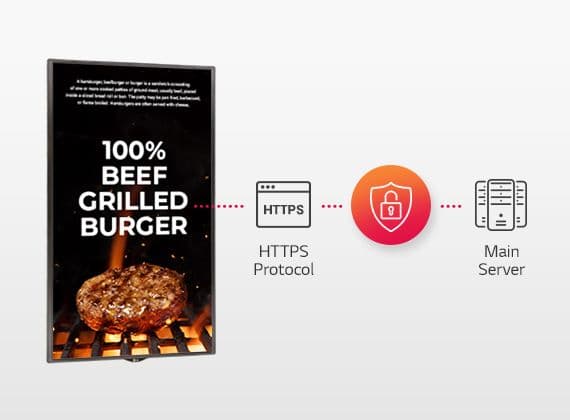

HTTPS

HTTPS

With support for the HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between the server and signage is more secure.



Proxy Server

Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.



Proxy Server
Thermal Printer Supported

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.

Real-time Care Service

Users can easily enable the thermal printer solution* by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.

Real-time Care Service
Conformal Coating

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on power board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

Optimized Work-Flow with LG Presenter

LG Presenter, an embedded application, enables wireless screen sharing* between computers and LG digital signages. It provides users with a smart and convenient meeting experience, reducing time spent unnecessarily managing devices and cables for connection.
Optimized Work-Flow with LG Presenter

Optimized Work-Flow with LG Presenter

LG Presenter, an embedded application, enables wireless screen sharing* between computers and LG digital signages. It provides users with a smart and convenient meeting experience, reducing time spent unnecessarily managing devices and cables for connection.

Screen Size

55"

Native Resolution

1,920 x 1,080 (FHD)

Brightness(Typ.,cd/m²)

450

Input

HDMI (3), DP, DVI-D, Audio, USB 3.0

External Control

RS232C In/Out, RJ45 In, IR Receiver In

Output

DP(SST), Audio(Off/Fixed/Variable)

Bezel Width

11.9 mm (T/R/L), 18 mm (B)

Weight (Head)

17.5 kg

Weight (Head+Stand)

20.8 kg

Packed Weight

21.7 kg

Monitor Dimension (W × H × D)

1,238 x 714.9 x 54 mm

Monitor with Optional Stand Dimensions (W x H x D)

1,238m x 773.4 x 219.6 mm

Carton Dimensions (W × H × D)

1,330 x 807 x 170 mm

VESA™ Standard Mount Interface

300 x 300 mm

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power Supply

100-240 V~, 50/60 Hz

Power Type

Built-In Power

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 8.0)

EMC

FCC Class "A" / CE / KC

OPS type compatible

Yes

OPS type compatible Yes External Media player Attatchable

Yes

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control / Control+

OS (Windows)

Windows 7 (64bit), Windows 10 (64bit)

CPU (Windows)

2.7GHz+ Dual Core Broadwell or higher

Memory

4GB RAM

Graphics Hardware (Windows)

Intel Iris or higher, Nvidia, ATI

OS (macOS)

CPU (macOS)

Any CPU which supports Sierra or High Sierra

Hard Drive

1GB of free space

Graphics Hardware (macOS)

Any GPU which supports Sierra or High Sierra

Basic

Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover

Optional

Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)
