49VL5PJ

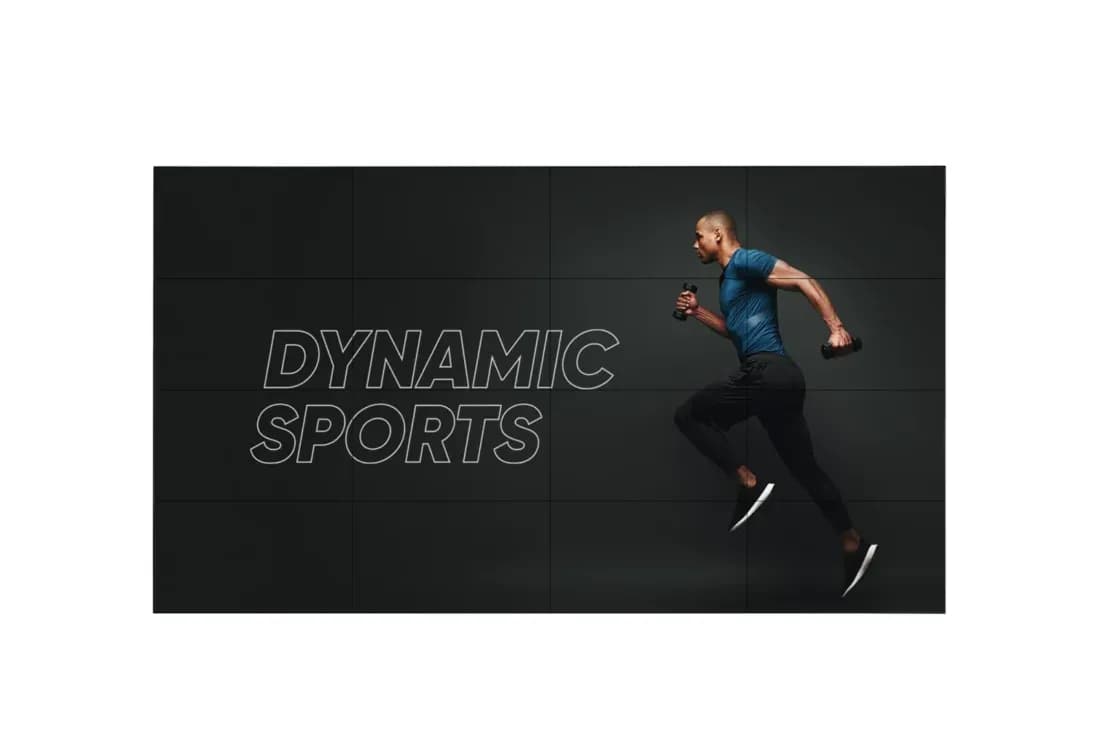

49” 500 nits FHD Slim Bezel Video Wall
Key Features
- Brightness(Typ.) : 500 nit
- Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
- Depth : 93.1 mm
- Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Contact us
GGEAR Commercial
Artistic Immersion, Overwhelming Captivation
Daisy Chain Capability
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
Ultra Narrow Bezel
The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Image Gap Reduction
The VL5PJ includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VL5PJ can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
Screen Size
55"
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
1920x1080 (FHD)
Refresh Rate
60Hz
Brightness (Typ., nit)
500
Contrast Ratio
1200:1
Dynamic CR
500,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178x178
Color Depth
10bit, 1.07Billion Colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
3%
Life Time
60,000Hrs (Typ.) / 50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portrait / Landscape
Yes / Yes
Input
HDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A
Output
DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out
Bezel Color
Black
Bezel Width
T/R/L/B : 2.25/1.25/2.25/1.25mm
Weight (Head)
23.5Kg
Packed Weight
26.9Kg
Monitor Dimension (W x H x D)
1,213.4 x 684.2 x 93.1 mm
Carton Dimensions(W x H x D) (Box outer size)
1,337 x 247 x 833 mm
Handle
Yes
VESA™ Standard Mount Interface
600 x 400
HW
Internal Memory (8 GB), Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor
SW
webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Type.
135W
Max.
150W
BTU (British Thermal Unit)
461 BTU/Hr(Typ.), 512 BTU/Hr(Max)
Smart Enegy Saving
115W
DPM
0.5W
Power Off
0.5W
Safey
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes / Energy Star 8.0
SuperSign CMS
Yes
SuperSign Control / Control+
Yes / Yes
SuperSign WB
Yes
SuperSign Media Editor
Yes
LG Connected Care
Yes
OSB
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek,Turkish, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
IP Rating
IP5X tested
