49UH5E-B

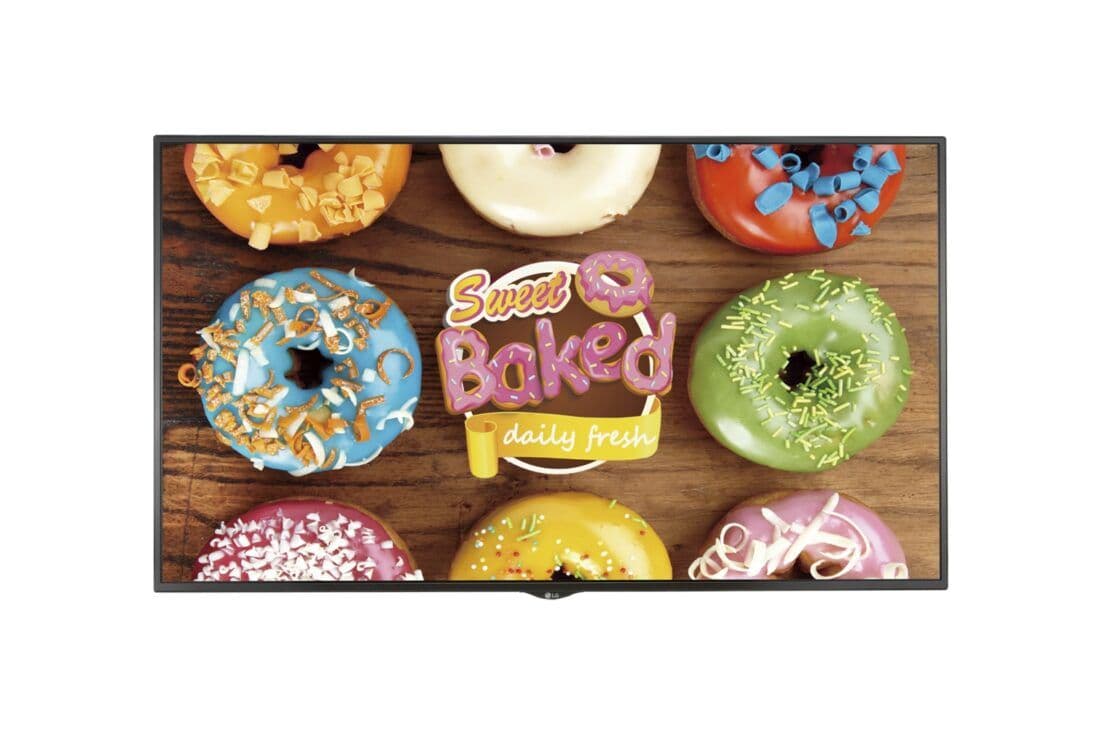

49″ Digital Signage UH5E Series
Key Features
- Brightness(Typ.) : 500 cd/m²
- Bezel : 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
- Depth : 38.6 mm
- Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR/ External Speaker Out
- Haze 28%
Contact us
GGEAR Commercial
Vibrant Colors and Powerful Performance Bring Content
Vibrant Colors and Powerful Performance Bring Content
True Color, Immersive View Vivid Color Details with Ultra HD
The UH5E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.
The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UH5E ensures stable UHD video playback with HEVC(High Efficiency Video Coding).
Easy Content Management
The embedded CMS(Content Management System) allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier
* Image is for illustration-purposes only.
Simple Group Management
The embedded Group Manager makes a master display work as a server and manage other displays1) connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.
Multi Screen Mode
PBP(Picture-By-Picture) features multi screen in a single display with upto 4 input sources while PIP(Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.
Real-Time Monitoring & Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and
rapidly respond to emergency situations anywhere.

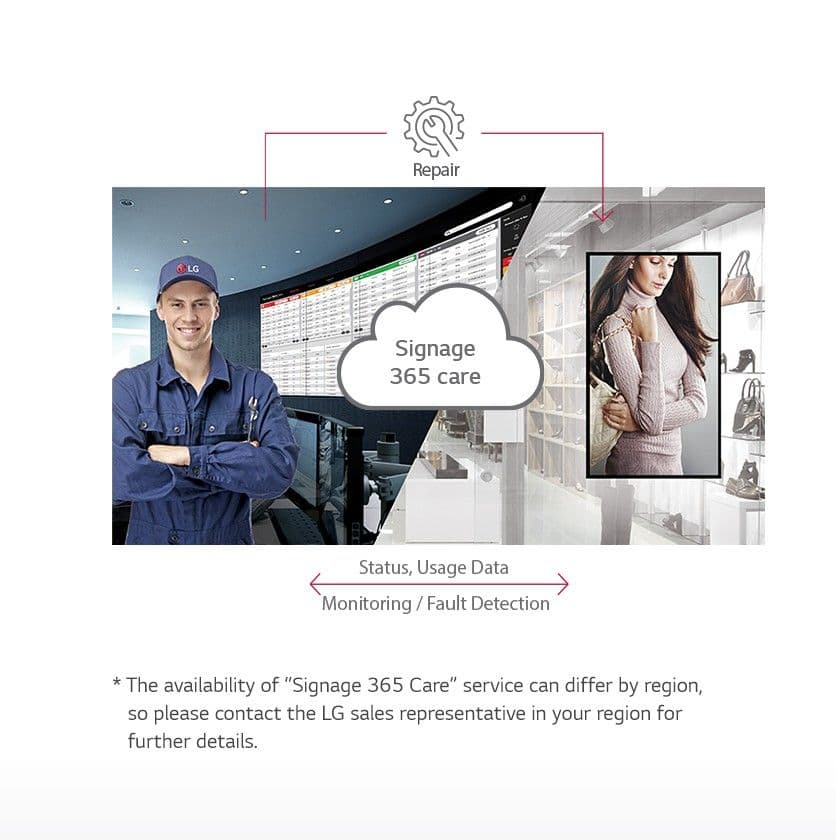

Real-time Care Service
The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.
Wireless Solution
Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and BLE(Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
Wireless Access Point
The UH5E series operates as a virtual router which can be an wireless access point for mobile devices.
Compatibility with AV Control System
The UH5E series has been certified Crestron ConnectedⓇ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control1), boosting business management efficiency.
Compatibility with Video Conference System
For the optimum visual meeting, the UH5E has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control1) for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.e.
Slim and Tidy in Appearance
Although UH5E series is a large-sized display, the product still has a slim depth, a feature that allows easy installation by using less space. An immersive view is attained while maintaining a sleek look.
Detachable Logo & Built-in Speaker
The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers1), giving advertisements greater impact.
Screen Size
49"
Brightness(Typ.,cd/m²)
500
Native Resolution
3,840 x 2,160 (UHD, RGB)
Surface Treatment (Haze)
Haze 28%
Input
HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
External Control
RS232C In/out, RJ45 (LAN) In, IR In
Output
DP, Audio (Off/Fixed/Variable), External Speaker
Bezel Width
12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
Weight (Head)
13.3 kg
Packed Weight
17.7 kg
Monitor Dimension (W × H × D)
1,239.8 x 725.2 x 38.6 mm
Carton Dimensions (W × H × D)
1,330 x 807 x 170 mm
VESA™ Standard Mount Interface
300 x 300 mm
Operation Temperature
0°C to 40°C
Operation Humidity
10 % to 80 %
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Typ. / Max.
105 W / 150 W
Smart Energy Saving
74 W
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
OPS type compatible
Yes
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control/Control+
Basic
Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
Optional
Speaker (SP-5200), Stand (ST-201T), Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF)
