49VM5E
49″ Video Wall VM5E-A Series
Key Features
- Brightness(Typ.) : 500 cd/m²
- Bezel : 0.9 mm (Even)
- Depth : 86.2 mm
- Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
Contact us
GGEAR Commercial

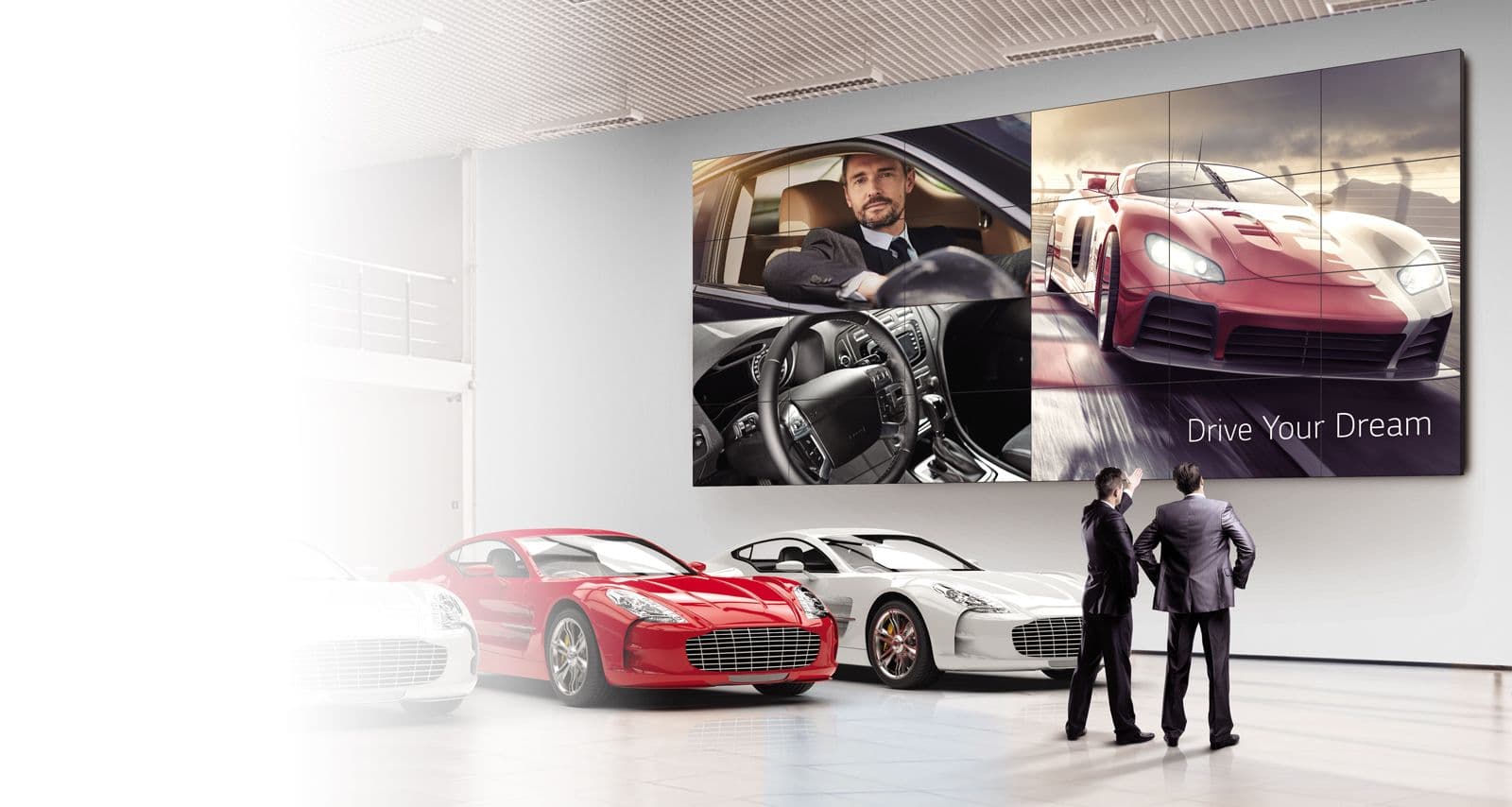

Artistic Immersion, Overwhelming Captivation
Artistic Immersion, Overwhelming Captivation

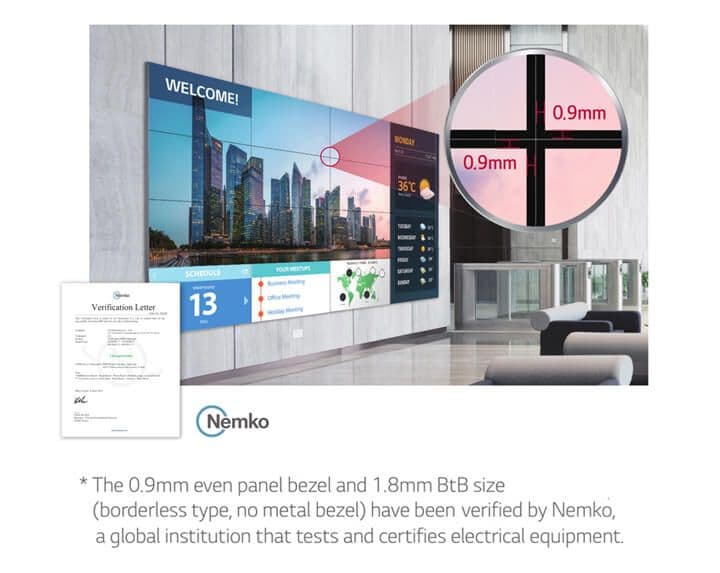

Seamless Large Screens with Ultra-Narrow Bezel
The borderless design, with its 0.9 mm* even bezel and 1.8 mm* BtB (Bezel to Bezel), verified by Nemko, minimizes bezel interference and delivers immersive and seamless content on assembled video wall screens.

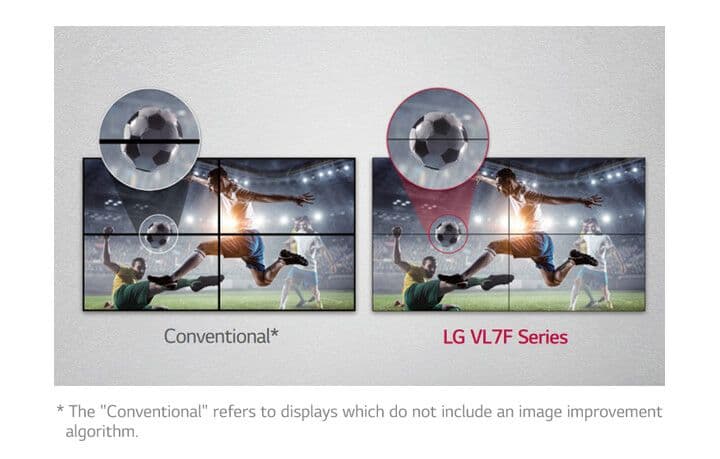

Image Gap Reduction
The VM5E series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

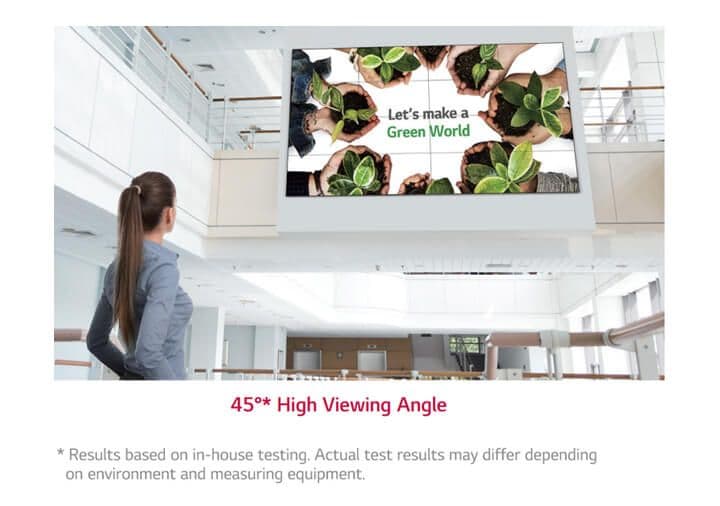

Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VM5E series is high enough to display vivid colors throughout the screen with no distortion.

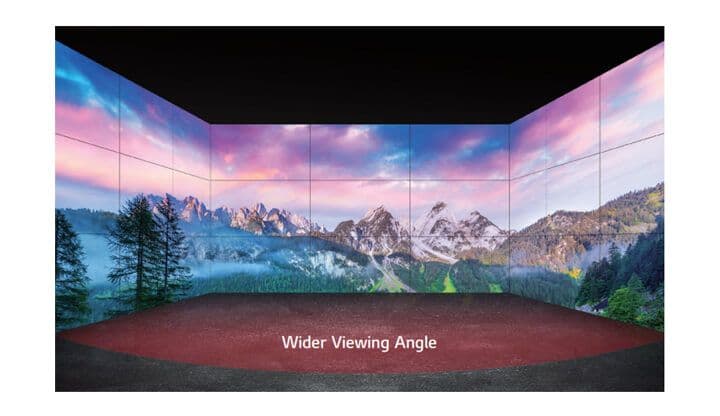

Wider Viewing Angle
It is well known that LG IPS panel technology provides better control of liquid crystals, which in turn allows the screen to be viewed at virtually any angle. Thereby, the VM5E series captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

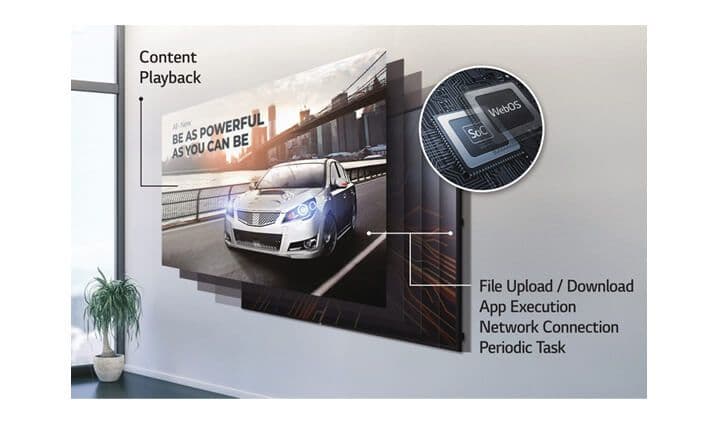

High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VM5E series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a webbased platform and offers SDK(Soft Development Kit), it is even easier for SIs to build and optimize.

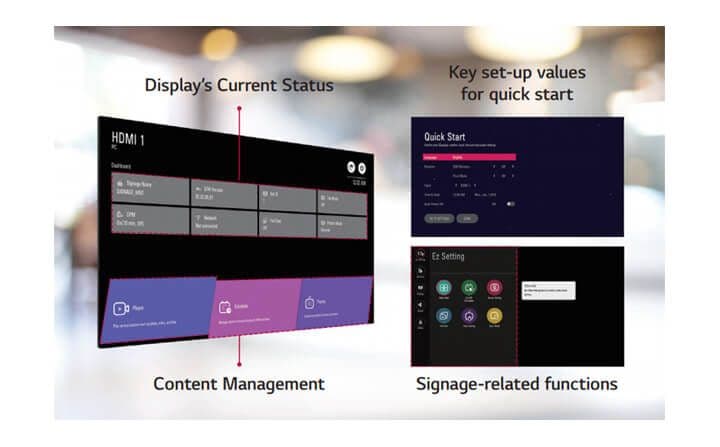

Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trialand-error when exploring desired functions and managing displays.

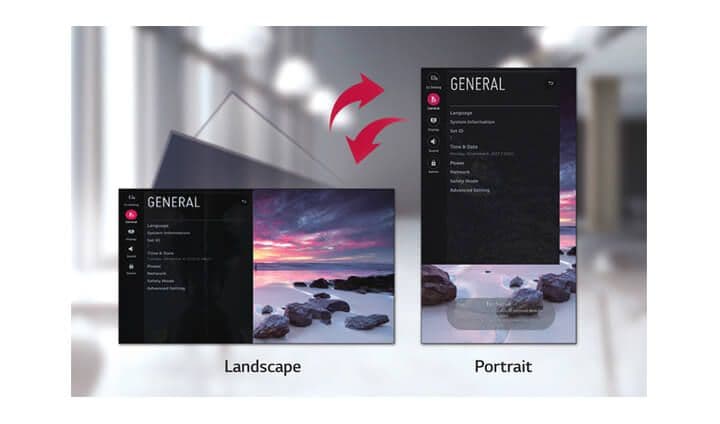

Dedicated GUI for Portrait Orientation
The conventional GUI(Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VM5E series, however, consists of a long range menu, creating a comfortable and efficient business environment.

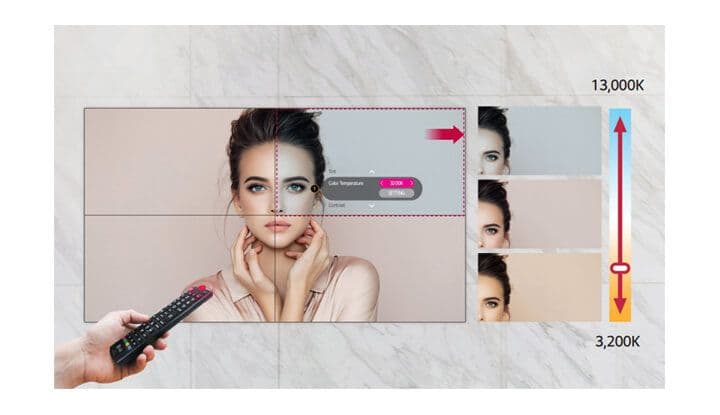

Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

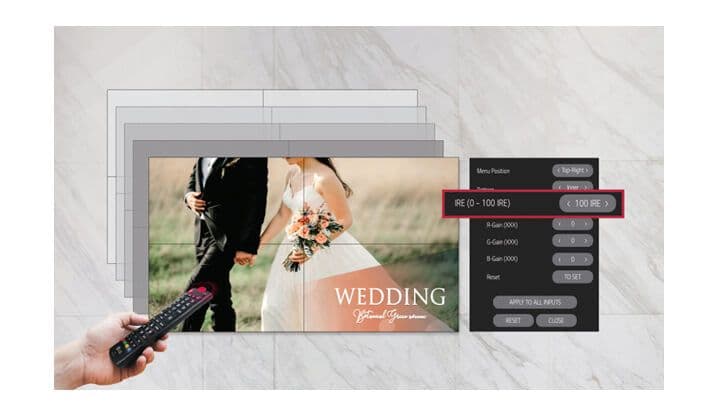

Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in “full-white” mode, but the VM5E series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

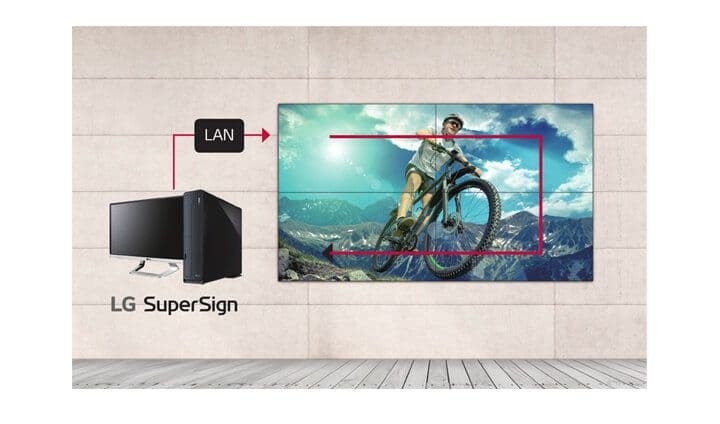

LAN Daisy Chain Management
A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.

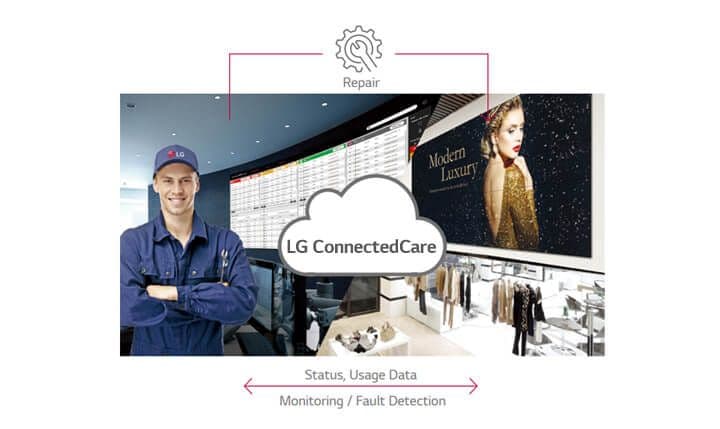

Real-Time Care Service
The maintenance gets easier and faster with an optional service LG ConnectedCare*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
Screen Size
49"
Brightness (Typ., cd/m²)
500
Contrast Ratio
1,300:1
Viewing Angle (H x V)
178 x 178
Surface Treatment (Haze)
3%
Life Time (Min.)
60,000 Hrs
Operation Hours (Hours / Day)
24 Hrs
Orientation
Landscape & Portrait
Native Resolution
1,920 x 1,080 (FHD)
Dynamic CR
500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)
Input
HDMI (2), DP, DVI-D, Audio, USB 2.0
External Control
RS232C In/out, RJ45 (LAN) In/out, IR In
Output
DP, Audio
Bezel Width
0.9 mm (Even), B to B 1.8 mm
Weight (Head)
17.5 kg
Packed Weight
23.2 kg
Monitor Dimension (W × H × D)
1,075.6 x 605.8 x 86.2 mm
Carton Dimensions (W × H × D)
1,214 x 775 x 263 mm
VESA™ Standard Mount Interface
600 x 400 mm
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240 V~, 50 / 60 Hz
Power Type
Built-In Power
Power Consumption (Typ. / Max.)
120 W/ 140 W
Power Consumption (Smart Energy Saving)
65 W
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
Basic
Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF)
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control/Control+
OPS type compatible
Yes (Piggyback)
