55SH7E

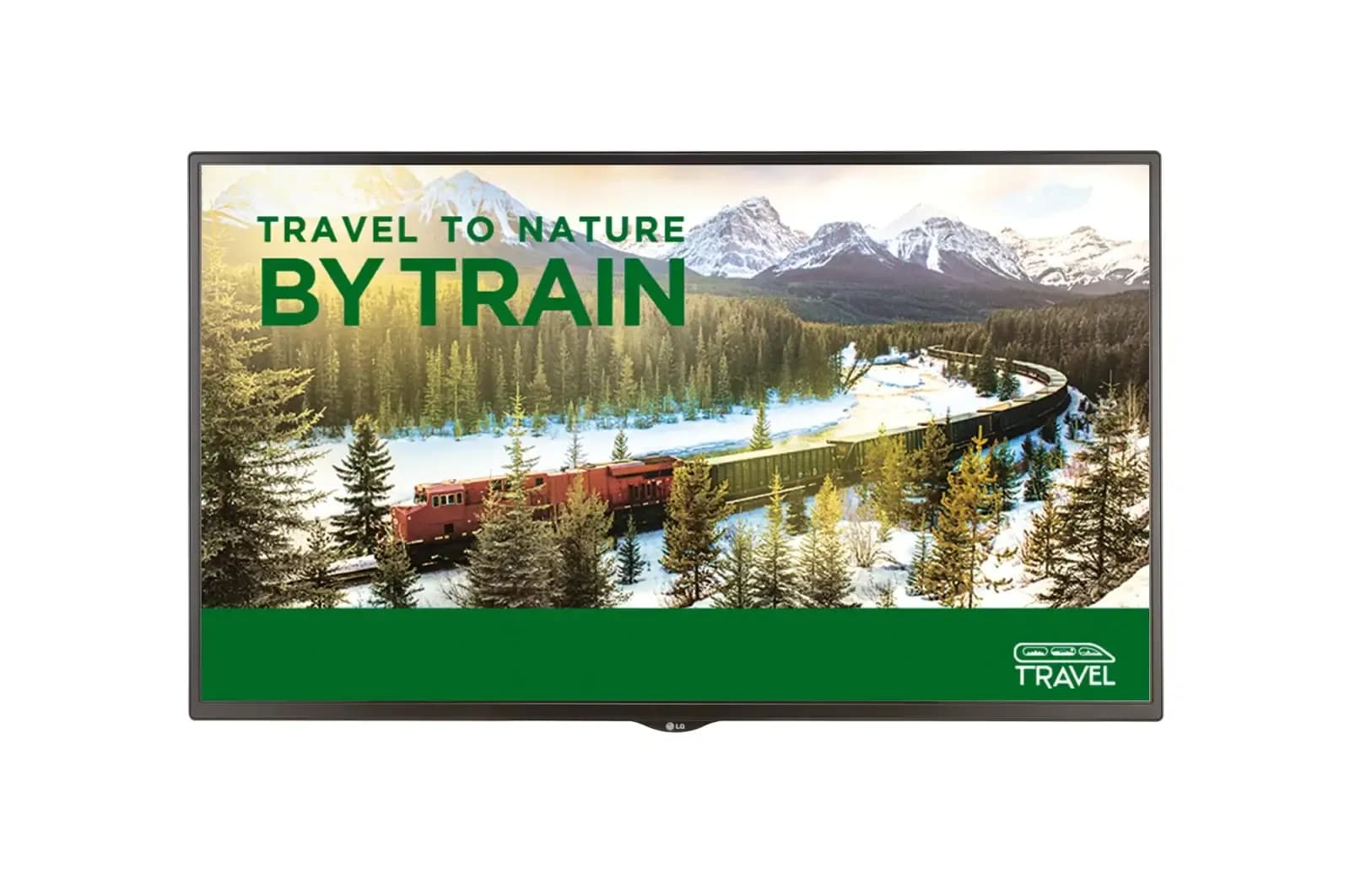

55″ Smart Digital Signage with High Visibility SH7E Series
Key Features
- Brightness(Typ.): 700 cd/m²
- Bezel: 11.9 mm (T/L/R), 18 mm (B)
- Depth: 54 mm
- Interface : HDMI(3), DP, DVI-D, USB 3.0, RS232C, RJ45, IR
- Built-in Speaker(10W+10W)
Contact us
GGEAR Commercial

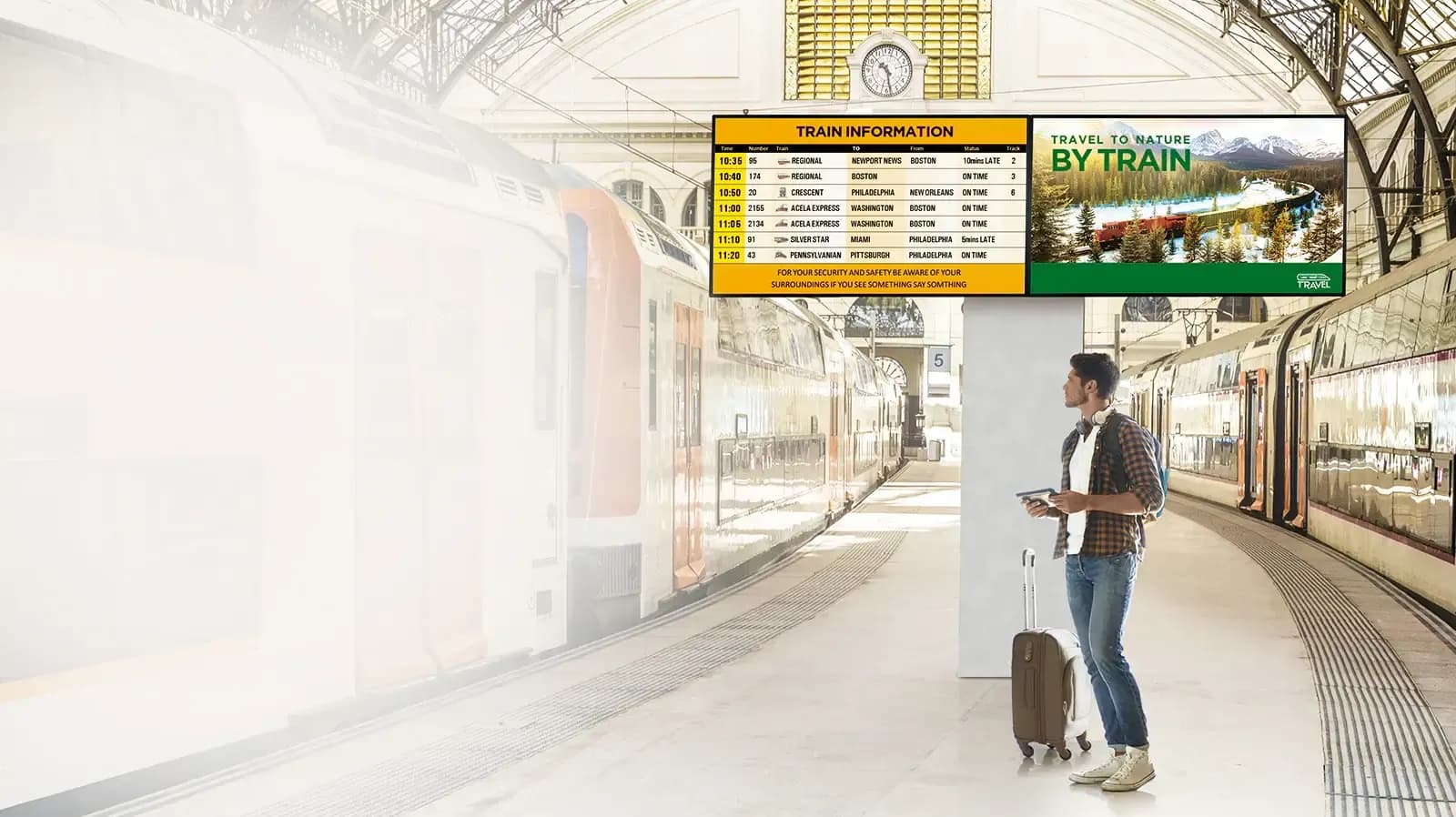

Smart Digital Signage with High Visibility
Smart Digital Signage with High Visibility

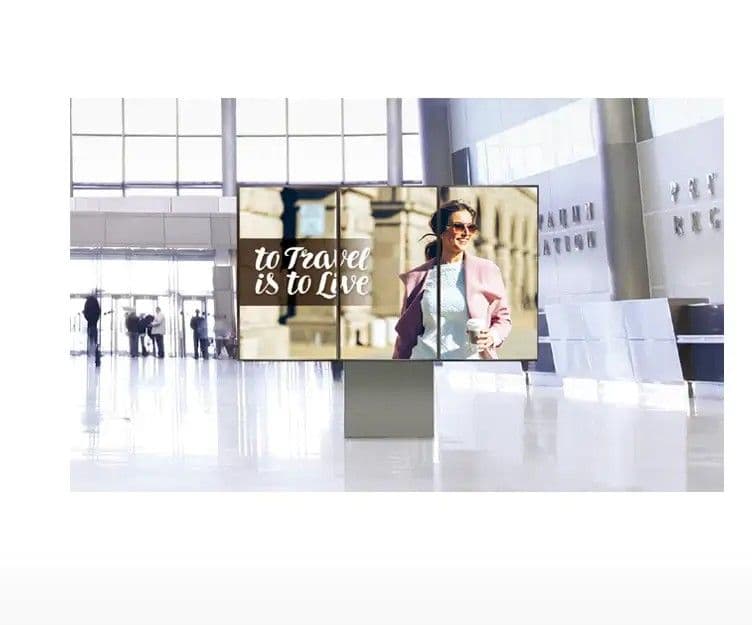

Superior Picture Quality High Visibility
The 700 cd/m² brightness is enough to stand out against the surrounding background, so signage can attract passerby and delivers content vividly and effectively.

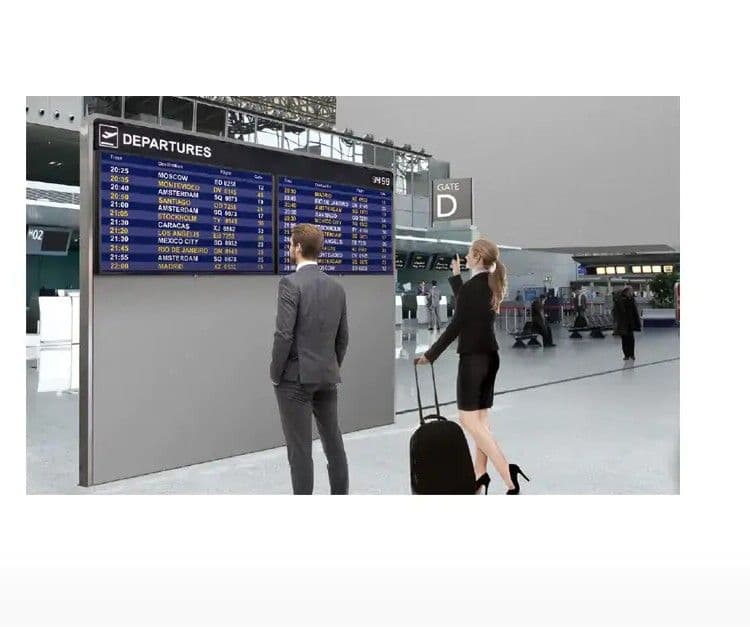

Wide Viewing Angle
Thanks to IPS technology, SH7E series provides a clear, vibrant picture with no washed out tones at any angle.

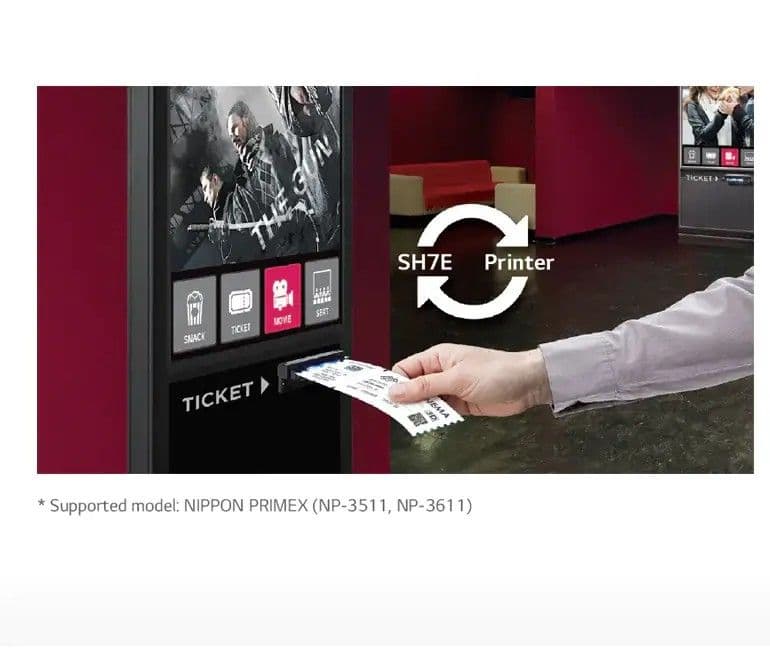

Outstanding Performance Thermal Printer Supported
Users can easily enable the thermal printer solution* by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.

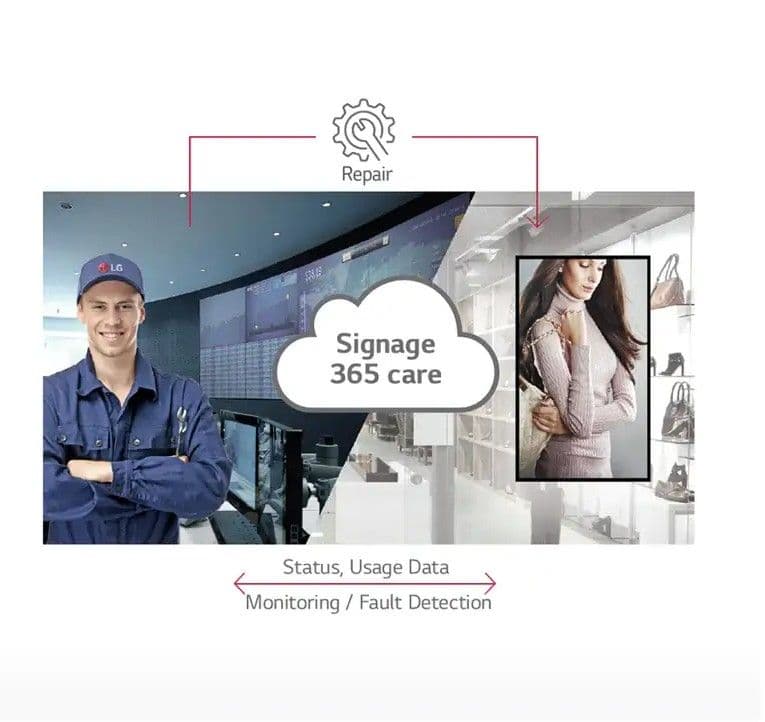

Real-time Control & Monitoring
The maintenance gets easier and faster with Signage 365 Care, a cloud service solution provided by LGE service. It remotely manages status of displays in clent workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

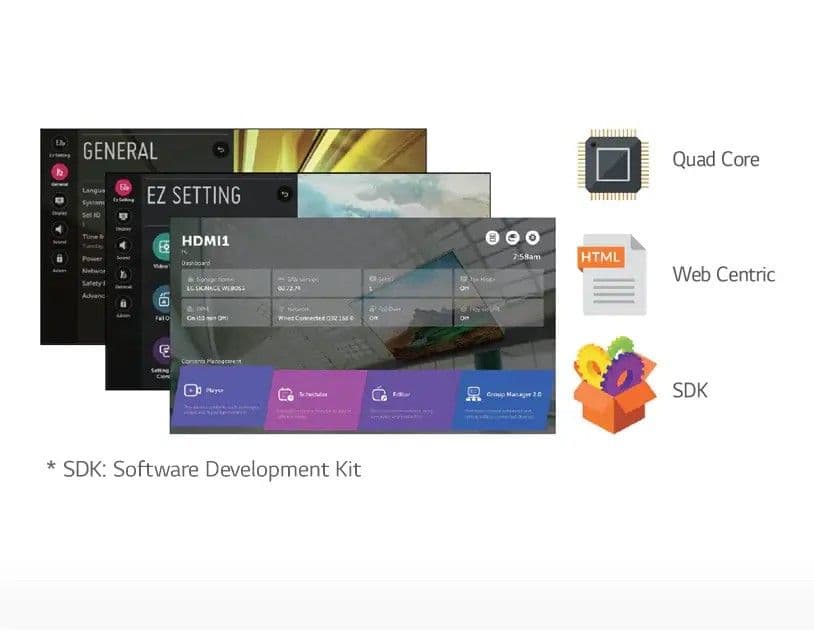

High Performance User-friendly Smart Platform
he LG webOS smart signage platform is tailored to diverse commercial requirements. It supports HTML5 as a web-based platform and offers SDK*, so SIs can easily build and execute their own apps. Moreover, LG webOS enhances user convenience by providing an intuitive UI that is optimized for business purposes.

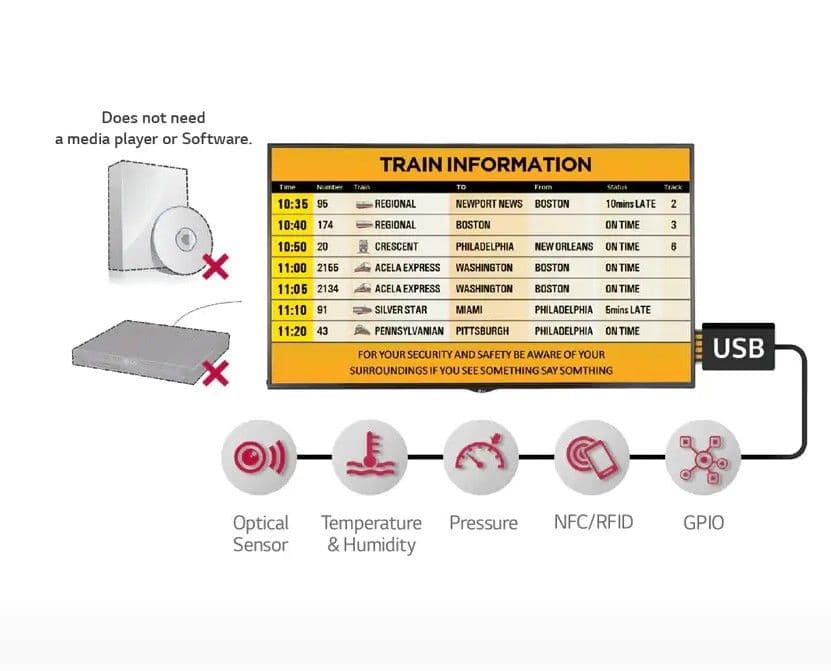

All-in-one Display
Powered by a smart platform, SH7E easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there's no need to purchase additional software or media players.

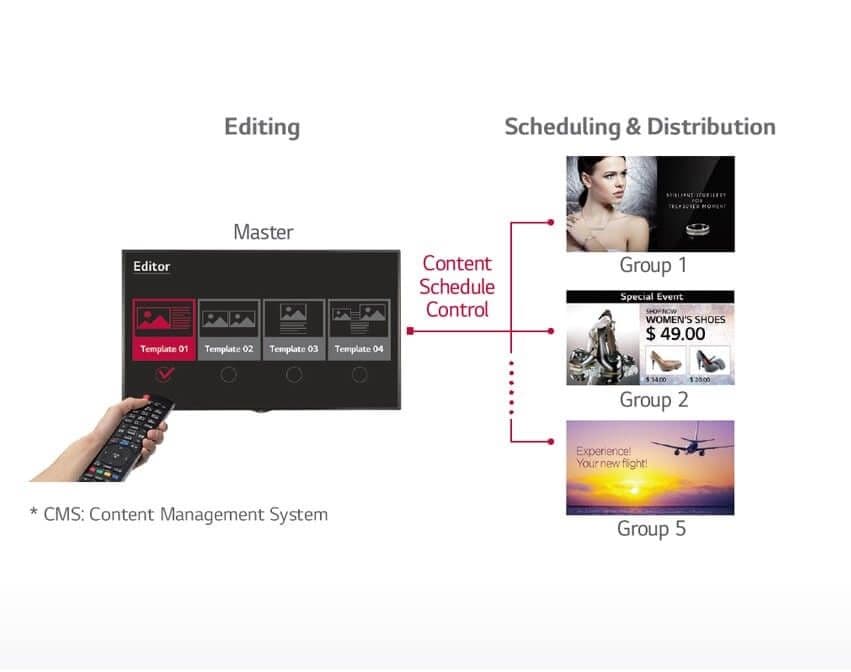

Easy Management Embedded CMS
The embedded CMS* allows you to edit and play content, schedule a playlist and even group and control signages via remote control, without need for a separate PC. This makes content management much easier and user-friendly.
Mobile & Web Monitoring
Through the control manager, the embedded web monitoring program, you can check the status, control settings, and receive log information and other data in real-time.
Screen Size
55"
Brightness(Typ.,cd/m²)
700
Native Resolution
1,920 x 1,080 (FHD)
Input
HDMI (3), DP, DVI-D, Audio, USB 3.0
External Control
RS232C in/out, RJ45 in, IR in
Output
DP, Audio
Bezel Width
11.9 mm (T/R/L), 18 mm (B)
Packed Weight
21.7 kg
Monitor Dimension (W x H x D)
1,238 x 714.9 x 54 mm
Carton Dimensions (W x H x D)
1,330 x 807 x 170 mm
VESA™ Standard Mount Interface
300 x 300 mm
Operation Temperature
0℃ to 40℃
Operation Humidity
10 % to 80 %
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes (EU Only) / Yes (Energy Star 8.0)
OPS type compatible
Yes
External Media player Attatchable
Yes
Basic
Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
Optional
Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)
OS (Windows)
Windows 7 (64bit), Windows 10 (64bit)
CPU (Windows)
2.7GHz+ Dual Core Broadwell or higher
Hard Drive
1GB of free space
Graphics Hardware (macOS)
Any GPU which supports Sierra or High Sierra
Memory
4GB RAM
Graphics Hardware (Windows)
Intel Iris or higher, Nvidia, ATI
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Link
