55UH5F-H
Non-Glare Ultra HD Series
Key Features
- Brightness(Typ.) : 500 cd/m²
- Surface Treatment (Haze) : 28%
- Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
- Depth : 39.9 mm
- Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
- 30º Tilting Installation
Contact us
GGEAR Commercial
Clear View with Non-glare Coating
Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

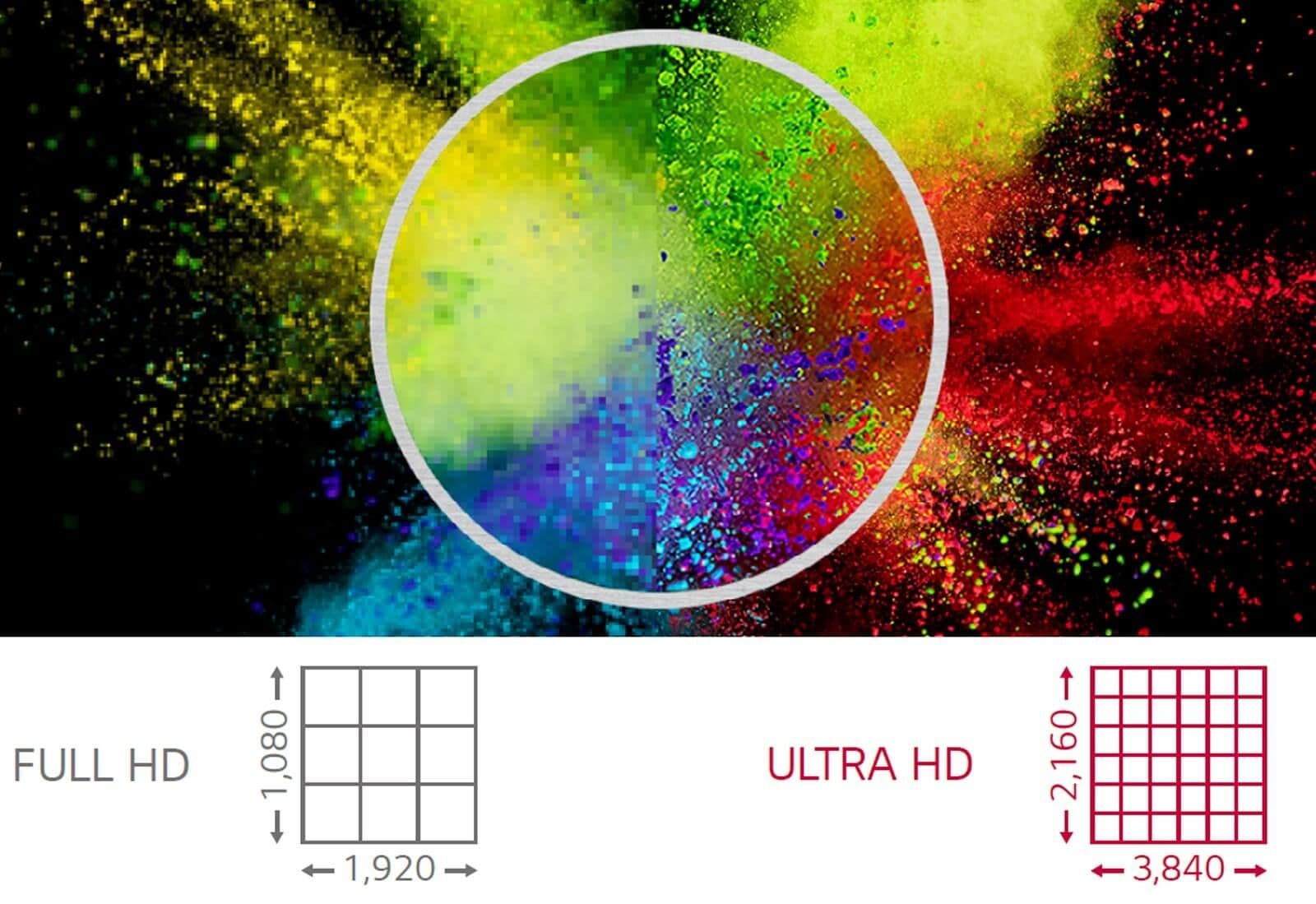

ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.
Narrow Bezel & Slim Depth
This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Detachable Logo and Built-in Speaker
This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
30° Tilting Installation
When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.

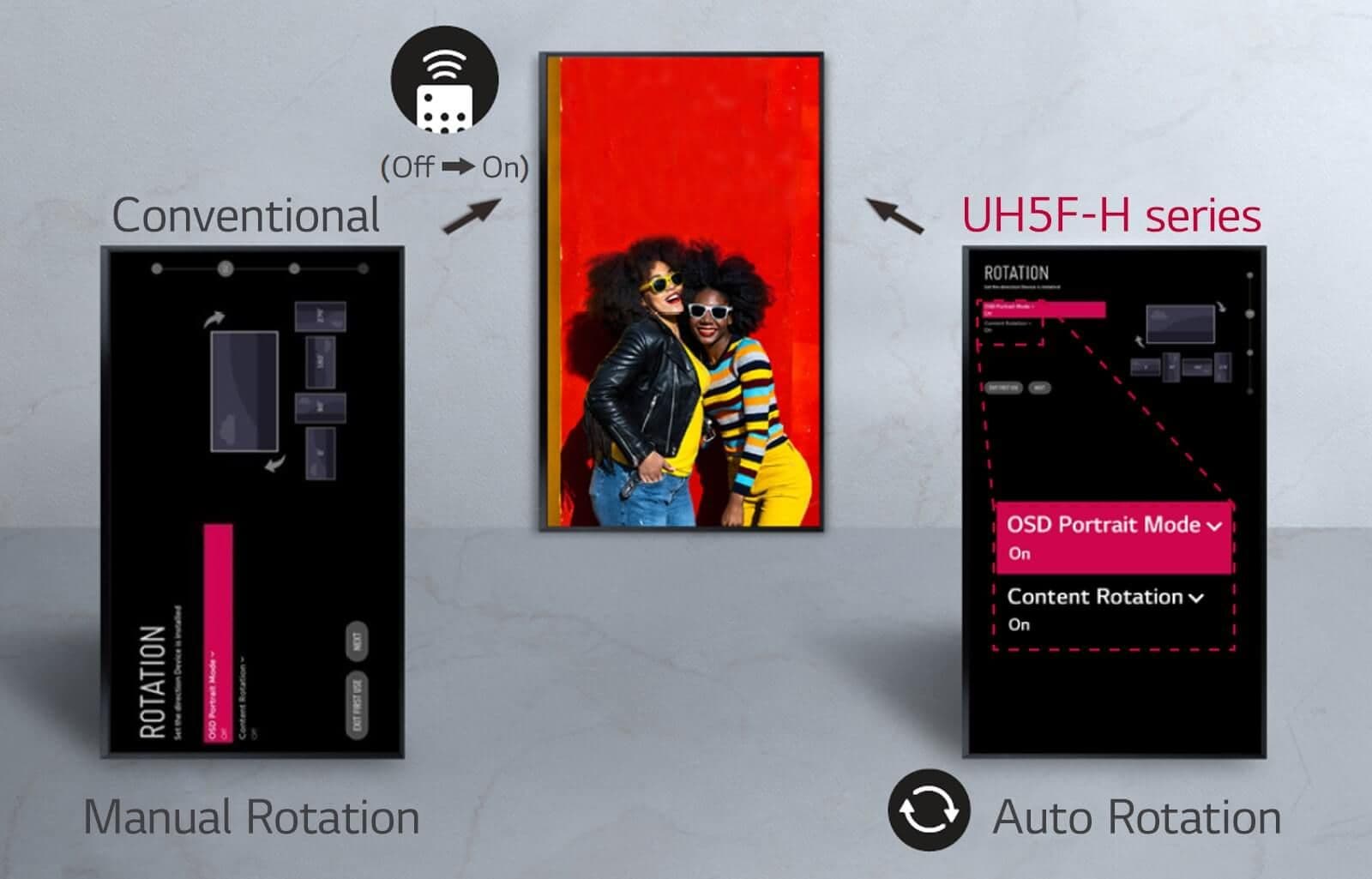

Auto Screen Rotatio
This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

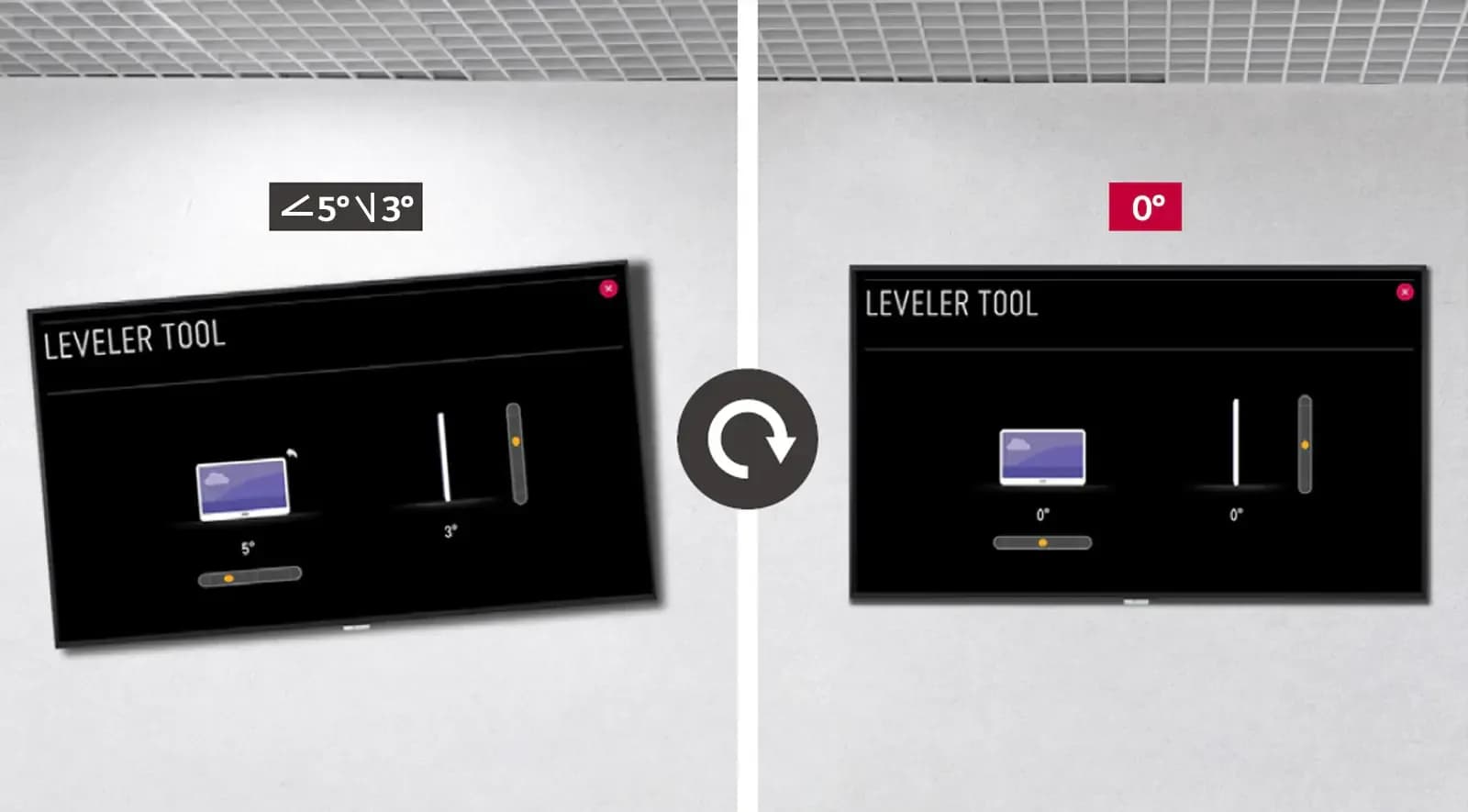

Fine Adjustment
This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.
High-Performance with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Compatible with AV Control System
The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatible with Video Conference System
For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
Screen Size
55”
Native Resolution
3,840 x 2,160 (UHD)
Contrast Ratio
1,100:1
Color gamut
BT709 95%
Color Depth
1.07 Billion Colors (10 bit)
Surface Treatment (Haze)
Haze 28%
Portrait / Landscape
Yes / Yes
Panel Technology
IPS
Brightness (Typ.)
500
Dynamic CR
1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition.
Color Depth
178 x 178
Response Time
8ms (G to G)
Operation Hours (Hours / Day)
24 / 7
Input
HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A
External Control
RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In
Output
DP, Audio
Bezel Color
Black
Weight (Head)
19.0 kg
Handle
No
Bezel Width
9.9mm(T/R/L), 14.4mm(B)
Monitor Dimension (W × H × D)
1,234.4mm x 720.9mm x 39.9mm
VESA™ Standard Mount Interface
300 x 300 mm
Monitor Dimensions with Stand (W × H × D)
1,234.4 × 770.7 × 290.0 mm
Operation Temperature
0℃ to 40℃
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ. / Max.
105W / 145W
BTU (British Thermal Unit)
358 BTU/Hr (Typ.), 495 BTU/Hr (Max.)
Speaker
Yes
Safety
CB, NRTL
EMC
FCC Class "A" / CE / KC
ErP
Yes
Signage365Care
Yes (The availability can differ by region.)
SuperSign Control / Control+
Yes
SuperSign Media Editor
Yes
SuperSign CMS
Yes
SuperSign WB
Yes
Basic
Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
Optional
Stand (ST-653T), Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF)
OPS Type Compatible
Yes
OPS Power Built In
No
Tilt (Facedown)
Yes (Max. 30º) *In conditions within 30ºC temperature, 50% humidity
IP Rating
IP5X
