65UM5N-E
65" 4K UHD Signage
Key Features
- Resolution : 3,840 x 2,160 (UHD)
- Brightness (Typ.) : 500 nit
- EPEAT (US Only)
- The carbon footprint of this product has been certified and achieved a reduction.
- Bezel Width : 12.4 mm (T/B), 11.4 mm (R/L)
- Interface : HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
Contact us
GGEAR Commercial
UHD Signage Display with LG webOS Platform and Advanced Security
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

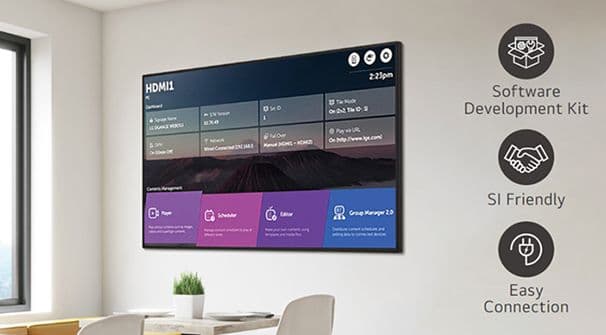

Convenient webOS Platform
The UM5N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

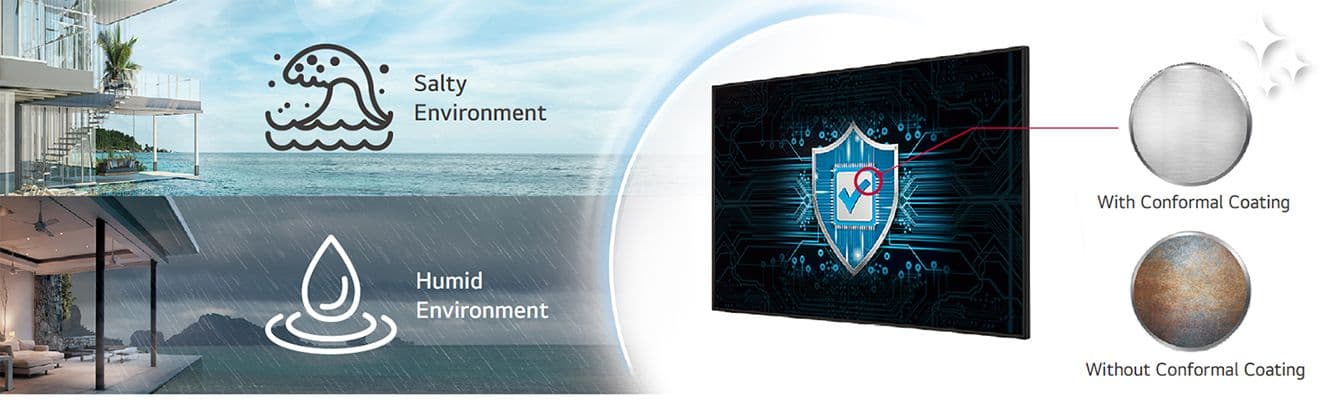

Durability that Provides Reliability
Optimized for business environments, the UM5N-E is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

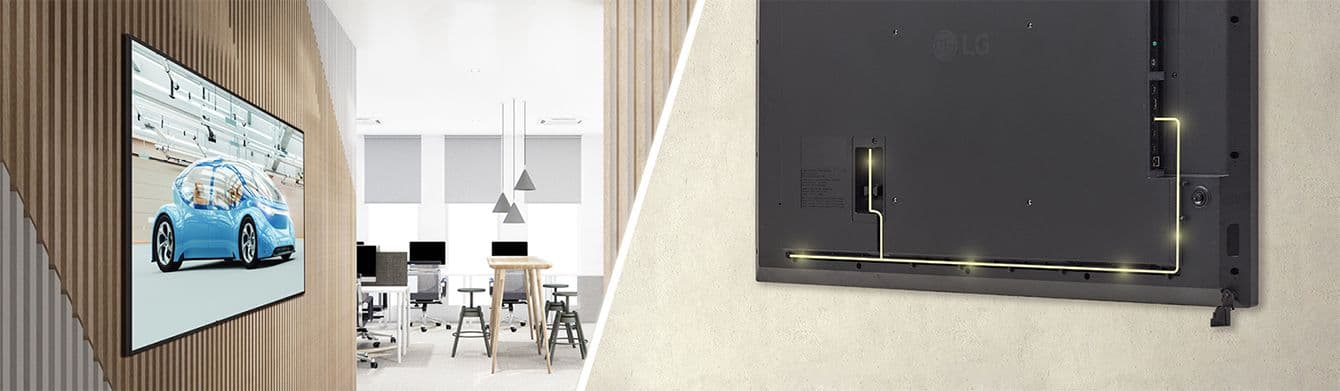

Design for Space Utilization
Designed with thin bezels and simple cable management, the UM5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
Enhanced Security Features
The UM5N-E provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B or EPEAT*.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Carbon Footprint Certification
The cradle-to-grave carbon footprint of UH7N-E has been reduced.
Product
Standard (UHD)
Year
Y23
Month
M12
Screen Size (Inch)
65"
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16 : 9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
1,000,000:1
Color gamut
BT709 95%
Viewing Angle(H x V)
178 X 178
Color Depth (Number of Colors)
10bit(D), 1.07Billion colors
Response Time
Tr : 8ms / Tf :10ms
Surface Treatment (Haze)
0.28
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes / Yes
HDMI IN
Yes(2), 3840x2160@60Hz, HDCP 2.2/1.4
DP IN
Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
RS232C IN
Yes (1), 4pin Phone-jack
RJ45(LAN) IN
Yes (1)
IR IN
Yes (1)
USB IN
USB2.0 Type A(1)
HDMI Out
Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
Audio Out
Yes (1)
RS232C Out
Yes (1), 4pin Phone-jack
Daisy Chain
Yes(Input HDMI, DP / Output HDMI)
Bezel Color
Black
Bezel Width
T/B: 12.4mm R/L: 11.4mm
Weight (Head)
21.6Kg
Packed Weight
28.4Kg
Monitor Dimensions (W x H x D)
1458 x 833 x 57.7mm (Without IR)
Carton Dimensions (W x H x D)
1600 x 970 x 179mm
VESATM Standard Mount Interface
300 x 300
Internal Memory
16GB
Wi-Fi/BT (Built-in)
Yes
Temperature Sensor
Yes
Auto Brightness sensor
Yes(IR)
Acceleration(Gyro) Sensor
Yes
Local Key Operation
Yes
Speaker (Built-in)
Yes
OS Ver. (webOS)
webOS6.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
PIP
Yes
PBP
Yes (4)
Screen Share
Yes
Video Tag
Yes (4)
Play via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes (Max. 15x15)
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Cisco Certification
(TBD)
Crestron Connected
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
Beacon
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
145W
Max.
200W
BTU (British Thermal Unit)
495 BTU/Hr(Typ.), 682 BTU/Hr(Max)
Smart Enegy Saving (70%)
101.5W
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
Yes (10W X 2)
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ErP / Energy Star
Yes (NewErP) / Yes
ePEAT(US only)
Yes
SuperSign CMS
Yes
SuperSign Control / Control+
Yes / Yes
SuperSign WB
Yes
SuperSign Cloud
Yes
Mobile CMS
Yes
Connected Care
Yes
Optional
Stand(ST-653T), Wall bracket(LSW240B), OPS Kit(KT-OPSF)
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
Tilt(Facedown)
Yes(Max 30º degree, 40ºC temperature)
IP Rating
IP5X
Conformal Coating (Power Board)
Yes
OPS Type Compatible
Yes
HW
Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation
SW
webOS ver. (webOS6.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
