75TR3DK-BM
75″ LG CreateBoard
Key Features
- Internal Memory : 64GB (Storage) / 8GB (RAM)
- Brightness (w/o Glass) : 440 nit (Max.), 390 nit (Typ.)
- Resolution : 3,840 × 2,160 (UHD)
- Multi-Touch Point : 40 Points (Max.)
Contact us
GGEAR Commercial
A New Level of Classroom with LG CreateBoard
Various Teaching Templates
LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes.
Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.
Multi-touch
LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality.
This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.
Easy to Save / Import / Export
LG CreateBoard includes simple import and export functionality.
Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).
Wireless ScreenShare
LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device.
Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.
LG ConnectedCare DMS
LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.
Remote-control / Scheduling
Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a remote control.
Broadcasting / Alert Messaging
Messages and a range of other content can be sent from the main system to individual classroom devices connected to LG ConnectedCare DMS.
In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which help teachers and students promptly take safety action.
Threshold Settings
Users can set thresholds in eight categories including display temperature, memory usage, or signal, and can receive warning or error notifications based on their threshold settings.
Monitoring & Fault Diagnosis
An engineer can check the status in real-time and diagnose problems remotely. Also, the current status of issues can be categorized, allowing for easy viewing and quick responses.
Issue Management
Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the classroom.
Bluetooth Connectivity
LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.
QR Login for Easy Cloud Access
The QR code on the home screen reduces preparation time for class by enabling personal device verification. Users can sign up for a variety of apps on the LG CreateBoard including Google Drive and OneDrive with just one QR verification without any additional login process. Once a lesson is finished, users can simply click the Logout button to disconnect, thus the risk of a personal information leak is reduced.
Advanced Eye-Care
LG CreateBoard has introduced a flicker-free function. With the reduced flickering of the monitor's backlight, users can use the device with more comfort even when using it for a long time.
Front Connectivity Design
LG CreateBoard features front display ports and speakers which are ideal for both teachers and students, enabling content to be delivered easier with more immersive sound.

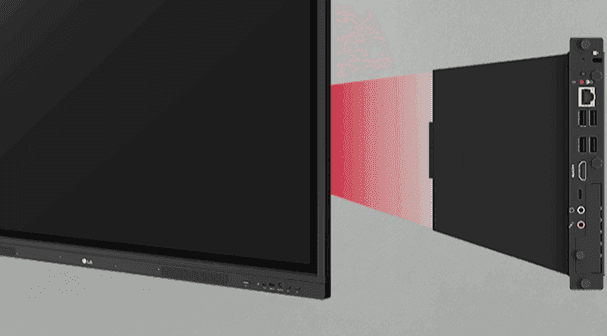

Built-in OPS Slot
LG CreateBoard supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the LG CreateBoard without the hassle of connecting to an external desktop, offering you more expanded functions.
Smart Viewing
The Smart Viewing feature of LG CreateBoard enables efficient teaching. Two or more materials can be displayed on the same screen simultaneously without having to repeat Alt-tab, making teaching more convenient and efficient. Two materials can be displayed side by side (multi window mode), or one material can be overlaid on the other one (picture-in-picture mode).
Power Saving
When a device doesn’t receive an external input signal for a specific amount of time set by the user, the device goes into standby mode. Devices can also be automatically turned on or off at specific time or day set by the user, which contributes to save energy.
Screen Lock
Teachers can lock the screen using the Screen Lock function, and unlock it by entering a password. Users can set the Screen Lock in the Settings menu to protect the device from unidentified users.

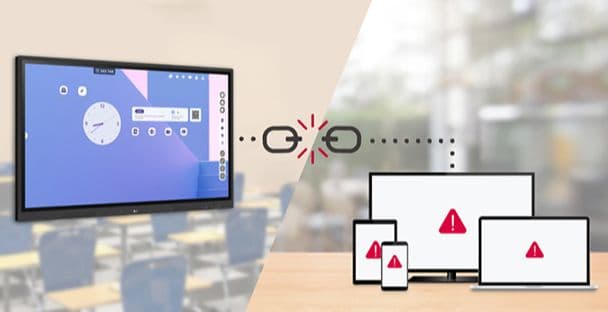

Secure Mode
LG CreateBoard supports Secure Mode that disables the LG CreateBoard Share function to prevent unauthorized content from being shown on various devices.
USB Lock Mode
USB Lock Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential when being used in spaces where security is critical.
Auto-remove Files
Users can set LG CreateBoard to delete files regularly for enhanced security.

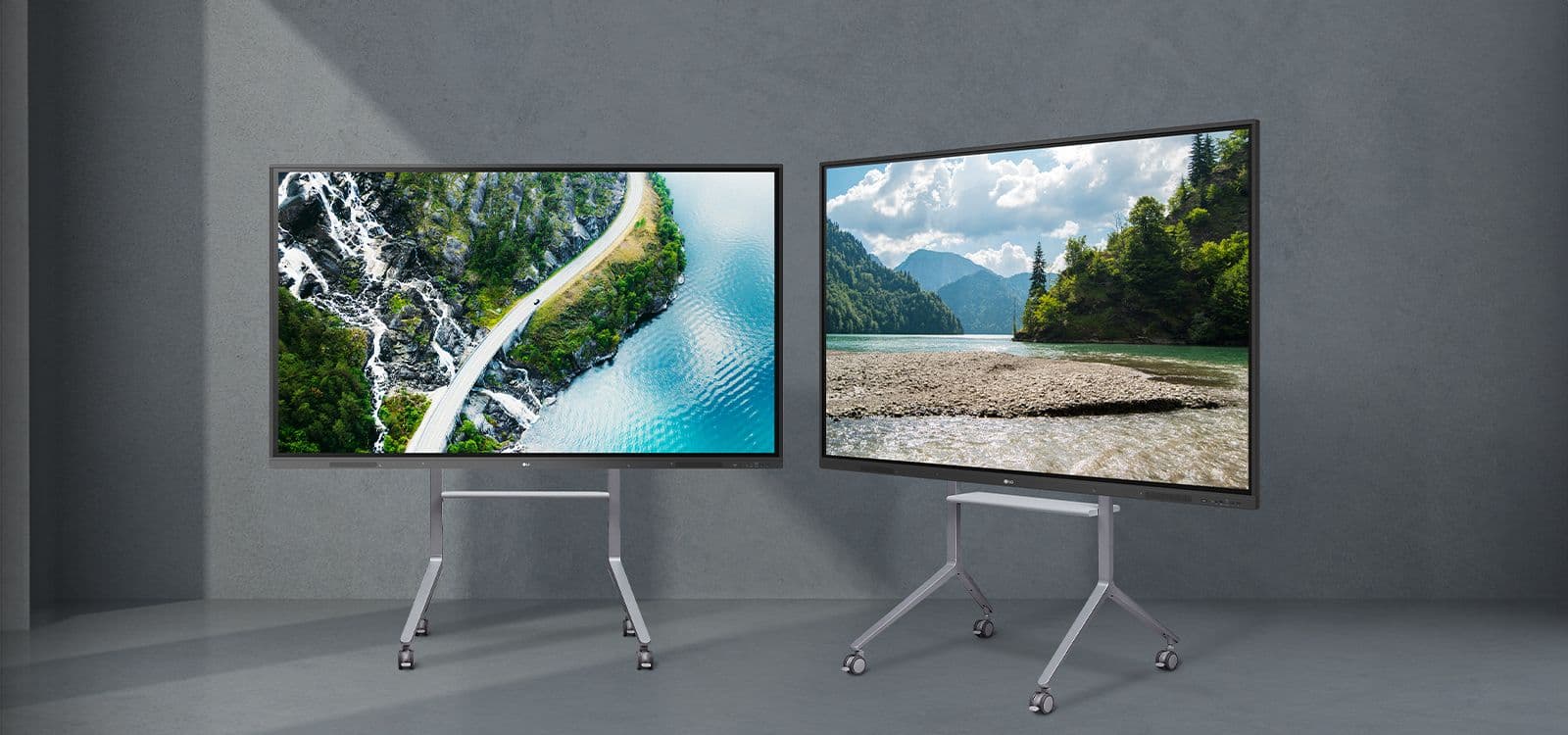

Easy Transportation with LG Universal Stand
The LG Createboard can be used anywhere indoors where it can be easily wheeled around. From classrooms to in-between spaces, it plays various roles according to each need such as lectures, group discussions, school announcements, and more.
Screen Size
86"
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16 : 9
Native Resolution
3840 x 2160 (4K UHD)
Refresh Rate
60Hz
Brightness
440 nit (w/o Glass Max.), 390 nit (w/o Glass Typ.)
Contrast Ratio
1,200 : 1
Color gamut
NTSC 68%
Viewing Angle(H x V)
178 X 178
Color Depth
1.07 B (10 bit)
Response Time
8 ms
Surface Treatment (Haze)
28%
Life Time (Min.)
30,000 Hrs(L50, Min.), 50,000 Hrs (L30)
Operation Hours (Hours/Day)
16 / 7
Portait / Landscape
No / Yes
Bezel Color
Black
Bezel Width
15 / 15 / 15 / 44 mm
Weight (Head)
58.6 kg
Packed Weight
75.9 kg
Monitor Dimensions (W x H x D)
1,957 × 1,160 × 100 mm
Carton Dimensions (W x H x D)
2,110 × 1,283 × 225 mm
Handle
Yes
VESATM Standard Mount Interface
800 × 600mm
Operation Temperature
0 °C to 40 °C
Operation Humidity
10% to 90%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
320 W
Max.
580 W
DPM
≤0.5W
Power off
≤0.5W
BTU (British Thermal Unit)
1,314 BTU/Hr (Typ.), 1,979 BTU/Hr (Max.)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes / Yes
OPS type compatible
Yes (Slot)
OPS Power Built In
Yes
LG ConnectedCare
Yes
LG ConnectedCare DMS
Yes
Input
HDMI (3, HDCP 2.2), RGB (VGA), Audio In, RS-232C In, RJ45 (LAN), USB 3.0 Type A (4), USB 2.0 Type A, USB Type C (USB-PD, DP-Alt)
Output
HDMI Out, Audio Out (1, Optical 1 (SPDIF)), Touch USB (2), RJ45 (LAN)
Speaker
Yes (15 W × 2)
Language
English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Qajaq, Catalan, Basque
Basic
Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Optional
Wall Mount(WM-L000S), Floor Stand(ST-000F) (US only)
Available Object Size for Touch
Ø2 mm↑
Response Time
≤5 ms
Accuracy
±1 mm
Interface
USB 2.0
Protection Glass Thickness
3 T (Anti-Glare)
Protection Glass Transmission
88%
Operating System Support
Windows 7 / 8 / 10 / Linux / Mac / Android (Supports one point touch on Windows XP / Linux / Mac)
Multi Touch Point
Max 40 points (Windows), Max 20 points (Android)
SoC
Quad Core A55
GPU
Mali G52MP2
RAM
8GB
Storage
64 GB
Wi-Fi
802.11a/b/g/n/ac/ax (Wi-Fi 6)
LAN
Gigabit LAN
Bluetooth
Bluetooth 5.0
OS ver.
Android 11
Key Feature
Internal Memory (64 GB), Built-In Wi-Fi (Slot Type), Auto Brightness Sensor, Power Indicator, Android 11 (Android 13 starting from July 2024), Background Image (Booting Logo Image), Multi-screen (PIP / PBP, External Source), Screen Share, Power (Smart Energy Saving, Wake on LAN)
