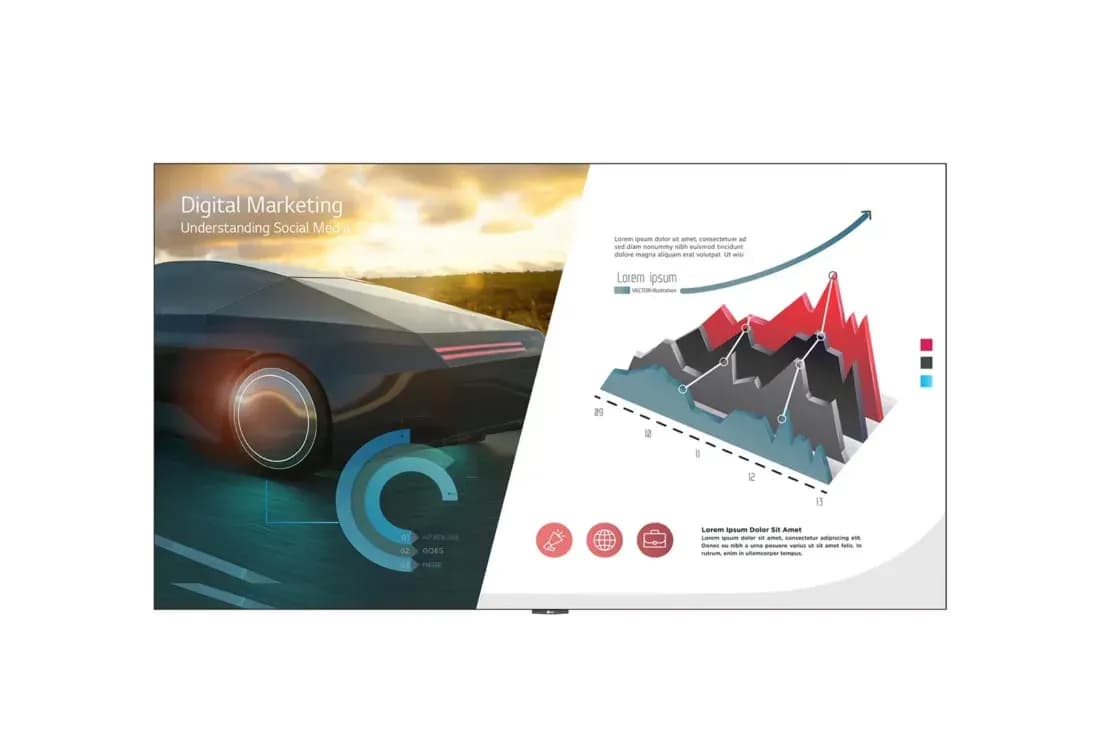

All-in-One LED Display with webOS

Share:

LAEC018

All-in-One LED Display with webOS

Key Features

  • Pixel Pitch: 1.88 mm
  • Screen Size: 163” (Full HD)
  • Brightness: 500 nit (Max., after calibration)
  • Embedded System Controller
  • Built-in Speaker
  • Dedicated Accessories : Wall Mount, Dedicated Stand (Optional)

Contact us

GGEAR Commercial


All-in-One LED Display with webOS

Banner Image

All-in-One LED Screen with Built-in Speaker

LG’s LED All-in-One LAEC series has two size of screens; 136- inch and a 163-inch. The LAEC series is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.
All-in-One LED Screen with Built-in Speaker

All-in-One LED Screen with Built-in Speaker

LG’s LED All-in-One LAEC series has two size of screens; 136- inch and a 163-inch. The LAEC series is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

High Performance with webOS

Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.
High Performance with webOS

High Performance with webOS

Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.

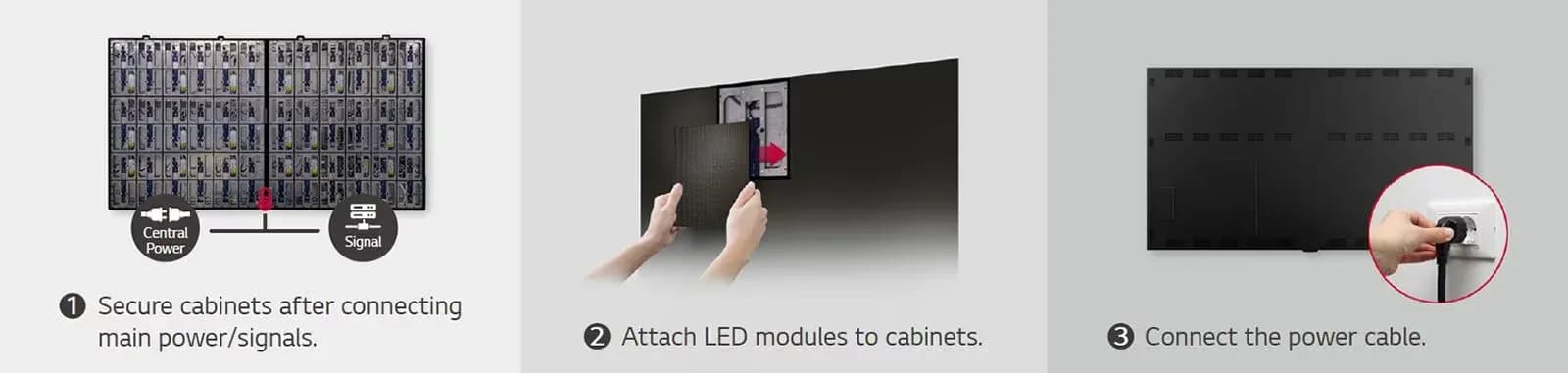

Easy Installation

The installation process of the All-in-One Smart series is very simple. After securing cabinets (two for LAEC015, three for LAEC018), attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.

Banner Image

Versatile Installation with Dedicated Accessories

The product is offered with the necessary component including the landscape wall mount and tools for installation. The dedicated stand* is provided as an option, so that you can easily place it depending on your installation sites. Also, the LAEC series can be installed side by side in the form of 1 × N or 2 × N, up to 14 screens, suitable for its installation site and its purposes.

Banner Image

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.
Quick Maintenance

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
Real-time LG ConnectedCare

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

Compatible with AV Control Systems

The LAEC series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.
Compatible with AV Control Systems

Compatible with AV Control Systems

The LAEC series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

Wireless Screen Sharing

The LAEC series is compatible with LG One:Quick Share*, a wireless screen sharing solution. It helps to simply share one’s personal PC screen to the display with its button and embedded Wi-Fi**, and it can also adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control.
Wireless Screen Sharing

Wireless Screen Sharing

The LAEC series is compatible with LG One:Quick Share*, a wireless screen sharing solution. It helps to simply share one’s personal PC screen to the display with its button and embedded Wi-Fi**, and it can also adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control.

Magic Remote for Easy of Use

With the LG Magic Remote, you can select and run the menu of the signage just like using a mouse and its cursor can be used as a laser pointer. In addition, through the newly added 'FREEZE' button on the remote control, users can temporarily freeze the screen while switching contents on the PC, so that users are able to have uninterrupted meetings without exposing its switching process.

Banner Image

Pixel Configuration

Single SMD

Pixel Pitch (mm)

1.88

Screen Resolution (WxH)

1,920 x 1,080

Module Dimensions (W × H, mm)

300 × 168.75

No. of Modules per Screen (WxH)

12 × 12 (Total 144)

Screen Dimensions (W x H x D, mm)

3,604 × 2,029 × 45.5 (Thickest 81)

Screen Surface Area (㎡)

7.29

Screen Weight (kg)

190

Physical Pixel Density (pixels/m²)

284,444

Flatness of Cabinet (mm)

±0.2

Cabinet Material

Die-casting Aluminum

Service Access

Front

Max. Brightness (nit, after calibration)

500

Color Temperature (K)

3,200 - 9,300

Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

160

Brightness Uniformity

98%

Color Uniformity

±0.015 Cx, Cy

Contrast Ratio

3,000:1

Processing Depth (bit)

16 (HDR10, HDR10 Pro)

Power Consumption (W/screen, Max.)

2,200

Power Consumption (W/screen, Avg.)

880

Power Consumption (W/m², Max.)

302

Power Consumption (BTU/h/Screen, Max.)

7,506

Power Consumption (BTU/h/Screen, Avg.)

3,004

Power Consumption (BTU/h/㎡, Max.)

1,030

Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60

Refresh Rate (Hz)

3,000

Lifetime (Hours to Half Brightness)

100,000

Operating Temperature (°C)

0 to +40

Operating Humidity

10-80% RH

IP Rating (Front / Rear)

IP30 / IP20

Speaker

Built-in (9 W + 9 W)

Certification

CE,FCC,ETL,CB

Environment

RoHS, REACH

Controller

Embedded
