LBCK039
Ceiling LED Display for Virtual Production
Key Features
- Pixel Pitch: 3.91 mm
- Brightness: 5,000 nit
- Easy Installation and Maintenance
- Front or Rear Serviceability
- Brompton LED Processor & Data Distribution
Contact us
GGEAR Commercial
Floor LED Display for Virtual Production
Easy Installation & Maintenance
The module can be easily removed using the dedicated tool (with front or rear selective service access). The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.
Front or Rear Serviceability
Front or Rear Serviceability

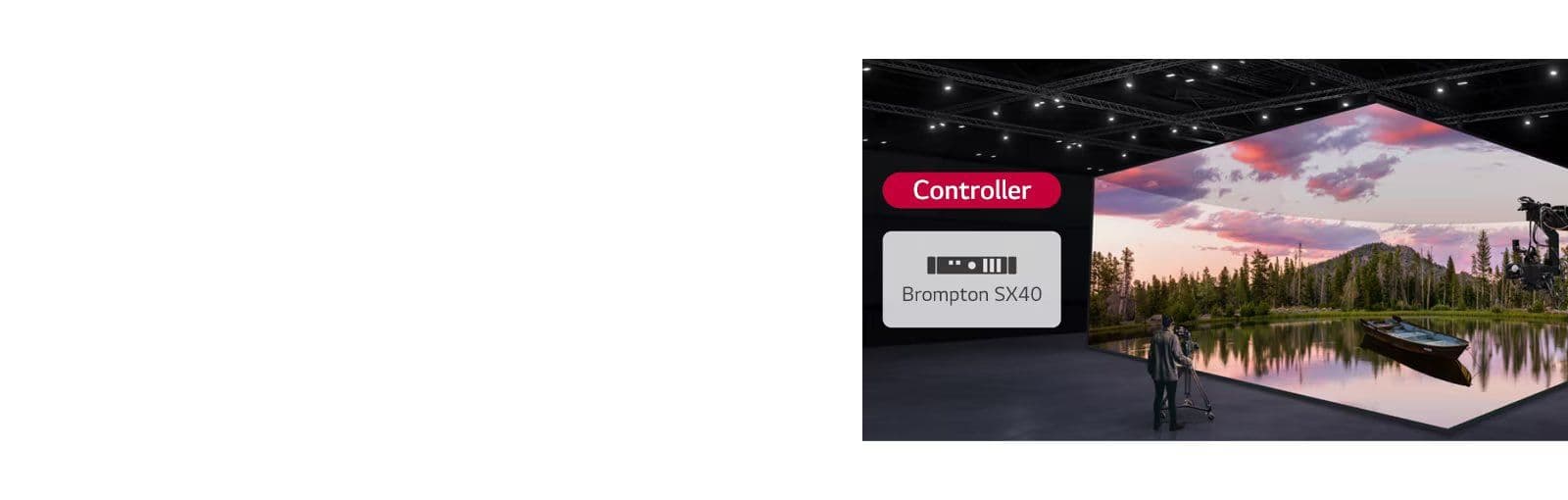

Brompton LED Processor & Data Distribution
Brompton LED Processor & Data Distribution
High Brightness
The ceiling LED with 5,000 nits enables LBCK series to be used for alternative lightings in XR and virtual production.
Pixel Configuration
3 in 1
Pixel Pitch(mm)
3.91
Module Resolution (WxH)
64x128
Module Dimensions(WxH,mm)
250x500
Weight per Module (kg)
1.40
No. of Modules per Cabinet (WxH)
2 x 2
Cabinet Resolution (WxH)
128x256
Cabinet Dimensions (W x H x D, mm)
500x1000x66.05
Cabinet Surface Area (㎡)
0.500
Weight per Cabinet (kg/unit)
12.5
Weight per Square Meter (kg/m²)
24.9
Physical Pixel Density (pixels/m²)
65,536
Flatness of Cabinet (mm)
±0.3
Cabinet Material
Die-casting Magnesium
Service Access
Front or Rear (select one only)
Max Brightness (After Calibration, nit)
5,000
Color Temperature (K)
2,000-11,000
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
155
Brightness Uniformity
97%
Color Uniformity
±0.003CxCy
Contrast Ratio
6,000:1
Processing Depth (bit)
14 (PQ, HLG)
Power Consumption (W/Cabinet, Max.)
300
Power Consumption (W/Cabinet, Avg.)
100
Power Consumption (W/m², Max.)
600
Heat Dissipation (BTU/h/Cabinet, Max.)
1,024
Heat Dissipation (BTU/h/Cabinet, Avg.)
341
Heat Dissipation (BTU/h/m², Max.)
2,047
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-30℃ to +45℃
Operating Humidity
10-99%RH
CONTROLLER
Brompton SX40
