LFCG039
Digital Floor Series
Key Features
- Pixel Pitch: 3.91 mm
- Brightness: 3,000 nit
- High Durability
- Excellent Usability
- Easy Installation and Maintenance
- Interactive Touch Screen
Contact us
GGEAR Commercial

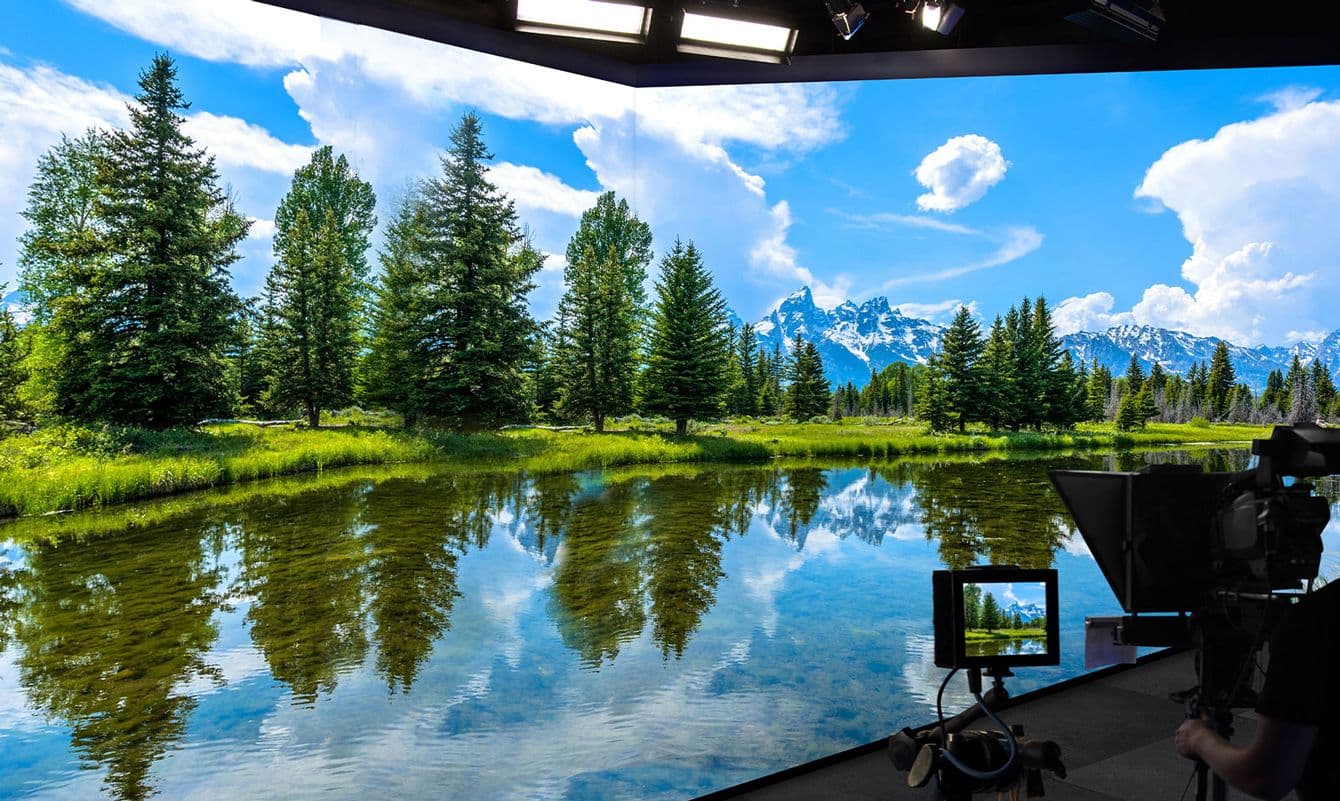

Floor LED Display for Virtual Production
Digital Floor Series
* All images in this datasheet are for illustrative purposes only

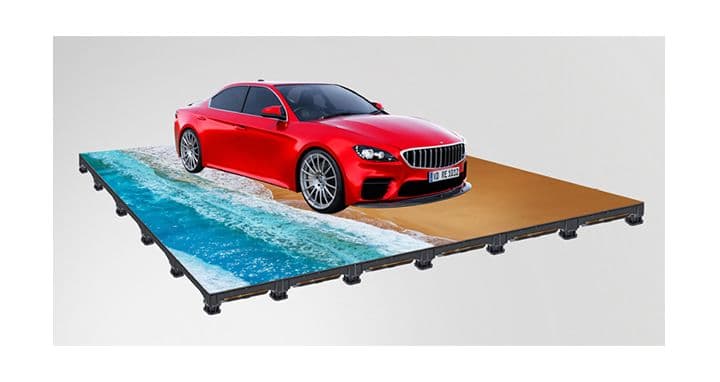

High Durability
LFCG is a unique floor LED display with high durability designed to load up to 2,500 kg/sqm.

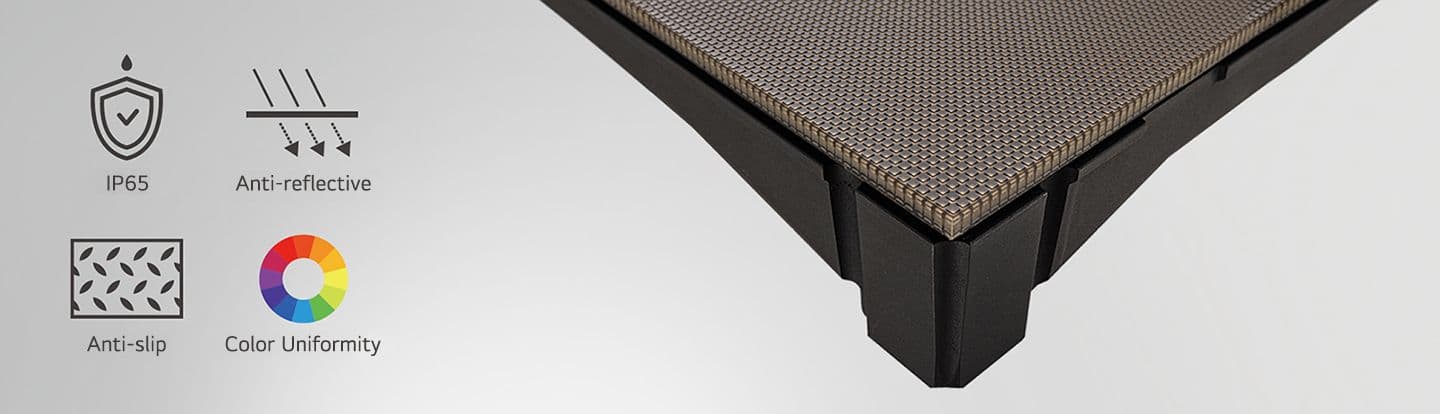

Excellent Usability
Surface safety when installing the Virtual Production LED screen on the floor is ensured with IP65 protective slip-resistant mat and reflection-reducing surfaces. High visual performance with high contrast LED for uniform visual performance in black is considered. A new mask with diffusing powder has been applied to reduce color shifting and refract light in various directions, making it ideal for XR Stage and other virtual production environments.

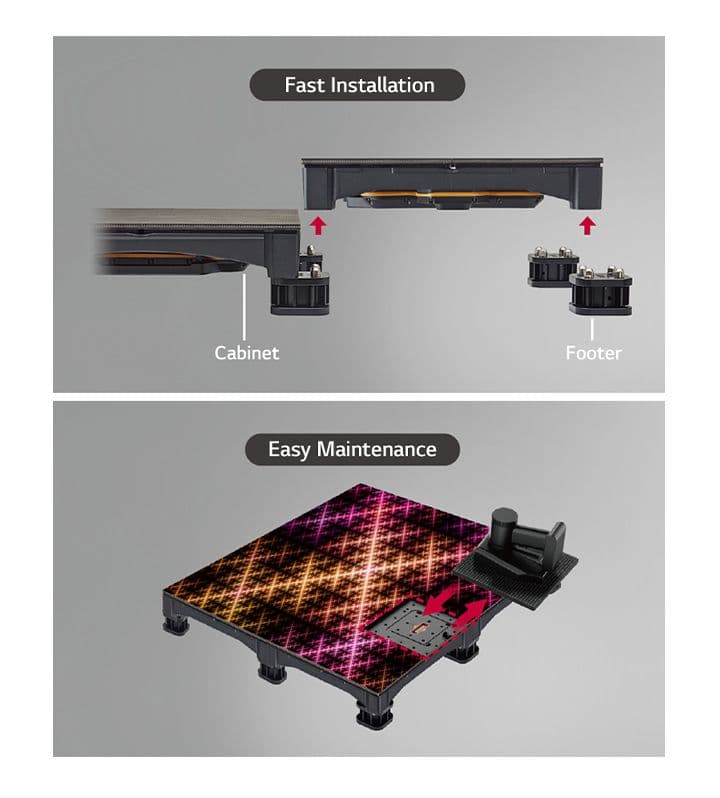

Easy Installation and Maintenance
Its simple product structure allows for easy installation and quick maintenance. You can quickly deploy and connect the cabinets with the foot support system without any tools. A simple flush control mechanism design is applied to keep the height level regardless of floor type. In addition, magnets attached to the Virtual Production LED module allow for easy maintenance, and hot-swapping* is able during the display operation.

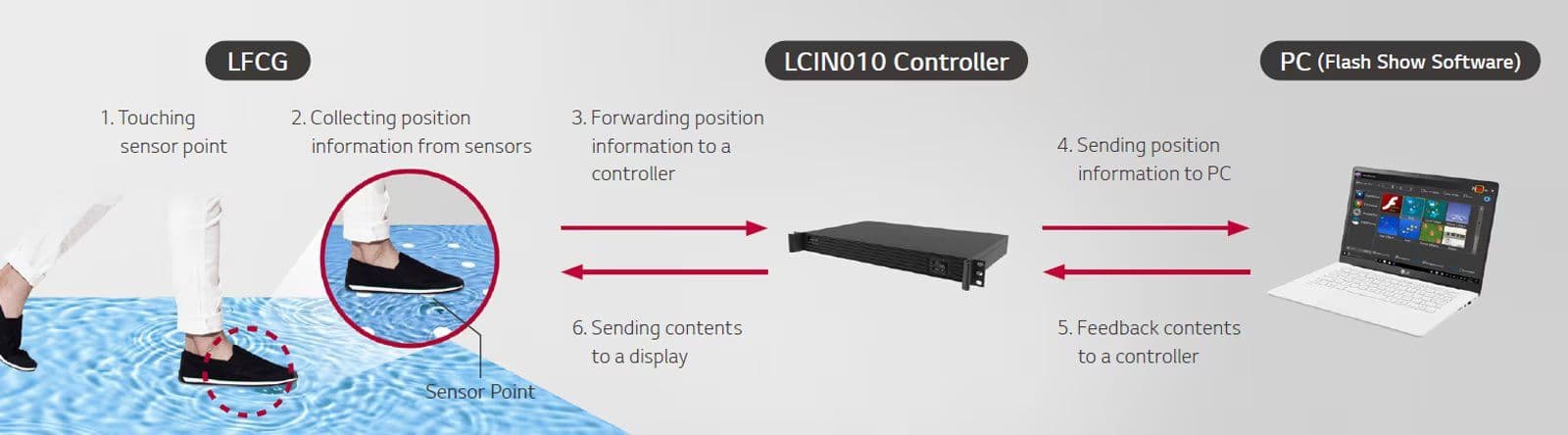

Interactive Touch Screen
Using sensor detection, the interactive touch screen can detect and react to movements, enabling response to the content on the LED display. This function is available by connecting with the LCIN010 controller. Our Flash Show Software enables you to set up your display configuration. It offers Flash & Game, Exhibition, Module testing, and Data forward modes. In addition, you can upload your own dynamic video content to LFCG panels through the Exhibition mode.
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
3.906
Module Resolution (W × H)
64 × 64
Module Dimensions (W × H, mm)
250 × 250
Weight per Module (kg)
0.90
No. of Modules per Cabinet (W × H)
2 × 2
Cabinet Resolution (W × H)
128 × 128
Cabinet Dimensions (W × H × D, mm)
500 × 500 × 84.5
Cabinet Surface Area (m²)
0.250
Weight per Cabinet (kg/Cabinet)
15.1
Weight per Square Meter (kg/m²)
64.0
Physical Pixel Density (pixels/m²)
65,536
Flatness of Cabinet (mm)
±0.5
Cabinet Material
Die Casting Aluminum
Service Access
Front
Max. Brightness (After Calibration, nit)
3,000
Color Temperature (K)
3,500-9,000
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
≥ 97%
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000
Processing Depth (bit)
14
Lifetime (Half Brightness)
100,000
Operating Temperature (°C)
-10 to +45
Operating Humidity
0-80% RH Non-condensing
IP Rating Front / Rear
IP65 / IP65
Power Consumption (W/Cabinet, Max.)
240
Power Consumption (W/Cabinet, Avg.)
80
Power Consumption (W/m², Max.)
960
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
Datasheet
