55TR3BG
LG 55″ Interactive Digital Board
Key Features
- Brightness (w/ Glass) : 350 nit (Typ.)
- Touch Type : IR
- Multi Touch Point : Max 20 Points
- Interface : HDMI (3), RGB / Audio In,RS232C In,USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2),HDMI (1), Optical Output / Audio Out
Contact us
GGEAR Commercial
True Interactivity for Bringing People Together
Multi Touch & Writing
The TR3BF/G series can simultaneously use up to 20 points of multi touch. This function offers a lifelike board writing experience and makes collaboration much easier.
EASY CONNECTION & SHARING ScreenShare Pro Upgrade
With the newly upgraded ScreenShare Pro, which enables to show a maximum of six shared screens or a file on a screen in real-time, it has enhanced usability by allowing users to share Chromecast mirroring on the same network without any application.
EASY CONNECTION & SHARING Air Class
Air Class supports connecting up to 30 students and offers interactive meetings for all mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts.
USER FRIENDLY EXPERIENCE DPM (Display Power Management)
By activating DPM function, the display can be set to be on only when there is an input signal, which enables more efficient power management.
USER FRIENDLY EXPERIENCE Annotation Upgrade
At annotation tool mode, ‘Un-do’ and ‘Re-do’ functions provide enhanced user experience. (Annotation tool can be used on any source.)
*OSD : On Screen Display
USER FRIENDLY EXPERIENCE Web Browser
The TR3BF/G series supports the web browser in the Android OS, so you can search the web easily and quickly, without connecting to an external desktop.

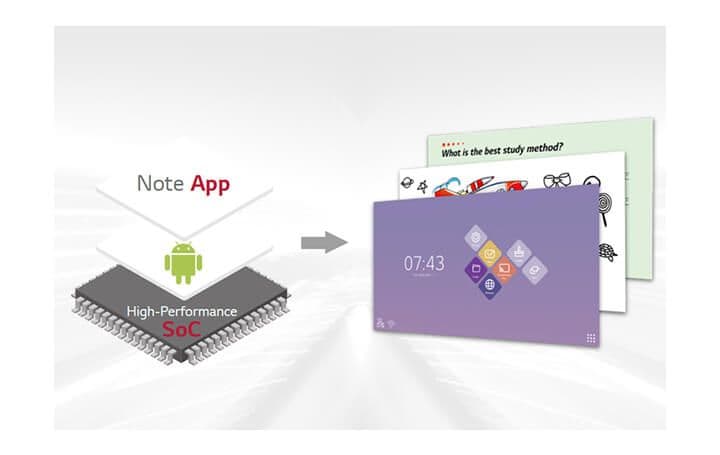

USER FRIENDLY EXPERIENCE All-in One
The TR3BF/G series integrates both Android OS and Free apps into a high performance SoC, without a PC.

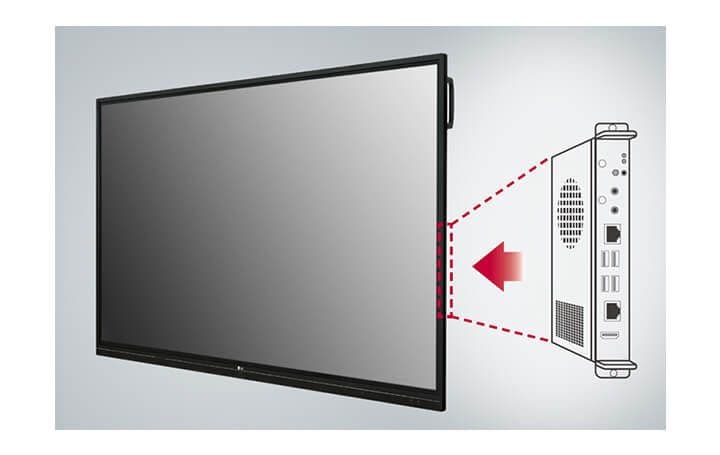

SECURITY & COMPATIBILITY Built-in OPS Slot
The TR3BF/G series supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the digital board without the hassle of connecting to an external desktop, offering you more expanded functions.
SECURITY & COMPATIBILITY Google CTS* Pass
LG Interactive Display was granted an approval for Google's Compatibility Test Suite, which is Android API & Application Compatibility Test, on August of 2019. This CTS approval ensures that LG Interactive display supports stable work on Android OS.
SECURITY & COMPATIBILITY USB Block
The USB Block Mode that helps secure and prevent data from being copied into unauthorized devices in advance, which is essential for being used in space where security is critical.
SECURITY & COMPATIBILITY Secure Mode
Secure Mode blocks unauthorized contents to be shown via sharing screen function in various devices. The preloaded applications related to share screens will be hidden from menu. Secured mode disables screen mirroring options for SSP (Screen Share Pro). It helps prevent unauthorized access to your IDB.
Screen Size
55"
Panel Technology
IPS
Aspect Ratio
16:9
Brightness (Typ., cd/m²)
350
Contrast Ratio
1,200:1
Viewing Angle (H x V)
178 x 178
Response Time
8 ms (G to G)
Life Time (Min.)
30,000 Hrs
Operation Hours (Hours / Day)
16Hrs/7 Days
Orientation
Landscape
(Input) Video / Audio
HDMI (3), RGB / Audio In
(Output) Video / Audio
HDMI (1), Optical Output / Audio Out
(Input) USB
DP, AudioUSB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2)
(Input) External Control
RS232C In
Bezel Color
Black
Bezel Width(Off Bezel)
Top/Right/Left:18.9mm, Bottom:45.7mm
Weight (Head)
27kg
Packed Weight
34.1kg
Monitor Dimension (W × H × D)
1,271 x 774 x 84mm
Carton Dimensions (W × H × D)
1,450 x 1,015 x 225mm
Handle
Yes
VESA™ Standard Mount Interface
400 x 200
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240 V~, 50 / 60 Hz
Power Type
Built-In Power
Power Consumption (Typ. / Max.)
130/259 W
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes (EU Only)
Basic
Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR/Light Sensor Receiver, Manual
Optional
OPS Kit (KT-OPSF)
Content Management Software
SuperSign CMS (The SuperSign Editor function is not supported.)
Control and Monitoring Software
SuperSign Control/ Control+
LG ConnectedCare
Yes
OPS type compatible
Yes
Speaker
Yes
Touch type
IR
Available object size for touch
Ø3 mm ↑
Response Time
60ms ↓ (Android) / 100ms ↓ (Windows)
Accuracy
±1.5mm
Interface
USB 2.0
Protection Glass Thickness
3T (Anti-Glare)
Protection Glass Transmission
87%
Operating System Support
Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)
Multi Touch Point
Max 20 Points
