86BH5F

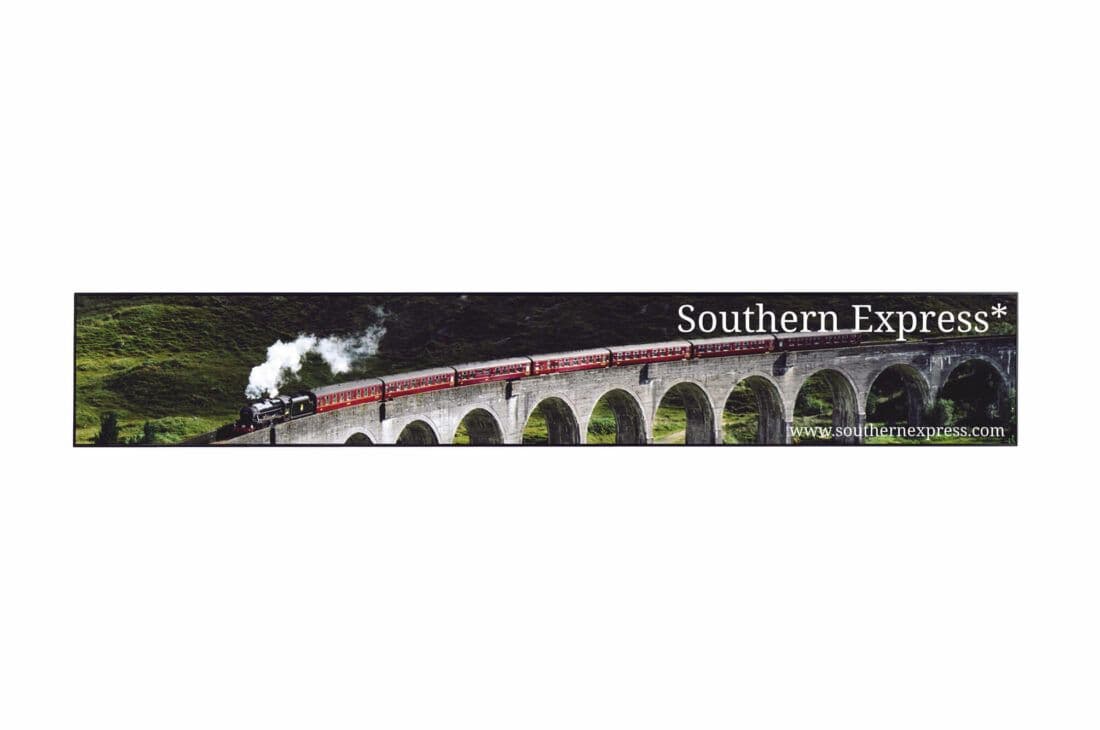

LG 86″ Ultra Stretch Signage
Key Features
- Brightness(Typ.) : 500 cd/m²
- Aspect Ratio: 58:9
- Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
- Depth: 81.7mm
- Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR
Contact us
GGEAR Commercial
58:9 Space-Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.

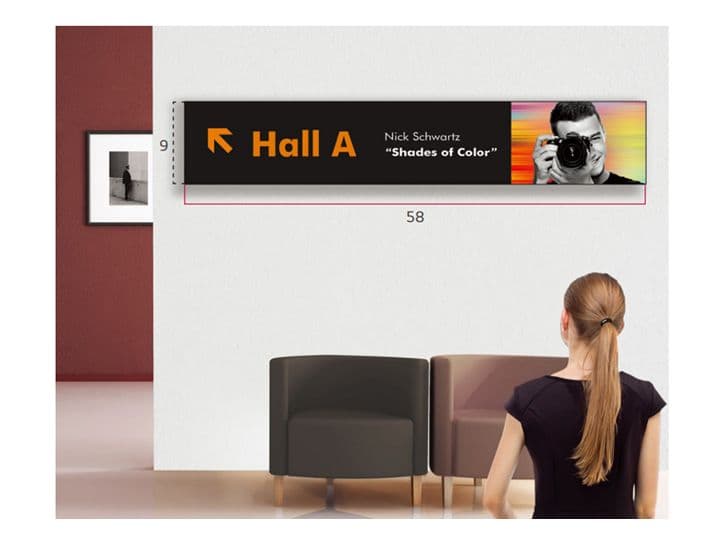

58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

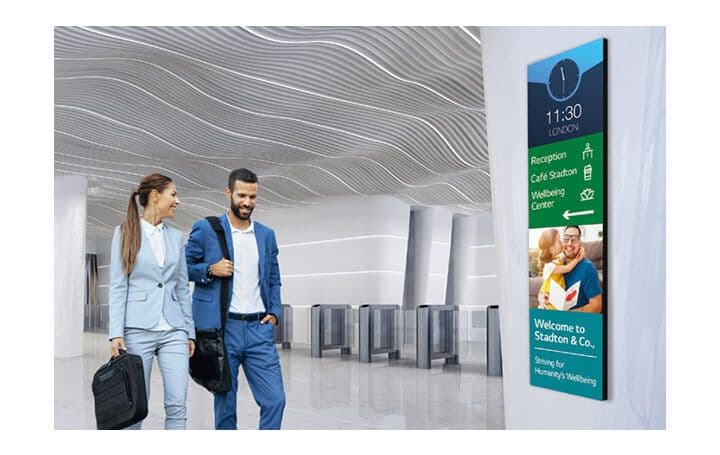

Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

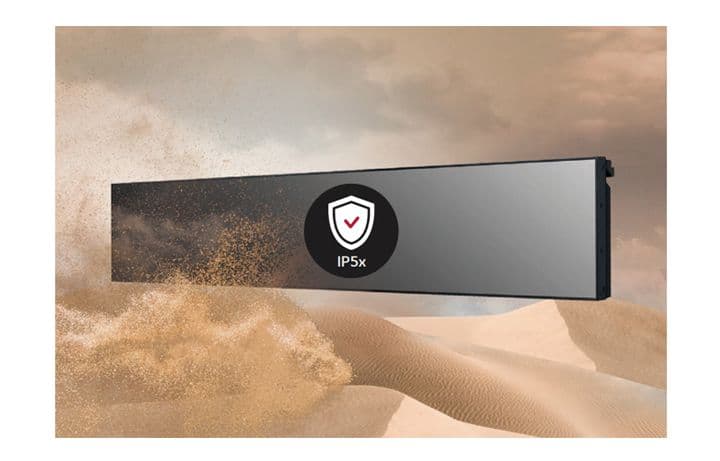

IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

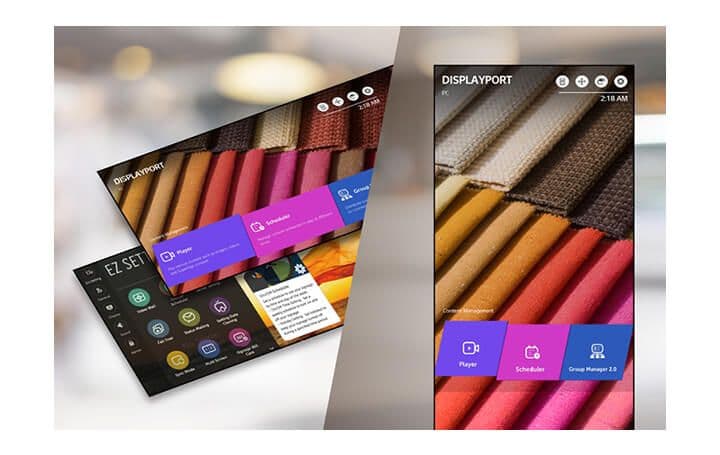

User-Friendly UX
The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.
*OSD : On Screen Display

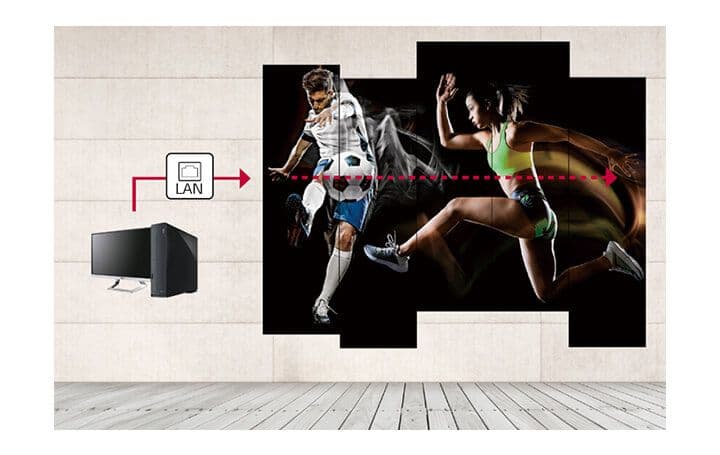

LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with LG ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
Screen Size
86"
Panel Technology
IPS
Aspect Ratio
58:9
Brightness (Typ., cd/m²)
500
Contrast Ratio
1,100:1
Viewing Angle (H x V)
178 x 178
Response Time
8 ms (G to G)
Surface Treatment (Haze)
Haze 3%
Life Time (Min.)
50,000 Hrs
Operation Hours (Hours / Day)
24 Hrs/7 Days
Orientation
Portrait & Landscape
Input
HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
External Control
RS232C In/out, RJ45 (LAN) In/out, IR In
Output
DP, Audio
Bezel Color
Black
Bezel Width
4.4 mm (L/R), 5.9 mm (T/B)
Weight (Head)
20.5 kg
Packed Weight
38.2 kg
Monitor Dimension (W × H × D)
2,158.3 x 348.5 × 81.7 mm
Carton Dimensions (W × H × D)
2,290 x 599 x 228 mm
Handle
Yes
VESA™ Standard Mount Interface
600 x 200 mm
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240 V~, 50 / 60 Hz
Power Type
Built-In Power
Power Consumption (Typ. / Max.)
220 W / 240 W
Smart Energy Saving
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes (EU Only)
Basic
Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR/Light Sensor Receiver, Manual
Optional
OPS Kit (KT-OPSF)
Content Management Software
SuperSign CMS (The SuperSign Editor function is not supported.)
Control and Monitoring Software
SuperSign Control/ Control+
LG ConnectedCare
Yes
OPS type compatible
Yes (Piggyback)
