Central Controller

Integrated control solution for optimized building management

Central Controller

Integrated control solution for optimized building management

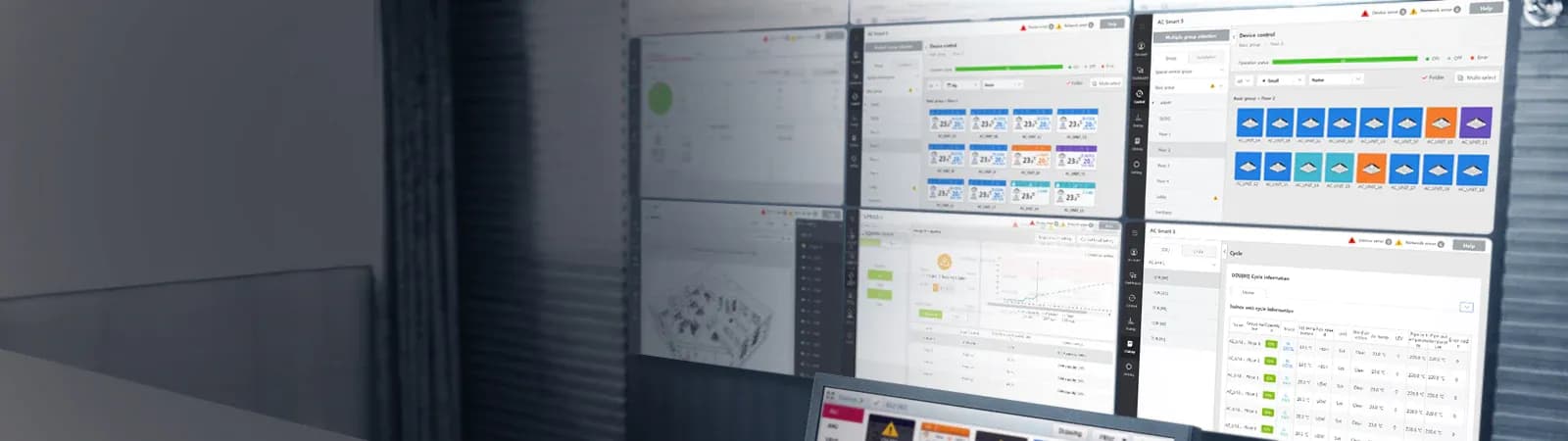

User Friendly Interface

Building control can be simply monitored with flexible interface and easily managed with actual floor plan on the screen. Intuitive interface helps users to conveniently manage the building energy usage.
User Friendly Interface

User Friendly Interface

Building control can be simply monitored with flexible interface and easily managed with actual floor plan on the screen. Intuitive interface helps users to conveniently manage the building energy usage.

Saving Energy with Energy Navigation

Historic data of building energy control system can be accessed periodically so that users can monitor and set the consumption target to realize the optimum energy management.
Saving Energy with Energy Navigation

Saving Energy with Energy Navigation

Historic data of building energy control system can be accessed periodically so that users can monitor and set the consumption target to realize the optimum energy management.

Diagnostic System Monitoring

Report including control status and other information is provided via e-mail so that system can be monitored properly even when error occurs. Red alert takes up the whole display upon any urgency situation and all other control signals are blocked to prevent any possible accident.
Diagnostic System Monitoring

Diagnostic System Monitoring

Report including control status and other information is provided via e-mail so that system can be monitored properly even when error occurs. Red alert takes up the whole display upon any urgency situation and all other control signals are blocked to prevent any possible accident.

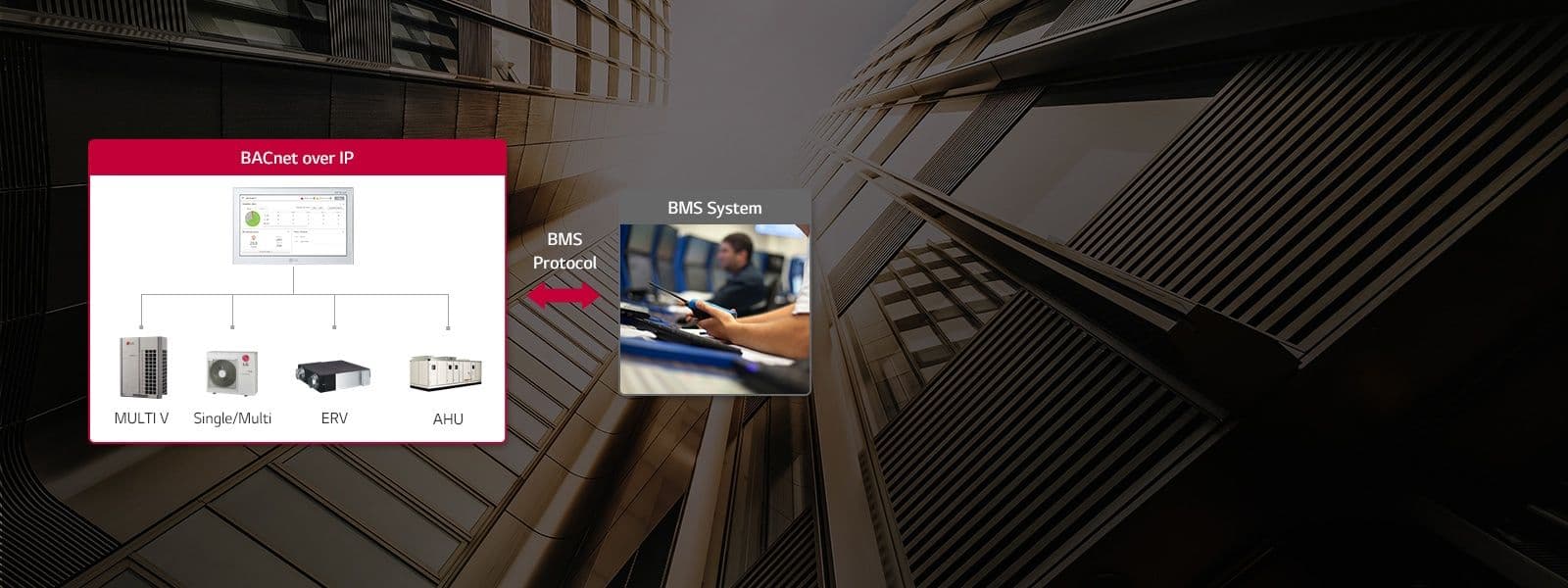

Easy Expandability

Integrated management of LG HVAC Control Solution links operations of LG air conditioners with external systems for expanded coverage. As the BMS system is embedded in the controller, the solution is directly connected to the system without the need for an additional BMS gateway to enable communication with the BMS protocol, BACnet IP and Modbus TCP.
Easy Expandability

Easy Expandability

Integrated management of LG HVAC Control Solution links operations of LG air conditioners with external systems for expanded coverage. As the BMS system is embedded in the controller, the solution is directly connected to the system without the need for an additional BMS gateway to enable communication with the BMS protocol, BACnet IP and Modbus TCP.

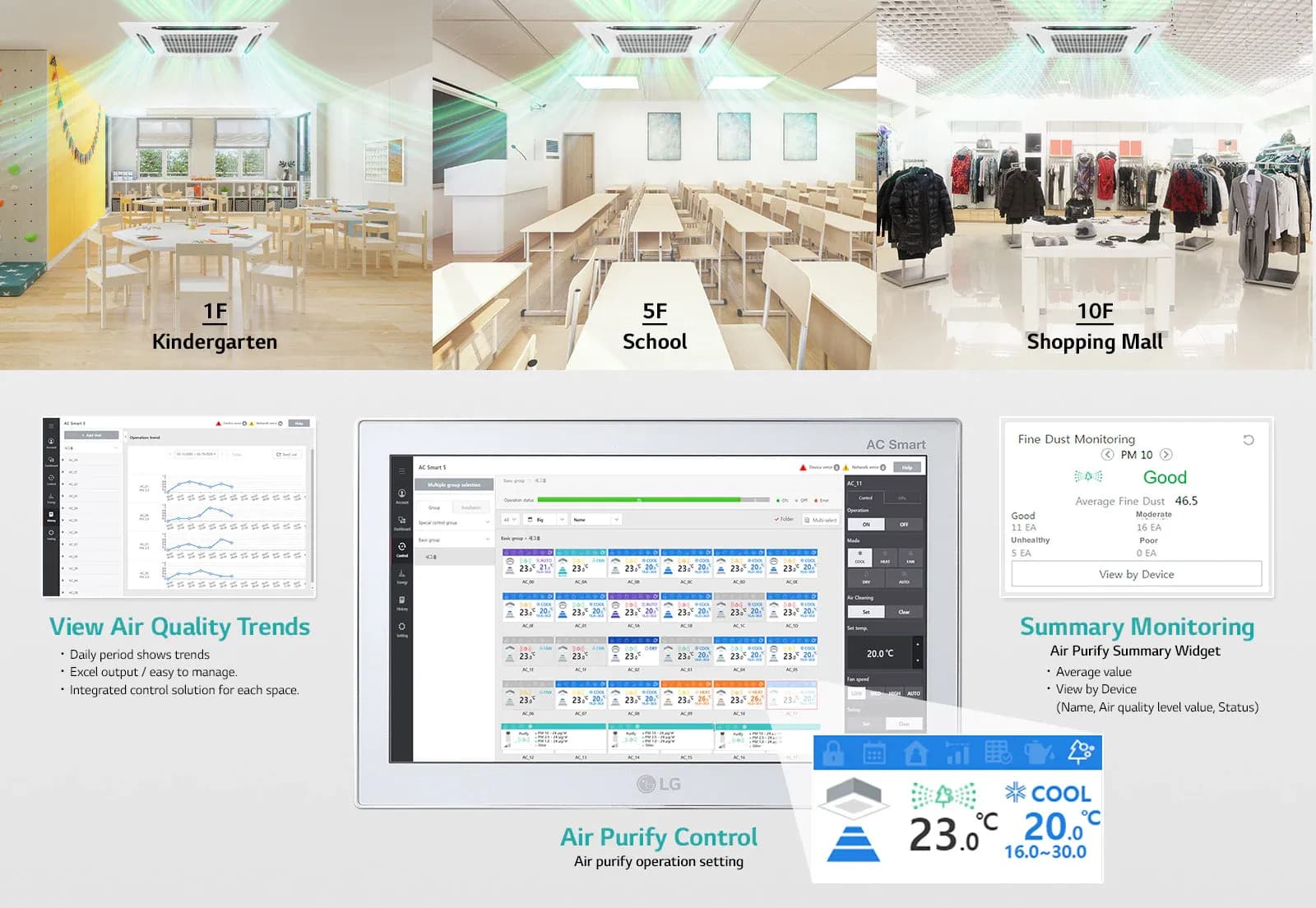

Easily Check the Air Quality of the Entire Building

AC Smart 5 can manage air quality of up to 128 indoor units. In addition to turning on the air purifying mode, you can monitor the air quality in real-time and view the recorded air condition.

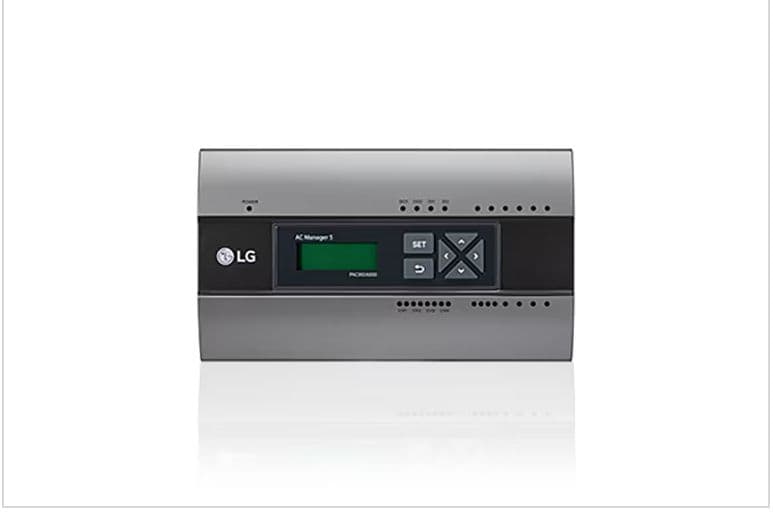

AC Manager 5

AC Manager 5

Model : PACM5A000

270 x 155 x 65 (mm)

Up to 8,192 units via max. 32 ACP and AC Smart can be integrated as one management system

Web access control based on HTML5

(PC, Tablet, Smartphone access)

Icon / Floor map view

Yearly Schedule

Energy Management

Device Interlock

Email Notification

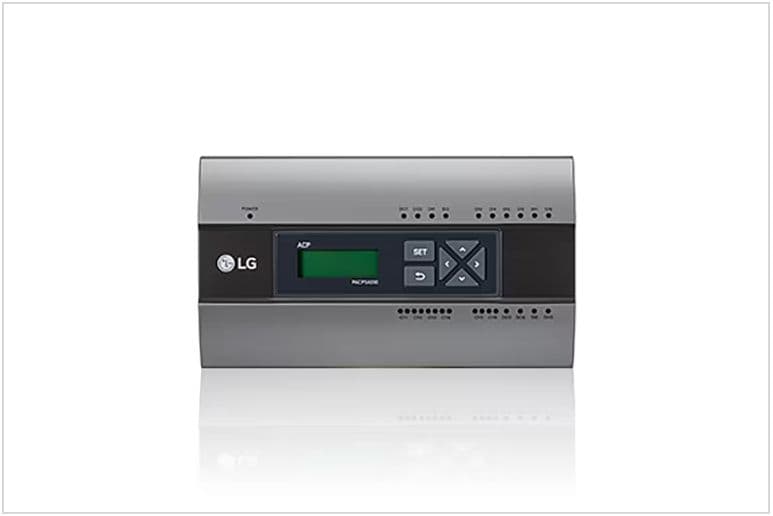

ACP 5

Model: PACP5B000

270 x 155 x 65 (mm)

Up to 256 units (IDU, ERV, Hydro Kit, AHU kit, Commercial Air Purifier)

Web access control based on HTML5(PC, Tablet, Smartphone access)

Air Purify Control, Air Quality Level Display

BMS Integration(BACnet IP/Modbus TCP)

Energy Management

Device Interlock

3rd Party device Control(with ACS IO Module)

Email Notification

Multi level group

ACP 5

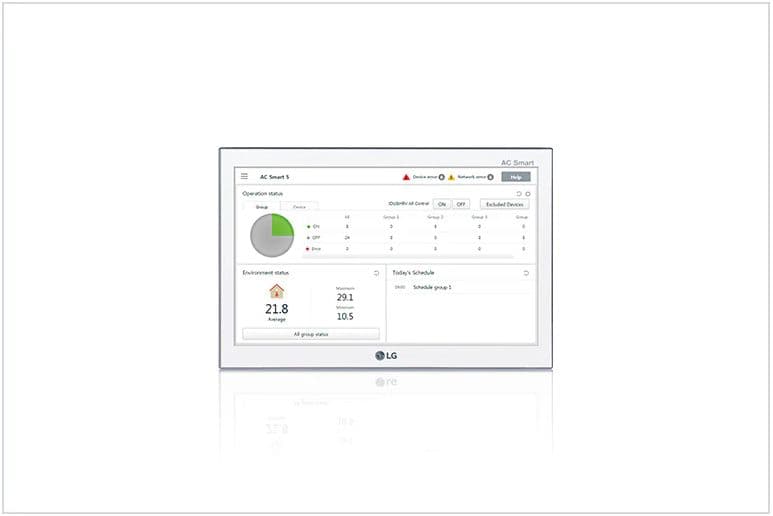

AC Smart 5

AC Smart 5

Model: PACS5A000

253.2 x 167.7 x 27 (mm)

10.2 inch WSVGA TFT LCD Touch Screen (1024*600)

Up to 128 Units (IDU, ERV, Hydro Kit, AHU Kit, Commercial Air Purifier)

BMS Integration (BACnet IP and Modbus TCP)

Multi level group composition

Icon / Floor map view

Yearly Schedule

Energy Management

Device Interlock

Email Notification

Web access supported

Support IPv6

Air Purify Control, Air Quality Level Display

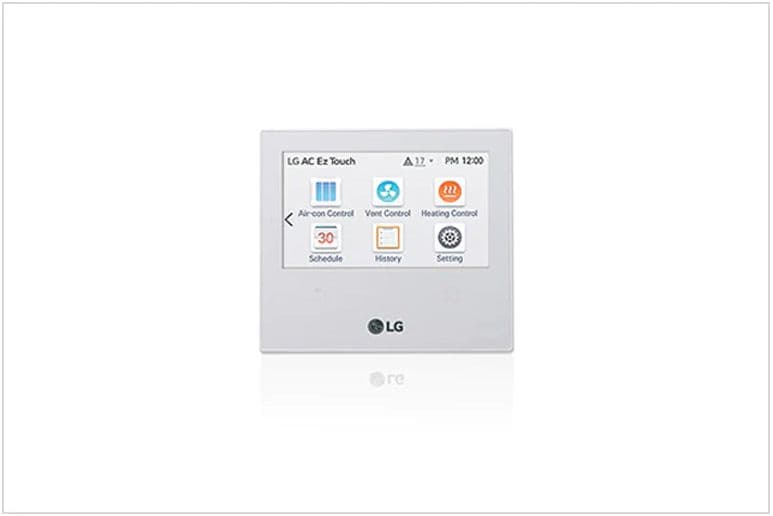

AC Ez Touch

Model : PACEZA000

137 x 121 x 25 (mm)

5 inch Touch Screen Controller

Up to 64 units (IDU, ERV, Hydro kit)

1 DI Port for Emergency stop

Yearly Schedule

Alarm Indicator

Energy Management

PC Access

AC Ez Touch
