LABA015
LG LED All-in-One
Key Features
- (Only for India, Taiwan, US, Vietnam)
- *Below for FHD resolution configuration case
- Pixel Pitch : 1.58 mm
- Brightness 500 nit (Max., after calibration)
- Easy Installation and Maintenance
- Built-in Speaker & a Control Box
Contact us
GGEAR Commercial
LED Display Supporting FHD Resolution

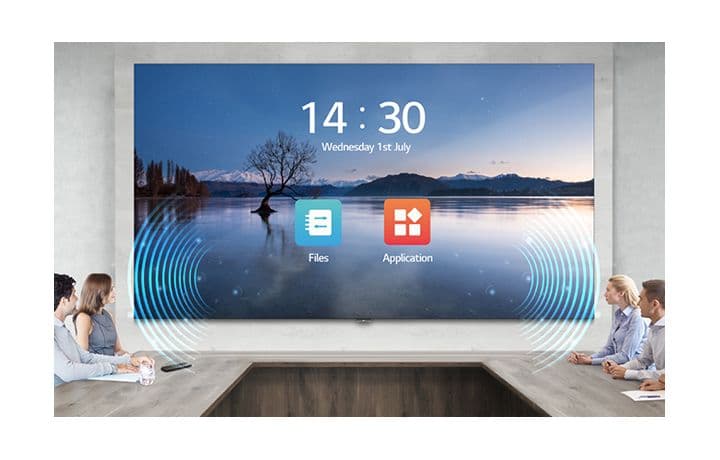

FHD LED Screen with Built-in Speaker
LABA series with Full HD screen size includes a control box and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

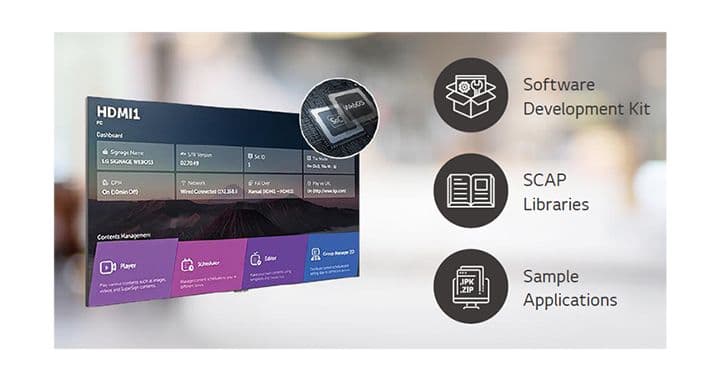

High Performance with webOS
Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.

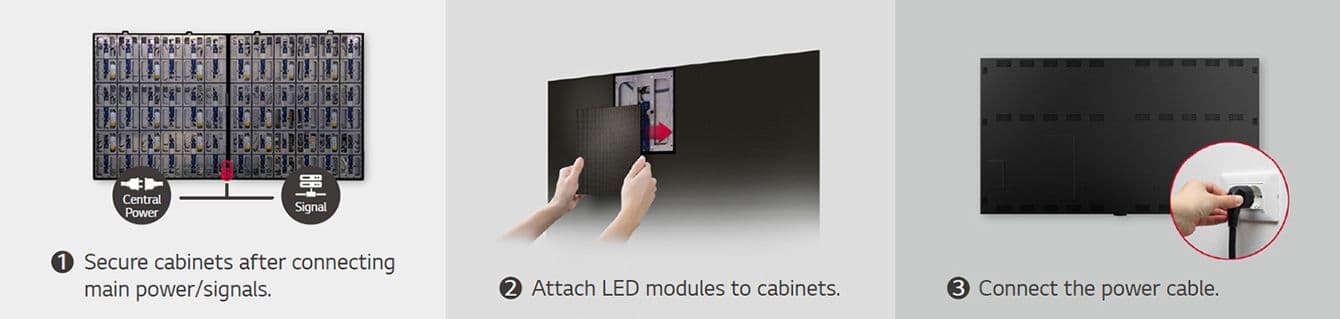

Easy Installation (for FHD Resolution Configuration Case)
Thanks to the carbon fiber tubes and locks located behind the cabinets, installation is straightforward. Simply place the 5 units of cabinets, connect and secure them with locking catches. Then the assembly is done. 5 cabinets forming a unit are pre-assembled with carbon fiber tubes and each unit can be held tightly with lock catches.

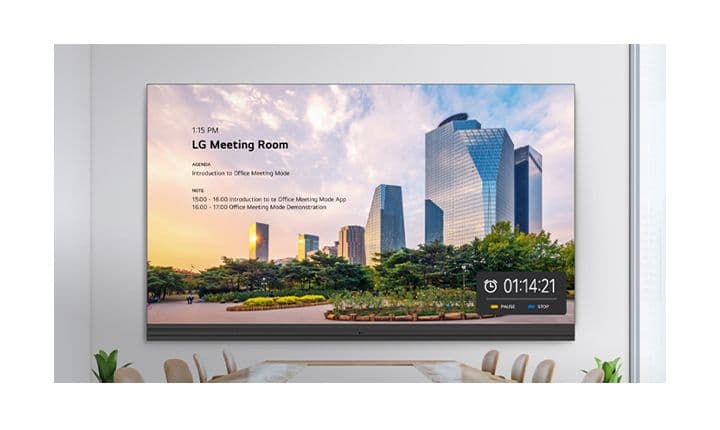

Office Meeting Mode
With Office Meeting Mode, easily configure meeting room details like the room number and current time. It also includes convenient features like automatic input switching, a presentation timer, and adjustable settings such as autobrightness and picture mode.

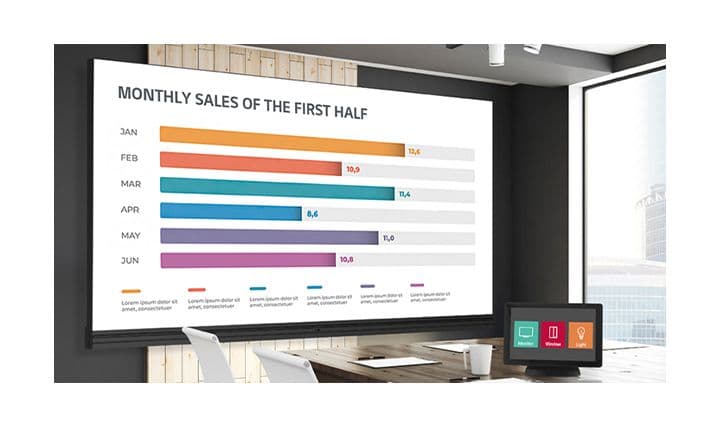

Compatible with AV Control Systems
The LABA series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

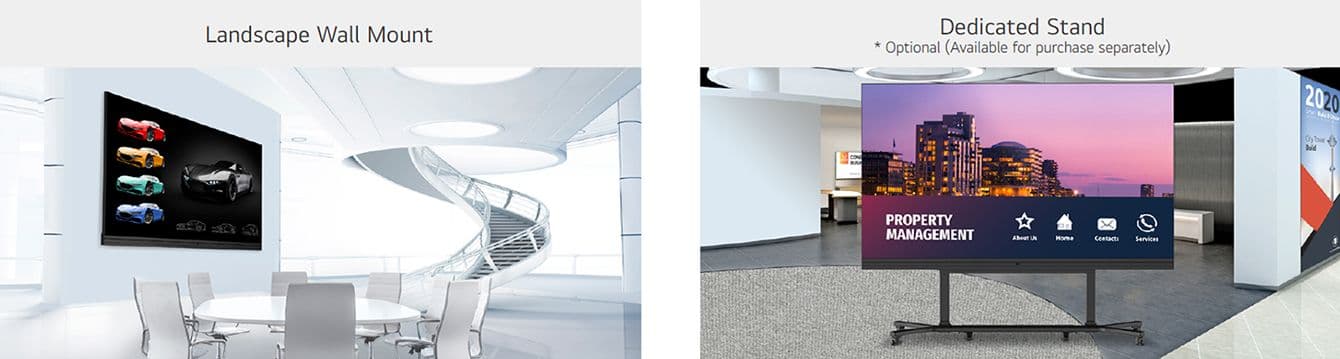

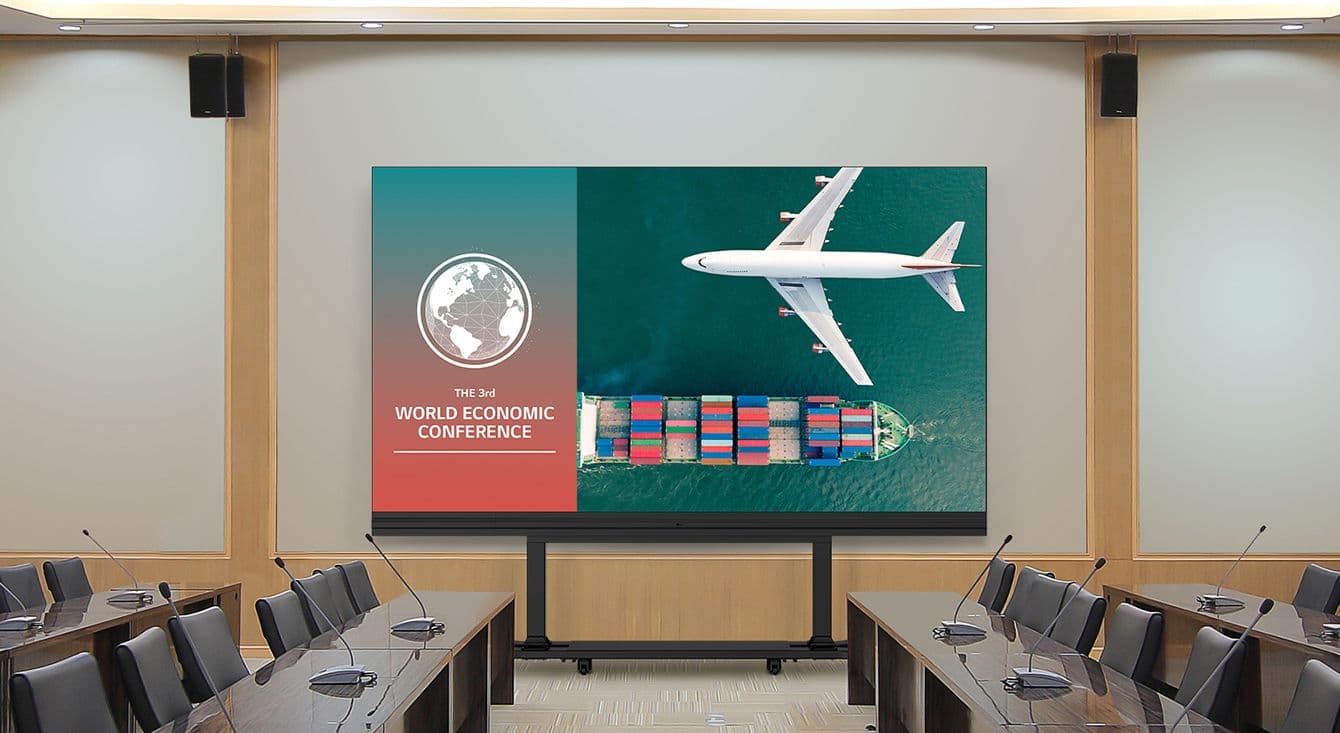

Dedicated Installation Accessories (for FHD Resolution Configuration Case)
The product includes necessary components including the landscape wall mount and tools for installation. The dedicated stand is provided as an option, so that you can easily place it depending on your installation sites.

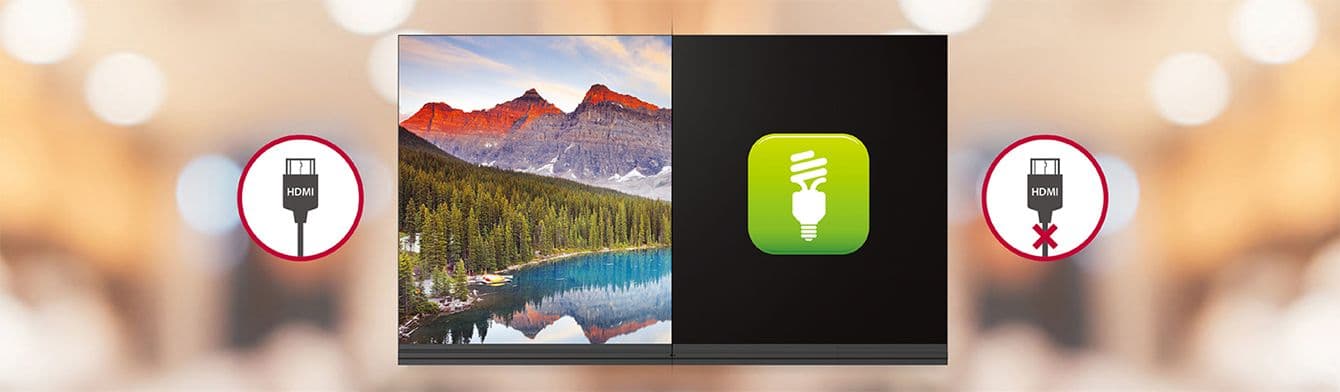

Display Power Management (DPM)
The DPM function of the LED screen allows it to enter a standby mode after a specific period of time when there is no signal from the input source device.
Real-time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
Pixel Configuration
Single SMD
Module Resolution (WxH)
120x135
Module Dimensions(WxH,mm)
300x337.5x13
Weight per Module (kg)
0.95
Physical Pixel Density (pixels/㎡)
403,124
Flatness of Cabinet (mm)
≤0.15
Cabinet material
Die-casting Aluminum
Service access
Front
Max Brightness (After Calibration, nit)
Max. 500
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
0.97
Color Uniformity
±0.003Cx, Cy
Contrast Ratio
8,000:1
Processing Depth (bit)
16
Refresh Rate (Hz)
1,600
Power Consumption (W/Screen, Avg.)
950
Heat Dissipation (BTU/h/Screen, Max.)
5,456
Heat Dissipation (BTU/h/Screen, Avg.)
3,240
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
0℃~40℃
Operating Humidity
10~80%RH
IP rating Front
IP50
IP rating Rear
IP50
I/O Port
HDMI(3), DP(1), USB, LAN, entrada/salida RS232C, IR, salida de audio digital (1, SPDIF óptico)
Speaker
Altavoz integrado (8 W + 8 W)
Environment
RoHS, REACH
Datasheet
LABA_Datasheetlow_LG-All-in-One-Smart-LED_230731
