LSAC025

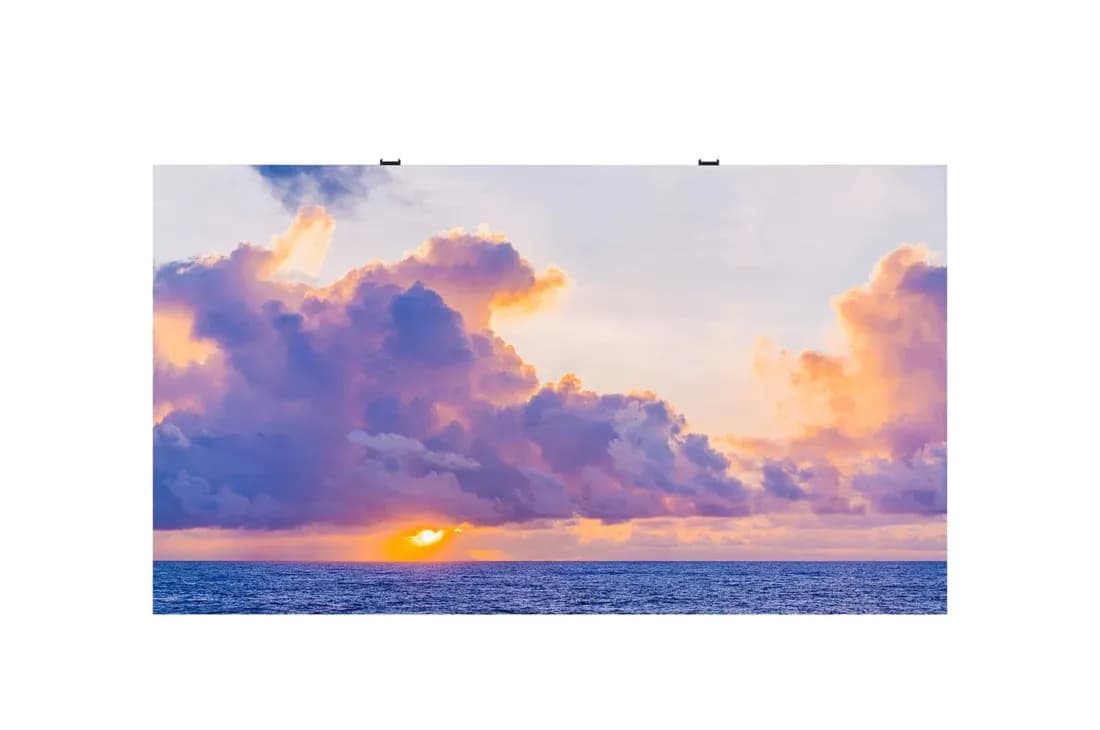

LG LED Bloc
Key Features
- Pixel Pitch: 2.5 mm
- Brightness: 600 nit
- Cable-less Signal Transmission & Power Docking
- Alpha 7 Intelligent Processor
- LG webOS Smart Platform
Contact us
GGEAR Commercial
54” LED Video Wall Display

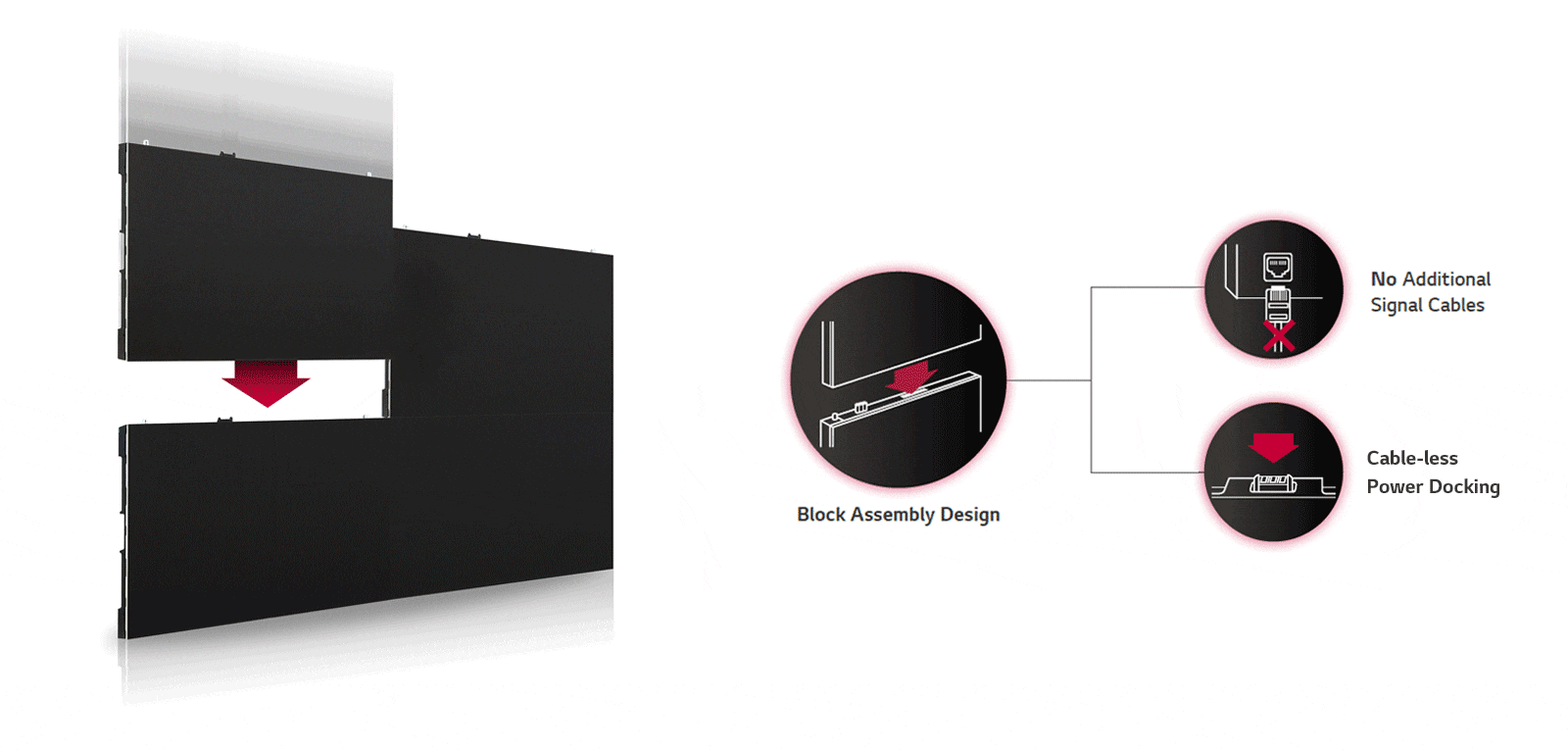

Cable-less Signal Transmission & Power Docking
The LSAC series is the innovative LED signage applying the cableless transmission technology with non connectors*. For up to UHD resolution with the 16:9 ratio, it does not require a cable connection between the cabinets to supply signal & power. Its block assembly design makes the LSAC series easier to be installed than before.
Easy Replacement and Undemanding Maintenance
Upgrade your existing 55-inch LCD video wall to the latest technology and LED display without having to secure additional space.
Bezel-less LED Display
Bezel-less LED Display
Color Expression Powered by HDR
Color Expression Powered by HDR

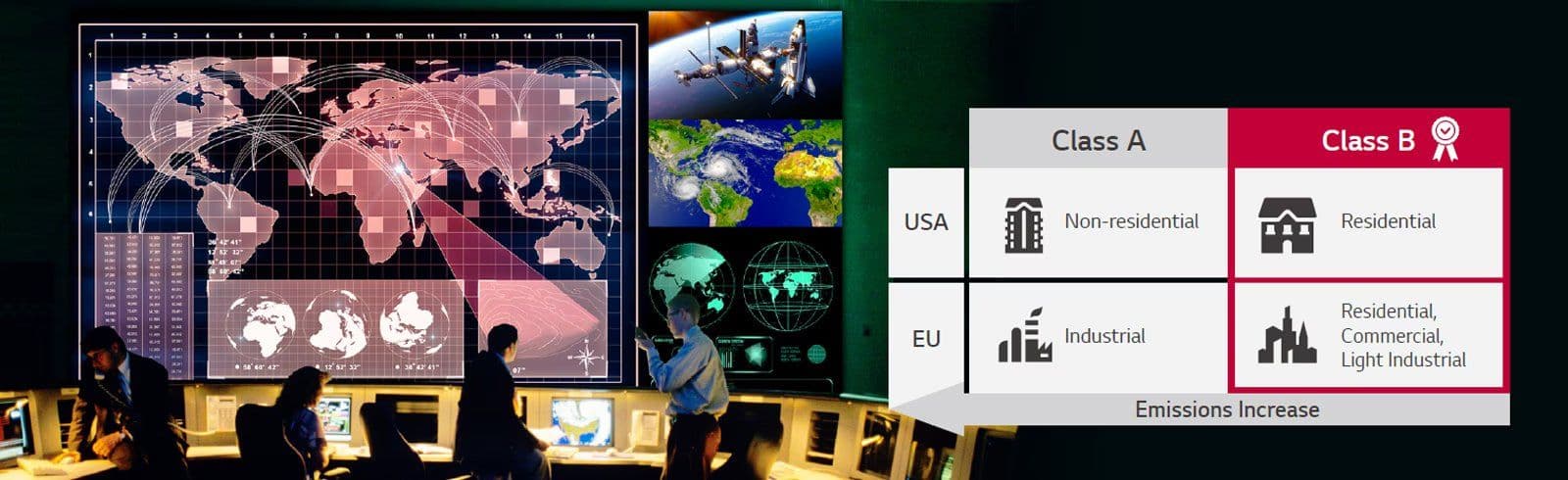

EMC Class B Certified
The LSAC series is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

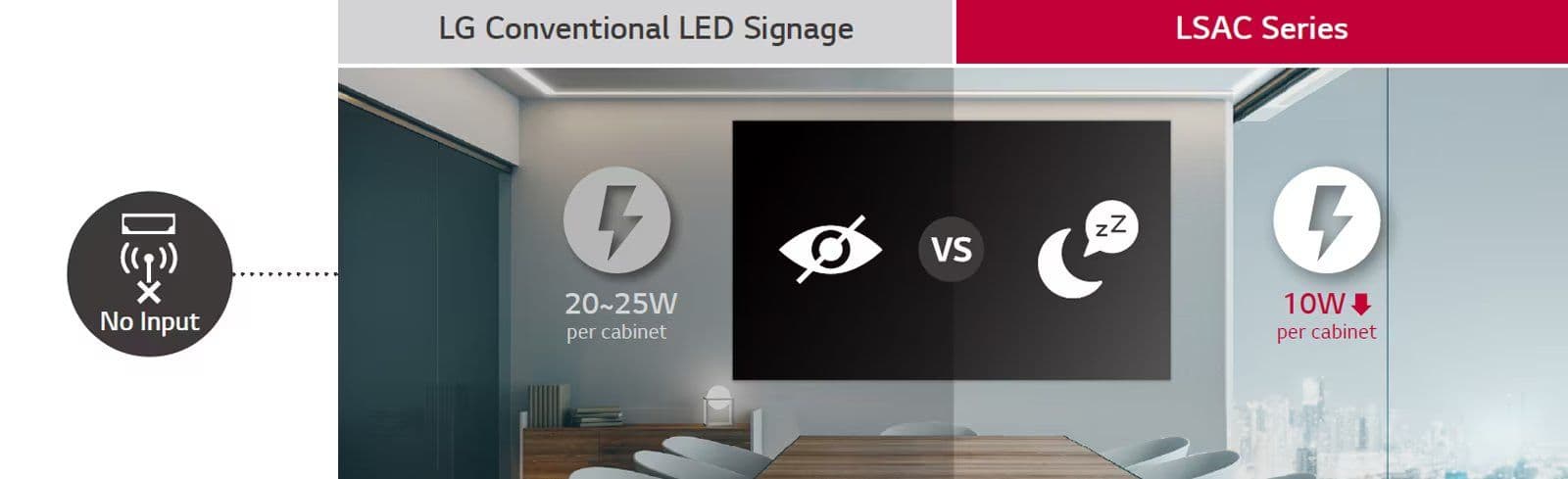

Standby Mode
When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.
Optimized Image Quality with α 7 Intelligent Processor
The "Alpha 7 Intelligent Processor" applied to the LSAC series recognizes and analyzes the original content, optimizing the clarity and sharpness of the content for itself.
Compatibility with LG Software Solutions
owered by LG’s high performance system controller, the LSAC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
Pixel Configuration
3 in 1 SMD
Pixel Pitch(mm)
2.50
Module Resolution (WxH)
120x90
Module Dimensions(WxH,mm)
300x225
Weight per Module (kg)
430g
No. of Modules per Cabinet (WxH)
4x3
Cabinet Resolution (WxH)
480x270
Cabinet Dimensions (W x H x D, mm)
1200x675x51
Cabinet Surface Area (㎡)
0.810
Weight per Cabinet (kg/unit)
22.5kg
Weight per Square Meter (kg/m²)
27.8kg
Physical Pixel Density (pixels/m²)
160,000
Flatness of Cabinet (mm)
±0.5
Cabinet Material
Die-cast Aluminum
Service Access
Front
Max Brightness (After Calibration, nit)
Peak. 1,000nit / Max. 600nit
Color Temperature (K)
3,200~9,300K
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
95%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
Peak. 9,000:1, Typ. 5,000:1
Processing Depth (bit)
20 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
290
Power Consumption (W/Cabinet, Avg.)
190
Power Consumption (W/m², Max.)
358
Heat Dissipation (BTU/h/Cabinet, Max.)
990
Heat Dissipation (BTU/h/Cabinet, Avg.)
648
Heat Dissipation (BTU/h/m², Max.)
1,222
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
0∘to +40∘
Operating Humidity
10-80%RH
IP Rating Front
IP20
IP Rating Rear
IP20
Certification
Safety 60950-1, EMC Class B, BS476 Part7 Class1
Environment
RoHS
Controller
CSAC-025K
