55CT5WN-Z
LG One:Quick Works
Key Features
- Resolution : 4K Ultra HD (3,840 x 2,160)
- Brightness : 450 nit
- BuIlt-in Camera & Microphone
- Sound (10W + 10W)
- In-Cell Touch (Max. 10 Points) & Whiteboard Support
- Zoom Rooms App Preloaded
Contact us
GGEAR Commercial
One:Quick Works for Zoom Rooms
All-in-One Video Conferencing Solution
Video conferencing setup doesn't need to be stressful. This all-in-one solution features a built-in Windows PC, camera, microphone, speaker and a digital whiteboard. Experience clear video and sound qualities in your meetings.

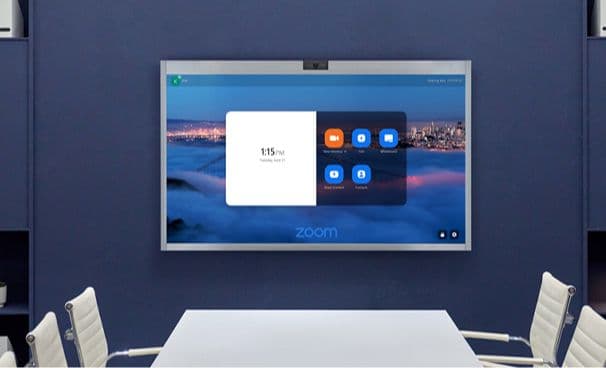

Next-Level Video Conferencing, Optimized for Zoom
Users can utilize a range of virtual meeting features, thanks to innovative all-in-one features optimized for Zoom Rooms. With high-quality video and audio performance, synergy is at your fingertips.

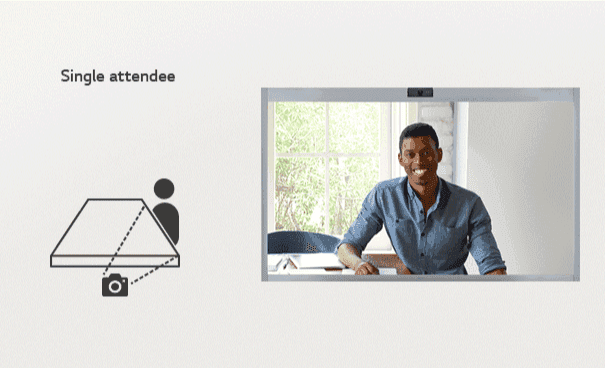

Auto Framing
Build the optimal hybrid work environment, with LG One:Quick Works. The Auto Framing function automatically recognizes and focuses on conference room attendees, allowing remote participants to communicate more effectively.
Multi-Touch and Annotation
Powered by In-Cell Touch technology, One:Quick Works facilitates a more intuitive form of visual collaboration. With 10-point multi-touch functionality, the Zoom Whiteboard tool lets users take notes and sketch out ideas, all the while presenting or brainstorming together.

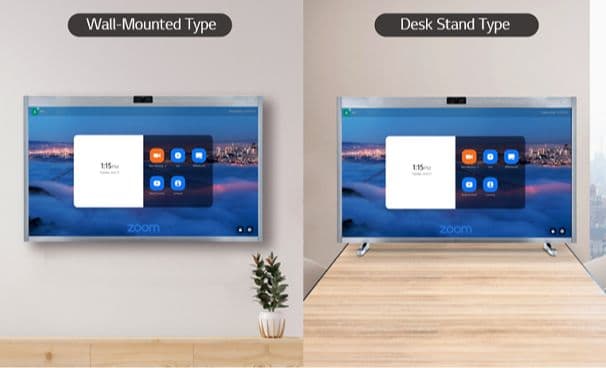

2-Way Installation
The installation method can be adjusted depending on the surrounding environment and the user's specific needs. Able to choose between wall installation for maximum space utilization or desk installation using 2 pole stands.

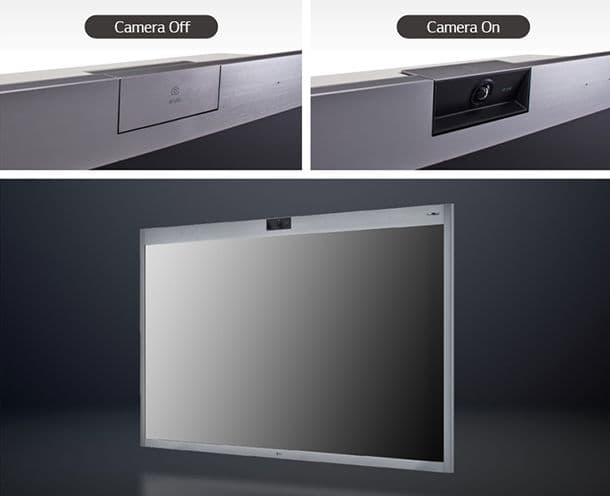

Sleek Design
With an attractive, user-friendly design, the One:Quick Works blends seamlessly with the rest of the workspace. It also brings an elevated aesthetic while providing a practical workspace for all participants.
Screen Size
55"
Panel Technology
U-IPS
Native Resolution
3,840 X 2,160 (4K UHD)
Brightness
450 nit
Contrast Ratio
1,000 : 1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178 × 178
Color Depth
10-bit (D), 1.07 Billion Colors
Response Time
9ms
Surface Treatment (Haze)
Haze 12% (Enhanced in-Touch Pol.)
Operation Hours (Hours / Days)
24/7
Portrait / Landscape
No / Yes
Bezel Color
Silver
Bezel Width
57.2 / 26.2 / 26.2 / 28.9 mm (T/R/L/B)
Weight (Head)
26 Kg
Monitor Dimensions (W × H × D)
1,265 × 769.5 × 61.8 mm
Monitor Dimensions with Stand (W × H × D)
1,265 × 815 × 290 mm
VESA™ Standard Mount Interface
300 × 300
Key Feature (Hardware)
Wi-Fi (802.11ac 2 x 2), Bluetooth 5.0, Temperature Sensor, Auto Brightness Sensor, Local Key Operation (Jog Key)
CPU
AMD Ryzen Embedded V1605B
Internal Memory
256 GB (SSD), 8 GB (RAM)
Graphics
AMD Radeon Vega
OS
Windows 10 IoT Enterprise (Value)
Built-in Apps
Zoom Rooms (Preloaded)
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
Typ./Max.
127 W / 245 W
BTU (British Thermal Unit)
72
Safety
CB / NRTL
EMC
FCC Class "B" / CE
ErP
Yes
Speaker
Yes (10 W x 2)
Basic
Remote Controller, Power Cord, Touch Pen, Pen Tip, Manual, Regulation Book, Warranty Card, Installation Guide
Optional
2 Pole Stand (ST-653TW)
Camera Resolution
3,840 X 2,160 (4K UHD)
Field of View (FoV)
120°
Zoom (ePTZ)
4 × Zoom
Video Framing
Yes
Array
10 ea
Beamforming
Yes
Pickup Range
6m
Available Object Size for Touch
Ø8 mm
Reponse Time (PC Win10, based on Whiteboard)
35 mm ↓
Accuracy
3.5 mm ↓
Interface
USB 1.1
Operating System Support
Windows 10 or Higher
Multi Touch Point
Max. 10 Points
Power Supply
AC 100-240 V~, 50/60 Hz
Power Type
Built-in Power
Input
HDMI (2), DP (USB Type C), RJ45 (LAN), USB 3.1Type A (2), USB Type C
Output
DP Out (USB Type C, DP ALT MODE)
