Open Frame

Share:

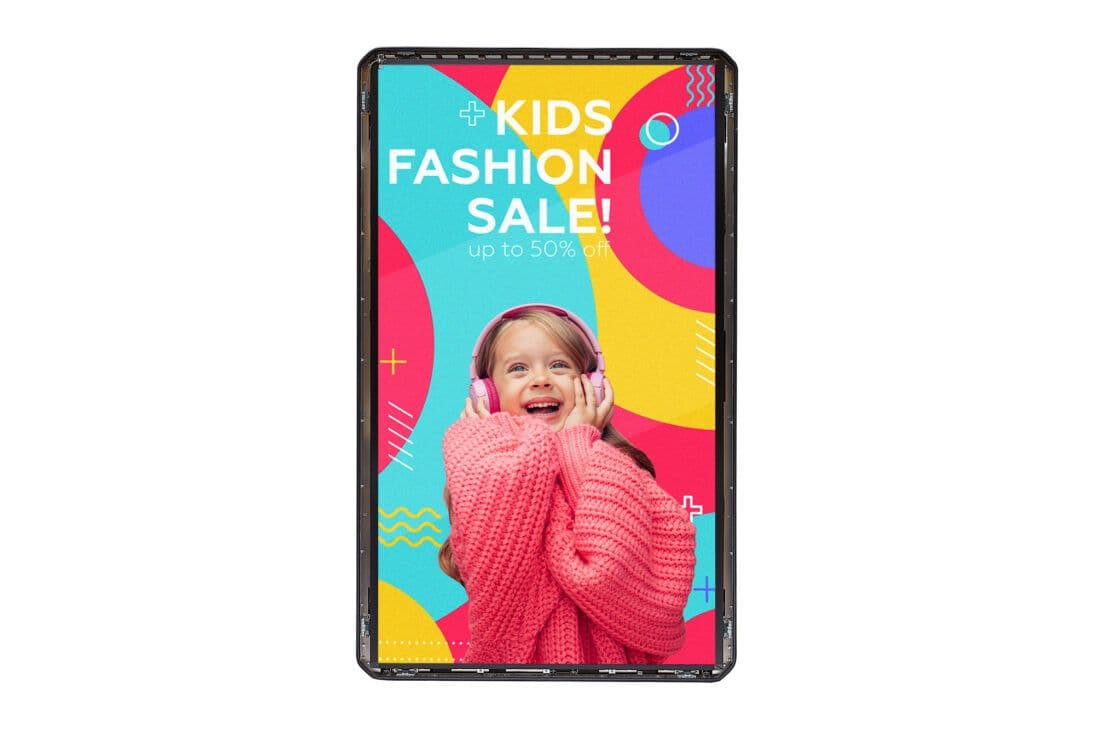

86XF3SK

Open Frame

Key Features

  • Brightness : 3,300 nits (Typ. w/o Glass)
  • Resolution : 3,840 × 2,160 (UHD)
  • Long-lasting High Performance
  • Temperature Sensor
  • Auto Brightness Sensor

Contact us

GGEAR Commercial

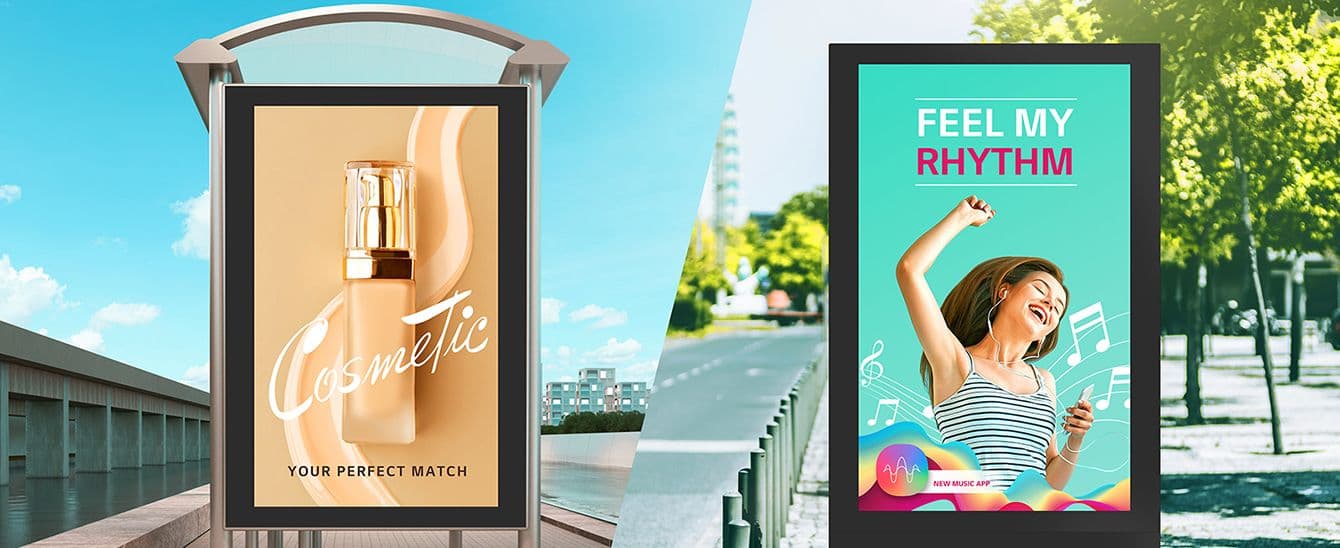

Large Display Optimized for Outdoor Advertisementty




Banner Image

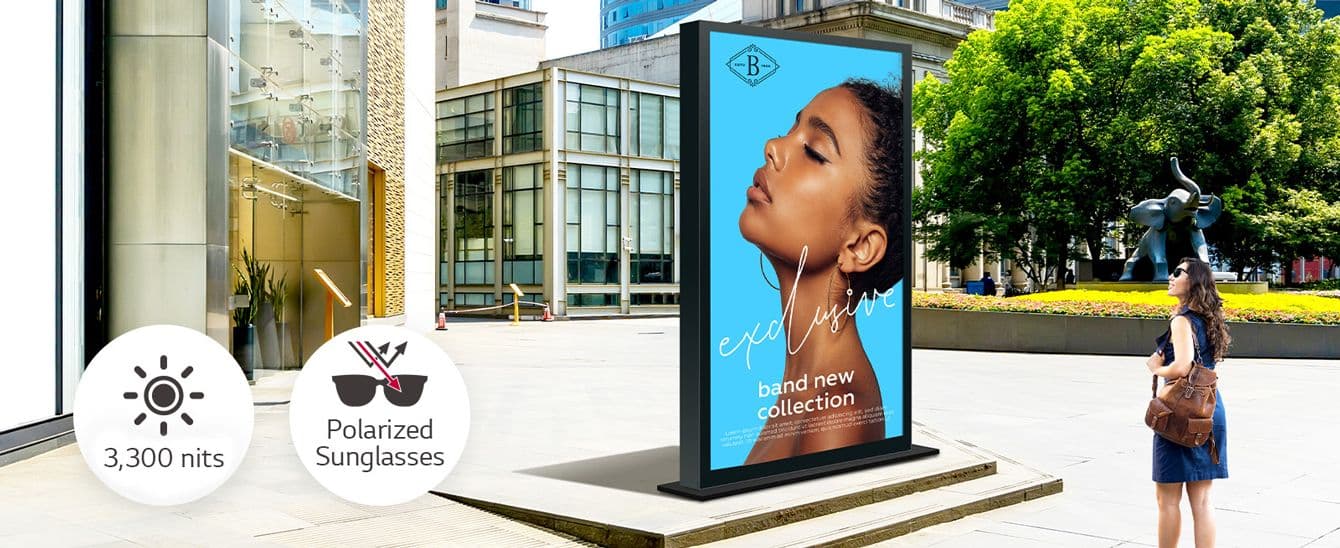

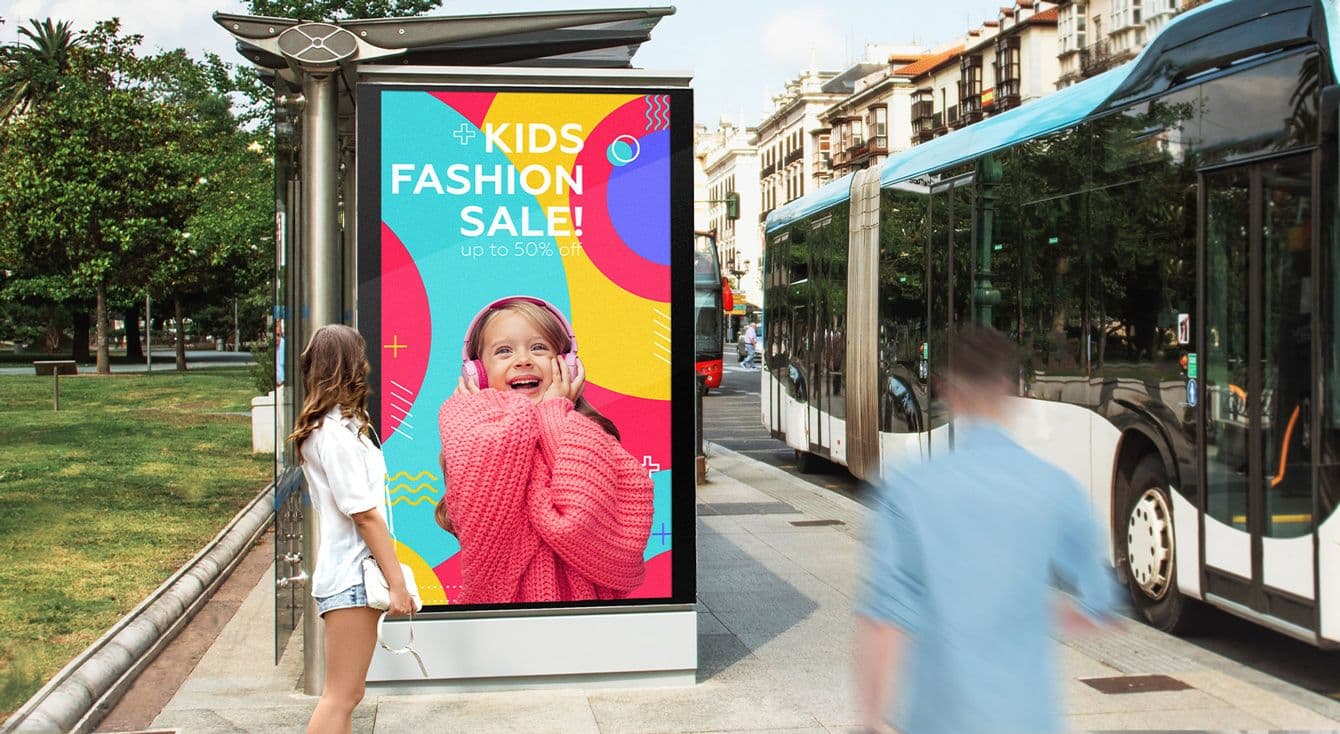

High Visibility Under Strong Sunlight

With outstanding high brightness of 3,300 nits (Typ.), the 86XF3SK outdoor display delivers contents clearly while captivating passersby, making it the optimized display for outdoor visibility.
In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

Banner Image

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the color and details of the contents vivid and realistic.
In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

Banner Image

Open-frame Type Display

86XF3SK is an open-frame type high brightness displays
to give customers flexibility in exterior of casing such as colors or design.

Banner Image

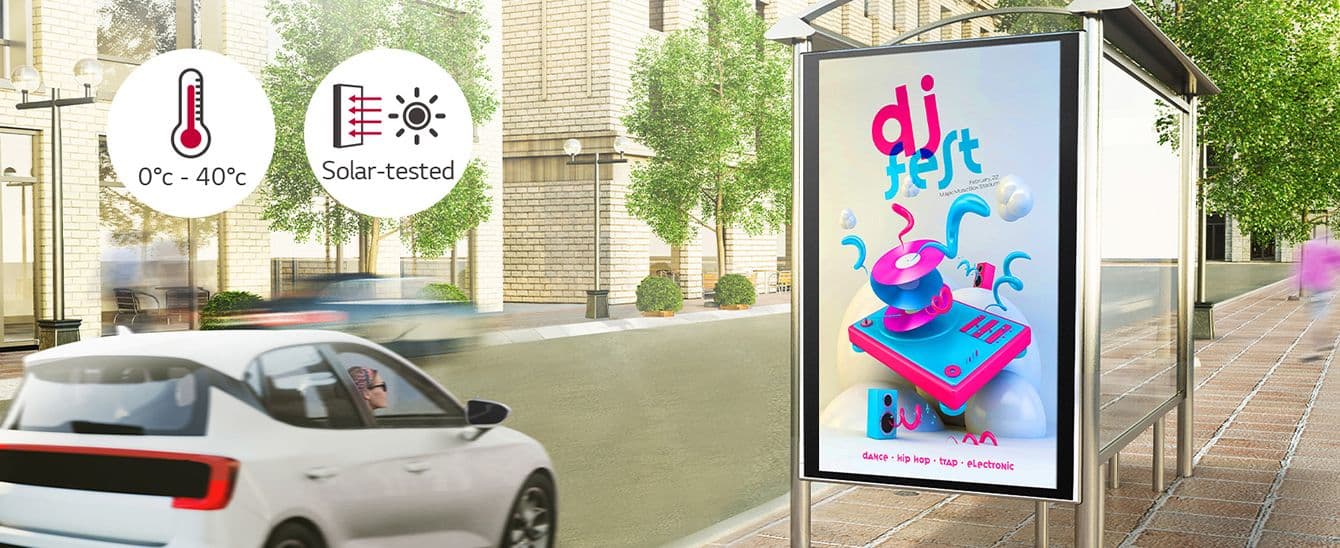

Wide Range of Operating Temperature

The display offers superb reliability under a wide range of operating temperatures, which also goes through LG’s solar test* which causes a lot of thermal energy.
So the 86XF3SK requires fewer constraints for outdoor installations**
which are usually exposed to strong sunlight and various environmental changes.

Banner Image

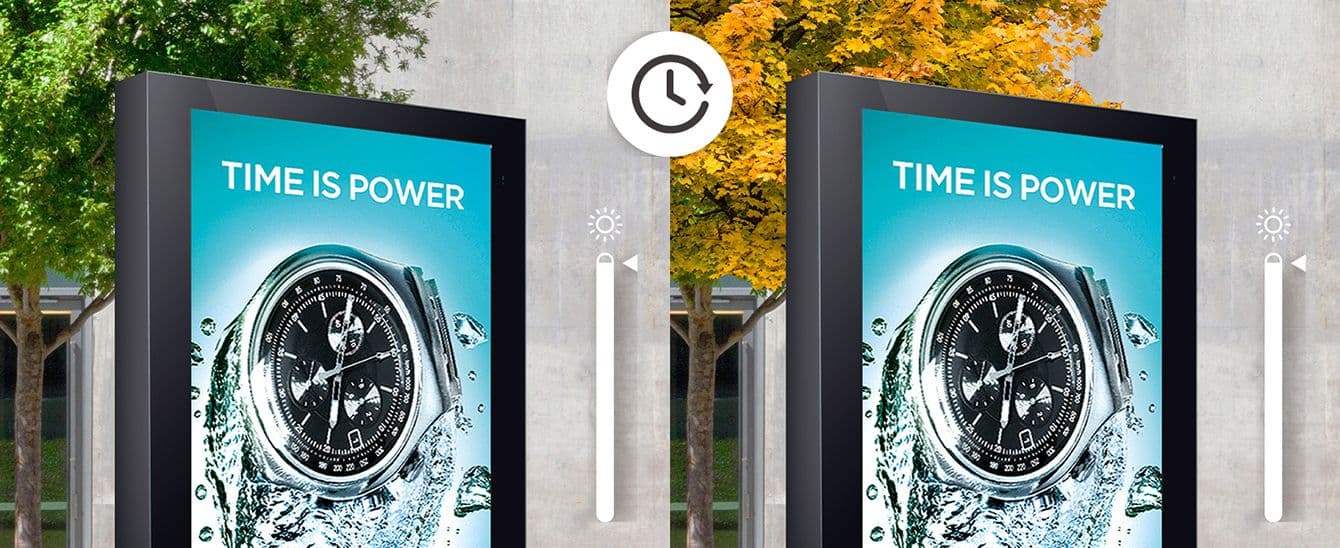

Smart Brightness Compensation

The built-in BLU* sensor frequently measures the brightness of the display
and automatically compensates for reduced brightness during operation.

Banner Image

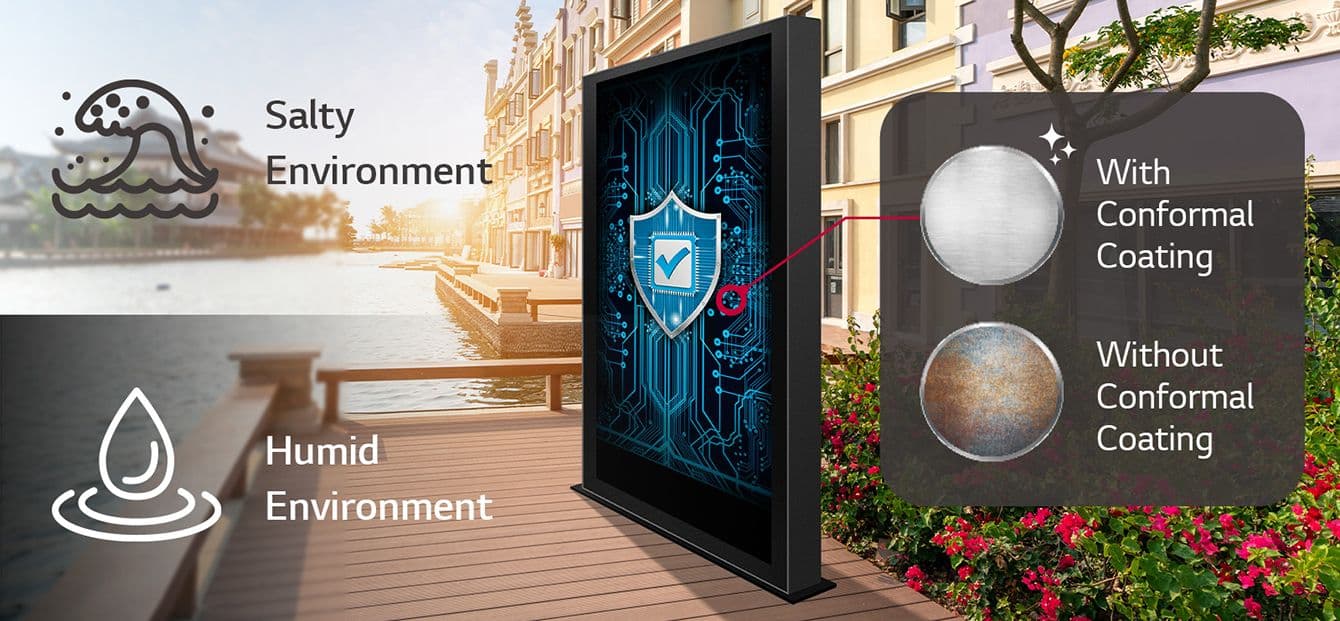

Conformal Coating

Conformal Coating* improves reliability of the circuit board,
power board by protecting it against humidity.

Left Image

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light.
The brightness is increased in light for better visibility,
while it is decreased in darkness for efficient power management.

Right Image

Electrical Safety

Circuit breaker inside 86XF3SK minimizes the possibility of product damage
by cutting off current when abnormal current is detected.

Left Image

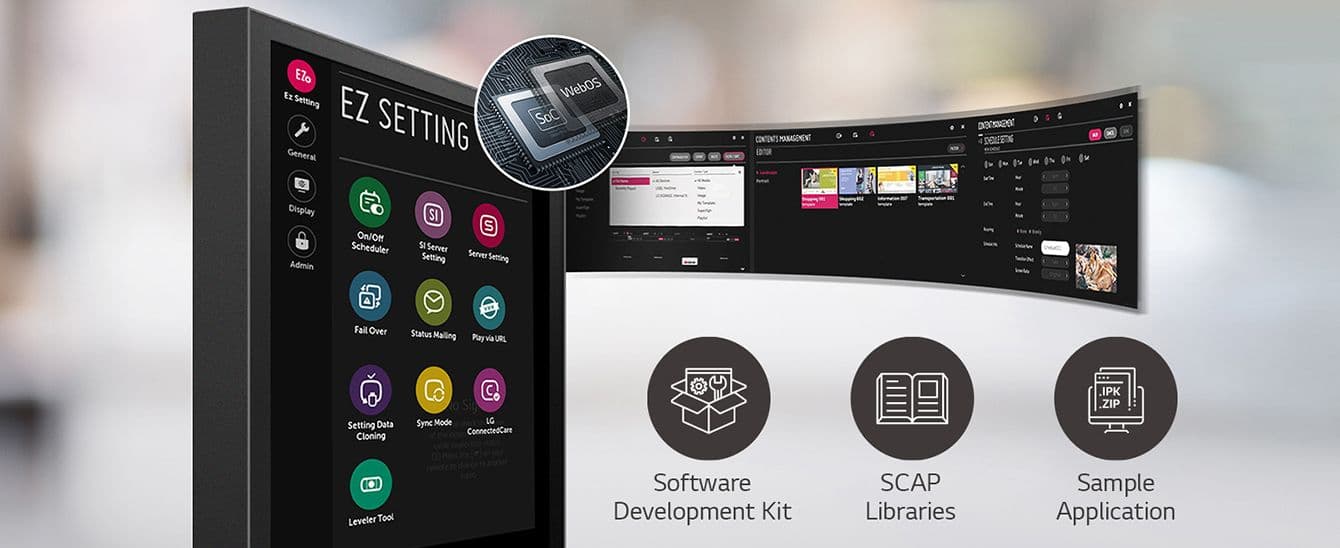

High-Performance with LG webOS 6.0

LG webOS 6.0, upgraded in SoC* and web engine,
is available on 86XF3SK for a smooth execution of several tasks.
LG webOS smart signage platform enhances user convenience with intuitive GUI.**

Right Image

Web Monitoring (Control Manager)

This is a web-based monitoring solution, which provides easy control for the user.
It enables users to have full access anywhere, anytime from their mobile phone & PC
as long as they’re connected to a network to monitor and control the displays remotely in real-time.

Screen Size

86"

Aspect Ratio

16:9


Refresh Rate

120Hz

Contrast Ratio

1,100:1 (Typ)


Color gamut

NTSC 68%

Color Depth

1.07 Billion Colors, 10 bit


Surface Treatment (Haze)

3%

Operation Hours (Hours / Days)

24 / 7


QWP (Quarter Wave Plate)

Yes

Panel Technology

IPS, RGB


Native Resolution

3,840 x 2,160 (UHD)

Brightness

3,300nit


Dynamic CR

500,000:1

Viewing Angle (H x V)

178 x 178


Life Time (Typ.)

50,000Hrs (Typ)

Response Time

8ms (G to G)


Portrait / Landscape

Yes / No

Bezel Width

66.4 mm (L/R), 51.95 mm (T), 51.95 mm (B)

Packed Weight

156.7 kg


Weight (Head)

140 kg

Monitor Dimensions (W × H × D)

1,225 × 2,034.3 × 179.48 mm


VESA™ Standard Mount Interface

No

Operation Temperature

0℃ to 50℃ (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0℃ to 40℃ (Direct Sunlight)

Operation Humidity

10% to 80%

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

Typ.

1,450W (Full White), 383W (IEC 62087)

Max.

1,800 W


BTU (British Thermal Unit)

TBD

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC


ErP / Energy Star

Yes (EU Only)

Content Management Software

SuperSign CMS

LG ConnectedCare

Yes


Control and Monitoring Software

SuperSign Control/Control+

Output

RS-232C Out (4 Pin Phone Jack), RJ45 (4, LAN)

Input

HDMI (HDCP 2.2), DP In (HDCP 1.3), RS-232C In, RJ45 (LAN) In, IR In, USB 2.0 Type A

Basic

Remote Controller, HDMI Cable (1 ea), USB Cable (2 ea), Manual (IG & EIG), Regulation Book, Phone to RS-232C Gender (1 ea), LAN Extension Cable (2 ea), SMA Cable (2 ea), IR Cable (1 ea), JCD 5P PWR Cable (3 ea), JCD 8P PWR Cable (1 ea), Cord Grip Rubber (5 ea), Screw (6 ea), JCD Corner Bracket (4 ea)

Speaker

No

Special Features

ower Protection (Circuit Breaker), Direct Sunlight

Internal Memory

8GB

FAN

yes


Sensor

Sensor (Temperature Sensor, Auto Brightness Sensor, Pixel sensor, Current Sensor, BLU Sensor, Humidity Sensor, Acceleration (Gyro) Sensor)

webOS ver.

webOS6.0

Features

Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync, Backlight Sync), Video Tag (4), Play via URL (TDB), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC), SI Server Setting, webRTC, Pro:Idiom, Brightness Compensation
