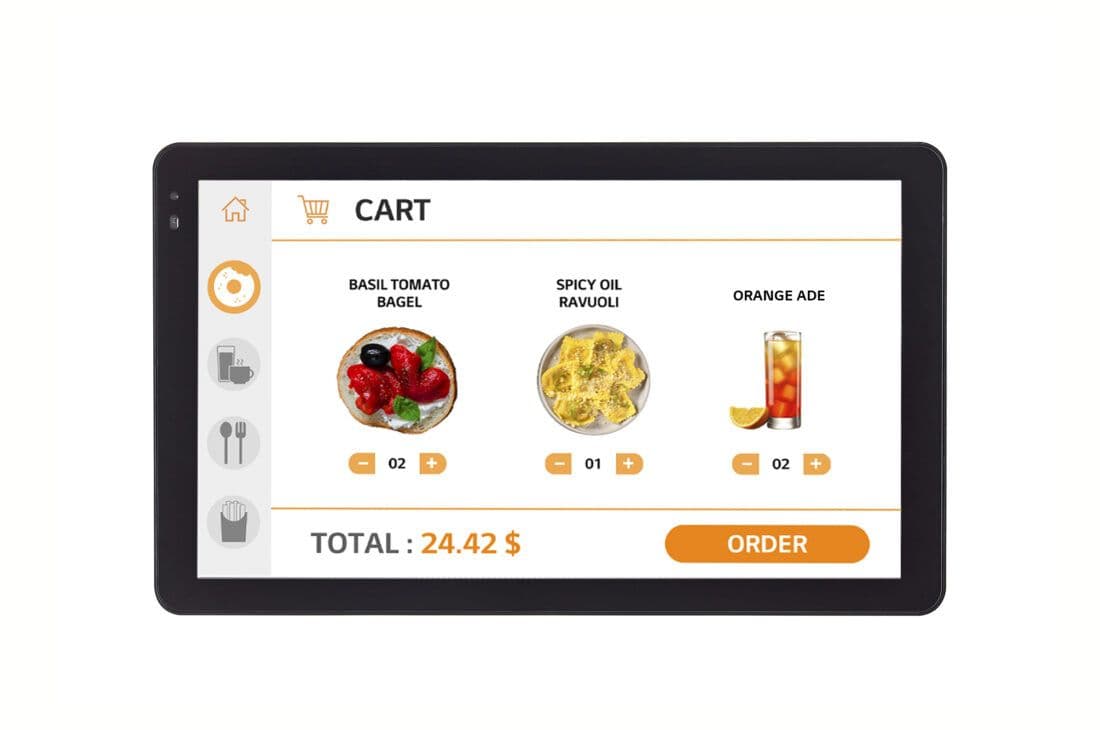

22XF1TJ-B
Open Frame
Key Features
- Brightness : 1,300 nits (Typ. w/Glass)
- IP65 Rated Dust & Waterproof
- 21.5" of Versatile Display Size
- Wide Operating Temperature Range
- webOS Smart Platform
- Built-in Touch Display
Contact us
GGEAR Commercial
Versatile Touch Display Fit for Your Business

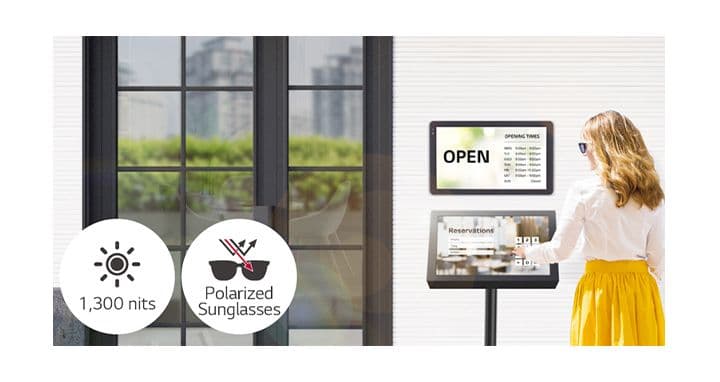

High Visibility Under Bright Environments
With a brightness of 1,300 nits, 22XF1TJ boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

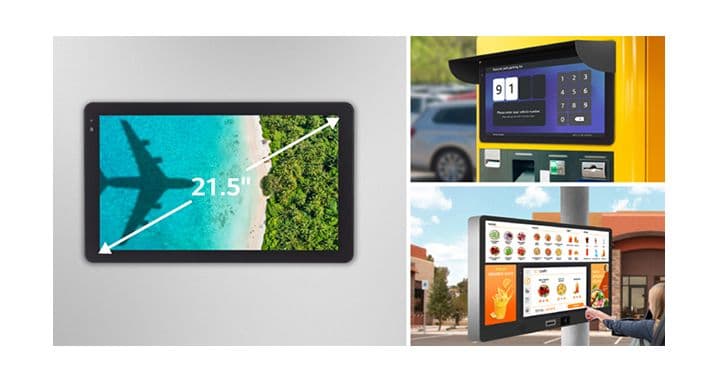

21.5 inches of Versatile Screen Size
The small and light size of 21.5 inches allows for flexible use in various spaces. In particular, you can install the display in various way allowing for high utilization for small-medium businesses (SMB) to large businesses.

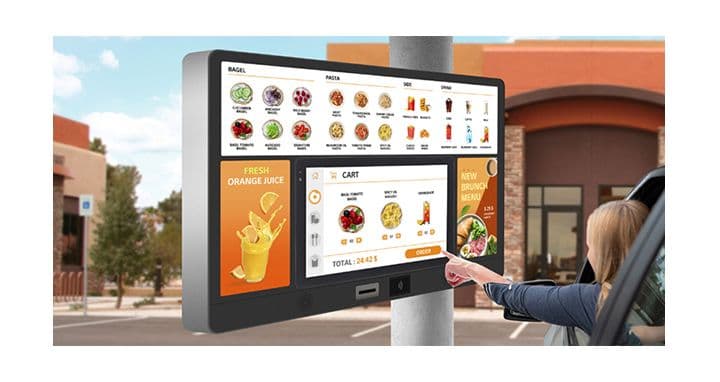

Built-in Touch Display
The 22XF1TJ has a P-cap Touch function, and the display accurately detects touch points even on the corners or edges of the display. The user is able to get the information they need by simply touching the screen.

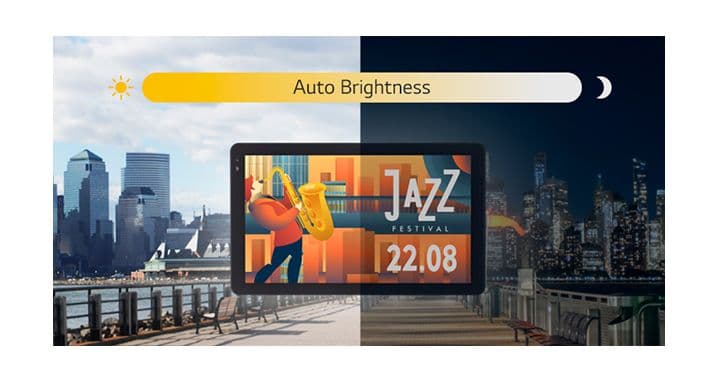

Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
Secured Protection with IP65 Design
The front part of the display is sealed with IP65 design for reliable operation. It’s designed to be not only waterproof but also waterproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.

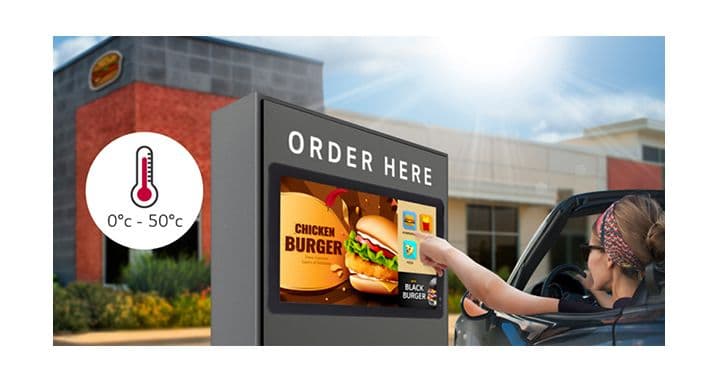

Wide Operating Temperature Range
22XF1TJ can be used under a wide range of operating temperatures from 0°C to 50°C* which results in fewer constraints for outdoor installation.

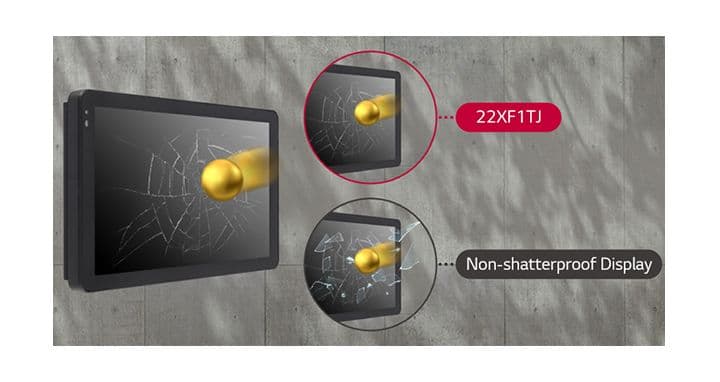

Shatterproof Design with Boosted Safety
The 22XF1TJ applies a shatterproof film to the back of the front glass, preventing the risk of scattering debris even if the glass is damaged by a forceful impact.
Conformal Coating
Conformal Coating* improves reliability of the circuit board, power board by protecting it against humidity.
Antibacterial Coating for More Hygienic Touch Usage
The 22XF1TJ, equipped with a touch screen covered by Antimicrobial Coating glass, prevents microbial growth and allows users to confidently touch the screen. This coating is also effective in preventing contamination which can be caused by bacteria transmitted through touching the screen, reducing stains and screen discoloration.
Web Monitoring (Control Manager)
This is a web-based monitoring solution, which provides a ease of control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network while having access to both current and past data. It allows users to monitor the unit, make any adjustments and control it remotely in real-time.
Real-time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
Screen Size
21.5"
Back Light Type
Edge
Native Resolution
1920x1080 (FHD)
Brightness
1300nit (Typ, w/ Glass)
Dynamic CR
800,000:1
Viewing Angle (H x V)
178 x 178
Response Time
178 x 178
Life Time (Typ.)
70,000 Hrs
Portrait / Landscape
Yes / Yes
Panel Technology
IPS
Aspect Ratio
16:9
Refresh Rate
60Hz
Contrast Ratio
1000:1 (Typ)
Color gamut
NTSC 72%
Color Depth
Anti glare, 3H(Haze 25%)
Operation Hours (Hours / Days)
24/7
QWP (Quarter Wave Plate)
Yes (Apply on glass)
Bezel Width
30.5mm(R/L), 25.5mm(T/B)
Packed Weight
10.2 kg
Weight (Head)
8.1 kg
Monitor Dimensions (W × H × D)
541.7 x 322.8 x 60 mm
Bezel Color
Black
VESA™ Standard Mount Interface
100x100
Carton Dimensions (W × H × D)
644 x 406 x 207 mm (Box outer size)
Protection Glass
Depth 3mm, Tempered / Chemical strengthening (Thermal-strengthening), Shatter-Proof
Operation Temperature
0℃ to 50℃ (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0℃ to 40℃ (Direct Sunlight)
Operation Humidity
5% to 100%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
85W (Full White), 37W (IEC 62087)
Max.
115W
DPM
0.5W↓
Power off
0.5W↓
BTU (British Thermal Unit)
290(Typ), 393(Max)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes (EU Only)
Standard (Certification)
Yes
LG ConnectedCare
Yes
SuperSign Control / Control+
Yes / Yes
Output
Touch USB, Externel Speaker Out (1, L/R, 10W+10W), RS232C OUT
Input
HDMI (1, HDCP1.4), RS232C IN, RJ45(LAN), USB2.0 Type A (1)
Basic
Remote Controller(including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Gender
IP Rating
IP65 (Front Only)
Direct Sunlight
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Turkish
HW
Internal Memory 16GB, Temperature Sensor, Auto Brightness sensor, Humidity Sensor, Acceleration(Gyro) Sensor, Power Indicator, FAN
SW
webOS ver. (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (Local Network Sync), Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
