75XF3ES-B
Open Frame
Key Features
- Brightness : 3,000 cd/m² (Typ.)
- Life Time : 50,000 hours
- Bezel : 11.8 mm(Even bezel)
- Depth : 128.9 mm
- Interface : HDMI (2)/ DP/ DVI-D/ USB/ RJ45/ RS232C/ IR/ External speaker out
Contact us
GGEAR Commercial
Elevating Outdoor Advertising with a Flexible Large Display
High Visibility Under Strong Sunlight
With stunning high brightness of 3,000 nits (Typ.), XF3ES outdoor display delivers contents clearly while captivating passersby, being suitable display for outdoor advertisement. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

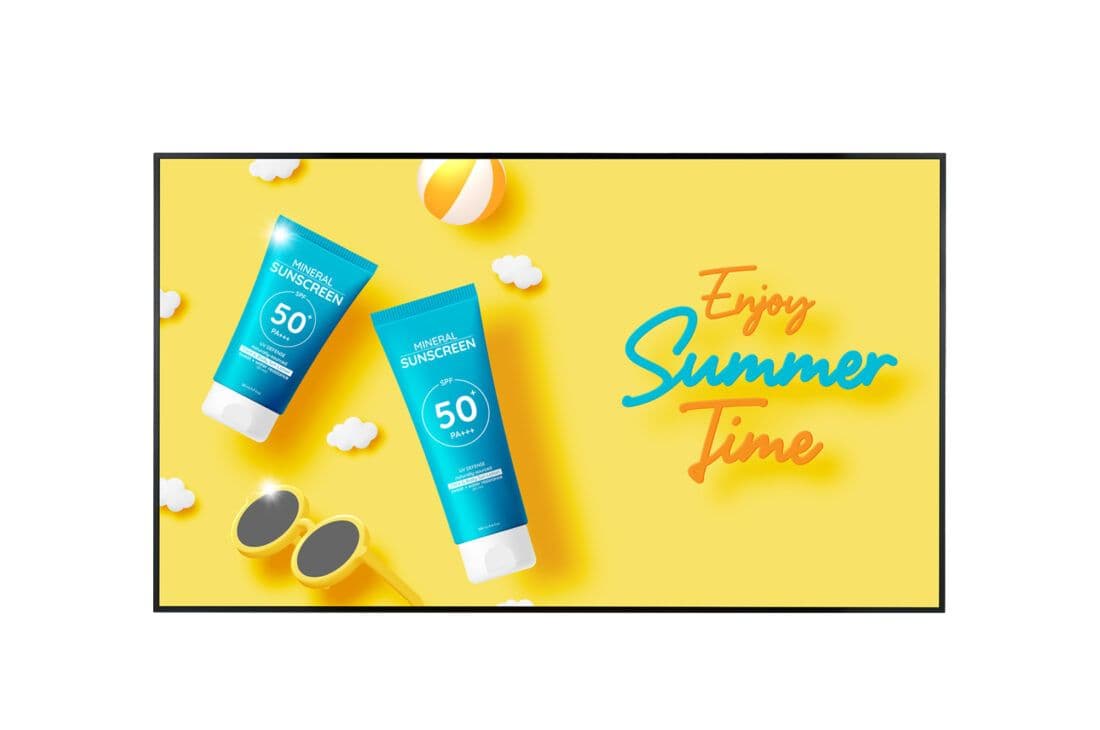

Open-frame Type Display
XF3ES is an open-frame type high brightness displays to give customers flexibility in exterior of casing such as colors or design.
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.
Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increasAed in light for better visibility, while it is decreased in darkness for efficient power management.
Smart Brightness Compensation
The built-in BLU* sensor frequently measures the brightness of the display and automatically compensates for reduced brightness during operation.
Wide Operating Temperature
XF3ES can be used under a wide range of operating temperatures which results in fewer constraints for outdoor installation.
Conformal Coating
Conformal Coating* improves reliability of the circuit board, power board by protecting it against humidity.

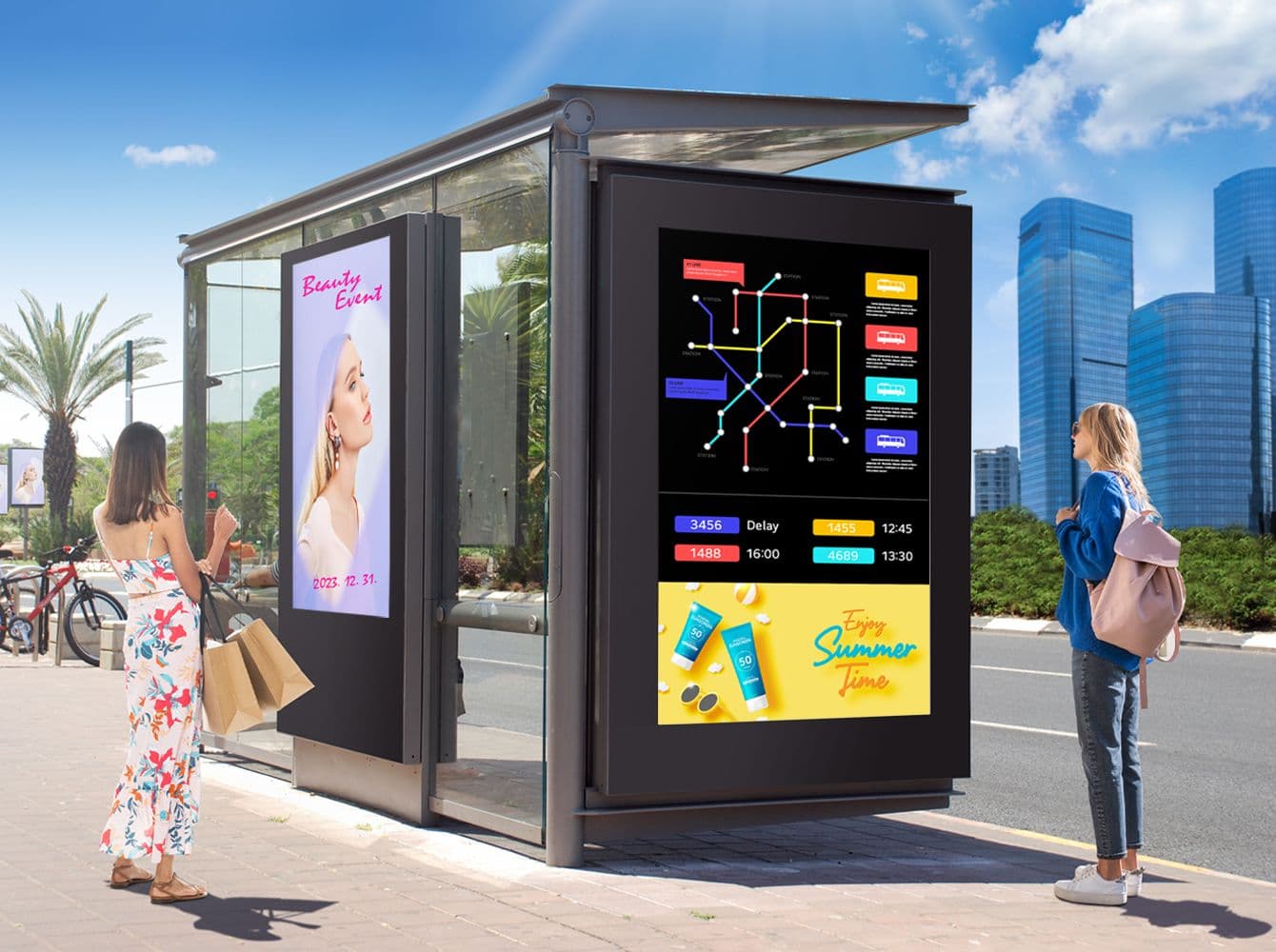

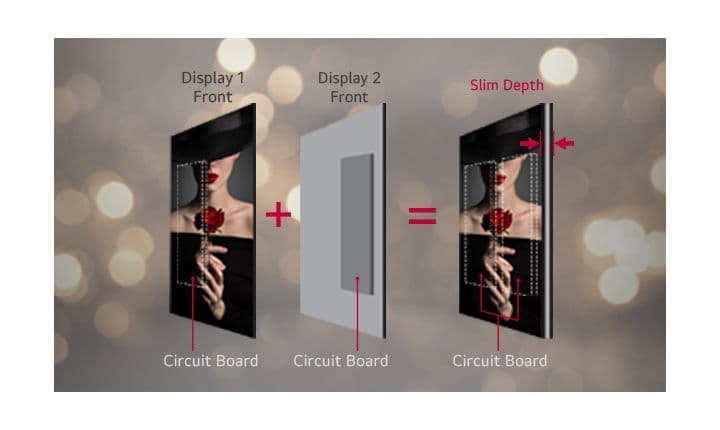

Optimized Design for Double-sided Display
For double-sided displays, the circuit board box at the back of the display is conveniently positioned to conserve space with two back-to-back installations.

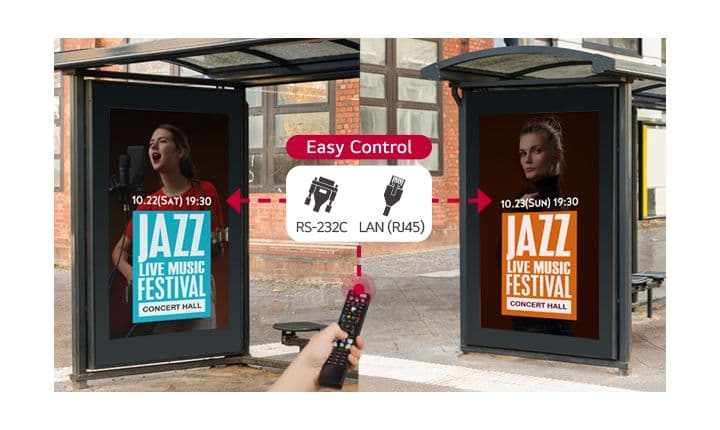

Multi Display Control
Multiple device controls are available through the RJ45 & RS232C ports. It means that even double-sided displays can be easily controlled simultaneously with a remote control.
webOS Smart Platform
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.
Real-time Remote Web Monitoring
This is a web-based monitoring solution, which provides easy control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network to monitor and control the displays remotely in real-time. Both side of displays can be controlled by multi display control.
Screen Size
75" (74.52" Measured Diagonal)
Brightness (Typ., cd/m²)
3000
Bezel Width
11.8 mm (Even)
Weight (Head)
37.5 kg
Monitor Dimension (W x H x D)
1,675.2 x 953.6 x 128.9 mm
Carton Dimensions (W x H x D)
1,816 x 1,106 x 285 mm
Operation Temperature
0℃ to 50℃ (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0℃ to 40℃ (Direct Sunlight)
Operation Humidity
10 % to 80 %
Power Supply
100-240 V~, 50/60 Hz
Power Type
Built-In Power
Typ.
620W (Full White), 353W (IEC 62087)
Max.
700 W
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
ErP
Yes (EU Only)
EMC
FCC Class "A" / CE / KC
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control+ / Control
Input
HDMI (2), DP, DVI-D, Audio, USB
External Control
RS232C In/out, RJ45 In, IR
Output
DP, External Speaker
Basic
Remote Controller, Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG)
Optional
Wi-Fi Dongle (AN-WF500)
