GSCD125
Outdoor LED
Key Features
- Pixel Pitch: 12.50 mm
- Brightness: 5,000 cd/m²
- Lightweight Design
- IP65 Weatherproof Design
- 90º Corner Option Available
Contact us
GGEAR Commercial
GSCD Ultra Light Series

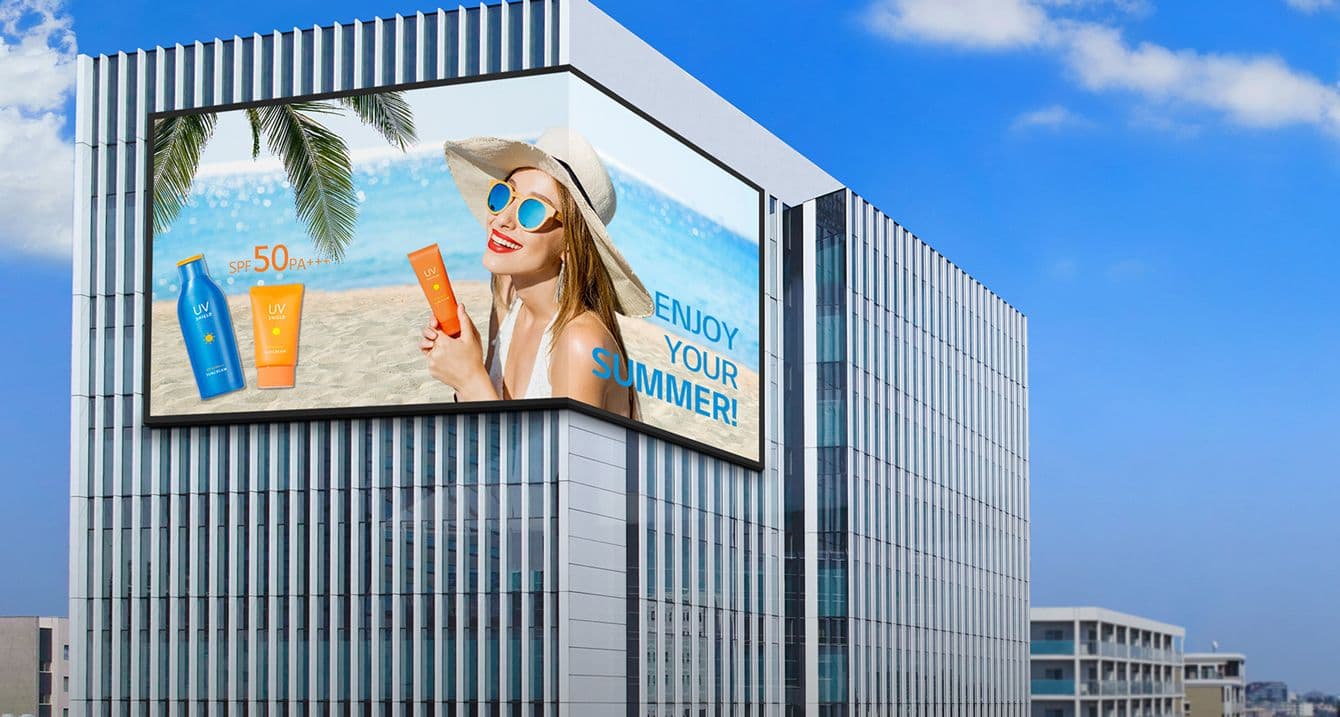

With a lightweight design, the Ultra Light Series can be easily composed of a large screen without providing heavy load to the installing structure. A 90° corner option is provided for seamless right-angled installation.

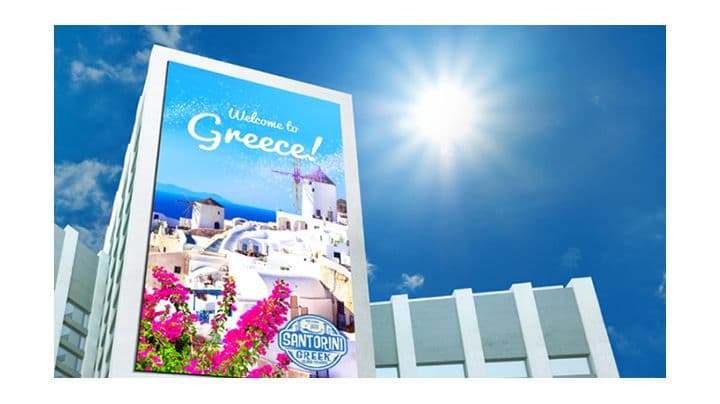

High Brightness
With a great brightness of 7,000 nits*, it clearly delivers content and attracts public attention, which is the ultimate display for outdoor visibility.

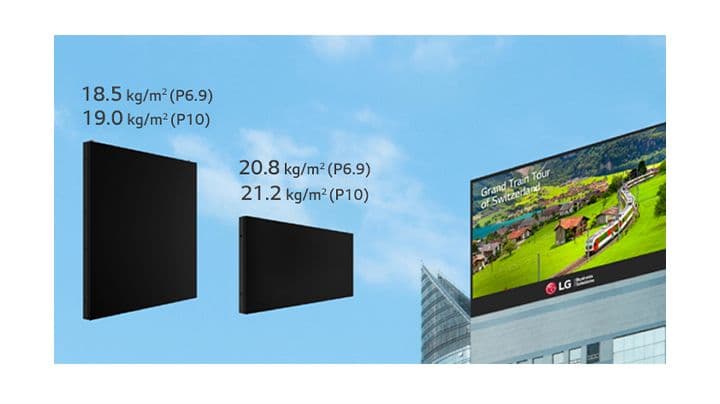

Lightweight Design
The weights of the cabinet is very light, so even if a large LED screen is installed on the roof, it puts less pressure on the building's load.

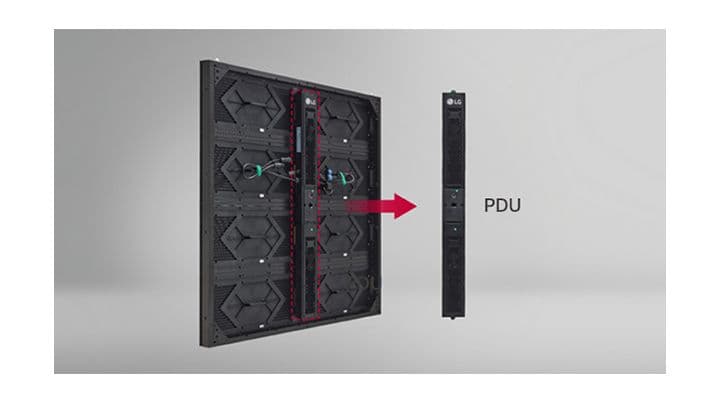

Easy Maintenance
The control unit (PDU) of the cabinet is a modular type which can be easily attached or detached, supporting easy maintenance.
Compatibility with LG Software Solutions
When connected with LG's CVEA system controller, the GSEH series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
Pixel Pitch (mm)
12.50
Pixel Configuration
3 in 1
Module Resolution (W x H)
40 × 20
Module Dimensions (W x H, mm)
500 × 250
Weight per Module (kg)
1.38
Cabinet Resolution (W × H)
80 × 80 / 80 × 40 (Half-sized)
Cabinet Dimensions (W × H × D, mm)
1,000 × 1,000 × 86.3 / 1,000 × 500 × 86.3 (Half-sized)
No. of Modules per Cabinet (W × H)
2 × 4 / 2 × 2 (Half-sized)
Cabinet Surface Area (m²)
1.000 / 0.500 (Half-sized)
Weight per Cabinet (kg/cabinet)
19.0 / 10.6 (Half-sized)
Weight per Square Meter (kg/m²)
19.0 / 21.2 (Half-sized)
Physical Pixel Density (pixels/m²)
6,400
Flatness of Cabinet
±0.5 mm
Cabinet Material
Aluminum Profile
Service Access
Front or Rear (Select One Only)
Max. Brightness (After Calibration)
5,000
Color Temperature
3,200-9,300 (K)
Visual Viewing Angle (Horizontal/Vertical)
160 × 113
Brightness Uniformity
97%
Color Uniformity
±0.003CxCy
Contrast Ratio
20,000 : 1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
660 / 330 (Half-sized)
Power Consumption (W/Cabinet, Avg.)
220 / 110 (Half-sized)
Power Consumption (W/m², Max.)
600
Heat Dissipation (BTU/h/Cabinet, Max.)
2,252
Heat Dissipation (BTU/h/Cabinet, Avg.)
751 / 375 (Half-sized)
Heat Dissipation (BTU/h/㎡, Max.)
2,252 / 1,126 (Half-sized)
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
-30°C to +50°C
Operating Humidity
10-99% RH
IP rating Front / Rear
IP65 / IP65
90 Degree Corner Cut
Yes
Controller
CVCA
Environment
RoHS
