22XE1J-B

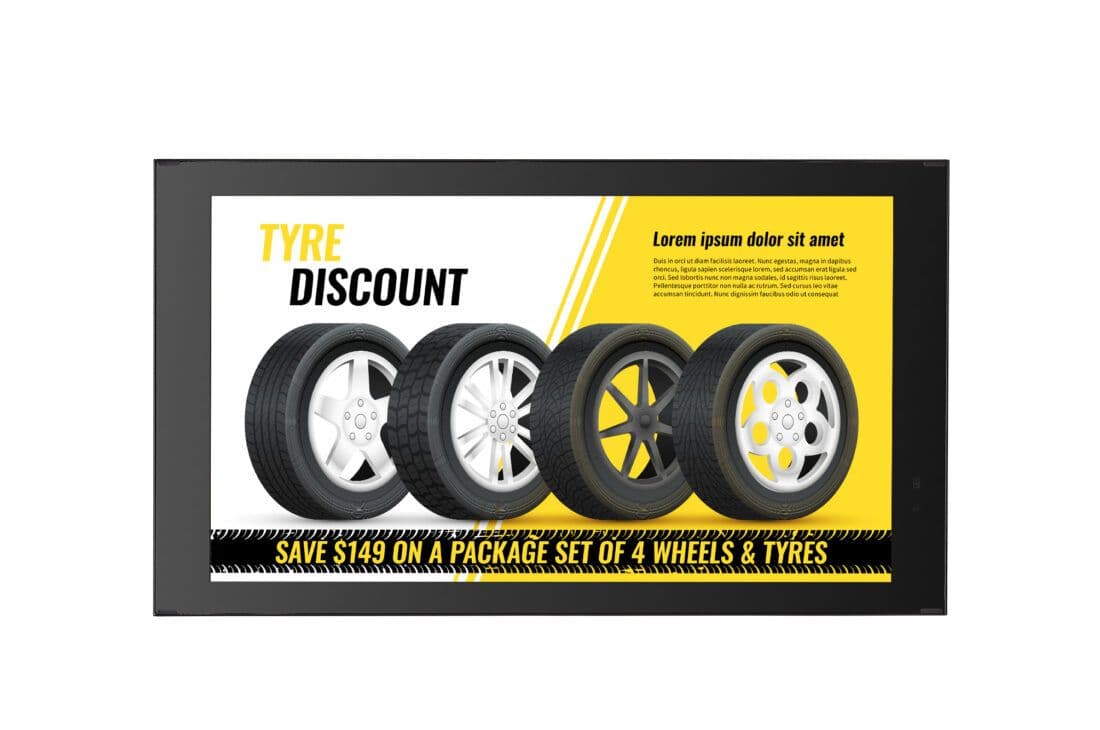

Outdoor Signage
Key Features
- Brightness (Typ, w/ Glass) : 1,500 nits
- IP56 Rated Dust / Water Proof
- 21.5" of Versatile Display Size
- Wide Operating Temperature Range
- webOS Smart Platform
- Web-based Monitoring Solution
Contact us
GGEAR Commercial
Bring the Remaining Space to Life with Space-fitting 32:9 Widescreen
32:9 Extended Wide Format
It is a unique wide screen with 32:9 bar type which provides much more flexibility in content than the conventional display of 16:9 ratio.
Picture-by-Picture (PBP) Mode
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display. It is very useful and convenient to deliver various advertisements or pieces of information at the same time.
Portrait/Landscape Mode
BH7N can be used vertically as well, allowing for flexible utilization in various installation/usage scenes in both horizontal and vertical orientations. It can be utilized for displays according to the characteristics and size of unused and leftover spaces.
Customizable Angle to Suit Customer's Eye Level
With a tilting capability of 30° when installed at a higher height, BH7N enhances customer perception and satisfaction.
Highly Reliable in High Humidity Environments
Optimized for business environments, the BH7N is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation.
Indoor Display Offering a Vivid and Sharp Visual Experience
With a great brightness of 700 cd/m2, the BH7N series clearly deliver content and attract public attention, making it suitable display for marketing in airports, retail, shopping malls etc.
Daisy Chain Management
A daisy chain allows you to conveniently and efficiently play the same content on multiple displays using just one media player. This eliminates the need to install separate media boxes for each display, as the entire operation can be handled by a single media player, ultimately resulting in cost savings during installation.
High Performance with
LG webOS 6.0
LG webOS 6.0 is available on BH7N series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.*
Screen Size
21.5
Back Light Type
Edge
Native Resolution
1,920 x 1,080 (FHD)
Brightness
1,500nit (Typ, w/ Glass)
Dynamic CR
800,000:1
Viewing Angle (H x V)
178 x 178
Response Time
25ms (G to G)
Lifetime
50,000 Hrs (Min.)
Portrait / Landscape
Yes / Yes
Panel Technology
AHVA (IPS)
Aspect Ratio
16:9
Refresh Rate
60Hz
Contrast Ratio
1,000:1 (Typ)
Color gamut
NTSC 72%
Color Depth
8bit, 16.7Million colors
Surface Treatment (Haze)
Anti glare, 3H (Haze 25%)
Operation Hours (Hours / Days)
24/7
QWP (Quarter Wave Plate)
Yes (Apply on glass)
Bezel Color
Black
Weight (Head)
8.7 kg
Monitor Dimensions (W × H × D)
557.3 x 319.8 x 66 mm
VESA™ Standard Mount Interface
100x100
Bezel Width
38.3mm (R/L), 24.0mm (T/B)
Packed Weight
10kg
Carton Dimensions (W × H × D)
632 x 394 x 187 mm (Box outer size)
Protection Glass
Depth 3mm, Tempered / Chemical strengthening (Chemical strengthening), Anti-Reflective, Infrared - Resistance (IR), Shatter-Proof
HW
Internal Memory 16GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Humidity Sensor, Acceleration (Gyro) Sensor, Power Indicator, FAN
SW
webOS ver. (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (Local Network Sync), Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting , webRTC, Pro:Idiom
Operation Temperature
-30°C to 50 °C
Operation Humidity
5 % to 100 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ
85W (Full White)
Max
115w
Typ
36W (IEC 62087)
DPM
0.5W↓
Power off
0.5W↓
BTU (British Thermal Unit)
290 (Typ), 393 (Max)
Safety
CB / NRTL
ErP
Yes
EMC
FCC Class "A" / CE / KC / VCCI
SuperSign CMS
Yes
LG ConnectedCare
Yes
SuperSign Control / Control+
Yes/Yes
Input
HDMI (HDCP 2.2), RS232C IN, RJ45 (LAN), USB2.0 Type A (1)
Output
Externel Speaker Out (1, L/R, 10W+10W)
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkiye
Basic
Remote Controller (including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Gender
Tilt (Facedown)
Yes (Max -15º degree, Face Down) PP
Direct Sunlight
Yes
IP Rating
IP56
