49VL5G-M
Slim Bezel Series
Key Features
- Brightness(Typ.) : 500 cd/m²
- Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
- Depth : 89.7 mm
- Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Contact us
GGEAR Commercial
Incredible Immersion with Ultra-Narrow Bezel
Seamless Large Screens with Ultra- Narrow Bezel
The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.
Image Gap Reduction
The VL5G-M series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5G-M series is high enough to display vivid colors throughout the screen with no distortion.
Wider Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5G-M series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

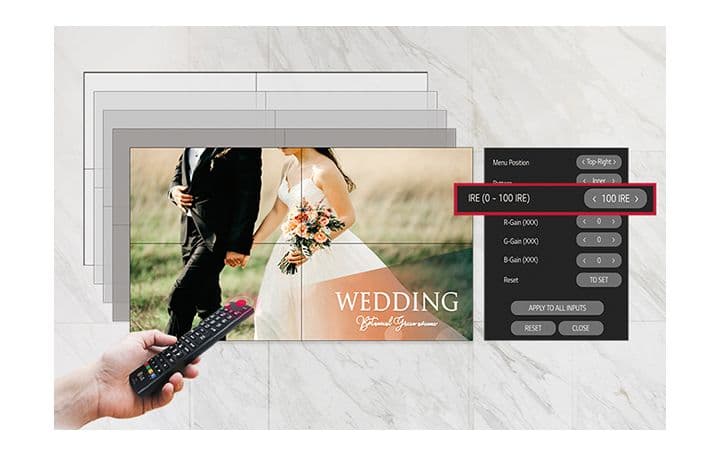

White Balance Adjustment
In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5G-M series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

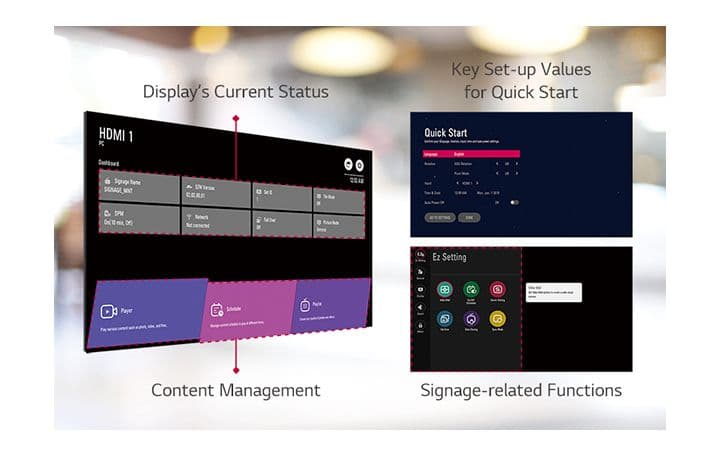

User-Friendly Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
ENERGY STAR® Certified
Screen Size (Inch)
49"
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,000:1
Dynamic CR
500,000 : 1
Color gamut
NTSC 72%
Viewing Angle(H x V)
178 X 178
Color Depth
10bit, 1.07Billion colors
Response Time
8 ms (G to G)
Surface Treatment (Haze)
3%
Life time
60,000Hrs (Typ.) / 50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes / Yes
Input
HDMI (2, HDCP 1.4), DP (1, HDCP 1.3),DVI-D (1, HDCP 1.4) Audio In, RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A (1)
Output
DP Out (Input : DP (HDCP)), Audio Out, RS232C OUT
Bezel Color
Black
Bezel Width
T/R/L/B : 2.25/1.25/2.25/1.25mm
Weight (Head)
16.9Kg
Packed Weight
29.3kg
Monitor Dimensions (W x H x D)
1077.6 x 607.8 x 89.7mm
Carton Dimensions(W x H x D) (Box outer size)
1214 x 778 x 263mm
Handle
Yes
VESA™ Standard Mount Interface
600 x 400
HW
Temperature Sensor
SW
Embedded CMS (Local Contents Scheduling), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync), Rotation (Screen Rotation), Tile Mode Setting (Max. 15x15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, 3rd Party Compatibility (Crestron Inside), Smart Energy Saving, PM mode, Wake on LAN, HDMI-CEC, SI Server Setting, W/B Setting by Grey scale, Scan Inversion
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 90 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
100W
Max.
120W
BTU (British Thermal Unit)
341 BTU/Hr(Typ.), 409 BTU/Hr(Max)
Smart Energy Saving
60W
DPM
0.5 W
Power off
0.5 W
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes / Energy Star 8.0(US Only)
SuperSign CMS
Yes
SuperSign Control / Control+
Yes
SuperSign WB
Yes
SuperSign Media Editor
Yes
LG ConnectedCare
Yes
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional
OPS Kit (KT-OPSF)
