55VM5J-H
Slim Bezel Series
Key Features
- Brightness(Typ.) : 500 nit
- Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
- Depth : 86.9 mm
- Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Contact us
GGEAR Commercial
Artistic Immersion, Overwhelming Captivation

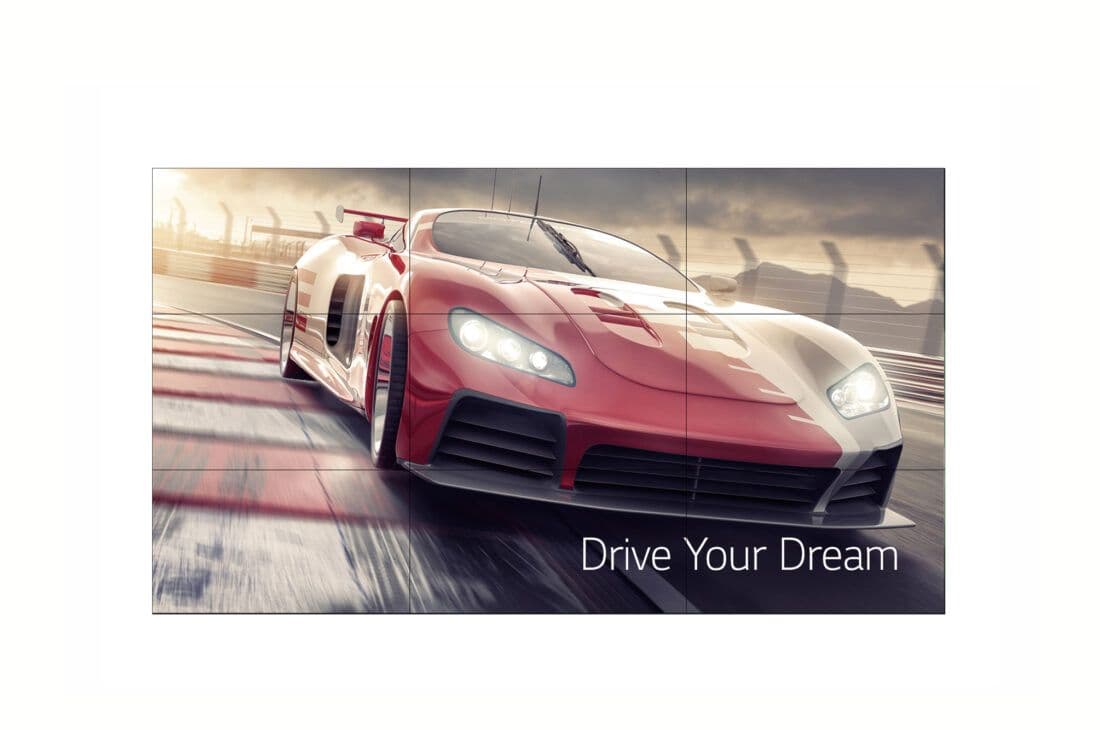

Seamless Large Screens with Extreme-Narrow Bezel
The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
Image Gap Reduction
The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40˚) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.
Wider Viewing Angle
LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in “full-white” mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.
High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
Flexible Content Creation
Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.
Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
Dedicated GUI for Portrait Orientation
The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VM5J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.
Conformal Coating
Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.

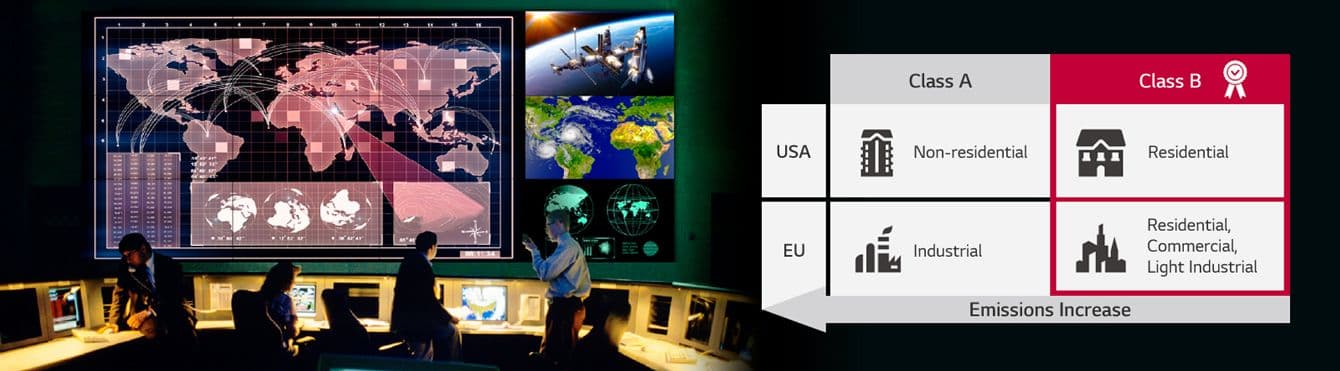

EMC Class B Certified
The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.
Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

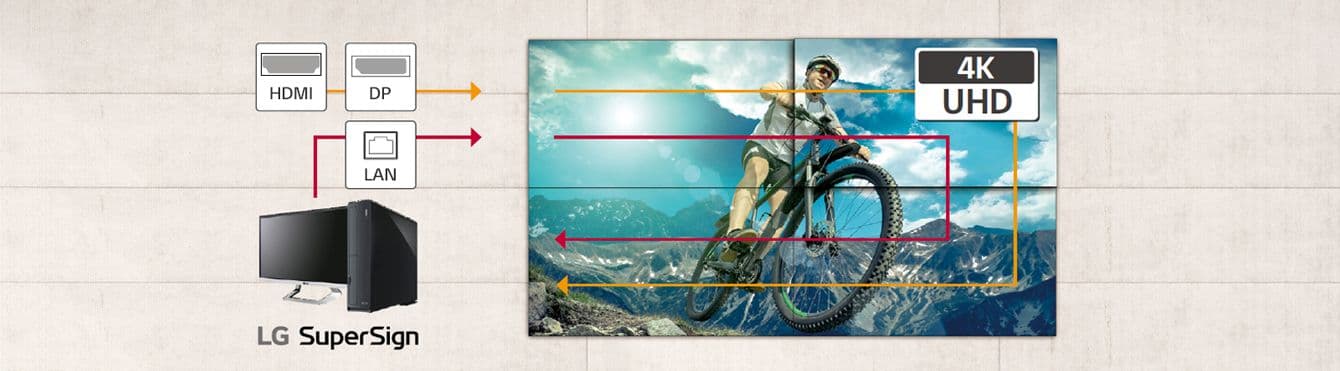

Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation
Screen Size (Inch)
55"
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Refresh Rate
60Hz
Brightness
500
Contrast Ratio
1,000:1
Dynamic CR
500,000 : 1
Color gamut
NTSC 72%
Viewing Angle(H x V)
178 X 178
Color Depth
10bit, 1.07Billion colors
Response Time
8 ms (G to G)
Surface Treatment (Haze)
28%
Life time
60,000Hrs
Life Time (Min.)
50,000Hrs
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes / Yes
Bezel Color
Black
Bezel Width
B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R)
Weight (Head)
18.8 Kg
Monitor Dimensions (W x H x D)
1,212.2 × 683.0 × 86.9 mm
Handle
Yes
VESA™ Standard Mount Interface
600 x 400
HW
Internal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation
SW
webOS ver.(Android 13.0 (AOSP)), USB Plug & Play, Screen Share(LG CreatBoard Share), Wake on LAN, Network Ready, HDMI-CEC
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 90 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
160 W
Max.
190 W
Smart Energy Saving
90 W
DPM
0.5 W
Power off
0.5 W
BTU (British Thermal Unit)
546 BTU/Hr(Typ.), 648 BTU/Hr(Max)
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ErP
Yes (EU Only)
OPS type compatible
Yes (Piggyback)
SuperSign CMS
Yes
SuperSign Control / Control+
Yes
SuperSign WB
Yes
SuperSign Media Editor
Yes
LG ConnectedCare
Yes
Input
HDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A
Output
DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional
OPS Kit (KT-OPSF)
