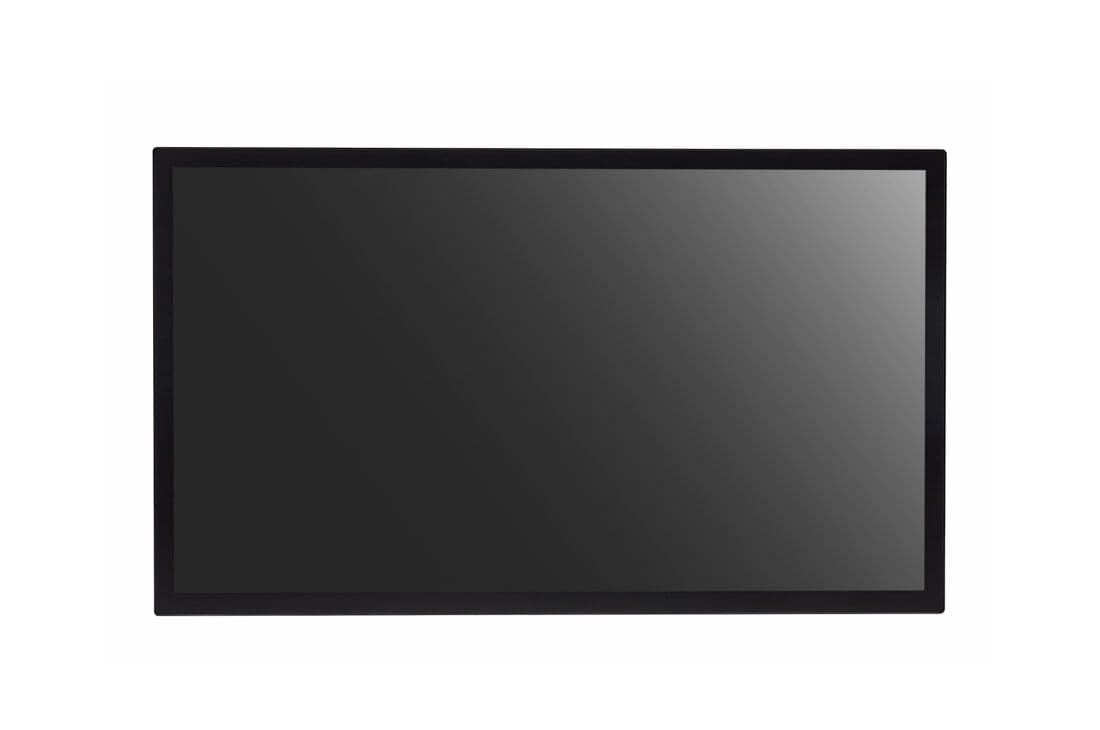

55TC3CG-H
Touch Signage
Key Features
- Brightness : 350nit (w Glass, typ)
- Multi Touch Point : 40 Points (Max.)
- Interface (Input) : HDMI (2, HDCP 2.2/1.4), DP (1, HDCP2.2/1.3), RS-232C In, RJ45 (LAN), IR In, USB2.0 Type A (2)
- Interface (Output) : DP Out (1, Input HDMI1/2/DP/OPS), Audio Out, Externel Speaker Out (6 ohm), Touch USB (USB 2.0 Type B), RS-232C Out
Contact us
GGEAR Commercial
Interactive Touch Signage That Creates Engaging Experiences

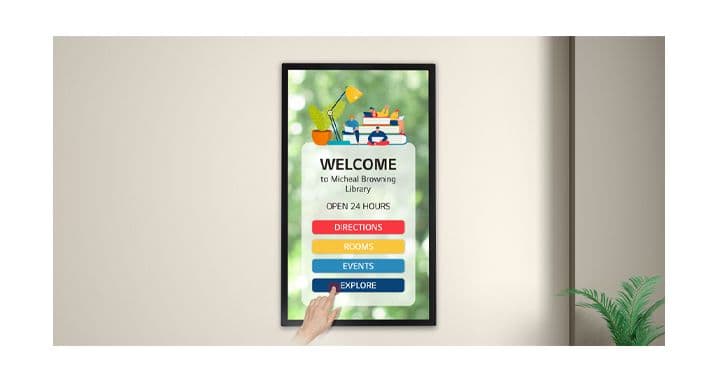

Precise Touch Response
The screen accurately recognizes extremely small touch points and instantly shows a response. This means that SIs can compose GUI icons in a variety of sizes on the 55TC3CG-H and users can fully enjoy their touch experience with no lagging.

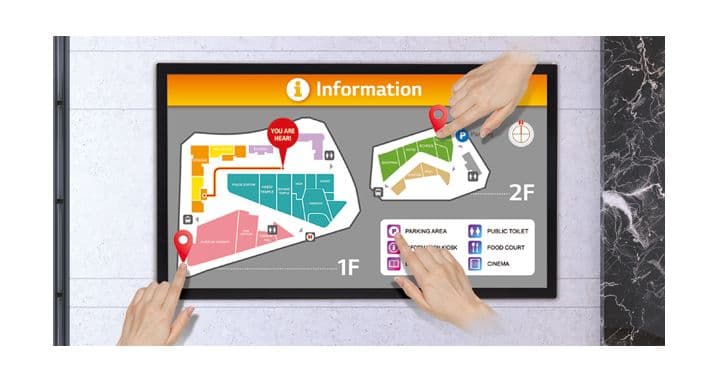

Multi Touch with No Dead Zones
Capable of recognizing up to 40 point-touches at once, the screen provides multiple users a smooth and natural sense of touch. Unlike infrared touch screens, the 55TC3CG-H accurately detects touch points even at the corners or edges of the display. This allows a variety of touch-based customer services to be provided throughout the entire screen.
Beautiful Color, Wide View
LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated. Each pixel in the IPS panel reproduces gorgeous image colors that people can see even at extremely wide viewing angles.

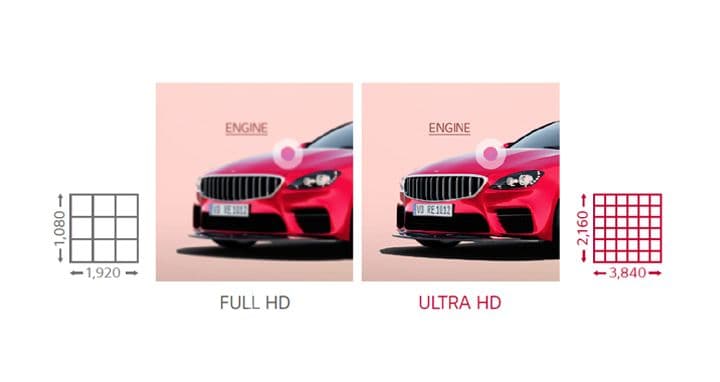

Vivid Details with Ultra HD
Ultra High Definition resolution allows users to view details even when zooming in on the display, with four times higher definition than Full HD. The 55TC3CG-H ensures stable UHD video playback with HEVC (High Efficiency Video Coding).
Fewer Scratch & Shatter Proof
Touch screens in public spaces can be scratched in heavy use or even abuse situations. The 55TC3CG-H has an advanced tempered screen coating to minimize scratches. In addition, its anti-shatter glass is designed to minimize harm to the user, even in the event the product being subject to abuse.

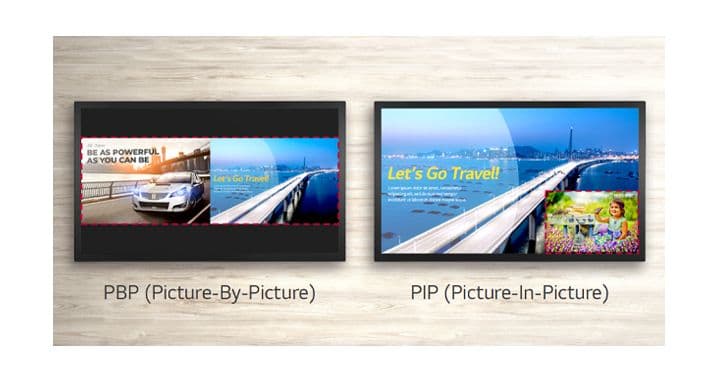

Multi Screen Mode
PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

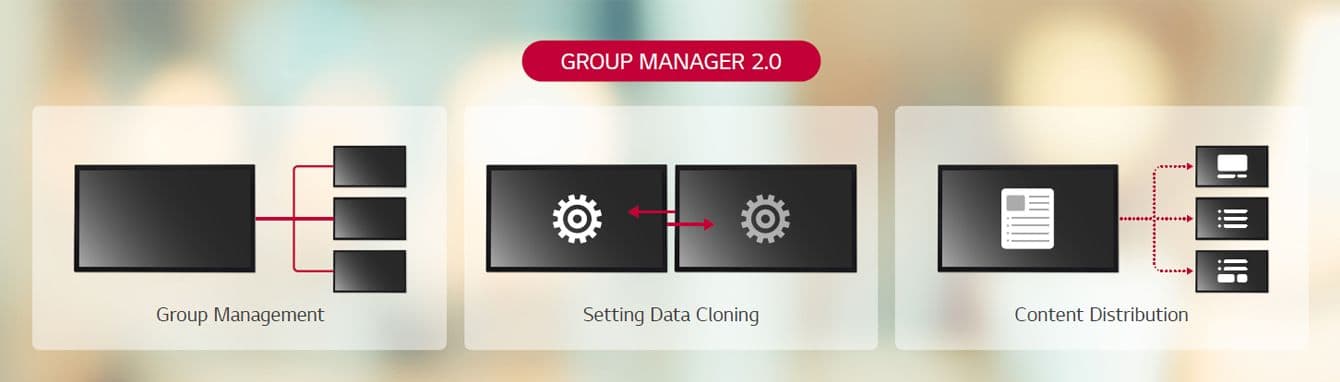

Embedded Group Manager
The Group Manager allows you to edit and play content, schedule a playlist and even group and control signages via remote control, without need for a separate PC. This makes content management much easier and user-friendly.

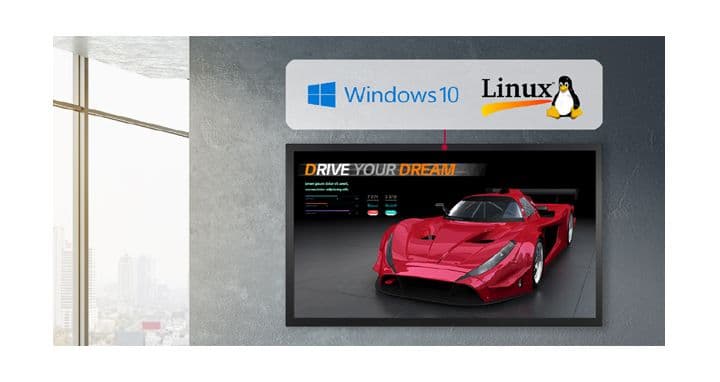

Supporting Various OS (Windows & Linux)
The 55TC3CG-H supports touch screen compatibility with Windows10 & Linux to provide touch capability to devices running either operating system.

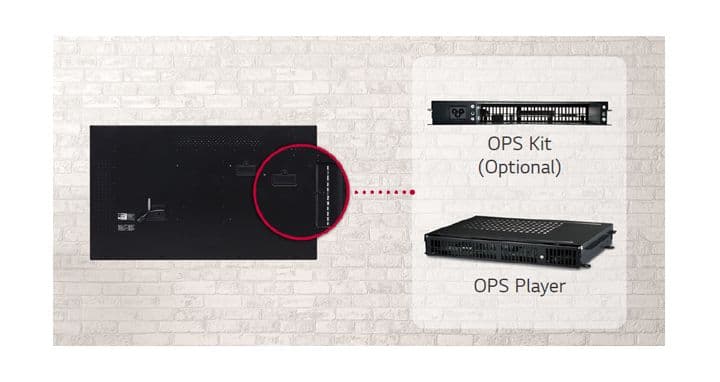

OPS Player Connectivity
The 55TC3CG-H provides an OPS (Open Pluggable Specification) Kit to connect a third-party OPS player. Users have the flexibility to choose any media player as long as it complies with the OPS.
Screen Size (Inch)
55"
Panel Technology
IPS
Native Resolution
3,840 x 2,160 (4K UHD)
Brightness
350nit (w Glass, typ), 280nit (w Glass min)
Contrast Ratio
1,100:1
Dynamic CR
500,000:1
Color gamut
NTSC 72%
Viewing Angle(H x V)
178 X 178
Color Depth
10bit, 1.07Billion colors
Response Time
8 ms (G to G)
Surface Treatment (Haze)
Haze (28%)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes / Yes
Bezel Color
Black
Bezel Width
33.5 / 33.4 / 33.4 / 38 mm
Weight (Head)
34.5 Kg
Packed Weight
39.8 Kg
Monitor Dimensions (W x H x D)
1,276.4 x 751.9 x 44.9 mm
Carton Dimensions(W x H x D) (Box outer size)
1,410 x 880 x 207 mm (Box outer size)
VESA™ Standard Mount Interface
300 x 300
Internal Memory
8GB (System 4GB + Available 3.6GB)
Sensor
Temperature Sensor, Auto Brightness sensor
Local Key Operation
Yes
webOS ver.
webOS 4.1
Embedded CMS
Local Contents Scheduling, Group Manager
USB Plug & Play
Yes
Fail over
Yes
Multi-screen
PIP, PBP
Background Image
Booting Logo Image, No Signal Image
Sync Mode
RS-232C Sync, Local Network Sync
Video Tag
Yes
Play via URL
Yes
Rotation
Screen Rotation, External Input Rotation
Gapless Playback
Yes
Tile Mode Setting
Yes
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
3rd Party Compatibility
Crestron Inside
Power
Smart Energy Saving, PM mode, Wake on LAN
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
Operation Temperature
0 °C to 40 °C
Operation Humidity
10% to 80%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
105 W
Max.
145 W
Smart Energy Saving
74 W
DPM
0.5 W↓
Power off
0.5 W↓
BTU (British Thermal Unit)
358 BTU/Hr (Typ.), 495 BTU/Hr (Max.)
Safety
NRTL
EMC
FCC Class "A"
ErP
EPA 8.0
OPS Type Compatible
Yes (Piggyback)
SuperSign CMS
Yes
SuperSign Control / Control+
Yes
LG ConnectedCare
Yes
Input
HDMI (2, HDCP 2.2/1.4), DP (1, HDCP2.2/1.3), RS-232C In, RJ45 (LAN), IR In, USB2.0 Type A (2)
Output
DP Out (1, Input HDMI1/2/DP/OPS), Audio Out, Externel Speaker Out (6 ohm), Touch USB (USB 2.0 Type B), RS-232C Out
Basic
Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, HDMI Cable 3 M*1, User Manual, QSG, Remote Controller (include battery 2ea), RS232C cable (Phone jack), IR Receiver , Magnet Sheet (3ea)
Optional
Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF), SP-5200
Available Object Size for Touch
Ø6mm ↑
Reponse Time (Based on 'Paint' app on Windows 10 PC)
Scan time :10 ms
Accuracy
2 mm±0.2 mm
Interface
USB 2.0
Protection Glass Thickness
3.2 T (Anti-Glare)
Protection Glass Transmission
83%
Operating System Support
Win 8.1 / 10, Linux (Kernel v3.0 above)
Multi Touch Point
Max. 40 Points
