30EW5TP-A

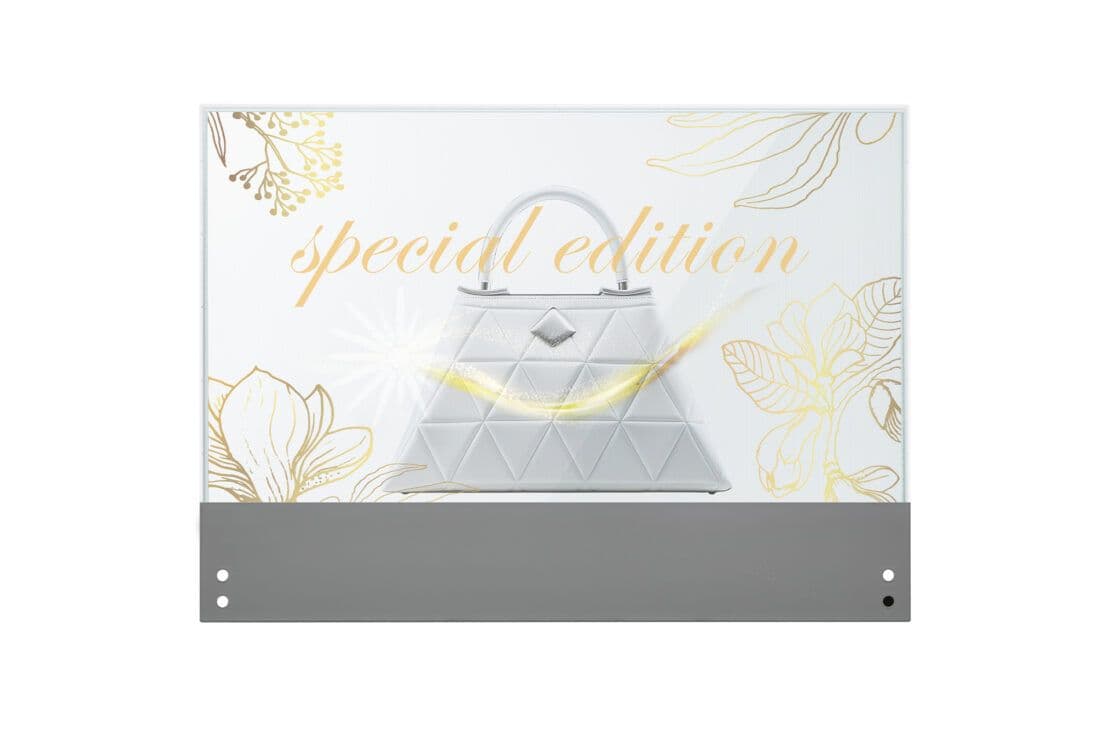

Transparent OLED Touch Signage
Key Features
- Brightness (Typ.) : 200 / 600 nit (APL 100% / 25%, Without Glass)
- Transparency : 37% (Set)
- Bezel : 7.9 mm (T/R/L), 114.7 mm (B)
- Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
- P-Cap Touch, Tempered Front Glass (3T)
Contact us
GGEAR Commercial
See the Unseen, LG Transparent OLED Signage
Accurate and Vivid Colors
Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
Intuitive P-Cap Touch
By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips.

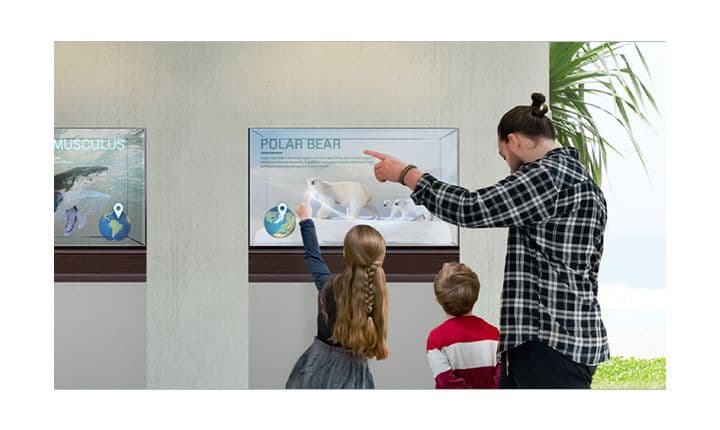

High Transparency
LG’s OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency even with P-Cap touch film. While clearly showing objects behind the screen, it overlays the relevant information right before them.

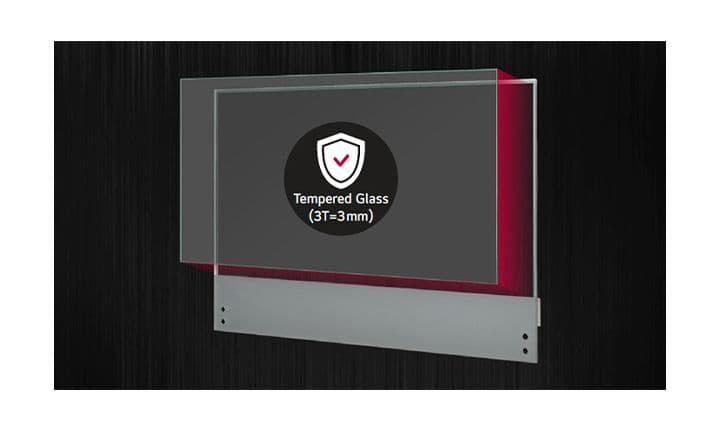

Protective Tempered Glass
Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.
Enhanced Spatial Versatility
Experience the extraordinary with the state-of-the-art LG Transparent OLED Signage, which breaks down the barriers between the screen and surrounding environment, seamlessly connecting different spaces and people.
Screen Size
30"
Panel Technology
OLED
Aspect Ratio
16 : 9
Native Resolution
1,366 × 768 (HD)
Brightness
200 / 600 nit (APL 100% / 25%, without Glass)
Contrast Ratio
200,000 : 1
Dynamic CR
No
Color gamut
BT709 110%
Viewing Angle (H x V)
178 × 178
Color Depth
10 bit (R), 1.07 Billion Colors
Response Time
0.1 ms (G to G), 8 ms (MPRT)
Refresh Rate
120 Hz
Surface Treatment (Haze)
Hard Coating 5 H, Haze 3% (Set)
Lifetime
30,000 Hrs (Typ.)
Operation Hours (Hours / Days)
18 / 7 (Moving Content Only)
Portrait / Landscape
Yes / Yes
Transparency (Typ.)
37% (Set)
QWP (Quarter Wave Plate)
No
Bezel Color
Transparent
Bezel Width
7.9 / 7.9 / 7.9 / 114.7 mm (T/R/L/B)
Weight (Head)
4.2 kg (Head), 2.4 kg (Signage Box)
Packed Weight
10.1 kg
Monitor Dimensions (W × H × D)
680.2 × 496.2 × 15.3 mm (Head), 449.2 × 288.6 × 42.8 mm (Signage Box)
Carton Dimensions (W × H × D)
826 × 593 × 195 mm
Protection Glass (Tempered / Chemical Strengthening)
Chemical Strengthening
Protection Glass (Anti-Reflective)
Yes (AR+AF Coating)
Protection Glass (Shatter-Proof)
Yes
Key Feature
Internal Memory (eMMC (16 GB)), Temperature Sensor, webOS23, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, RS-232C Sync, Local Network Sync, Video Tag (4), Screen Rotation, Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, PM Mode, Wake on LAN, HDMI-CEC, SI Server Setting
Operation Temperature
0 to 40
Operation Humidity
10%-80%
Power Supply
AC 100-240V~, 50/60Hz
Power Supply
AC 100-240 V~, 50/60 Hz
Power Type
Built-in Power
Typ./Max.
45 W (IEC 62087) / 86 W
DPM
0.5 W
Power off
0.5 W
BTU (British Thermal Unit)
154 BTU/Hr (Typ.), 294 BTU/Hr (Max.)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP
Yes
Software Compatibility
SuperSign CMS, SuperSign Control+, SuperSign Cloud, Mobile CMS, LG ConnectedCare
Input
HDMI (HDCP 2.2/1.4), DP (HDCP 1.3), RS-232C, RJ45 (LAN), IR (External IR Receiver), USB (USB 2.0 Type A)
Output
DP, Audio, Touch USB (USB 2.0 Type B), RS-232C, RJ45 (LAN), IR (Sharing RS-232C)
Language
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Polski, Türkçe, Arabic
Basic
Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS-232C Gender, MCX / Harness Cables (3 m × 4 ea / 3 m × 2 ea for Connection between Panel and Signage Box), HDMI Cable (3 m), Micro to A Type USB Cable (3 m, for Connection between Touch and Signage Box), A to B Type USB Cable (Touch Out), Screw (M4 × L22, 12 ea / M4 Nut 12 ea / M3 × L5.5 (Silver), M3 × L5.5 (Black) 8 ea / Shield Cover Assy, Rubber Damper 4 ea, Touch Cable Holder 2 ea, MCX Cable Holder 2 ea
Conformal Coating (Power Board)
Yes
Available Object Size for Touch
Ø8 mm ↑
Response Time
100 ms ↓
Accuracy
2 mm
Interface
USB 2.0
Protection Glass Thickness
3.0 T (Anti-Glare / Anti-Finger Print)
Protection Glass Transmission
85% (Typ.)
Operating System Support
Windows 10/11
Multi Touch Point
Max. 10 Points
