86UL3J-E
86” UL3J-E UHD Digital Signage with webOS™ 6.0 & Built-in Speakers
Key Features
- Brightness (Typ.): 330 nits
- Resolution : ULTRA HD (3,840 x 2,160)
- High performance WebOSTM 6.0
- Built-in Speaker
- Compatible with LG's One:Quick Share
- ENERGY STAR® Certified
Contact us
GGEAR Commercial
LG webOS™ UHD Signage
Sophisticated Slim Design
This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Superb Picture Quality with Ultra HD Resolution
Ultra-HD resolution (3,840 x 2,160) and LG's IPS screen technology combine to deliver content with rich color and detail for a realistic image. IPS screens also provide a wide viewing angle for off-axis viewing.
Remote Monitoring and Control
A user-friendly web-based monitoring solution enables the user to have full access to the display anywhere at any time from their mobile phone & PC under a network-accessible environment while having access to both current and past data. It also allows the user to monitor the display, make adjustments and control the unit remotely in real-time.
Compatible with AV Control Systems
For added efficiency, the UL3J series supports Crestron Connected®* for compatibility with professional AV controls to achieve virtually seamless integration and control**.
Compatible with Video Conference System
For compelling video conferencing, the UL3J series is compatible with Cisco® solutions that offer robust and integrated control* for an intelligent video conference.

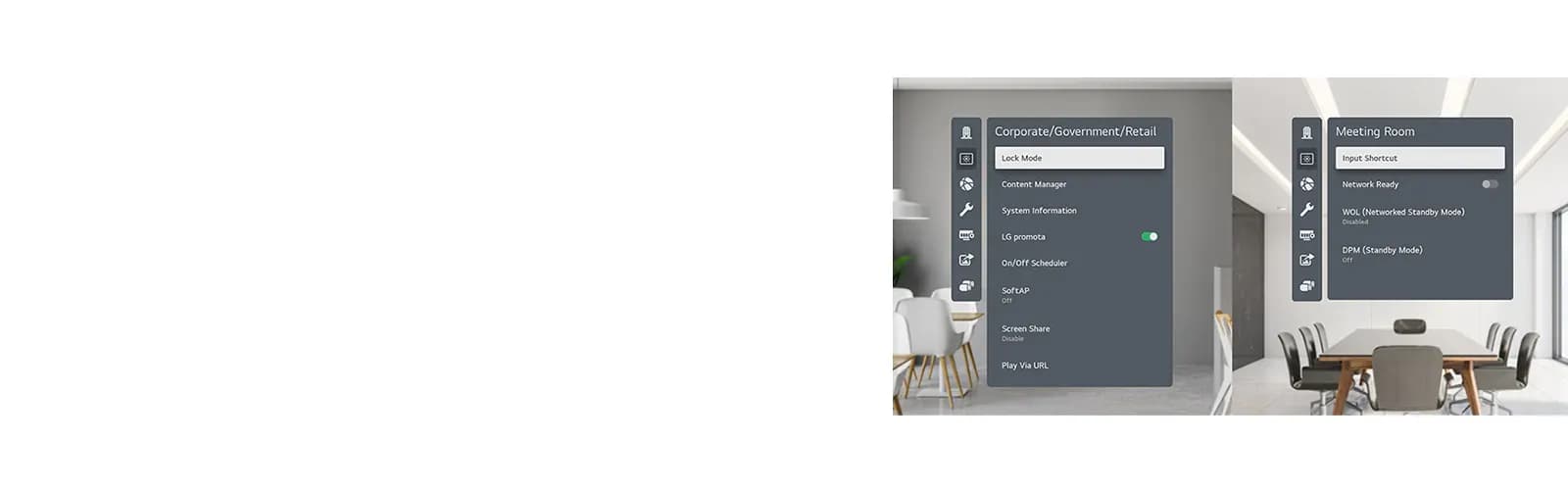

Easy Menu Setup for Vertical Needs
Easy Menu Setup for Vertical Needs
Wireless Access Point
UL3J series operates as a virtual router which can be an wireless access point for mobile devices.
High Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**
Various Sensor Connection
LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
Built-in Speaker
Built-in speakers eliminate the need for external speakers and deliver clear, crisp sound.
Easy Content Distribution & SW Update
UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update firmware under the same network.
Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnecedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and provides remote-control services that support the stable operation of clients' businesses.
EPEAT Registered
The Electronic Product Environmental Assessment Tool (EPEAT) is a method to evaluate the effect of a product on the environment. UL3J is EPEAT Bronze certified* display which means that it meets all the required criteria in Computers and Displays category.
size
86
Native Resolution
3840 x 2160 (UHD)
Contrast Ratio
1,200:1
Color gamut
DCI 80%
Color Depth
1.07G (8bits + FRC)
Surface Treatment(Haze)
1%
Portrait / Landscape
Yes / Yes
Panel Technology
ADS
Brightness
400nits
Dynamic CR
1,000,000:1
Viewing Angle(H x V)
178x178
Response Time
12 ms
Operation Hours (Hours/Day)
16/7
Back Light Type
Direct
Refresh Rate
60Hz
HDMI 1.4 In
O(3), HDCP2.2/1.4
RS-232C In<br>
3.5mm Stereo (4-pin)
RJ45 (LAN)
Yes
USB 2.0 Type A
Yes (x2)
Audio Out
Yes
RS-232C Out<br>
3.5mm Stereo (4-pin)
Bezel Color
Navy Blue (Near Black)
Weight
25.8 lbs / 11.7 kg
Bezel Width
Off : 7.3 / 7.3 / 7.3 / 18.4 mm On : 12.8 / 12.8 / 12.8 / 19.9 mm
Dimension(W x H x D)
47.8 x 25.6 x 2.2 in 1215 x 651 x 57.1 mm
VESA<sup>TM</sup> Standard Mount Interface
200 x 200
Shipping Weight
32.2 lbs / 14.6 kg
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption (Typ.)
105 W 358.274 BTU/Hr
Power Consumption (Max.)
150 W 511.821 BTU/Hr
Smart Enegy Saving (70%)
66 W
DPM
0.5 W
Power off
0.5 W
Operation Temperature
32°F to 104°F 0°C to 40°C
Operation Temperature (Portrait Scene)
32°F to 95°F 0°C to 35°C"
FCC Class "A" (Regulatory)
Yes
CE (Regulatory)
Yes
ErP / Energy Star (Environmental)
Yes / Yes
ePEAT (US only) (Environmental)
Yes
SuperSign White Balance
Yes
SuperSign Media Editor
Yes
Signage 365 Care
Yes
Internal Memory
8GB
Built-in Wi-Fi
Yes
Temperature Sensor
Yes
Auto Brightness sensor
Yes
Local Key Operation
Yes (Power On/Off only)
Fanless Design
Yes
webOS™ ver.
webOS™ 6.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS-232C Sync
Yes
Local Network Sync
Yes
Screen Share
Yes
Video Tag
Yes (4, Max One HDMI input)
Play via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Crestron Connected
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
Beacon
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
Speaker
Yes
Warranty
3 Year Limited
Onscreen Display Languages
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic, Polski
Accessories
Remote Control (w/ 2 batteries), Power Cord, Regulation Book, Phone to D-Sub9 Adapter, Cable Holder
FCC Class "A" (Regulatory)
Yes
CE (Regulatory)
Yes
ErP / Energy Star (Environmental)
Yes / Yes
ePEAT (US only) (Environmental)
Yes
