55VL5F-A

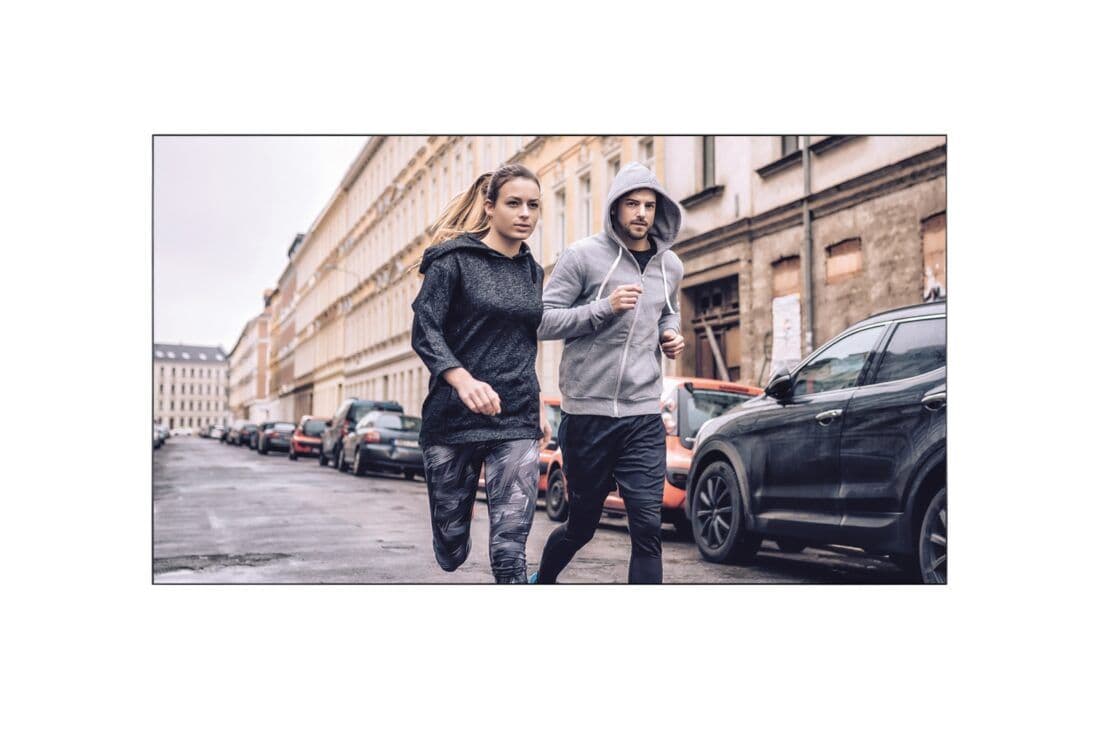

55″ Video Wall VL5F Series
Key Features
- Brightness(Typ.) : 500 cd/m²
- Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
- Depth : 93.1 mm
- Interface : HDMI (2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Contact us
GGEAR Commercial

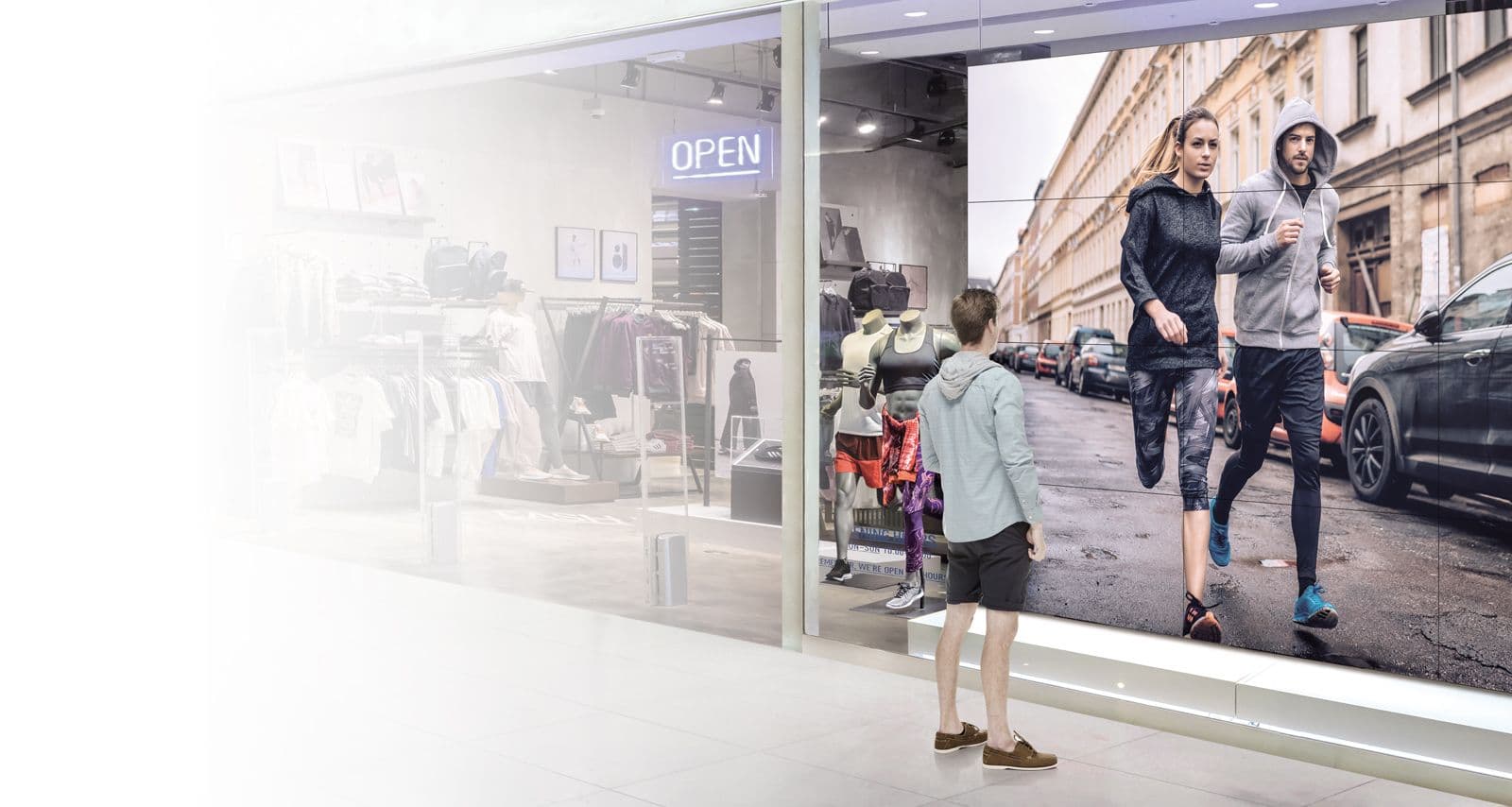

Incredible Immersion with Ultra-Narrow Bezel.
Incredible Immersion with Ultra-Narrow Bezel.

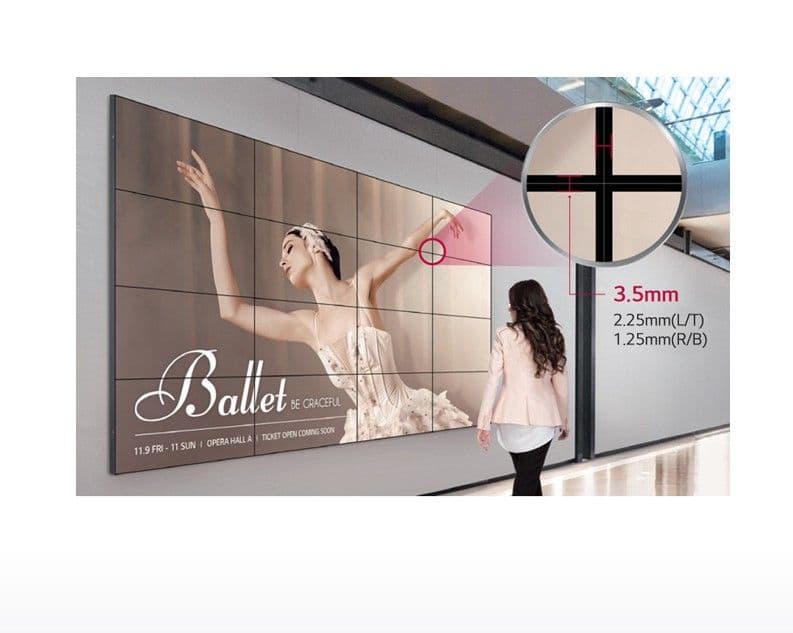

Seamless Large Screens with Ultra-Narrow Bezel
The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

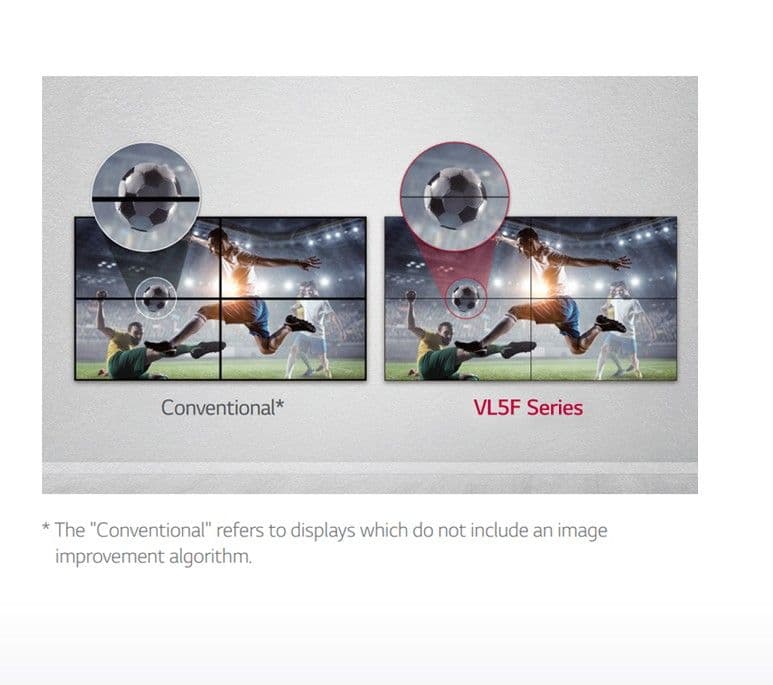

Image Gap Reduction
The VL5F series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

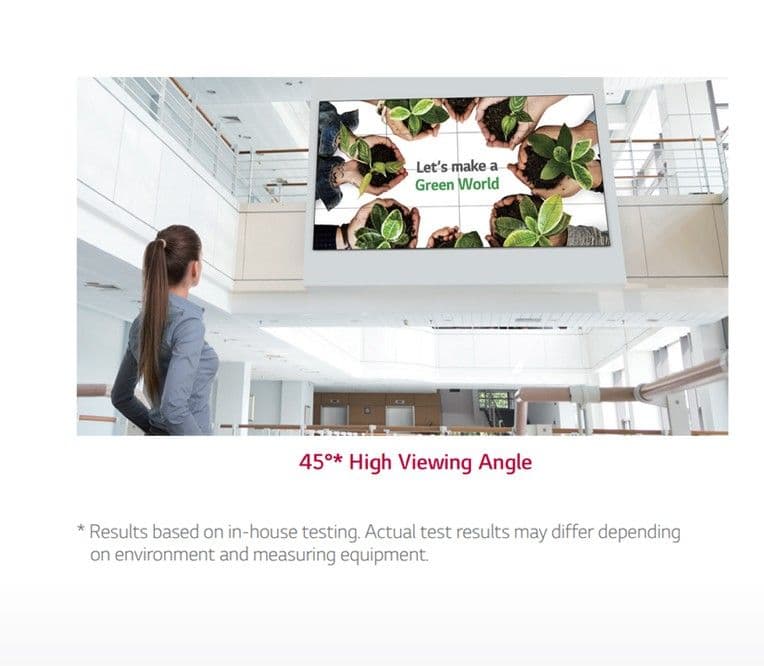

Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5F series is high enough to display vivid colors throughout the screen with no distortion.

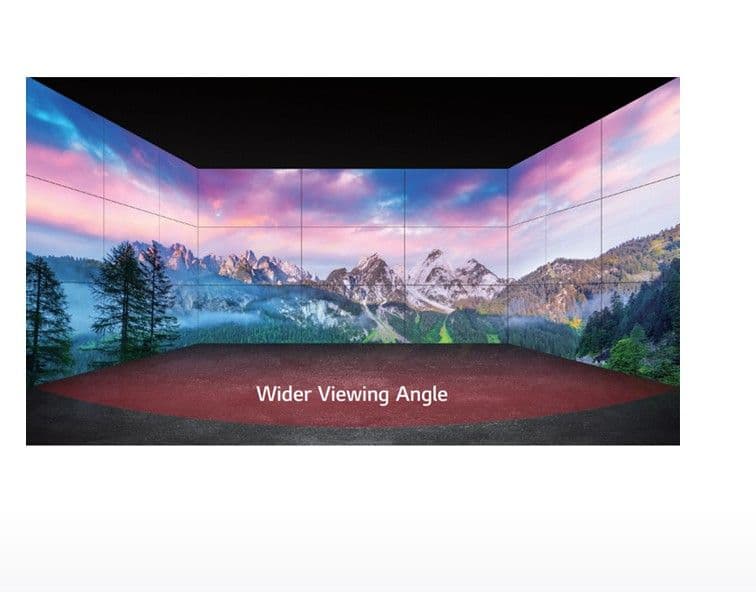

Wider Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5F series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

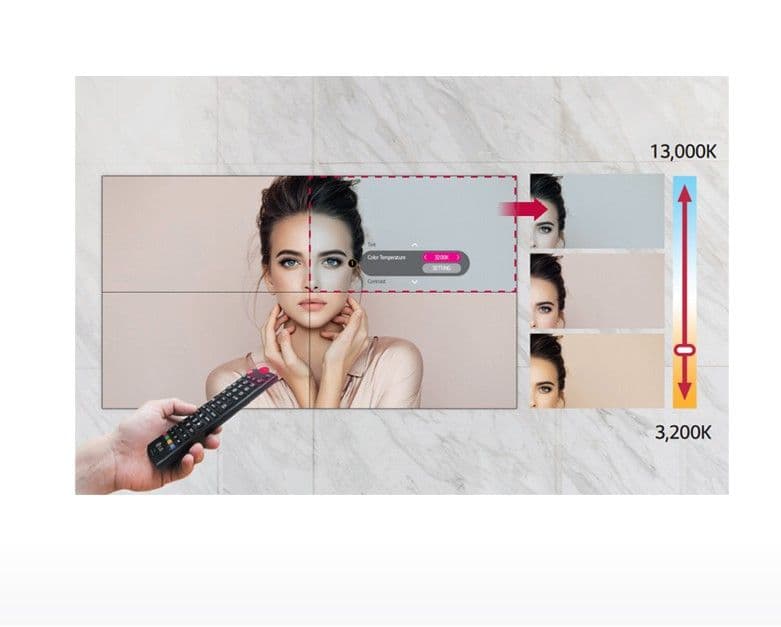

Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

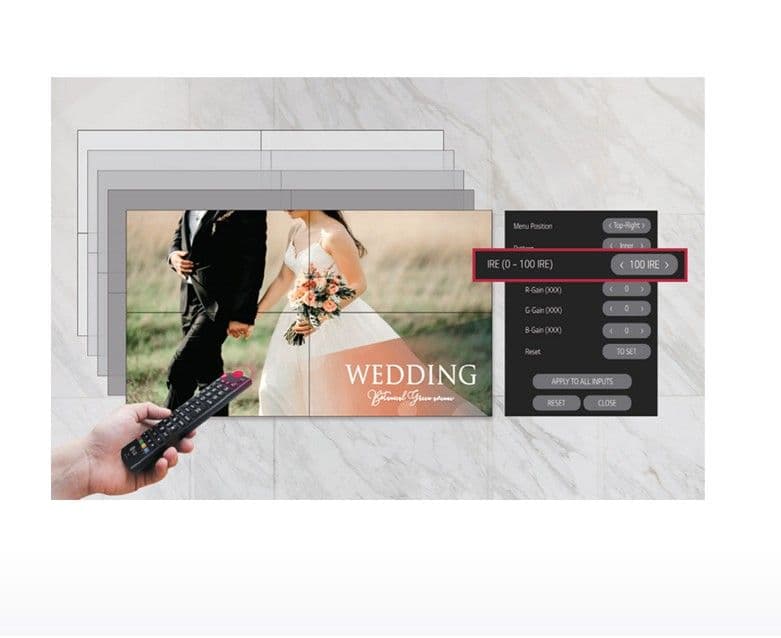

Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in full-white mode, but the VL5F series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

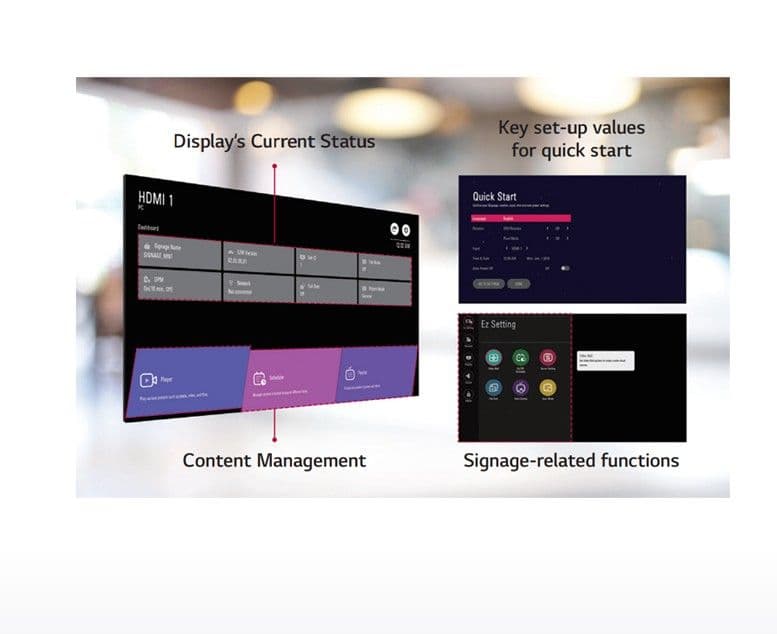

User-Friendly Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.

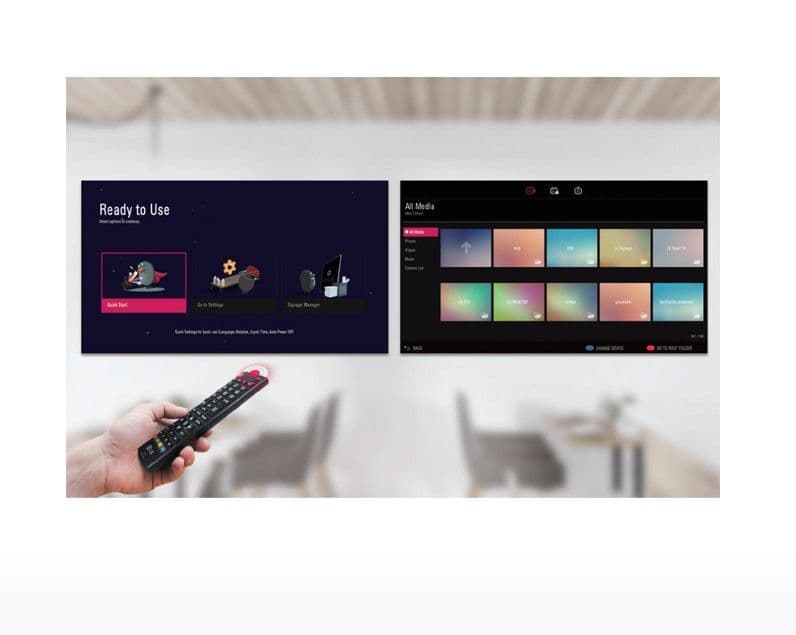

Intuitive GUI
The GUI(Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.
Screen Size
55"
Aspect Ratio
16 : 9
Dynamic CR
500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)
Contrast Ratio
1,200:1
Response Time
8 ms (G to G)
Life Time (Typ.)
60,000 Hrs
Orientation
Landscape & Portrait
Panel Technology
IPS
Native Resolution
1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)
500
Viewing Angle (H x V)
178 x 178
Surface Treatment
3%
Operation Hours
24 Hrs
Input
HDMI(2), DP, DVI-D, Audio, USB
External Control
RS232C In/out, RJ45(LAN) In, IR In
Output
DP, Audio
Bezel Color
Black
Monitor Dimension (W × H × D)
1,213.4 x 684.2 x 93.1 mm
Carton Dimensions (W × H × D)
1,353 x 980 x 263 mm
Handle
Yes
Bezel Width
2.25 mm (T/L) / 1.25 mm(B/R)
Weight (Head)
20.3 kg
Packed Weight
33 kg
VESA™ Standard Mount Interface
600 x 400 mm
Operation Temperature
0℃ to 40℃
Operation Humidity
10 % to 80 %
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Typ./Max
130 W / 150 W
Smart Energy Saving
62 W
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC
FCC Class "A" / CE / KC
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control/Control+
Basic
Remote Controller, Power Cord, RS232C Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
OPS type compatible
No
