- Inverter Cassette Split 2.3 TR
AT-Q30GPLT1
Inverter Cassette Split 2.3 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling
AT-Q30GPLT1
Inverter Cassette Split 2.3 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling
Features
Tech Specs
Available At
LG BrandShop Cambodia

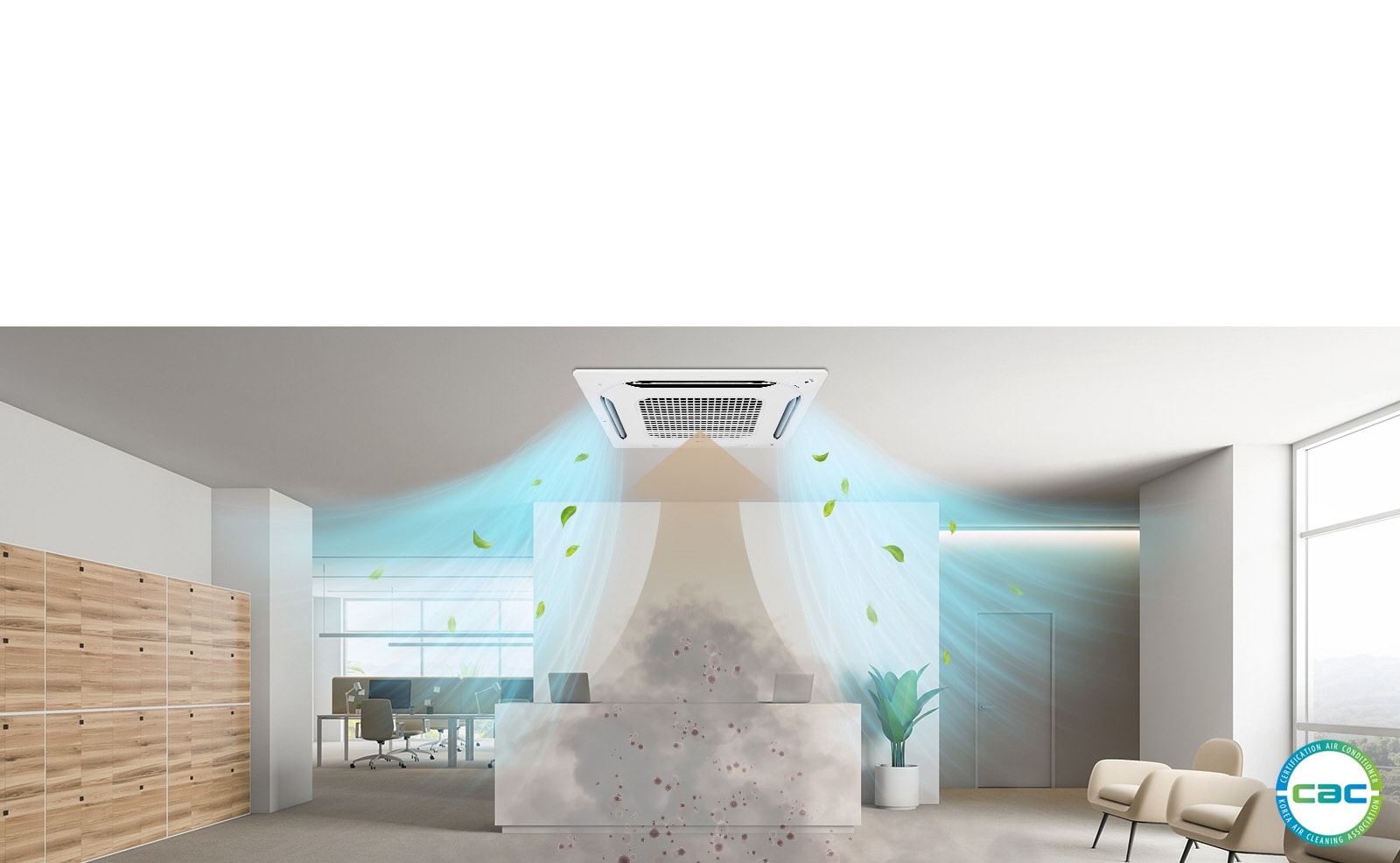

The New Cassette with
Air Purification
LG Cassette type indoor unit is equipped with the air purification function. It offers a solution to the problem of ultrafine dust that harms our bodies. This is the CAC*-certified, high-performance product that delivers clean, cool air to your large space.

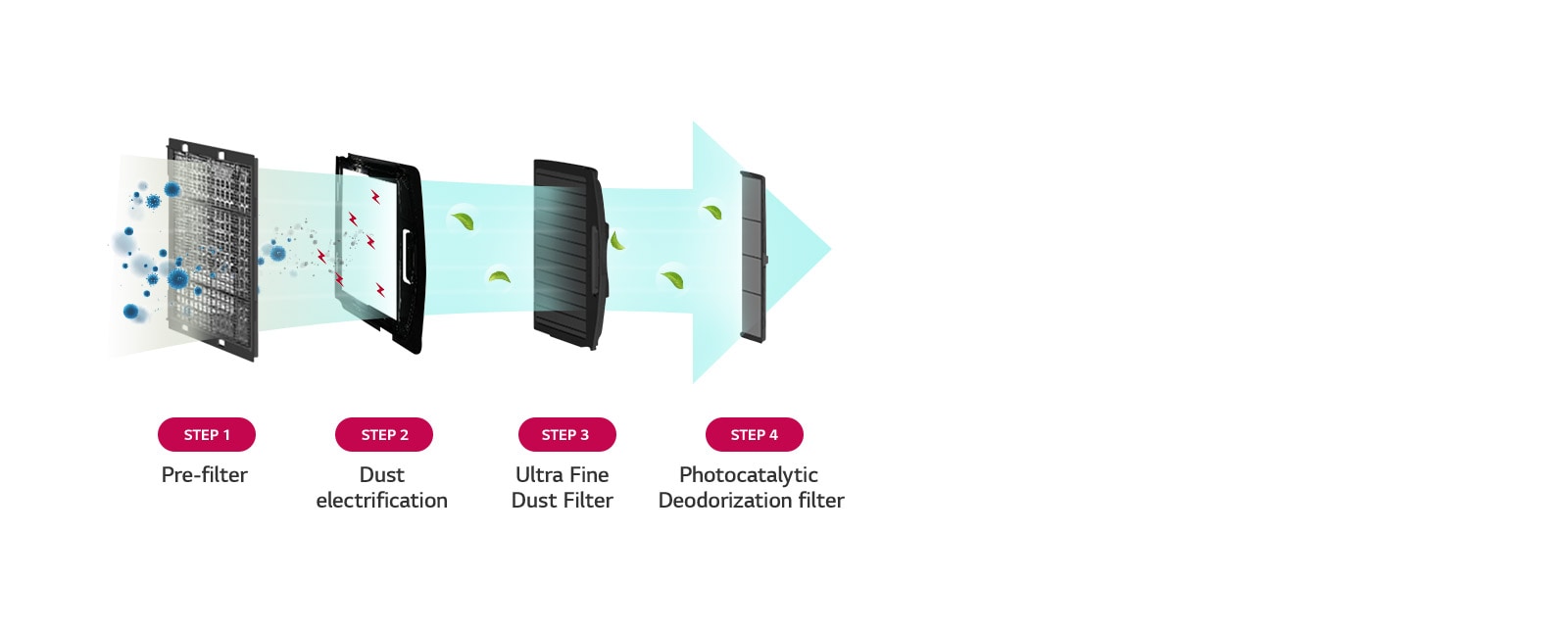

Air Purification Filter that Removes 99.9％ of PM1.0
Powerful 4 step air purification filter removes up to 99.9％ PM 1.0 ultrafine dust. In addition, it can be used semi-permanently, as it can be maintained by washing with water without a regular change of the filter.

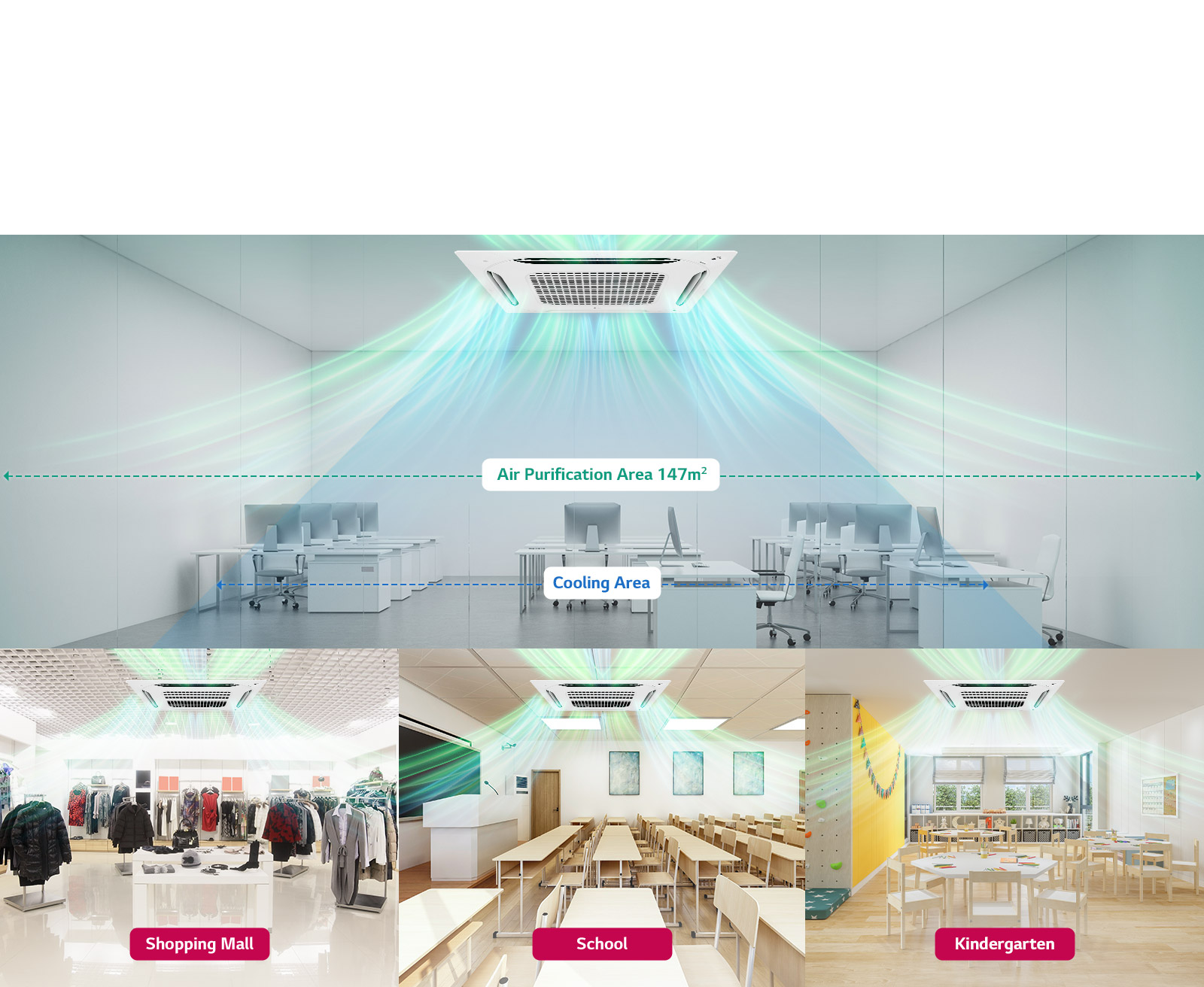

Provide Healthy Air in a Large Space
It is a larger air purification area than the cooling area. It can cover up to 147m²
to create a clean and healthy environment in various vertical spaces, such as kindergartens, schools, and shopping malls.
Smart 4 Way Cassette

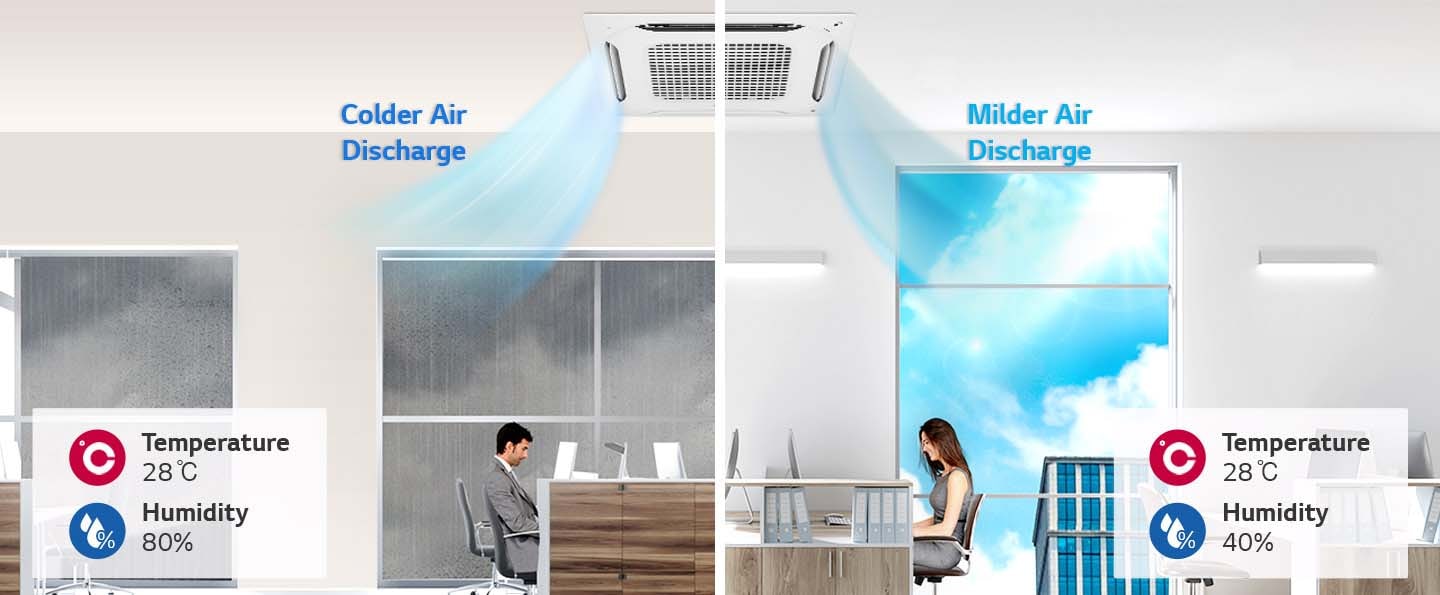

Smart Indoor Environment Control with Human Detection Sensor and Humidity Sensor
Human Detection Technology
Human Detection Sensor recognizes user’s location and presence for maximized energy efficiency and comfort. By sensing human body, direct/indirect wind options are provided for users to choose more pleasant operation mode to make the indoor environment more comfortable. Moreover, energy can be further saved by automatically setting target temperature based on user’s presence.
Wi-Fi Remote Control with ThinQ™
With the LG ThinQ™ app, user can simply control air conditioner anytime from anywhere. Remote access to air conditioner allows users the maximized comfort.

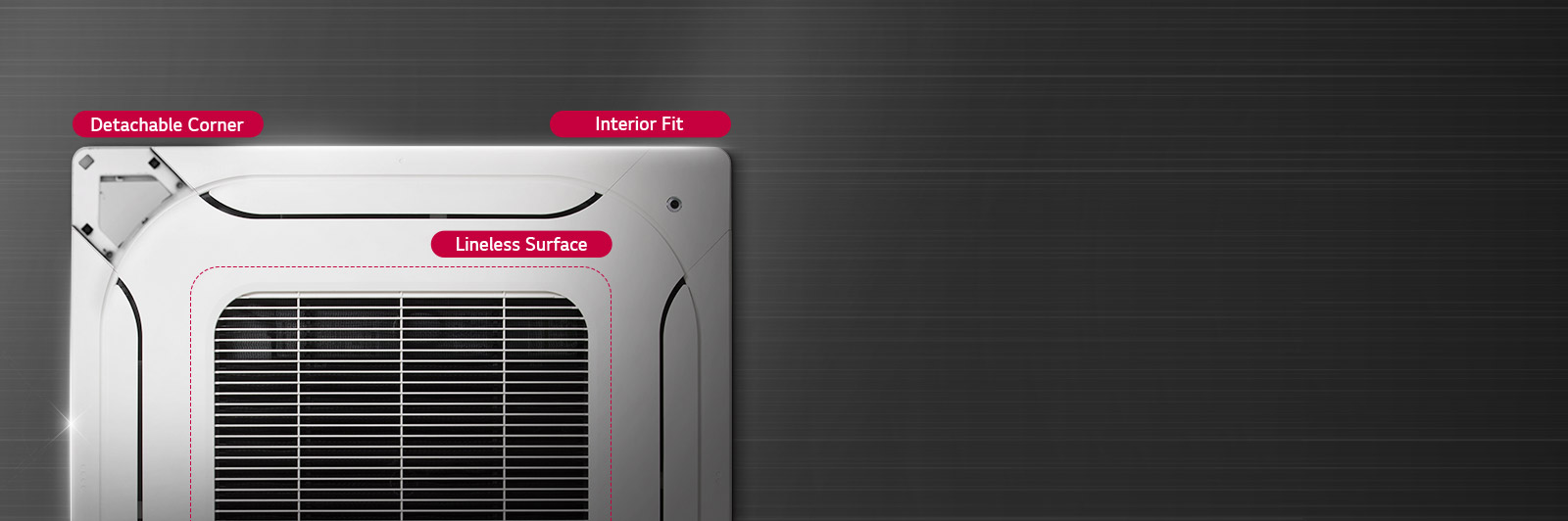

Stylish Design Panel
Smart 4 way cassette panel adapted unibody shape that can perfectly match with into the ceiling. Its lineless surface and detachable corner makes it stylish fit for indoor environment with aesthetics.
-
- Capacity Cooling (Min.∼Rated∼Max.) - ㎾
- 3.44 ~ 8.20 ~ 9.38
- Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
- 11,760 ~ 28,000 ~ 32,000
-
- Power Input Cooling (Rated) - ㎾
- 2.41
- Running Current Cooling (Rated) - A
- 10.6
-
- EER / COP - w/w
- 3.40 / -
- Power Supply - V, Ø, ㎐
- 220-240, 1, 50
-
- Casing
- Galvanized Steel Plate
- Dimensions Net (W × H × D) - ㎜
- 840 × 204 × 840
-
- Dimensions Shipping (W × H × D) - ㎜
- 922 × 276 × 917
- Weight Net - ㎏
- 20.5
-
- Weight Shipping - ㎏
- 25.0
- Heat Exchanger (Rows × Columns × FPI)
- 3 × 8 × 21
-
- Heat Exchanger Face Area - ㎡ (ft²)
- 0.33 (3.55)
- Fan Type
- 3D Turbo Fan
-
- Fan Air Flow Rate (H / M / L) - ㎥/min
- 19.0 / 17.0 / 15.0
- Fan Air Flow Rate (H / M / L) - ft³/min
- 671 / 600 / 530
-
- Fan Motor Type
- BLDC
- Fan Motor Drive
- Internal
-
- Fan Motor Output - W × No.
- 50.3 × 1
- Fan Motor FLA (Full Load Ampere) - A
- 0.60
-
- Dehumidification Rate - ℓ/h
- 2.7
- Sound Pressure Level (H / M / L) - dB(A)
- 41 / 38 / 36
-
- Piping Connections Liquid - ㎜(inch)
- Ø 9.52 (3/8)
- Piping Connections Gas - ㎜(inch)
- Ø 15.88 (5/8)
-
- Piping Connections Drain Pipe (O.D. / I.D.) - ㎜
- Ø 32.0 / 25.0
- Safety Devices
- Fuse
-
- Power and Communication Cable (included Earth) - No. × ㎟
- 4C × 0.75
- Decoration Panel Model Name
- PT-MCHW0
-
- Decoration Panel Casing Color
- Morning Fog
- Decoration Panel Dimensions (W × H × D) - ㎜
- 950 × 35 × 950
-
- Decoration Panel Net Weight - ㎏
- 6.3
- Decoration Panel Shipping Weight - ㎏
- 8.3
-
- Capacity Cooling (Min.∼Rated∼Max.) - ㎾
- 3.44 ~ 8.20 ~ 9.38
- Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
- 11,760 ~ 28,000 ~ 32,000
-
- Power Input Cooling (Rated) - ㎾
- 2.41
- Running Current Cooling (Rated) - A
- 10.6
-
- EER / COP - w/w
- 3.40 / -
- Power Supply - V, Ø, ㎐
- 220-240, 1, 50
-
- Power Factor (Rated)
- 0.99
- Casing Color
- Warm Gray
-
- Dimensions Net (W × H × D) - ㎜
- 950 × 834 × 330
- Dimensions Shipping (W × H × D) - ㎜
- 1,065 × 918 × 461
-
- Weight Net - ㎏
- 59.1
- Weight Shipping - ㎏
- 66.2
-
- Heat Exchanger (Rows × Columns × FPI) × No.
- (2 × 38 × 14) × 1
- Compressor Type
- Twin Rotary
-
- Compressor Model - Model × No.
- GJT325MAA × 1
- Compressor Motor type
- BLDC
-
- Compressor Motor Output - W × No.
- 2,137 × 1
- Fan Type
- Axial
-
- Fan Air Flow Rate - ㎥/min × No.
- 60 × 1
- Fan Air Flow Rate - ft³/min × No.
- 2,119 × 1
-
- Fan Motor Type
- BLDC
- Fan Motor Output - W × No.
- 124 × 1
-
- Sound Pressure Level Cooling (Rated) - dB(A)
- 51
- Piping Connections Liquid - ㎜(inch)
- Ø 9.52 (3/8)
-
- Piping Connections Gas - ㎜(inch)
- Ø 15.88 (5/8)
- Piping Length (Rated) - m
- 5
-
- Piping Length (Min./Max.) - m
- 5 / 50
- Refrigerant Type
- R410A
-
- Refrigerant Precharged Amount - g
- 2,200
- Refrigerant Chargeless-Pipe Length - m(ft)
- 7.5 (24.6)
-
- Refrigerant Additional Charging Volume - g/m(oz/ft)
- 40 (0.43)
- Refrigerant Control
- Electronic Expansion Valve
-
- Refrigerant Oil Type
- FVC68D
- Refrigerant Oil Charged volume - cc × No.
- 950 × 1
-
- Wiring Connections Power Supply Cable (included Earth) - No. × ㎟
- 3C × 2.5
- Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
- 30 (98.4)
