LAA015F

130″ All-in-one Premium Series

Key Features

  • Pixel Pitch: 1.5mm
  • Screen Size: 130"
  • Brightness: 500 cd/m²
  • HDR (HDR10/HDR10 Pro) / Surface Sound
  • Embedded System Controller

LAA015F

130″ All-in-one Premium Series
Features
Tech Specs
Resources

Contact us

GGEAR Commercial

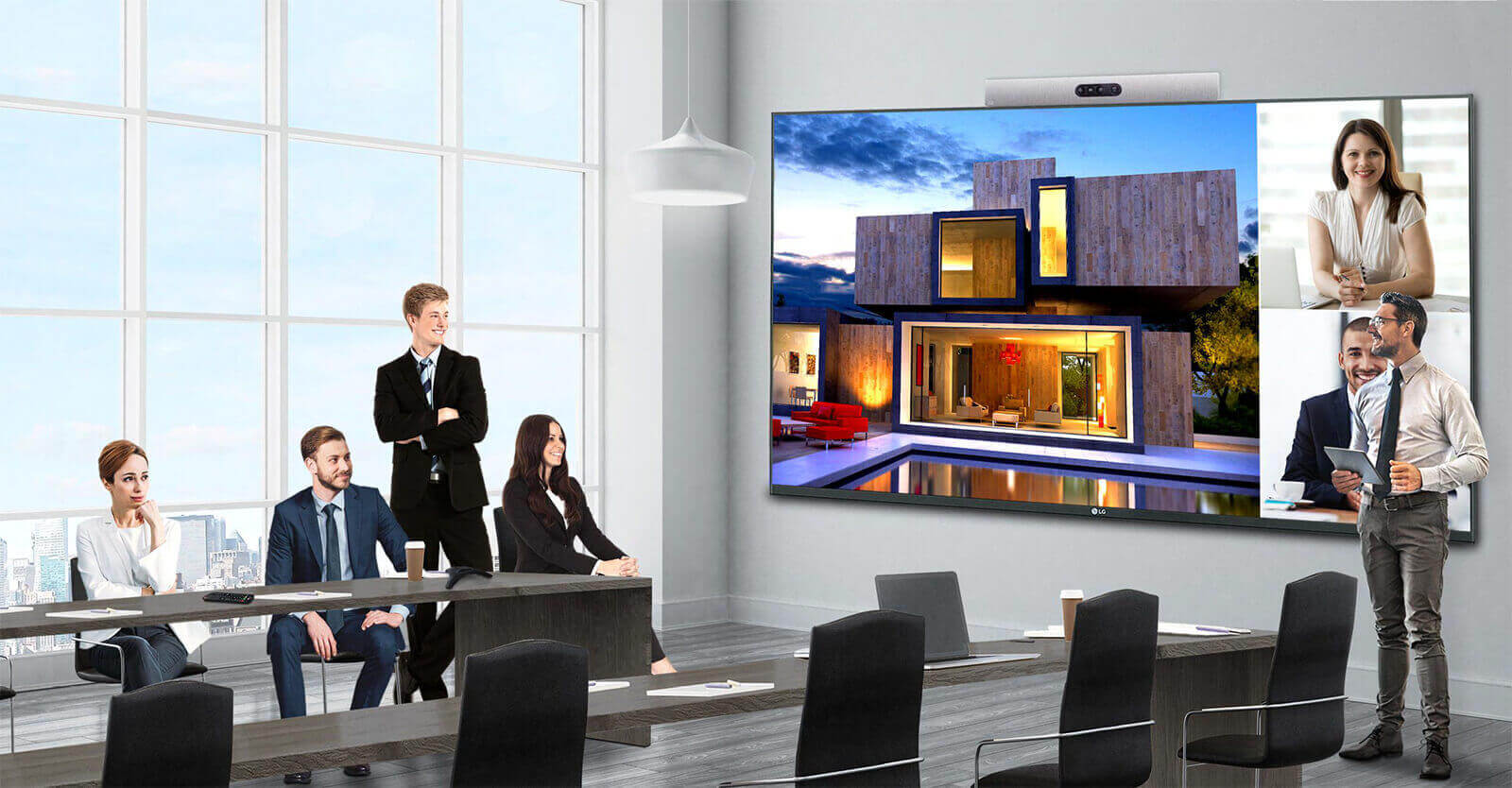

130" Large Screen with No Bezel

The greatest advantage of LG's LED screen is the 130-inch large-sized screen with no bezel. Even bigger than four 55-inch conventional LCD displays combined, it displays content without lines or distortions and provides a more immersive visual experience.

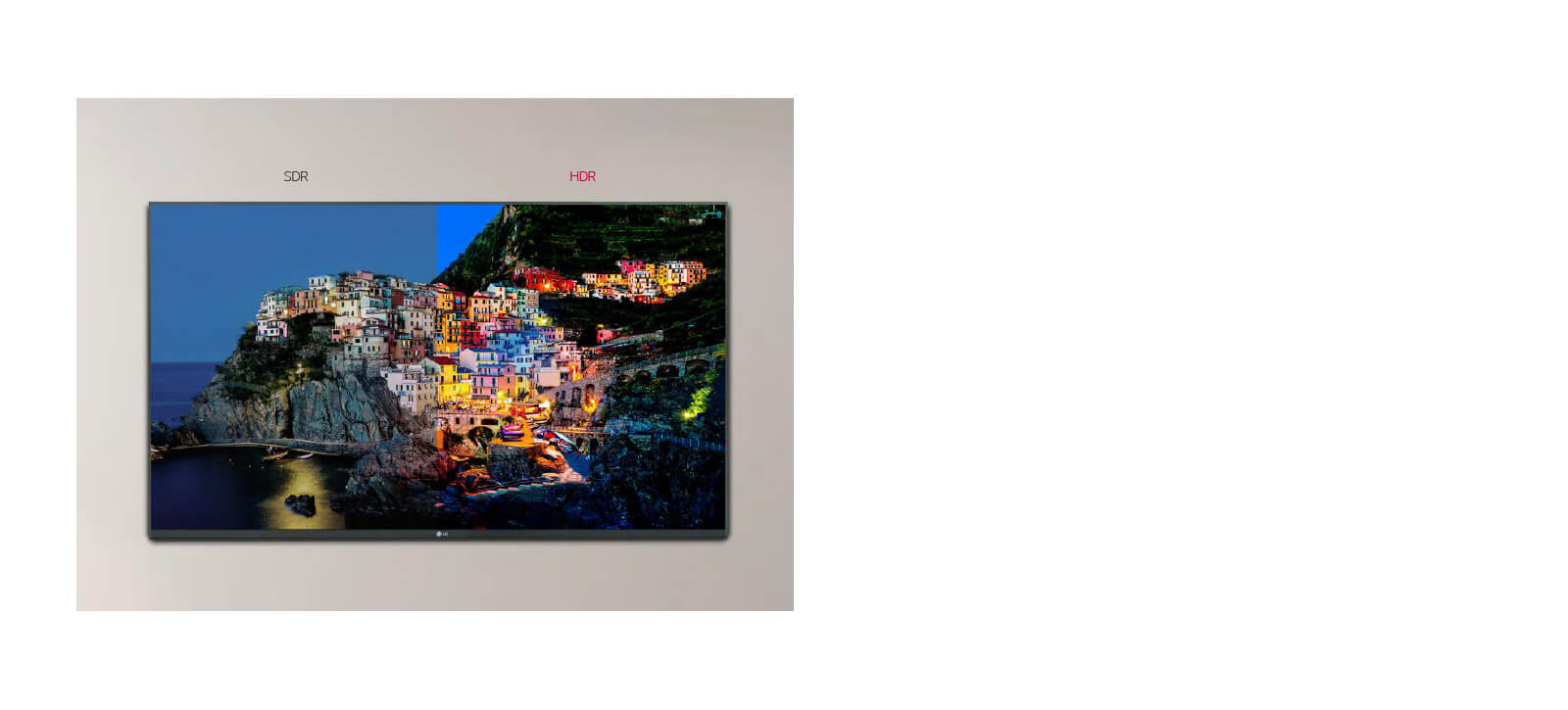

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes more vivid and has greater visual impact. The wider color spectrum and greater contrast ratio allows viewers to fully enjoy content as it appears in real life.

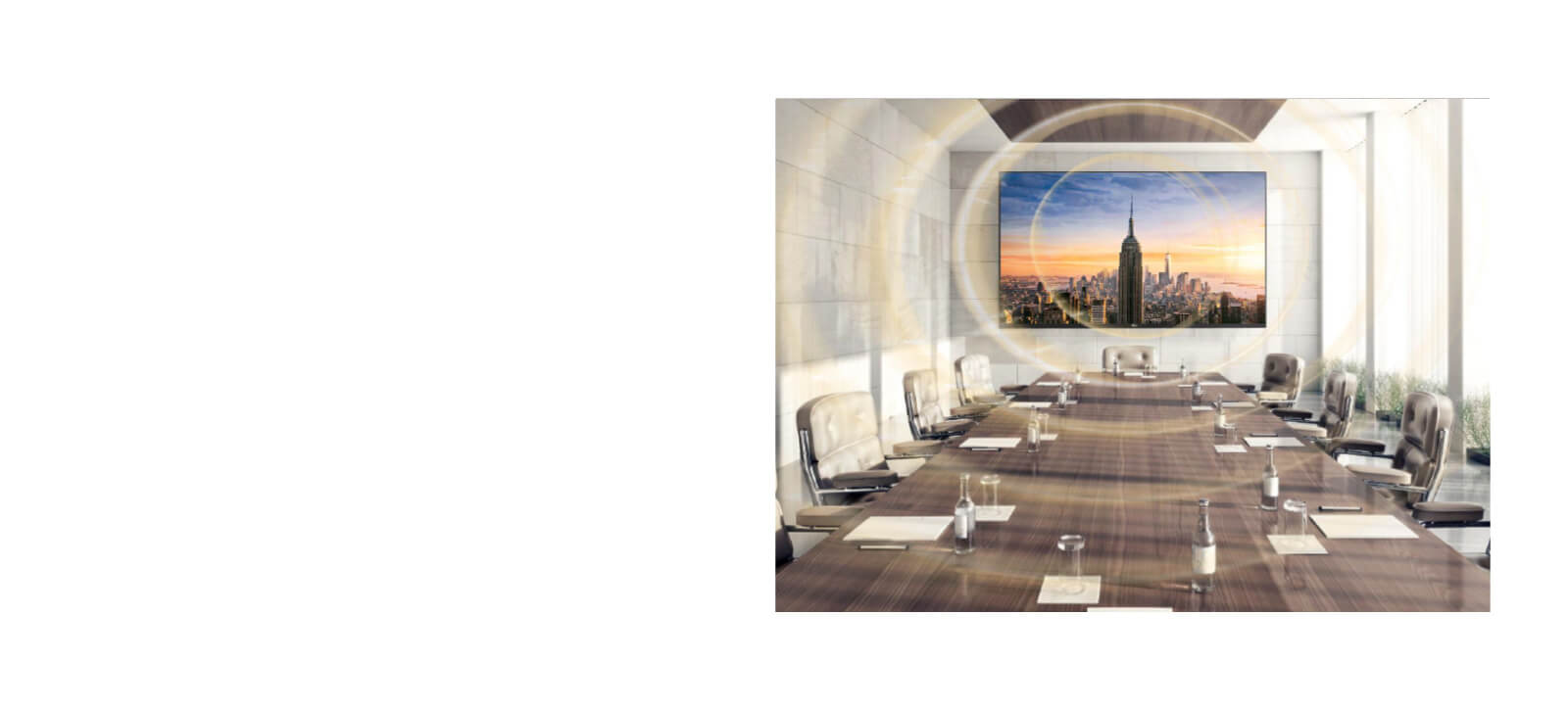

Immersive Surface Sound

The 130" All-in-one LED Screen doesn't require any additional speakers for its impactful audio effect. Its embedded Surface Sound comes from the entire screen with 162W (4.5W x 36points) and is able to reach all meeting attendees, including people seated far from the screen.

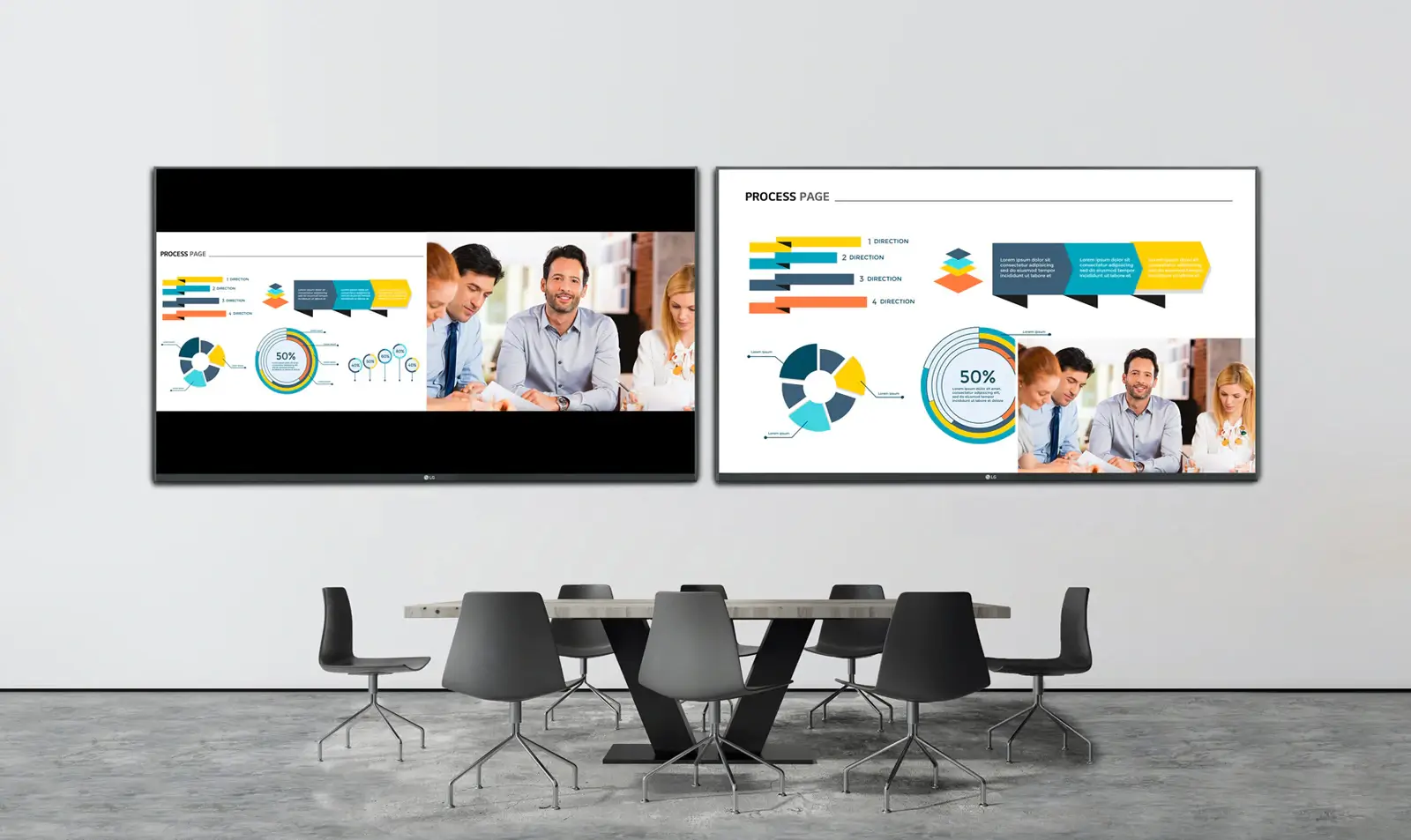

Multi Screen with PBP/PIP

PBP (Picture-By-Picture) features multi screen in a single display with upto 2 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

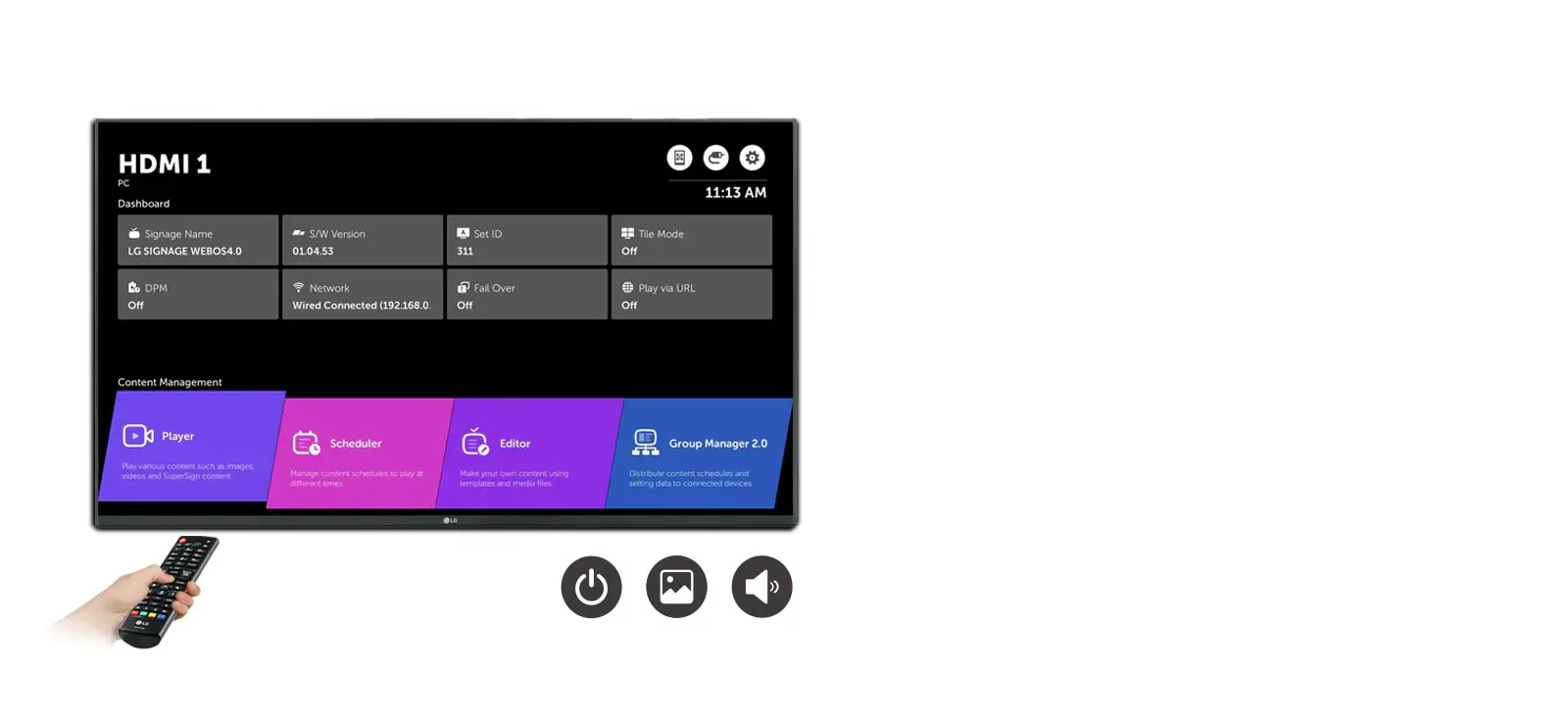

Easy Remote Control Support

The 130" All-in-one LED Screen allows the user to easily access the settings, such as picture mode, volume, etc. using a remote control instead of needing to connect to a PC. It uses the same UI as general LG digital signages, so users can easily learn how to use it.

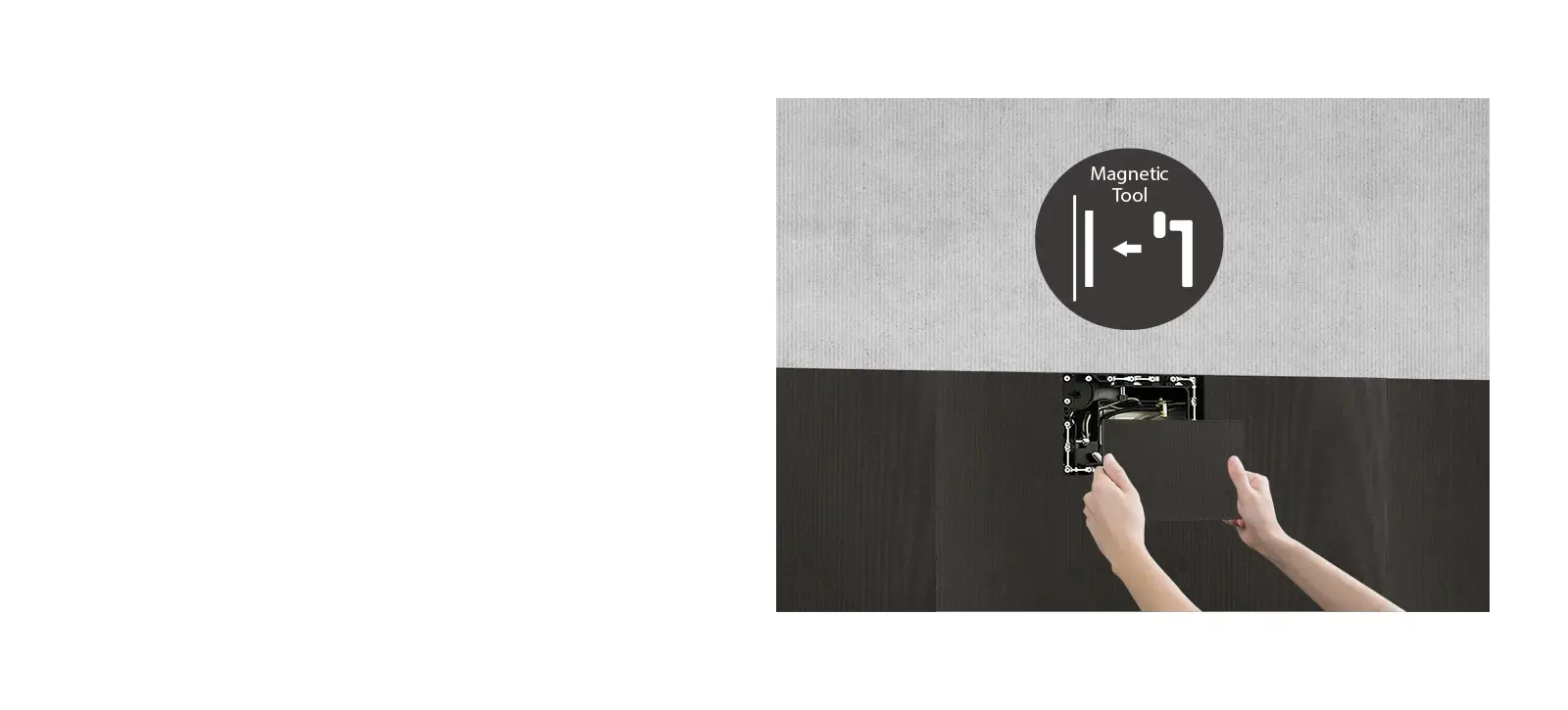

Front Serviceability

The LED screen can be easily installed and managed from the front side for easy operation. Its LED modules can also be simply attached or detached by hand or with a magnetic tool.

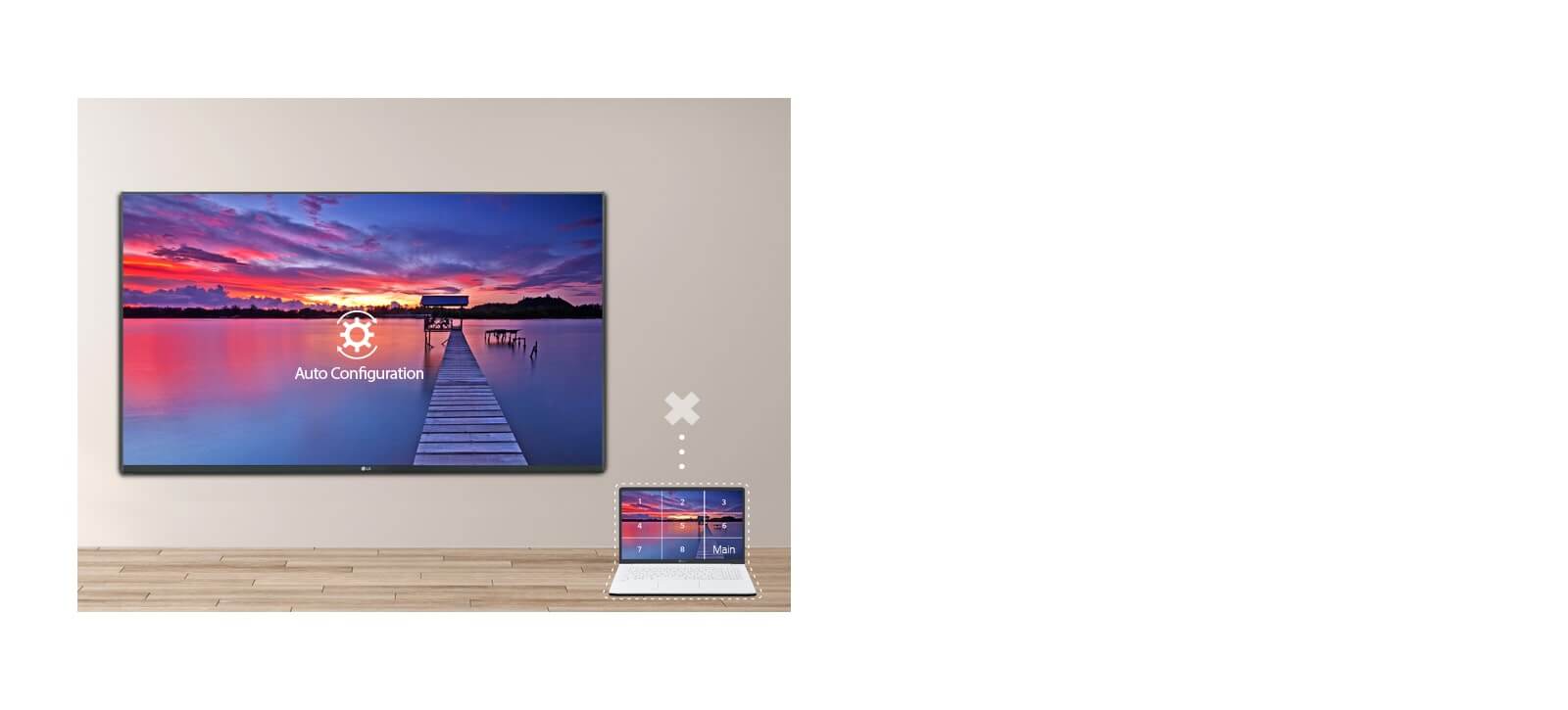

Auto Configuration

LG's 130" All-in-one LED Screen is composed of one main cabinet and eight secondary cabinets. Each cabinet automatically recognizes its location and setting values, so the screen doesn't require any complicated screen setup process. All you need to do is turn on the screen.

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

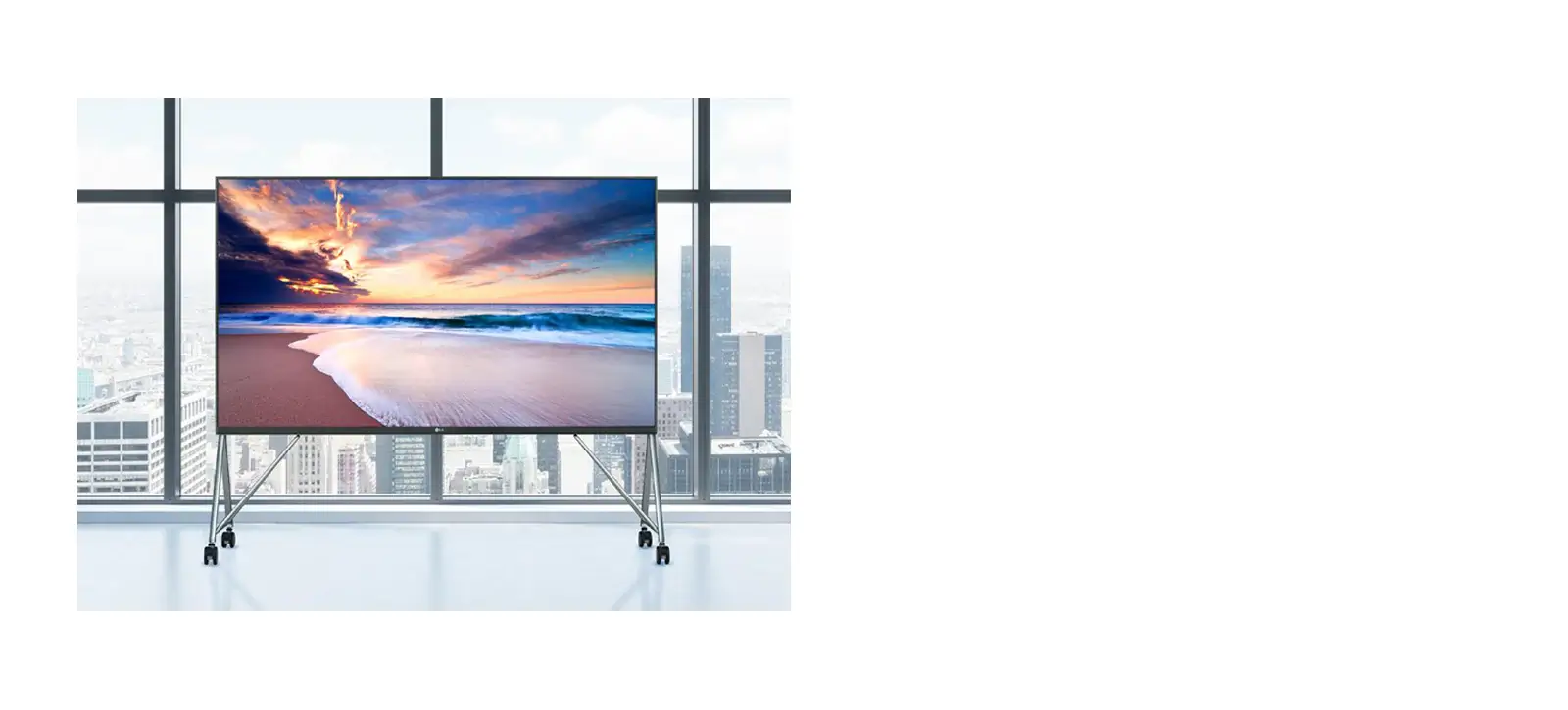

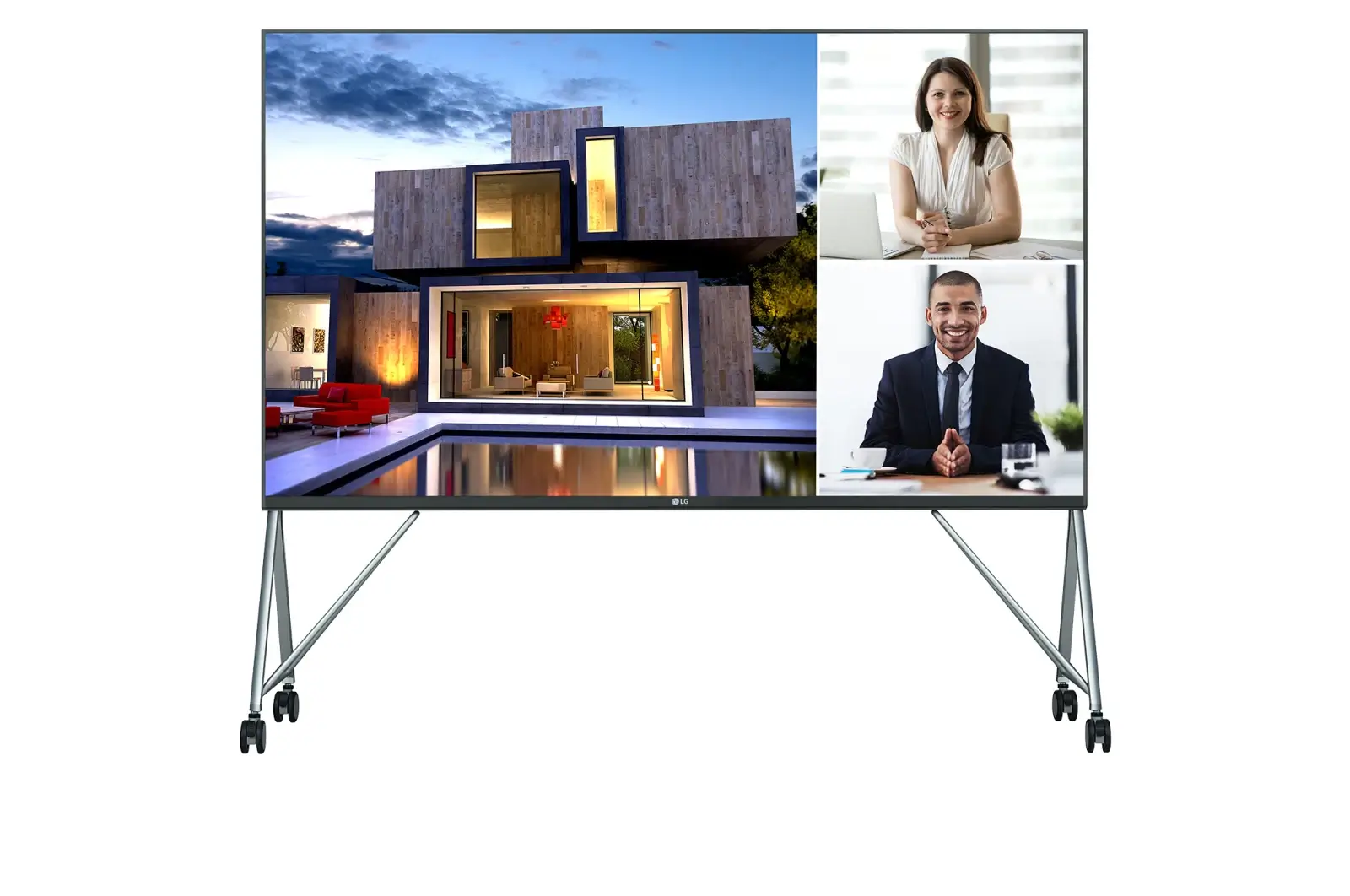

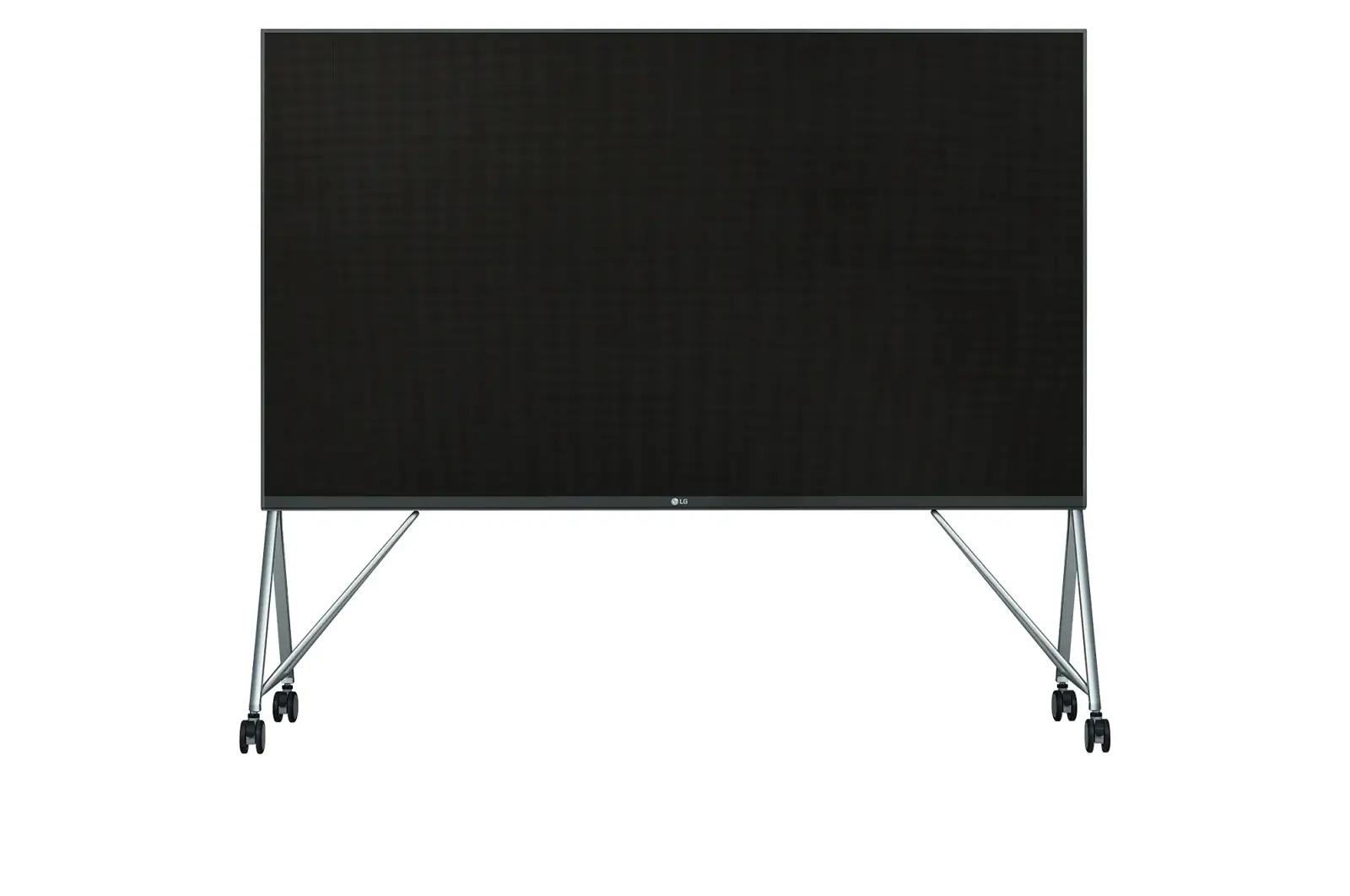

Free Standing Option

LG offers an optional stand accessory for customers who can’t choose a wall mount installation. It makes them move this 130-inch large screen easily and provides a sleek design that harmonizes with any space.

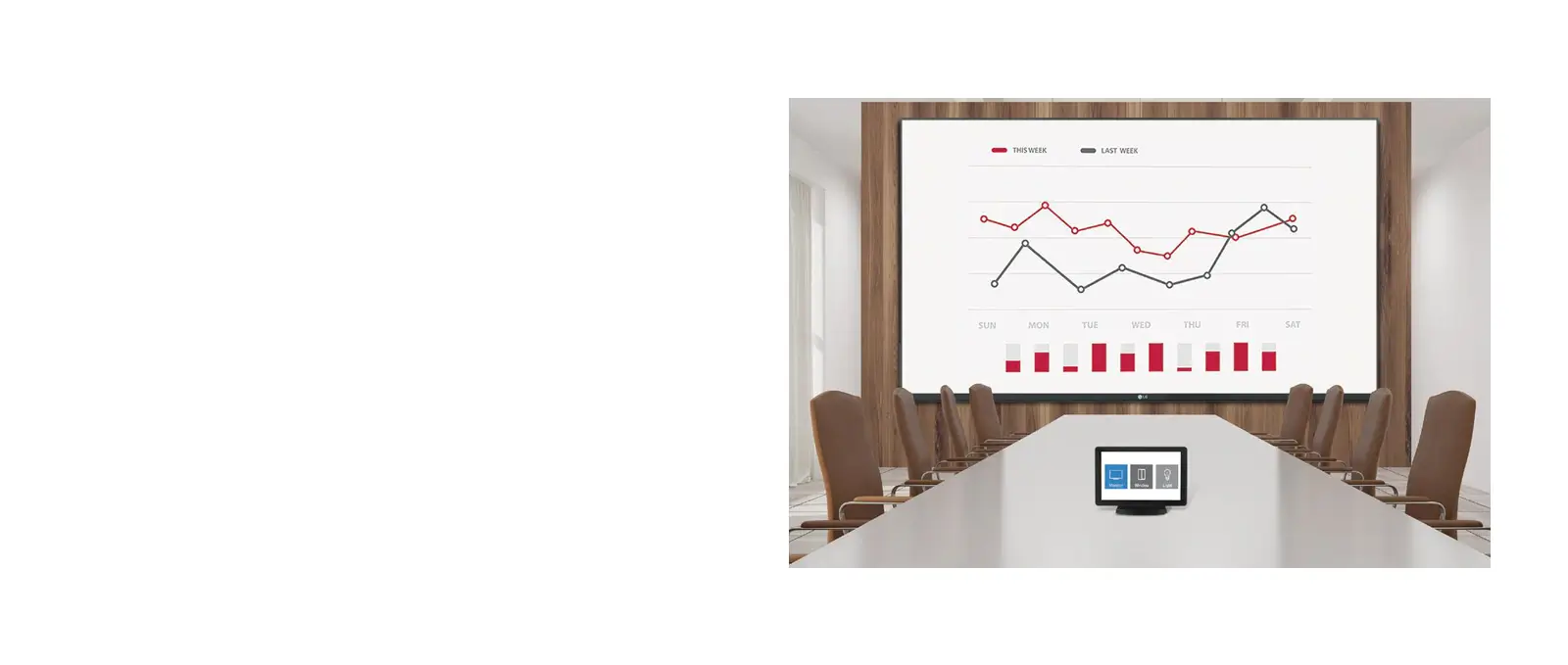

Compatibility with AV Control Systems

The LED screen has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network-based control

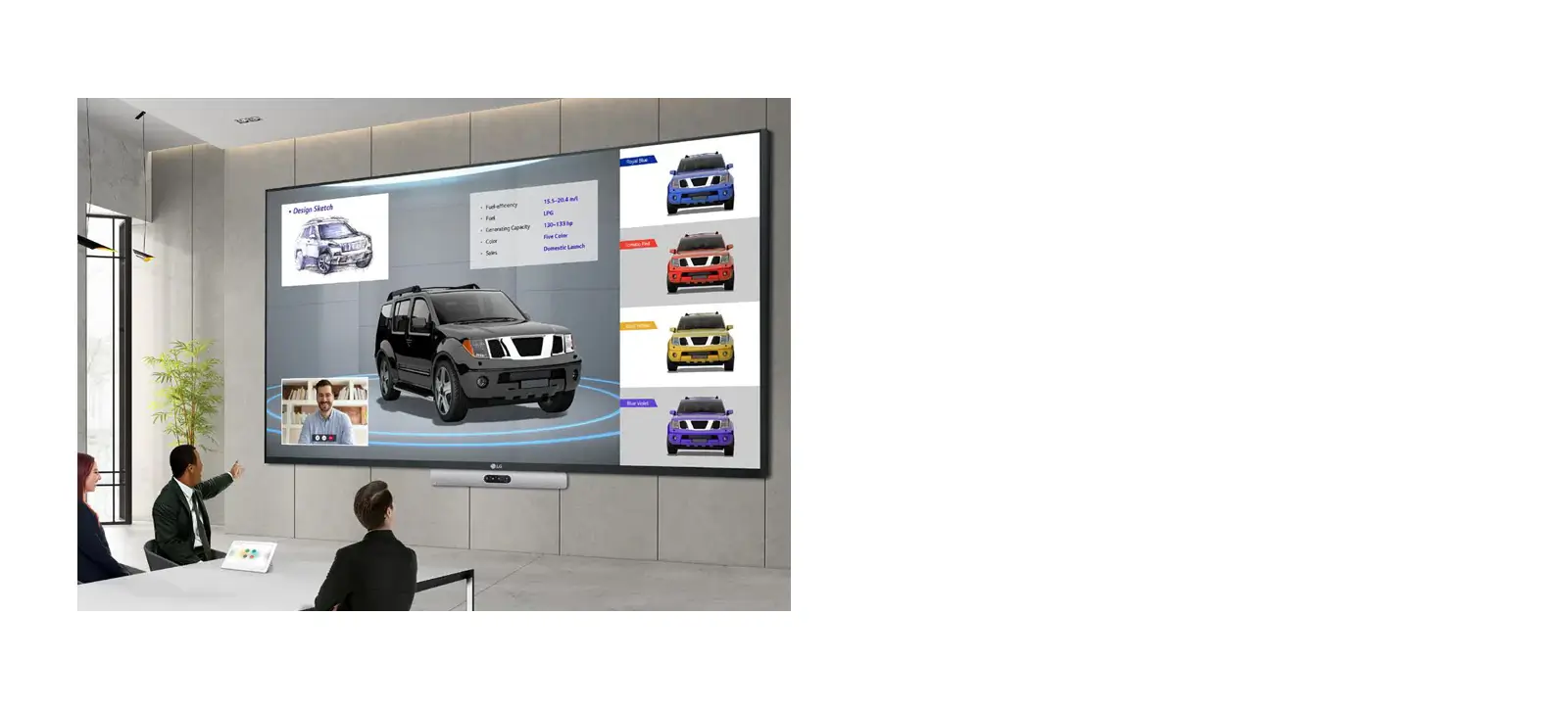

Compatibility with Video Conference System

For the optimum visual meeting, the 130" All-in-one LED Screen has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

SuperSign Solution

The LED screen is compatible with LG SuperSign CMS, which is a comprehensive software solution for integrated content management. This makes content creation and distribution much easier, helping your business save time and operate more effectively across its locations.

iF DESIGN AWARD 2020 Winner

Red Dot Design Award 2020

  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    1.50
  • Screen Resolution (W × H)
    1,920 × 1,080
    Screen Dimension (W × H × D,mm)
    2,880 × 1,620 × 128.5 mm (w / o Screen Frame)
  • Screen Weight (kg)
    162.1 kg (w / o Screen Frame)
    No. of Cabinet per Screen (W × H)
    3 × 3
  • No. of Modules per Cabinet (W × H)
    4 × 3
    Cabinet Resolution (W × H)
    640 × 360
  • Cabinet Dimensions (W × H × D)
    960 × 540 × 128.5 mm
    Cabinet Surface Area (m²)
    0.52
  • Weight per Cabinet (kg/unit)
    Main: 19.3
    Secondary: 17.8
    Weight per Square Meter (kg/m²)
    34.7
  • Physical Pixel Density (pixels/m²)
    444,444
    Flatness of Cabinet
    ± 0.2 mm
  • Cabinet Material
    Front: Die Casting Aluminum
    Rear: PC+ABS
    Service Access
    Front and Rear
  • Brightness (Max.)
    500 nit
    Color Temperature
    6,500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    95%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    5,000 : 1
    Processing Depth
    16 bit
  • HDR Compatibility
    HDR10, HDR10 Pro
    ※ HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
  • Power Consumption (W/Screen, Max.)
    2,900
    Power Consumption (W/Screen, Avg.)
    980
  • Power Consumption (W/m², Max.)
    622
    Power Supply (V)
    AC 100 - 240 V
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840
  • Sound Output (Max.)
    162W
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    0°C to 40°C
  • Operating Humidity
    10 % to 80 %
  • Video Inputs
    HDMI In (3), DP In, USB 2.0
    Control
    RJ45 In, RS232C In/out
  • Special Features
    Temperature Sensor, Ambient Light Sensor, Crestron Connected®(Network based control)
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class A / CE / KC
  • Environment
    RoHS
  • Basic
    Data Cable, LAN Cable, Power Cord, RS232C Gender (9 Pin to Phone Jack), Remote Controller, IR Receiver, Manual
    Optional
    Screen Frame (ACC-LAASF15), Floor Stand (ST-1300F)
  • Platform
    webOS 4.0
    Support
    Signage365Care (The availability differs by region), SuperSign CMS, LED Assistant
