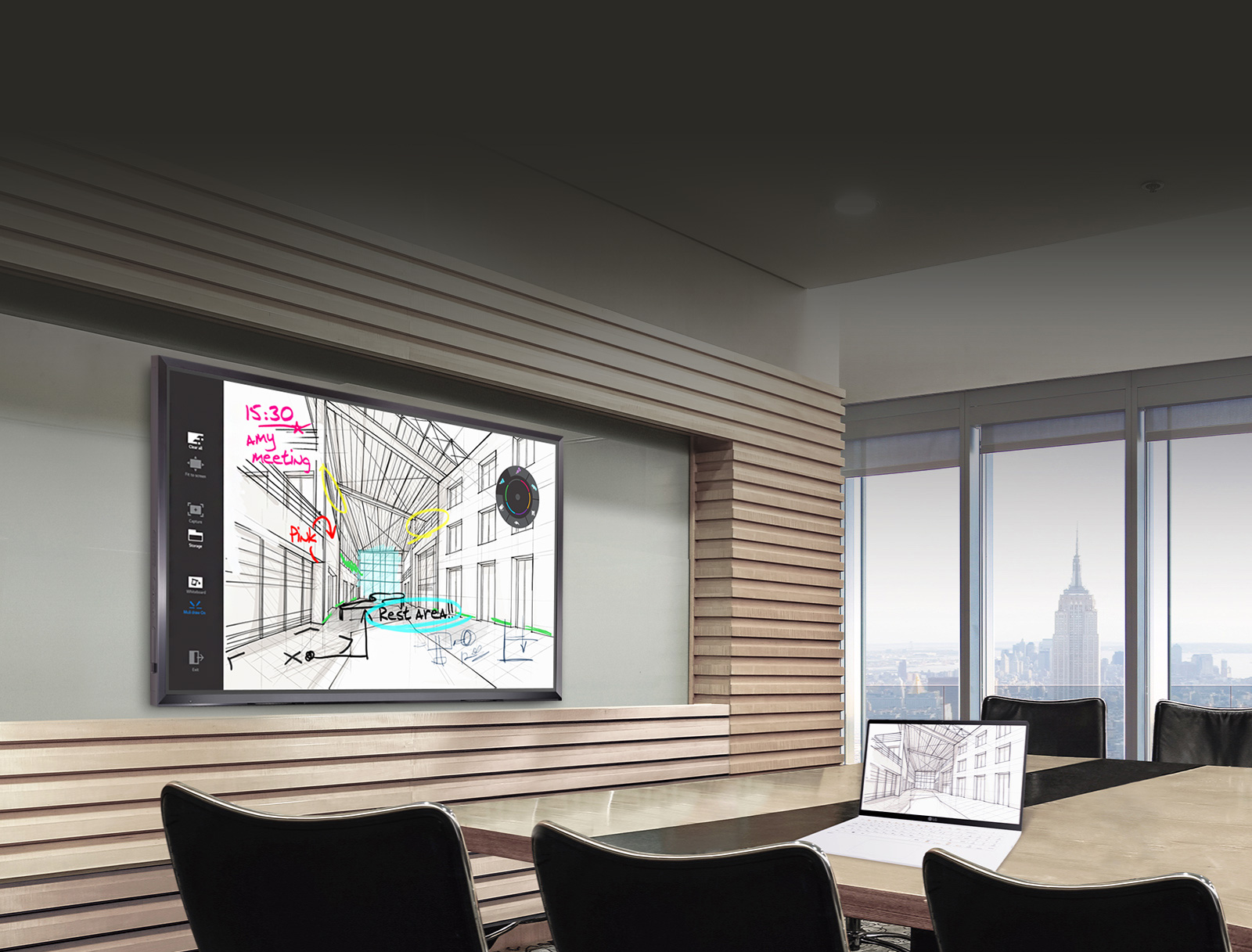

Be Smarter and Simpler with LG IDB
IDB app makes it possible to write and collaborate on Interactive Digital Board(IDB) without the need for a PC or additional licenses for writing/collaboration solutions based on the webOS smart platform.
- For Business
- B2B Commercial
- Information Display
- Digital signage
- 86″ Interactive Digit...
86TR3E
86″ Interactive Digital Board TR3E Series
Key Features
- Brightness(Typ.): 410 cd/m²
- Touch Type: InGlass™
- Multi touch point: Max 20 Point
- Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-fi Built-in
86TR3E
86″ Interactive Digital Board TR3E Series
Features
Tech Specs
Resources
Contact us
GGEAR Commercial

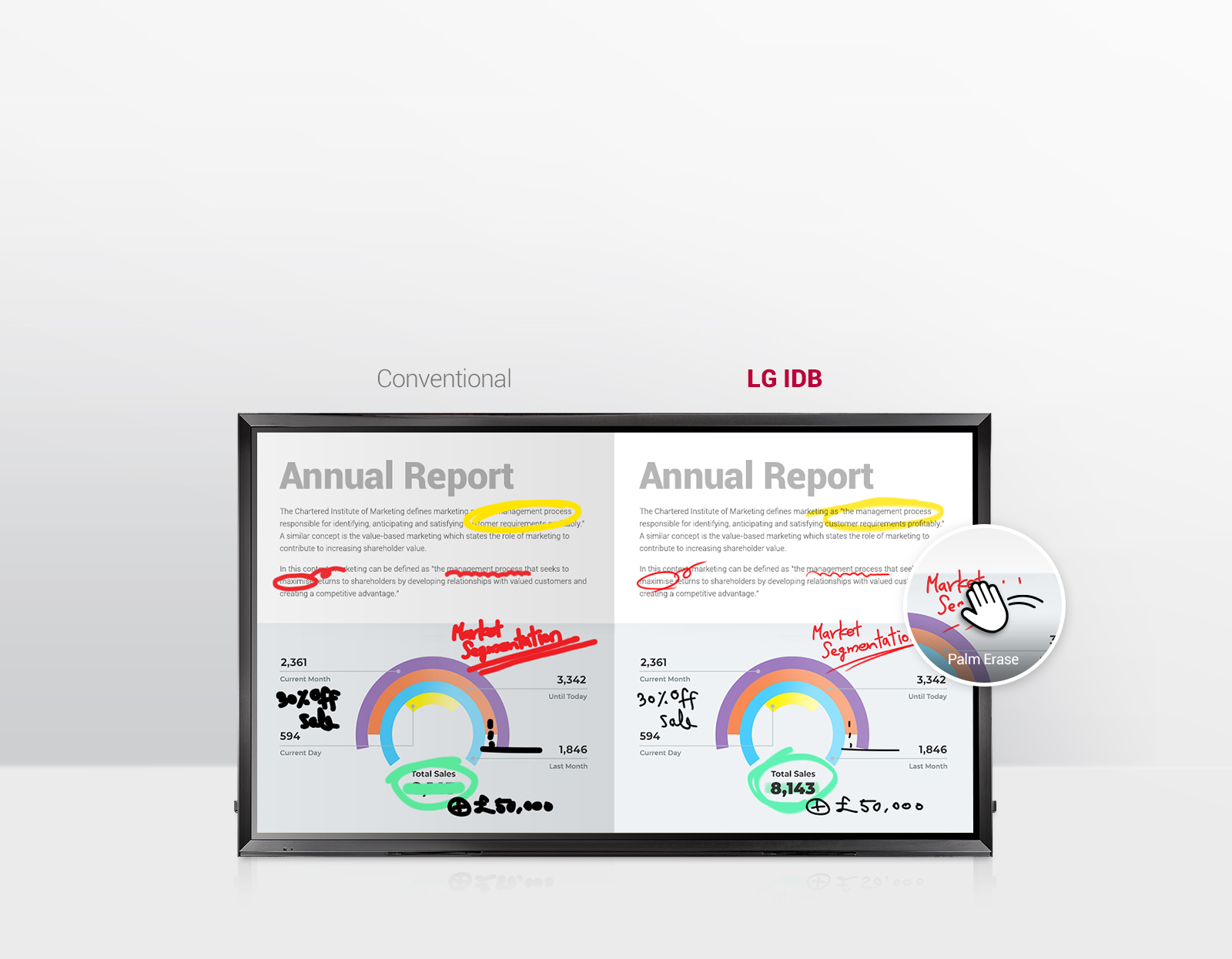

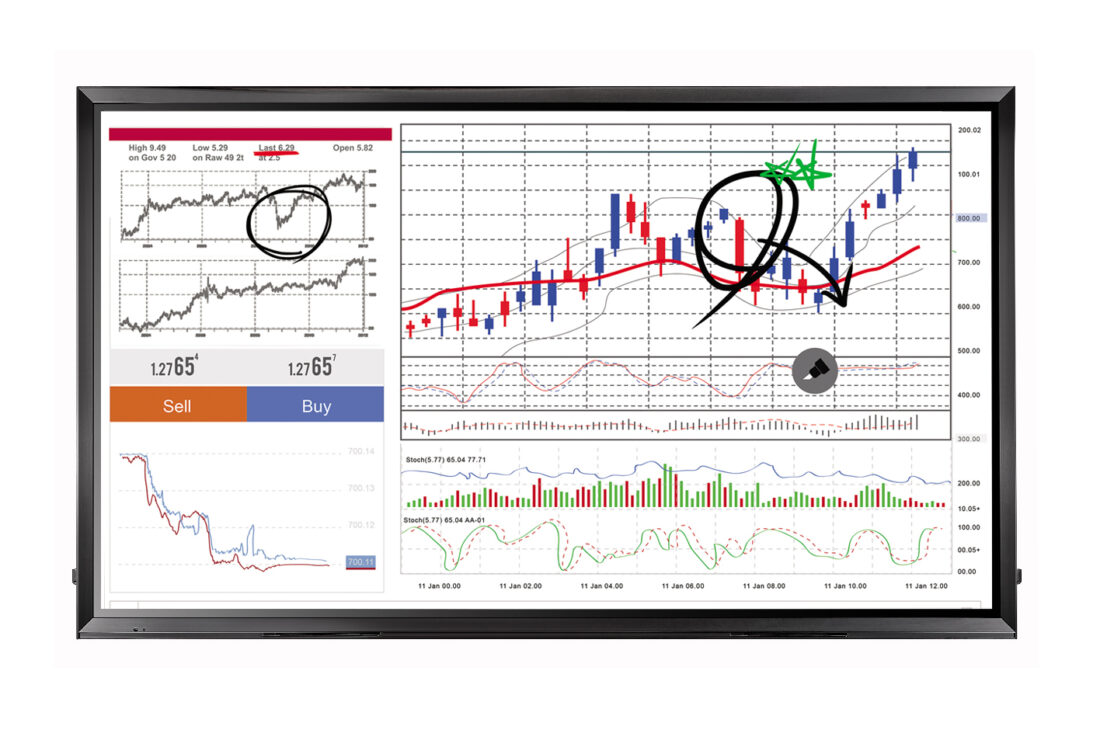

Intuitive Touch and Writing
The most advanced touch technology, InGlass™, enables precise touch responses and detailed writing like a realistic handwriting. The thickness of the pen is adapted to the writing speed, and max. 20 point multi-touch is supported. All notes on IDB are simply erased with user's palm.
All-in-One Meeting Experience
For the effective collaboration, LG IDB combines whole processes which includes sharing screens of participants' laptops via wired/wireless* connection simultaneously, writing on the shared screen, and saving annotation.
The Superior Picture Quality
With the UHD resolution of LG IDB, users can view the content in fine detail even when zoomig in it on the display. It provides high-quality media experience with 4 times higher definition picture quality than FHD.

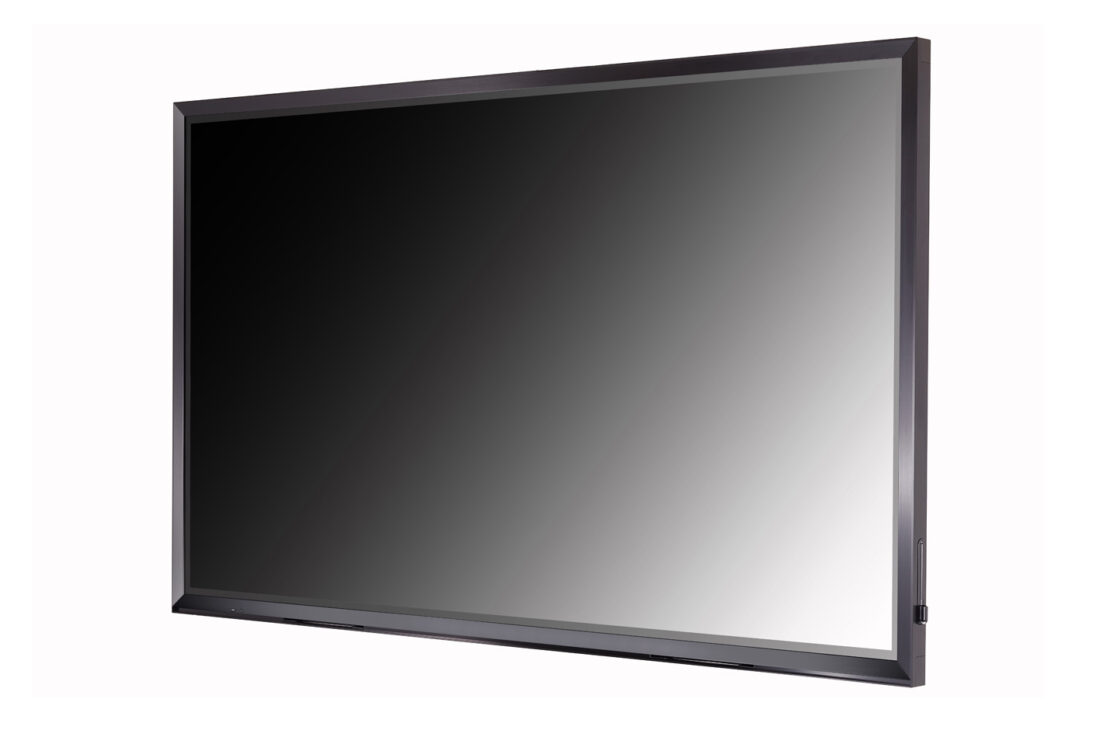

True Colors and Wider View
The LG IPS panel has a wide viewing angle to deliver clear content regardless of the positions of meeting attendees. Moreover, each pixel of the IPS panel truly reproduces the image colors without distortion.

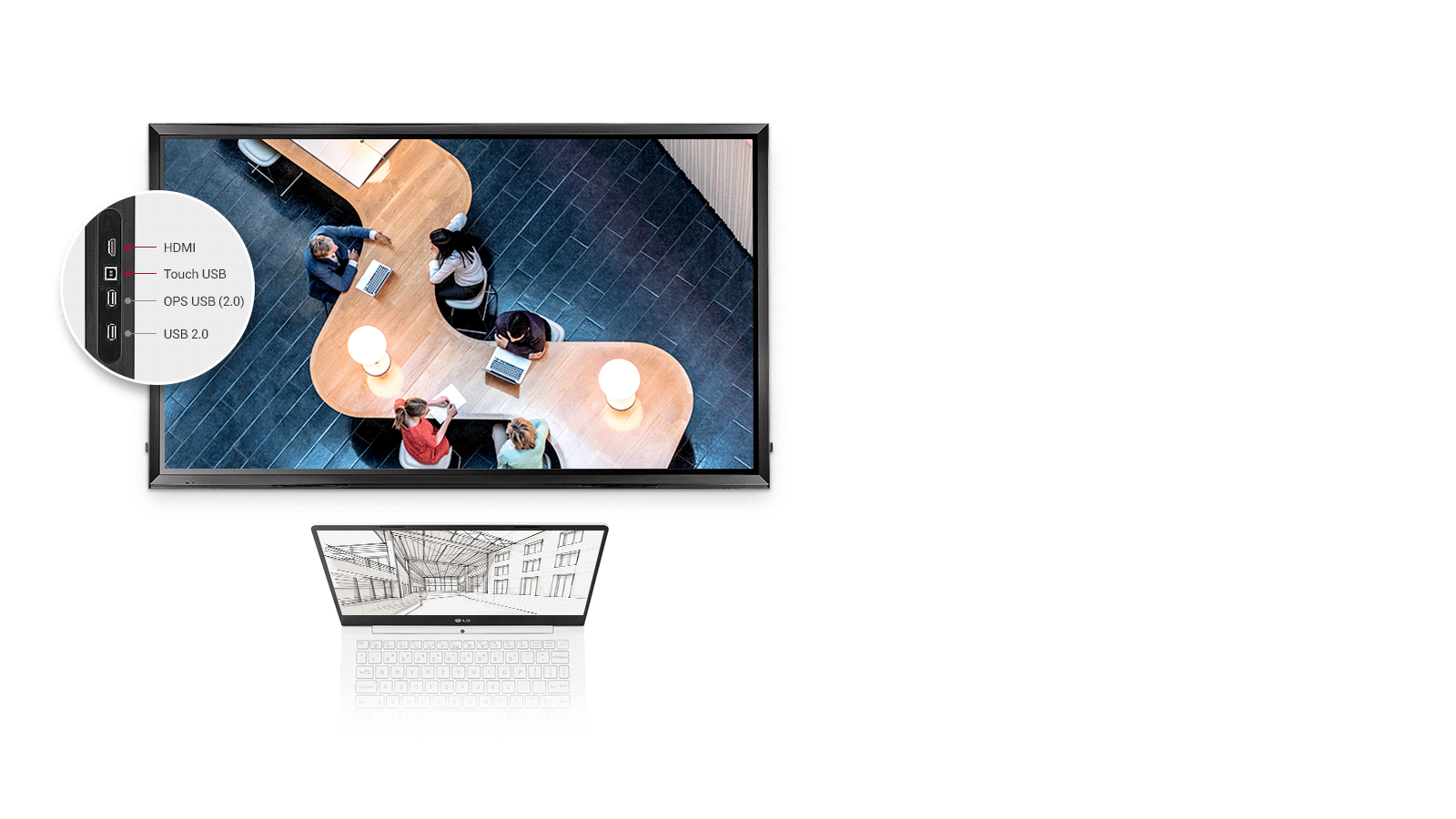

Quick and Easy to Share a Screen
The display can detect input/touch signals and automatically change the source if the new input has a higher priority than the previous source. It is a time-saving function for users to set-up the signals in conference

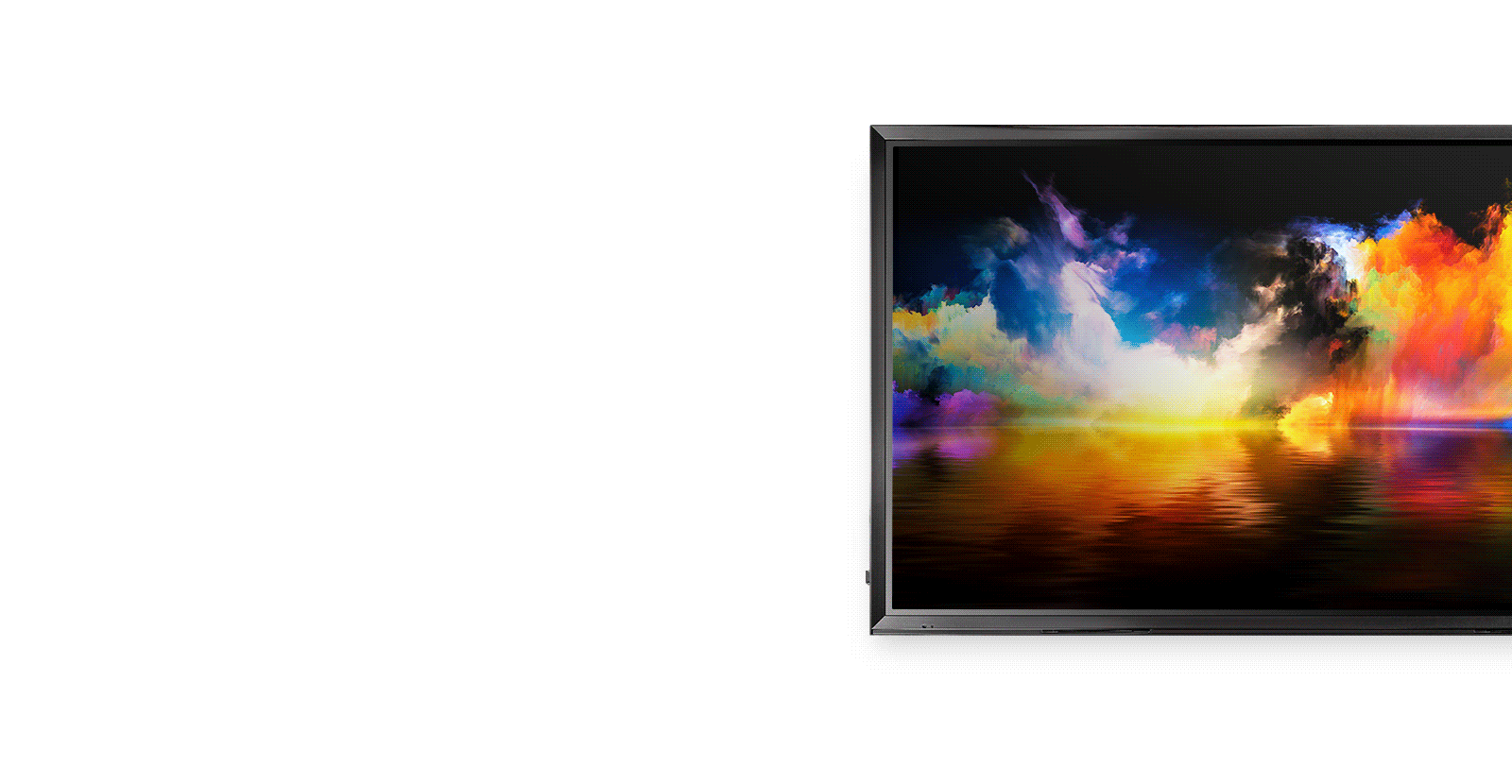

Easy to Call and Control the Menu
For improving user-friendliness, LG IDB users can run the desired function or change the setting from anywhere by softly pressing the screen to call up the Touch Menu.
* The menu design(GUI) is subject to change without notice

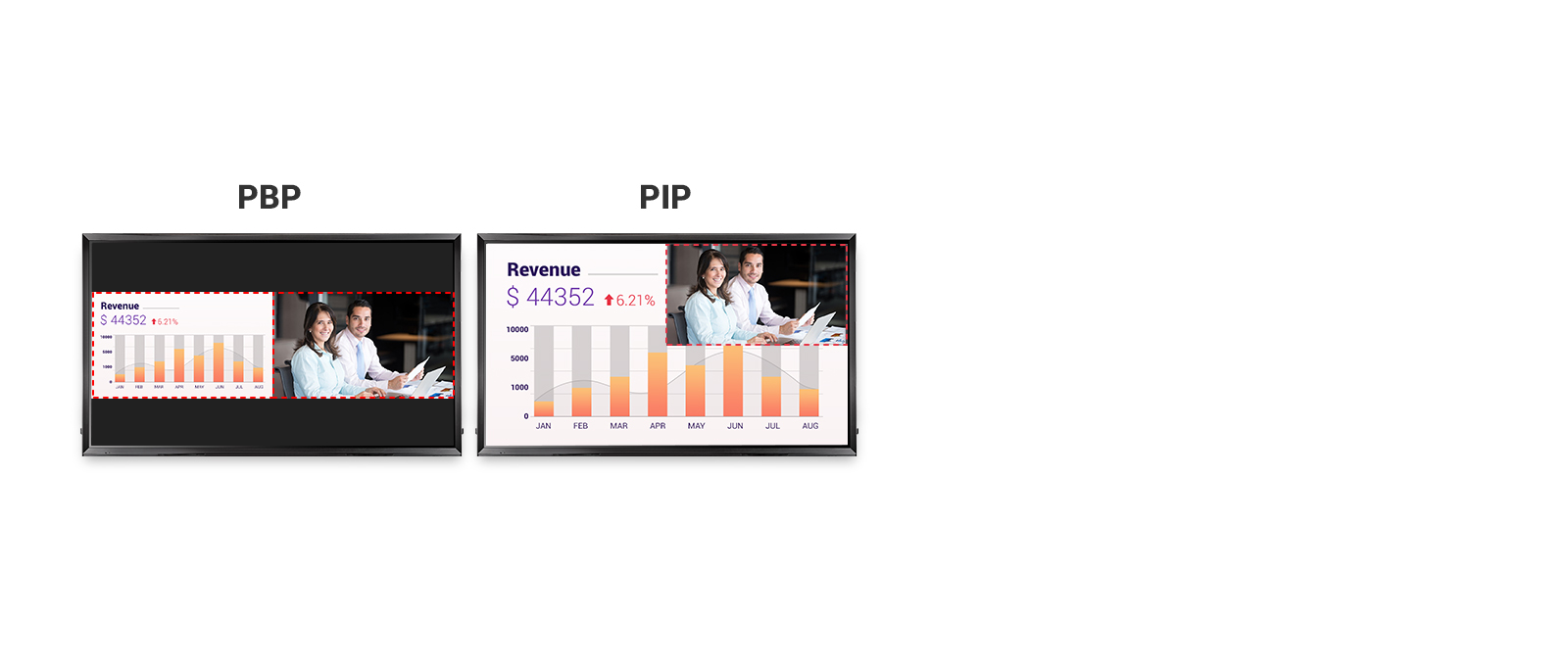

Enjoy Multi Screens
PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub screen modes. This gives great flexibility to users to allocate space for each content source.
-
- Screen Size
- 86"
- Brightness (Module, Typ., cd/m²)
- 410
-
- Input
- HDMI (3), DP, DVI-D, RGB, Audio, USB 3.0, USB 2.0, OPS USB 2.0
- Output
- Touch USB 2.0 (2)
-
- Bezel Width
- 50.7 mm (T/L/R), 62.2 mm (B)
- Monitor Dimension (W x H x D)
- 2,026.9 x 1,180.3 x 79.5 mm (w/o Handle)
-
- Weight (Head)
- 85.8 kg
- Carton Dimensions (W x H x D)
- 2,190 × 1,470 × 371 mm
-
- Packed Weight
- 114.6 kg
- VESA™ Standard Mount Interface
- 600 x 400 mm
-
- ErP / Energy Star
- Yes (EU Only) / No
-
- Operation Temperature
- 0°C to 40°C
- Operation Humidity
- 10 % to 80 %
-
- Content Management Software
- SuperSign Premium
- Control and Monitoring Software
- SuperSign Link
-
- OS (Windows 32bit or 64bit)
- Windows 7, Windows 10
- OS (macOS)
- macOS 10.12 Sierra, MacOS 10.13 High Sierra
-
- CPU (Windows)
- 2.7GHz+ Dual Core Broadwell or higher
- CPU (macOS)
- Any CPU which supports Sierra or High Sierra
-
- Memory
- 4GB RAM
- Hard Drive
- 1GB of free space
-
- Graphics Hardware (Windows)
- Intel Iris or higher, Nvidia, ATI
- Graphics Hardware (macOS)
- Any GPU which supports Sierra or High Sierra
-
- Basic
- Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea)
- Optional
- OPS Kit (KT-OPSA)
-
- Touch type
- InGlass™
- Available object size for touch
- more than Ø 3 mm
-
- Accuracy
- 2 mm
- Interface
- USB 2.0
-
- Protection Glass Thickness
- 4T (Anti-Glare)
- Multi touch point
- Max 20 Point
