Clear Color Expression of UHD Content
An Ultra HD large display, the UL3G Series will improve business productivity in any location. All content is delivered in vivid colors and with fine details, giving audiences a clearer viewing experience.
- For Business
- B2B Commercial
- Information Display
- Digital signage
- 86″ webOS Ultra HD Se...

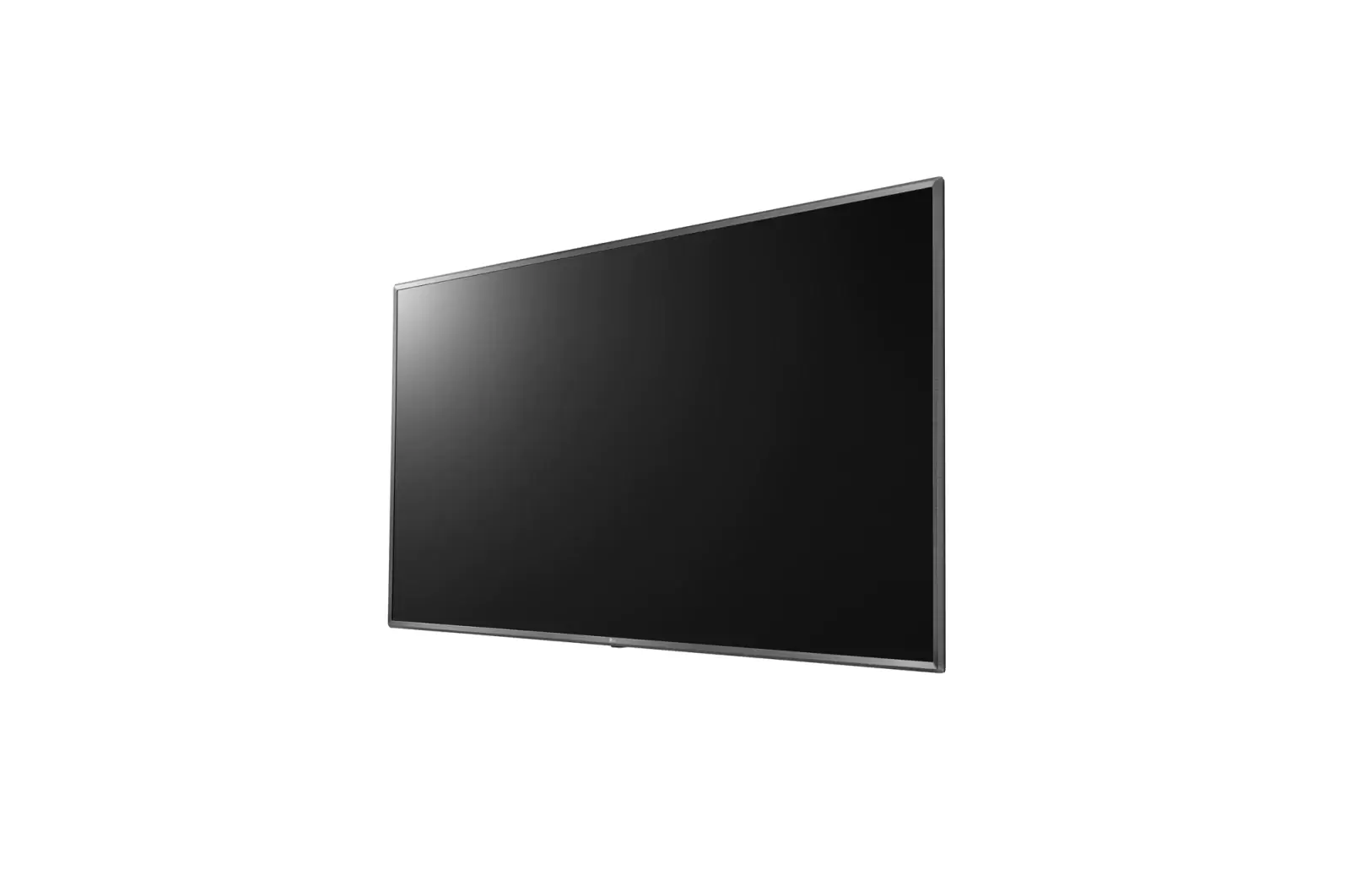

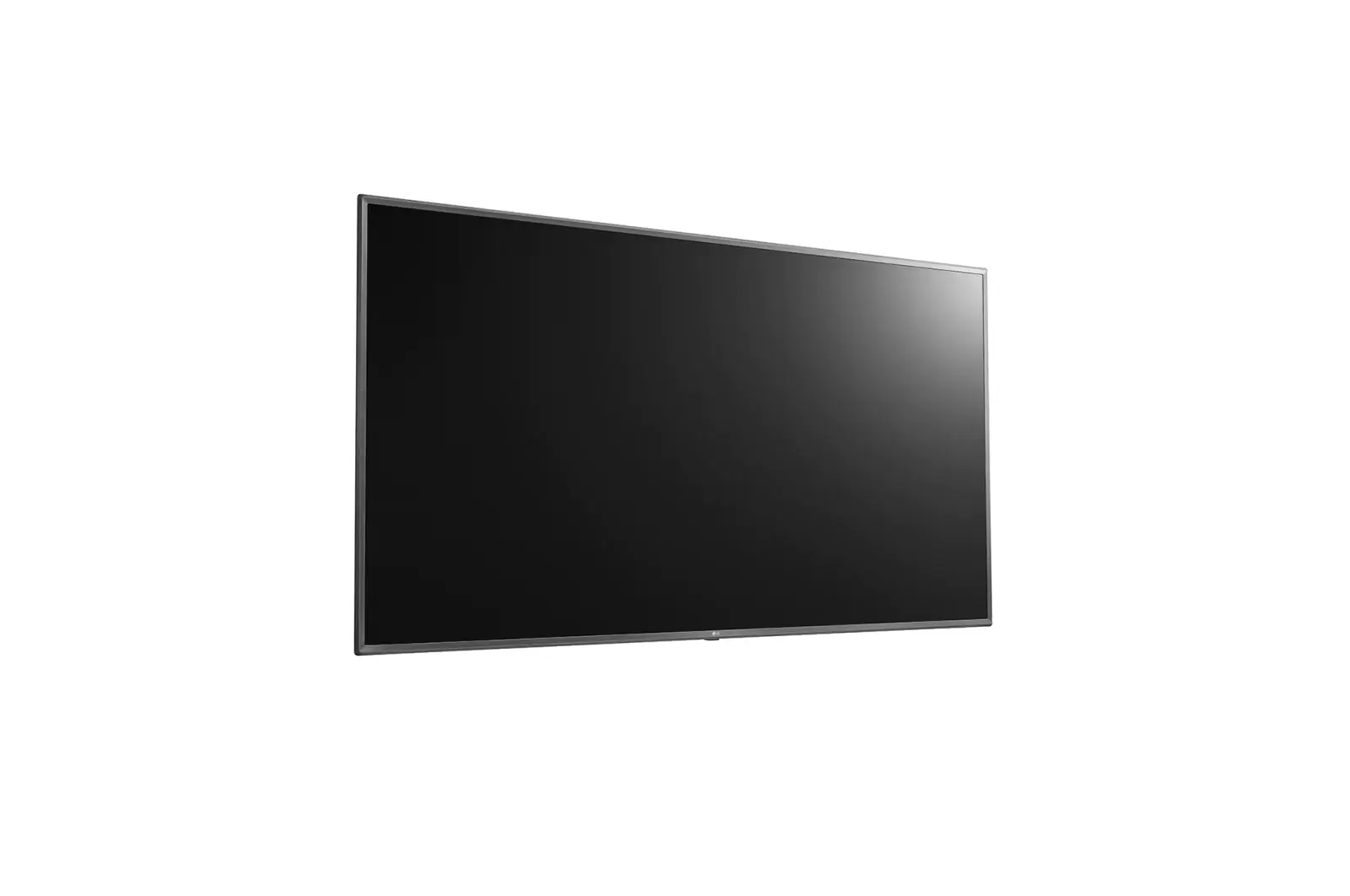

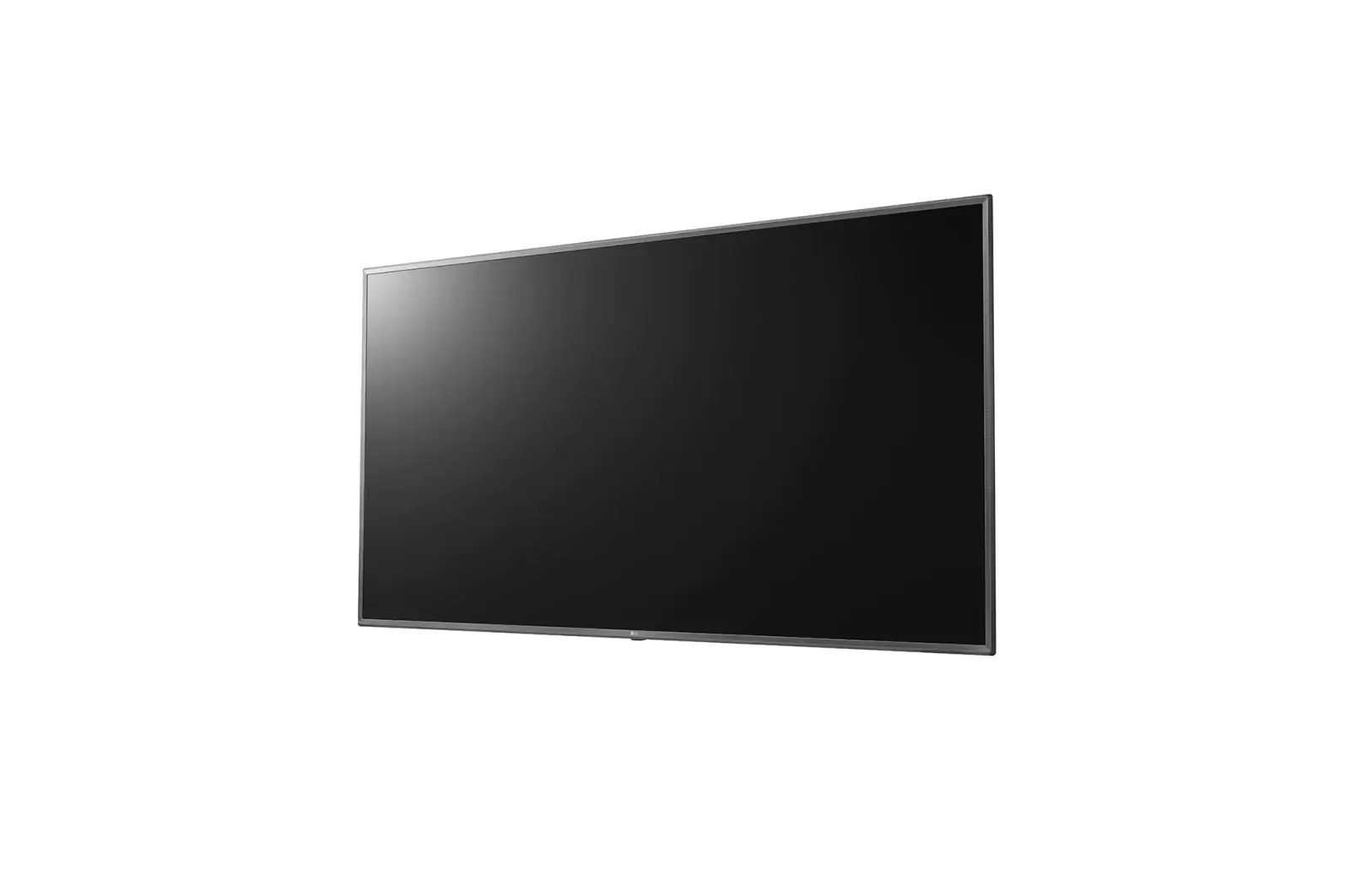

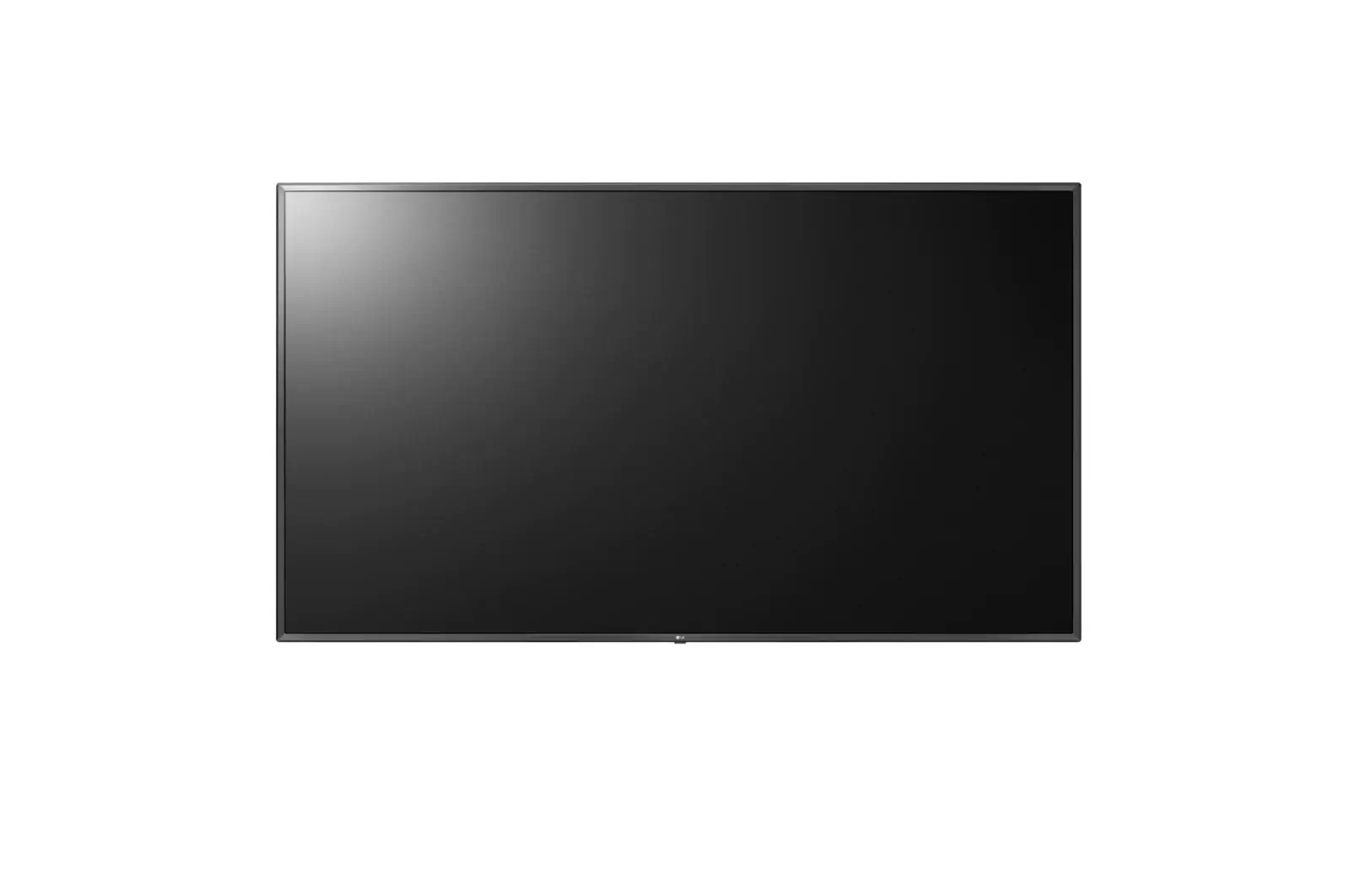

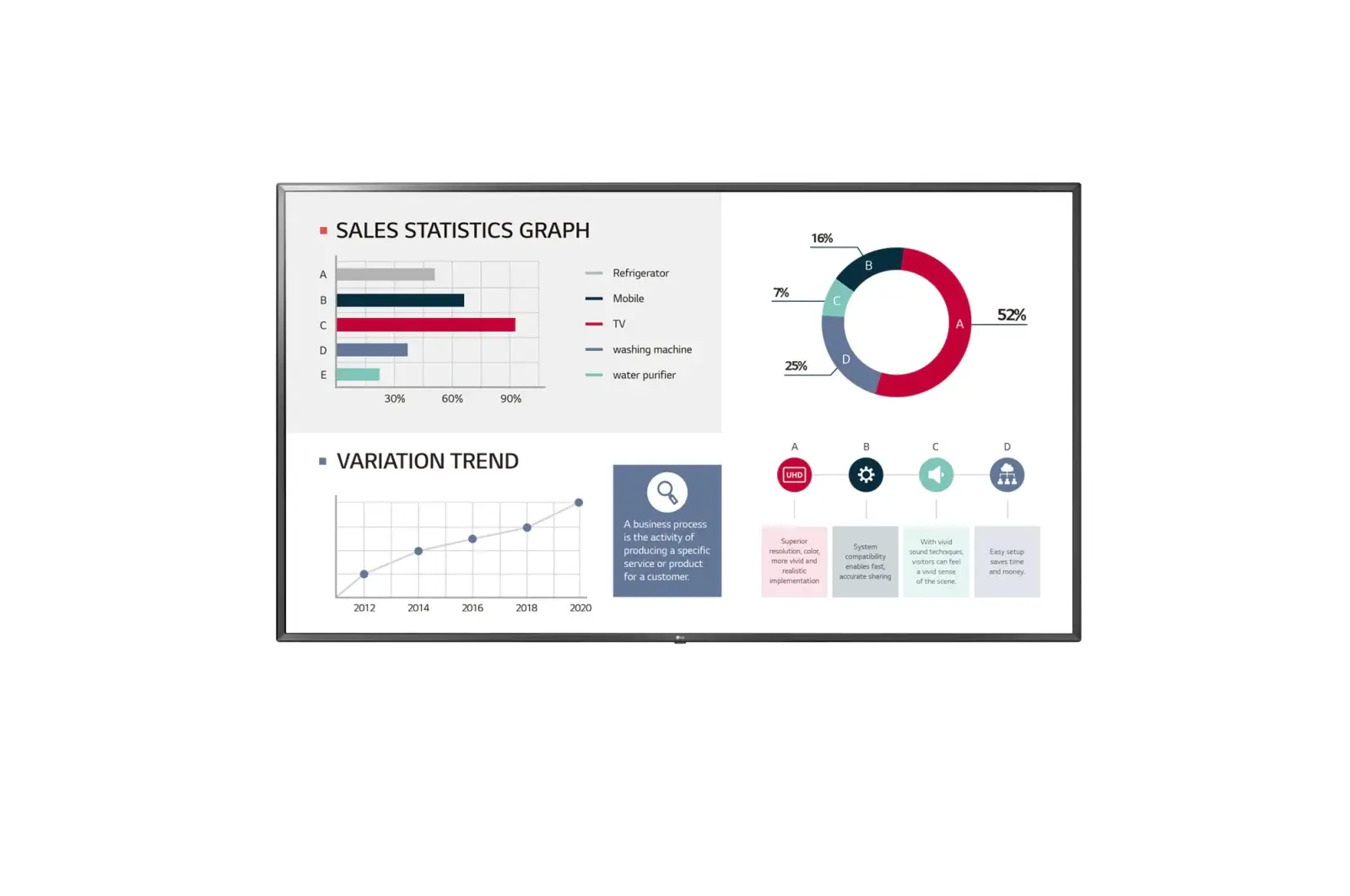

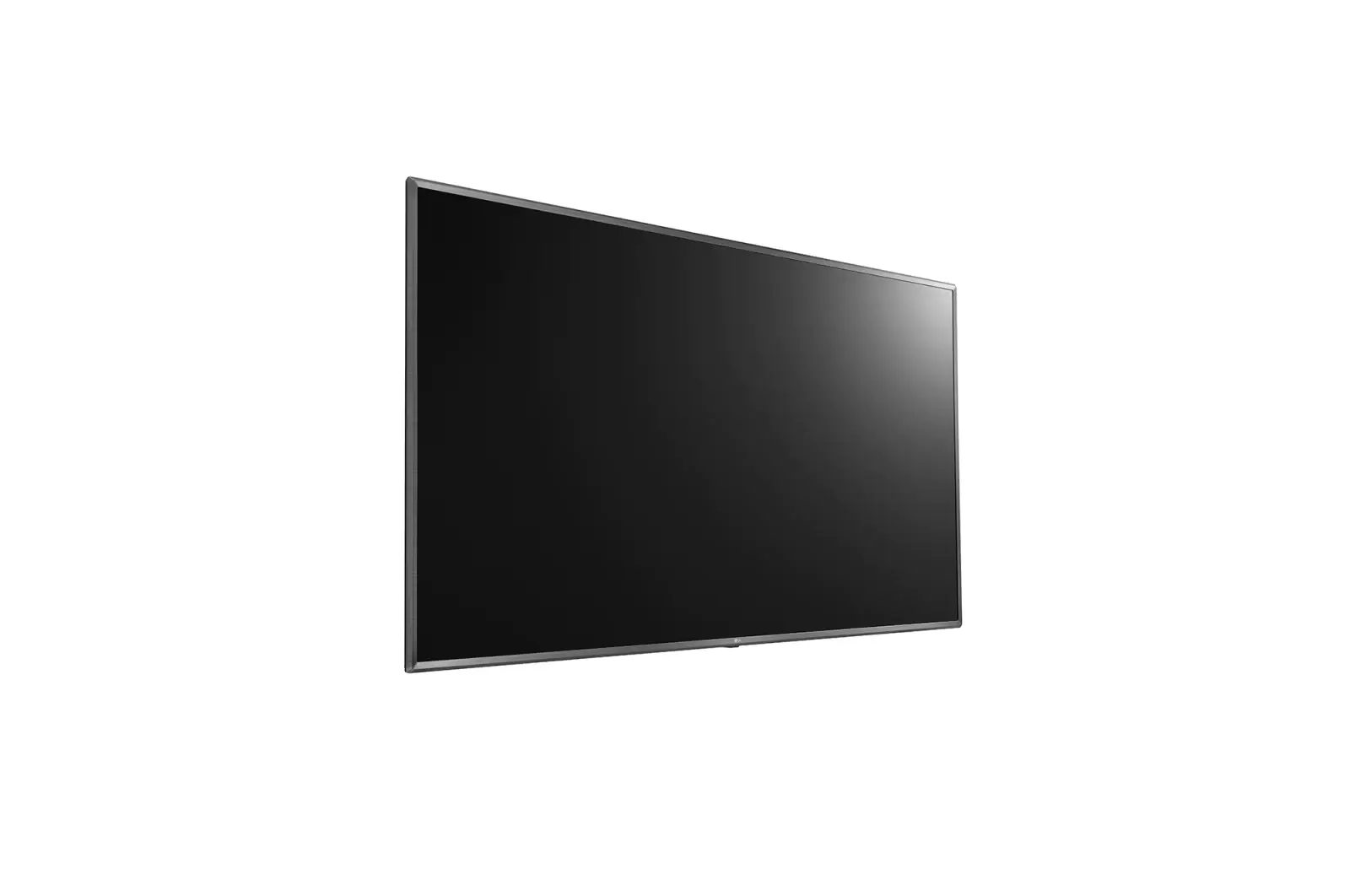

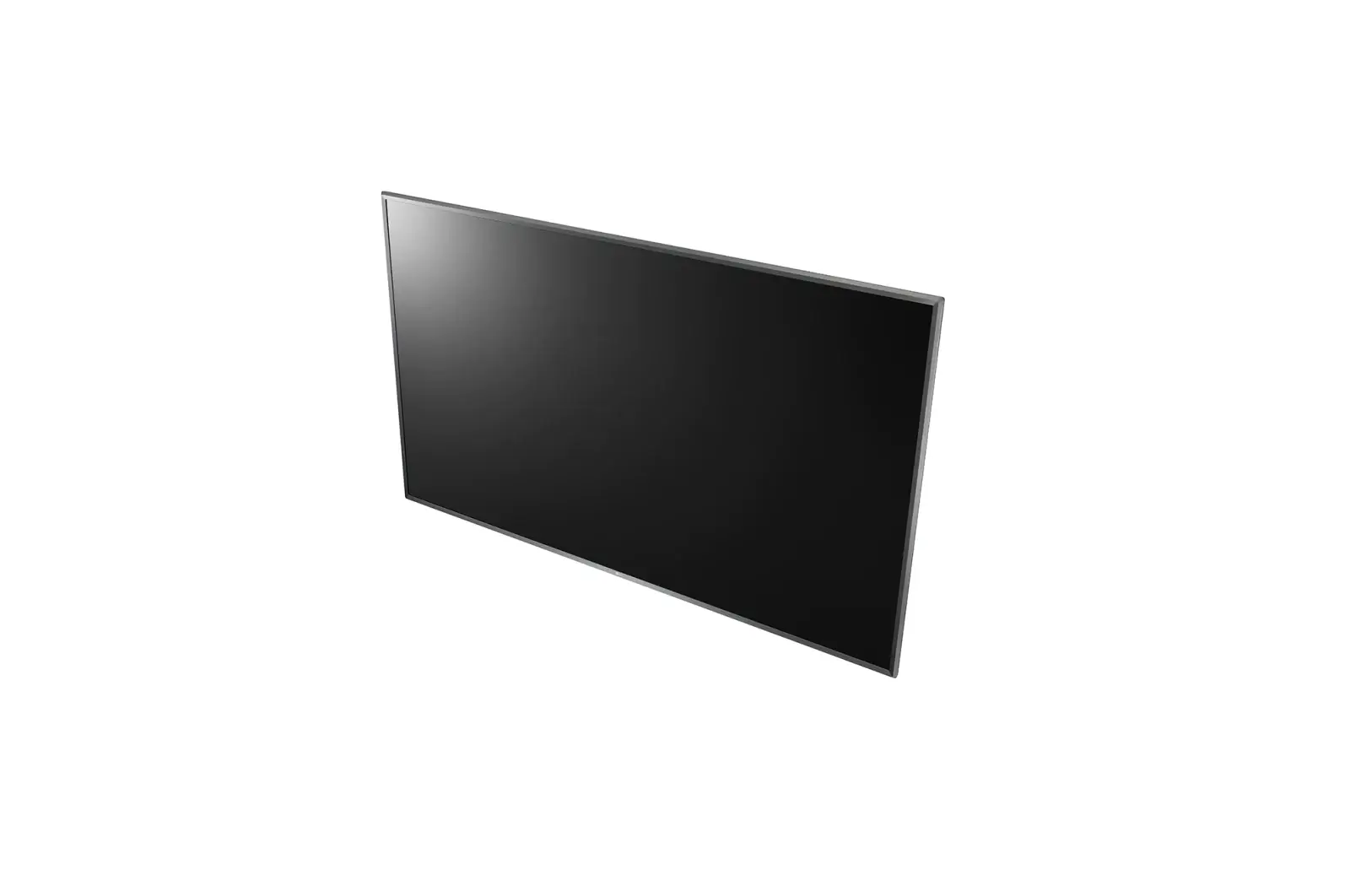

86UL3G-B
86″ webOS Ultra HD Series
Features
Tech Specs
Resources
Contact us
GGEAR Commercial
ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.
High Efficiency Video Coding
The 86UL3G supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
SMART SIGNAGE PLATFORM
Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and BLE(Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
Wireless Solution
The 86UL3G operates as a virtual router which can be a wireless access point for mobile devices.
Compatibility with AV Control System
The 86UL3G has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatibility with Conferencing System
The certification of compatibility between the 86UL3G and Cisco System that offers powerful and integrated control* for video conference is in progress. It will promote the optimal visual meeting by eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 86UL3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.
-
- Screen Size
- 86”
- Aspect Ratio
- 16 : 9
-
- Native Resolution
- 3,840 x 2,160 (UHD)
- Refresh Rate
- 120 Hz
-
- Brightness(Typ.,cd/m²)
- 350
- Contrast Ratio
- 1,400:1
-
- Viewing Angle (H x V)
- 178 x 178
- Response Time
- 5ms (G to G)
-
- Surface Treatment (Haze)
- Haze 3%
- Life Time (Min.)
- 30,000 Hrs (Min.)
-
- Operation Hours (Hours / Day)
- 16 / 7 (Hours / Day)
- Portrait / Landscape
- No / Yes
-
- Input
- HDMI (3, HDCP2.2), USB 2.0 Type A (2)
- Output
- Audio
-
- External Control
- RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In
-
- Bezel Color
- Dark Meteo Titan

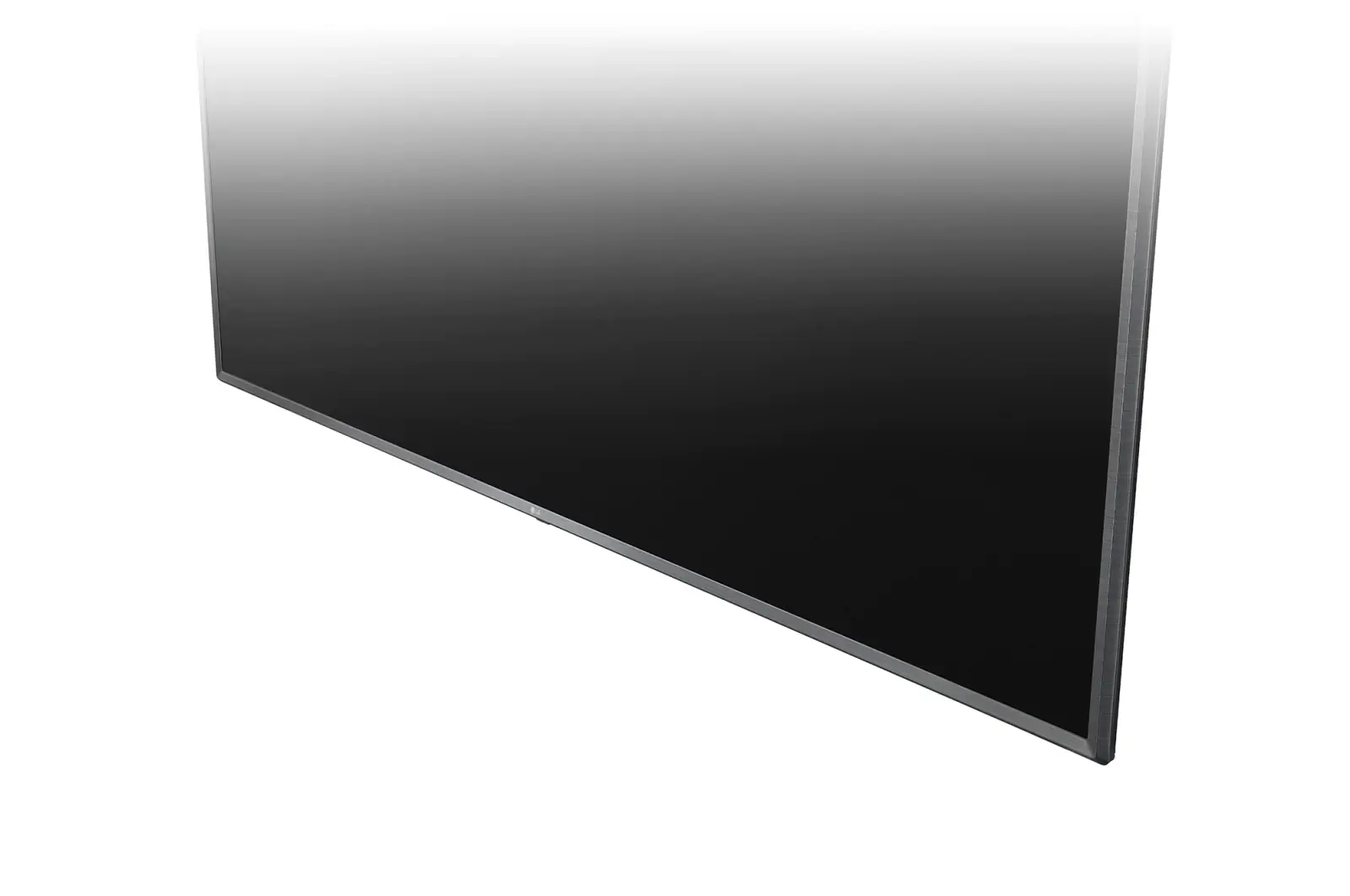

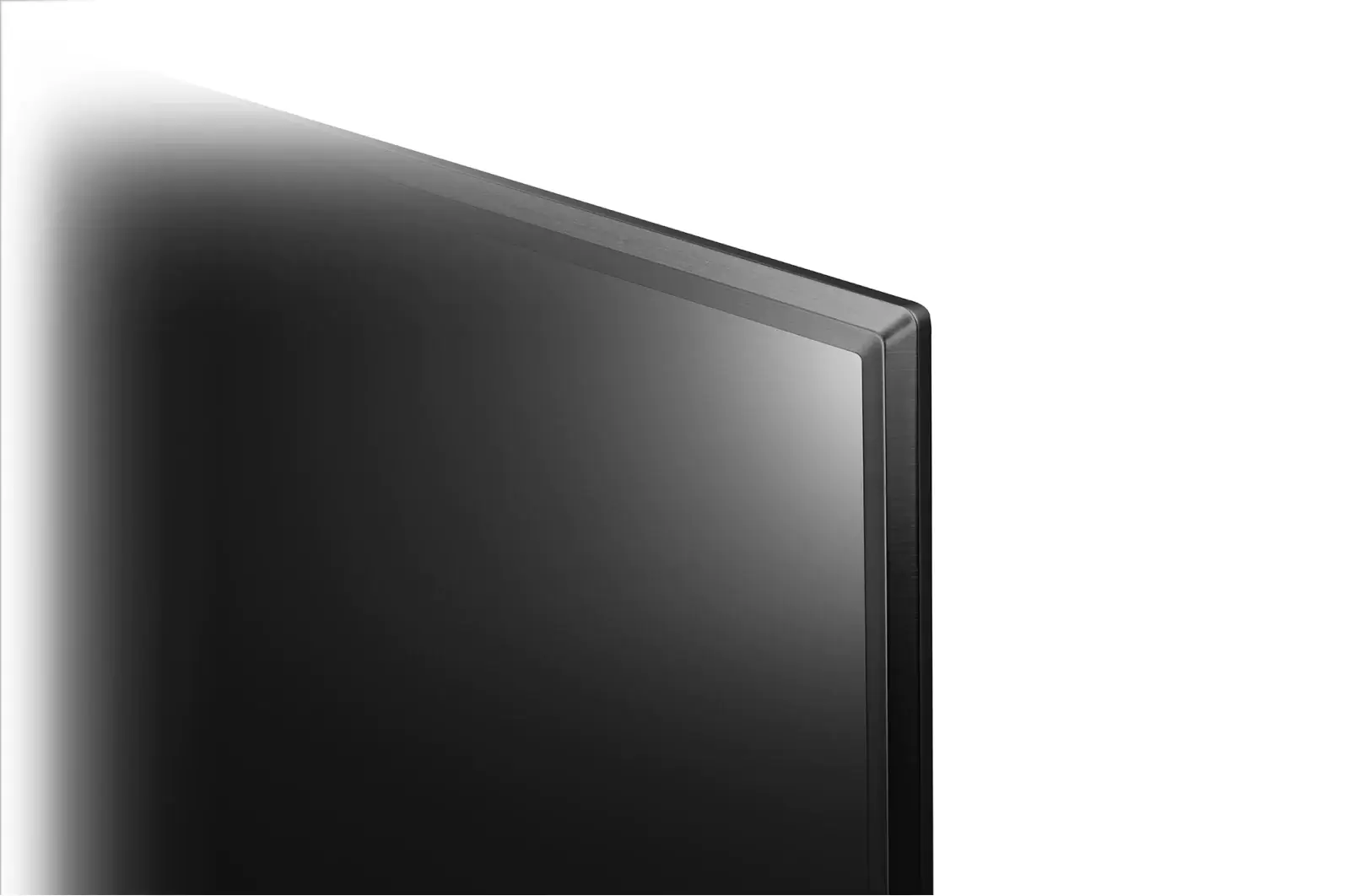

- Bezel Width
- 21.9 mm (Even Bezel)
-
- Weight (Head)
- 44.2 kg
- Weight (Head+Stand)
- 45.0 kg
-
- Packed Weight
- 59.0 kg

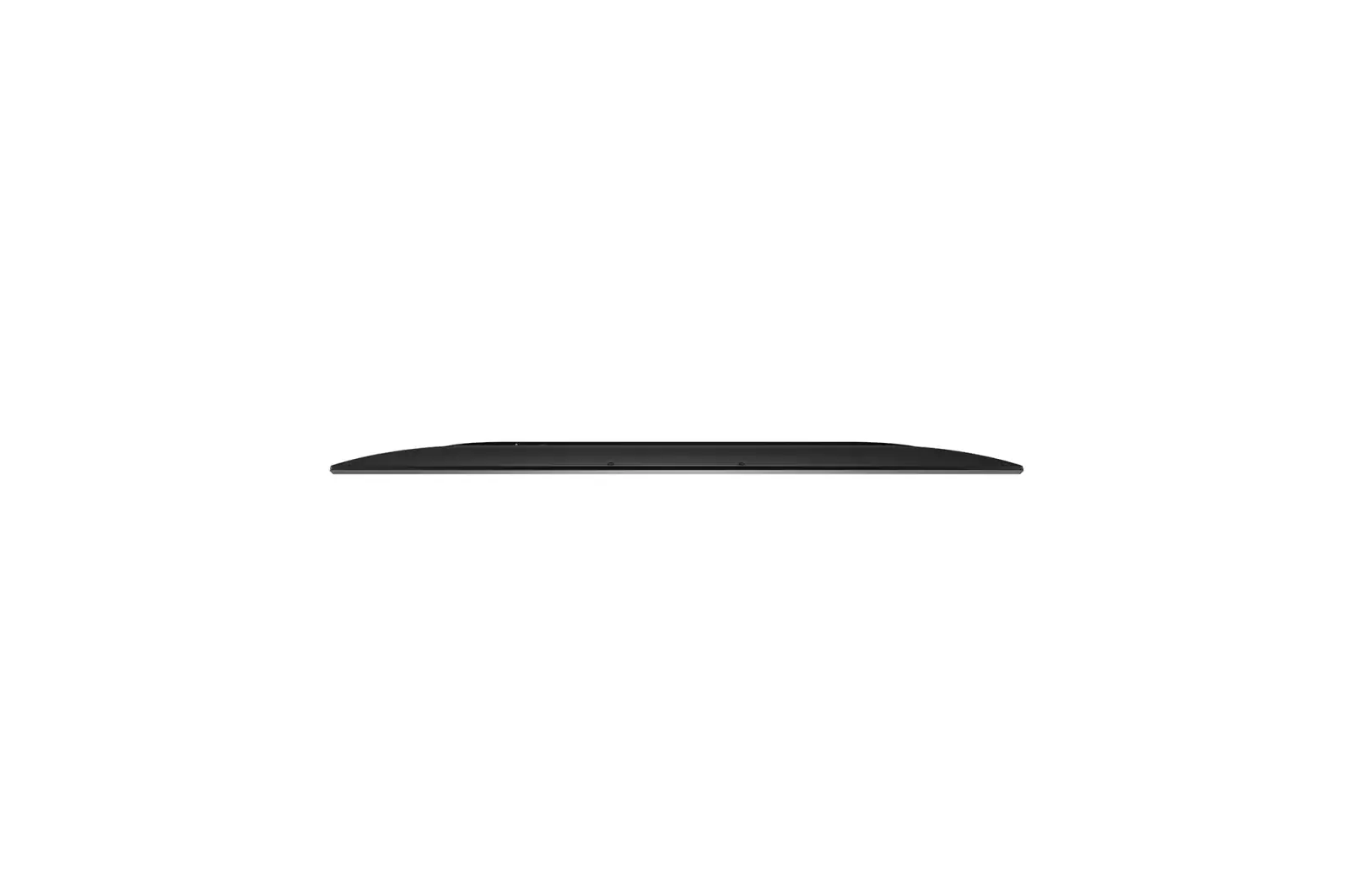

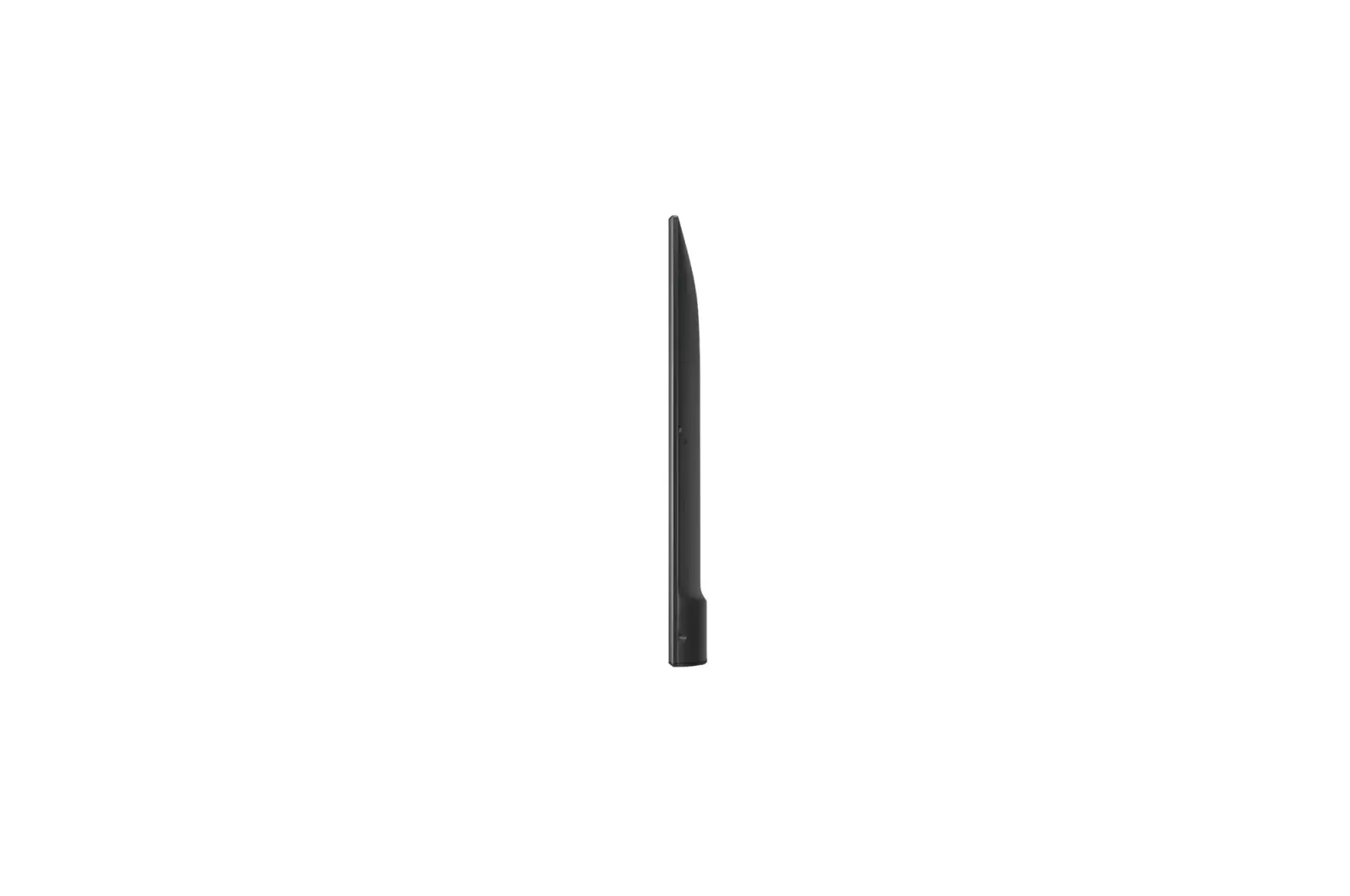

- Monitor Dimension (W × H × D)
- 1,943 x 1,118 x 77.9 mm (Thickest Point 93.3 mm)
-
- Monitor incl. Stand Dimensions (W x H x D)
- 1,943 x 1,188 x 345 mm
- Carton Dimensions (W × H × D)
- 2,116 x 1,261 x 285 mm
-
- Handle
- No
- VESA™ Standard Mount Interface
- 600 x 400 mm
-
- Operation Temperature
- 0°C to 40°C
- Operation Humidity
- 10% to 80%
-
- Power Supply
- AC 100-240V~, 50/60Hz
- Power Type
- Built-In Power
-
- Typ. / Max.
- 240 W / 325 W
- Smart Energy Saving
- 168 W
-
- Speaker
- Yes
-
- Safety
- CB
- EMC
- FCC Class “A” / CE / KC
-
- ErP
- Yes (EU Only)
-
- Content Management Software
- SuperSign CMS
- Control and Monitoring Software
- SuperSign Control+/Control
-
- Signage365Care
-
Yes*
* The availability of the “Signage365Care” service differs by region.
-
- Basic
- Remote Controller, Power Cord, Regulation Book, Phone to D-Sub9 Gender, Stand, Cable Holder
