LBCK039

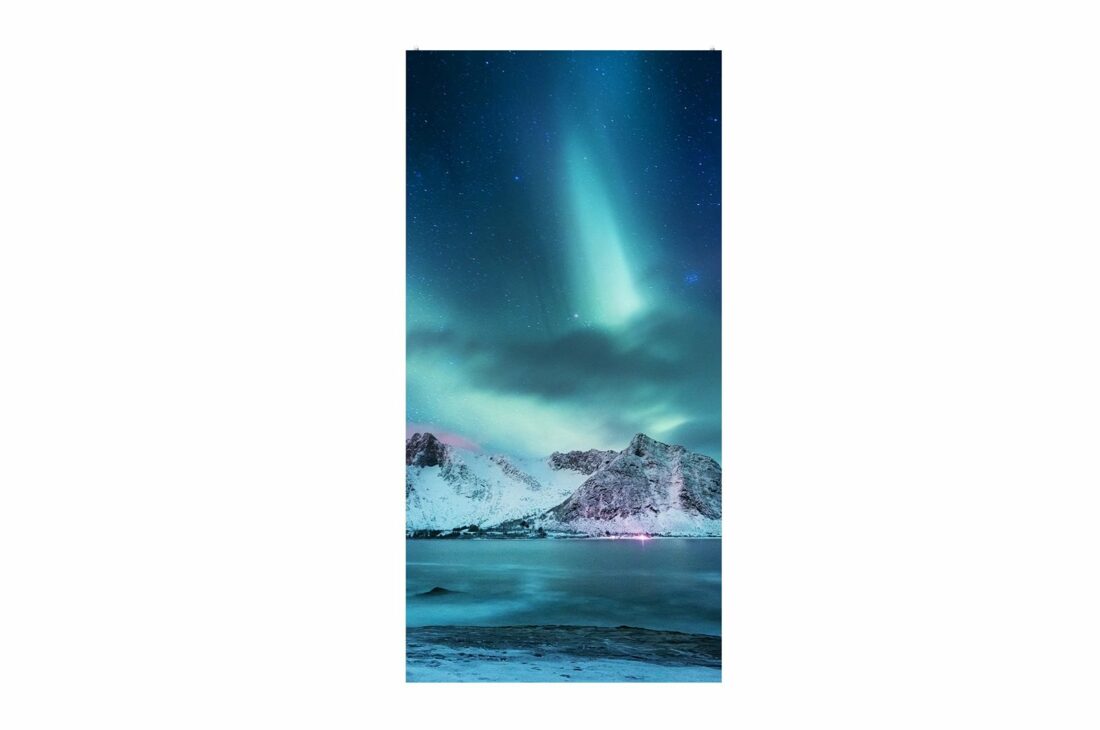

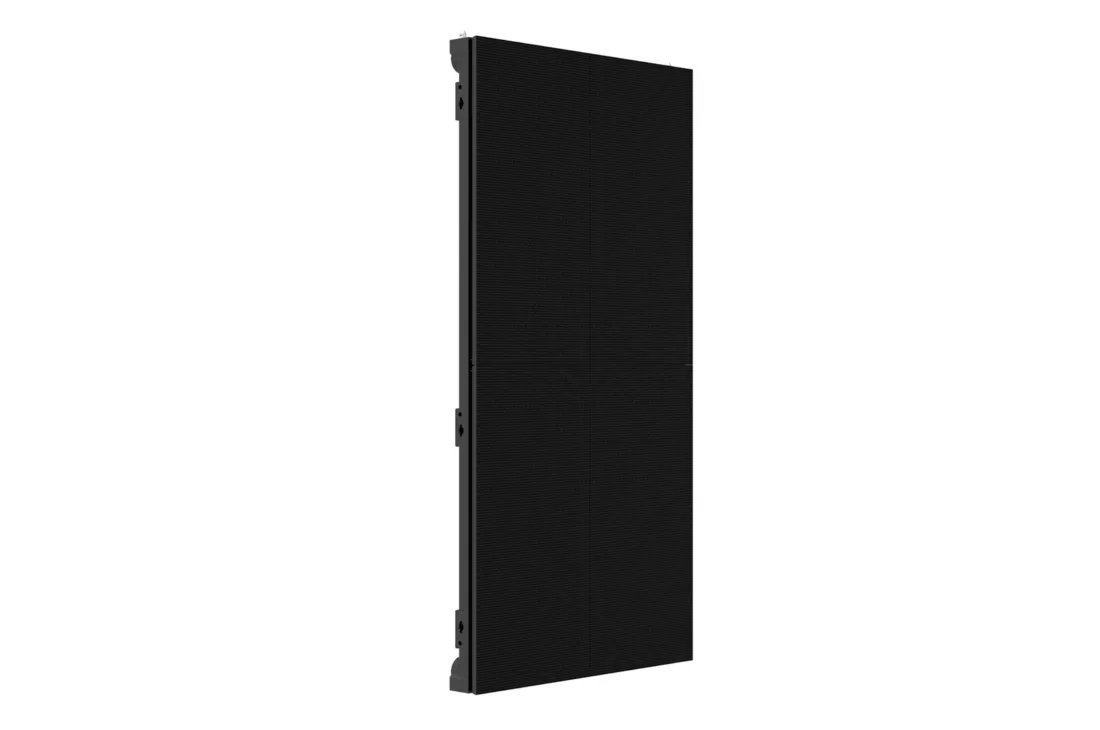

Ceiling LED Display for Virtual Production
Key Features
- Pixel Pitch: 3.91 mm
- Brightness: 5,000 nit
- Easy Installation and Maintenance
- Front or Rear Serviceability
- Brompton LED Processor & Data Distribution
LBCK039
Ceiling LED Display for Virtual Production
Features
Tech Specs
Resources

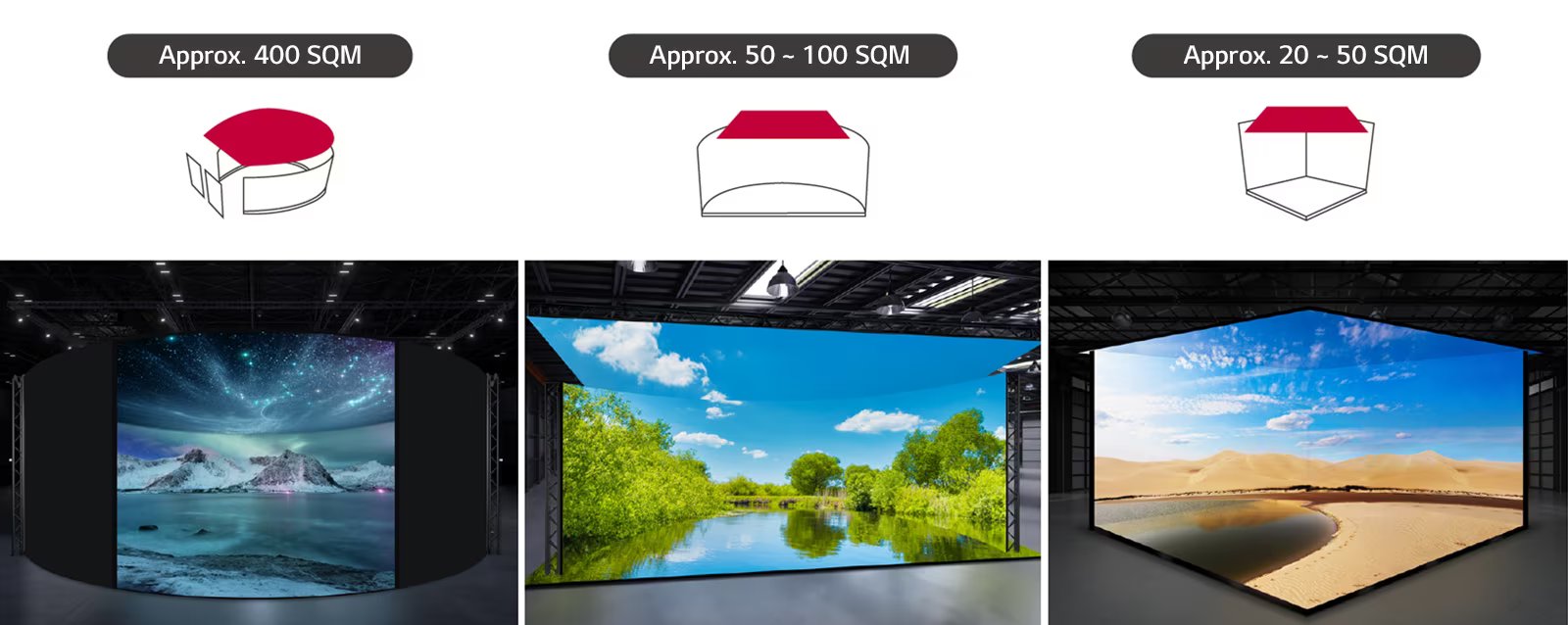

Ceiling LED Display for

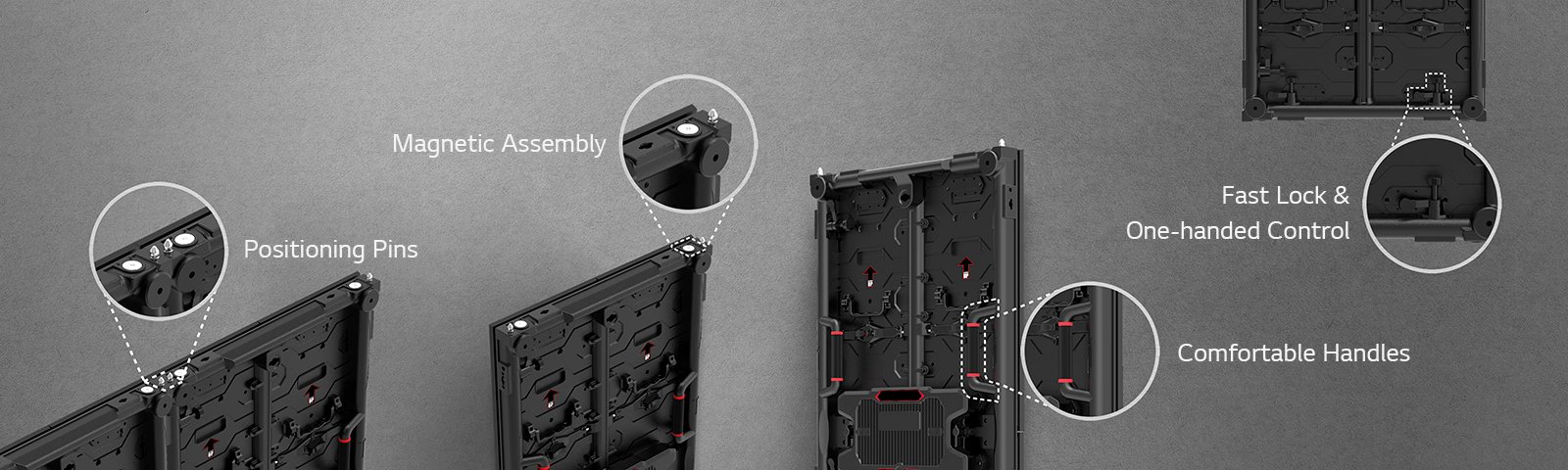

Easy Installation & Maintenance

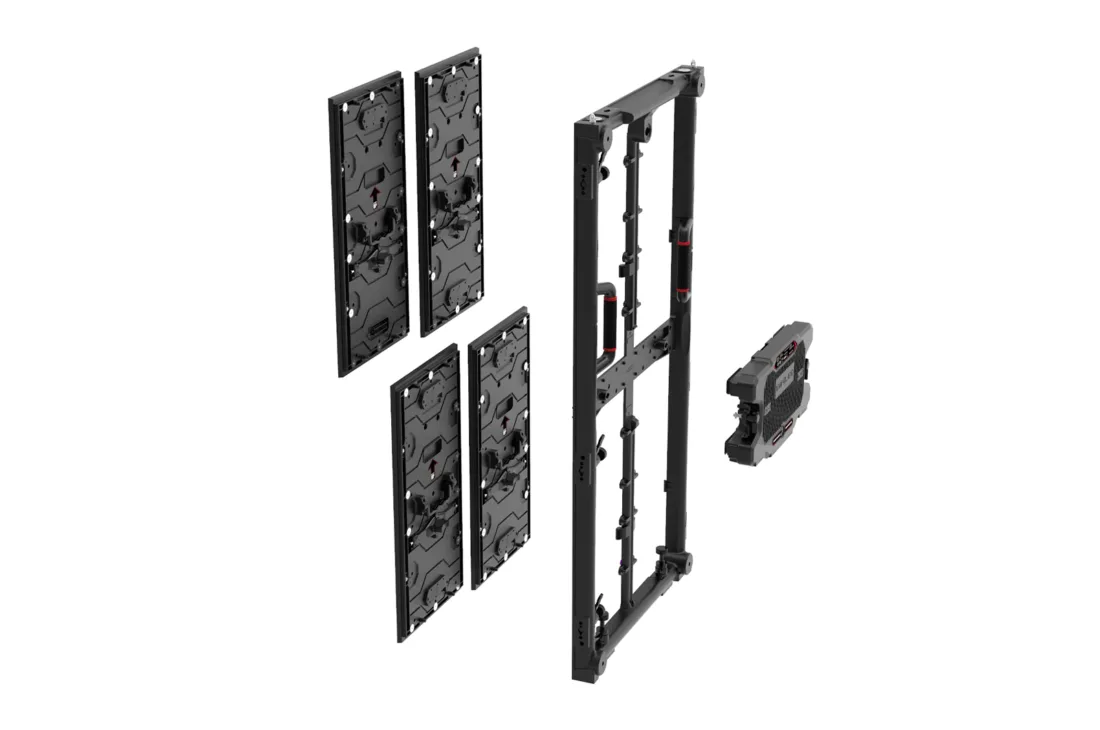

The module can be easily removed using the dedicated tool (with front or rear selective service access). The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.

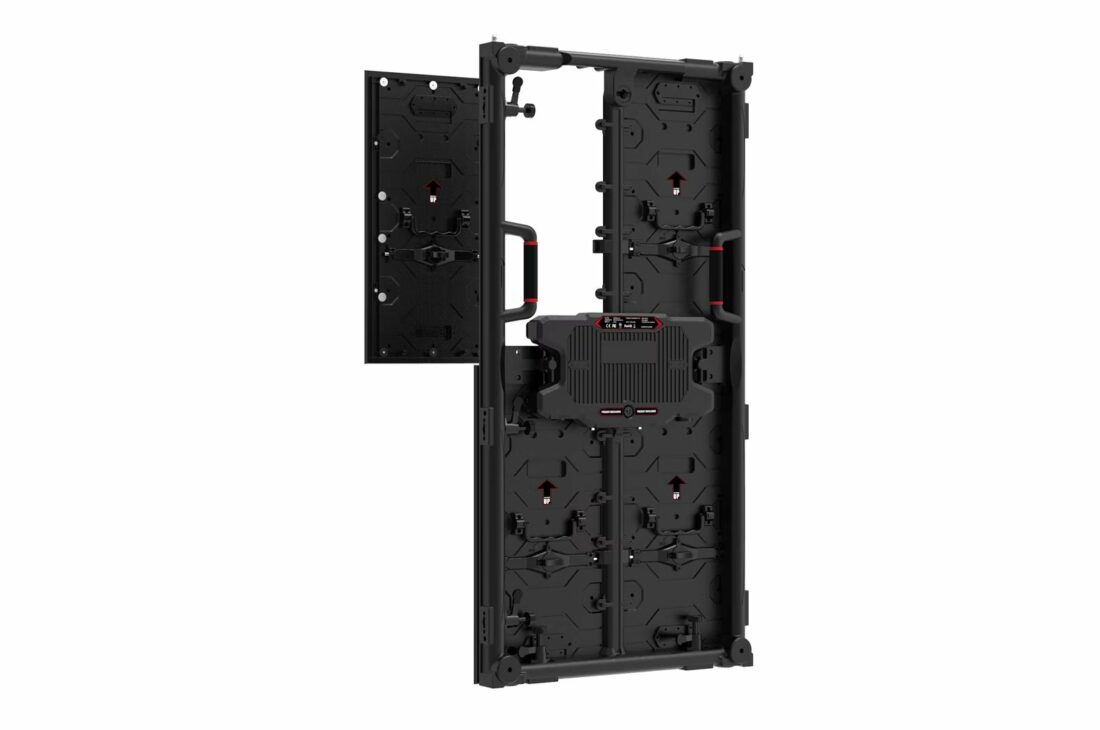

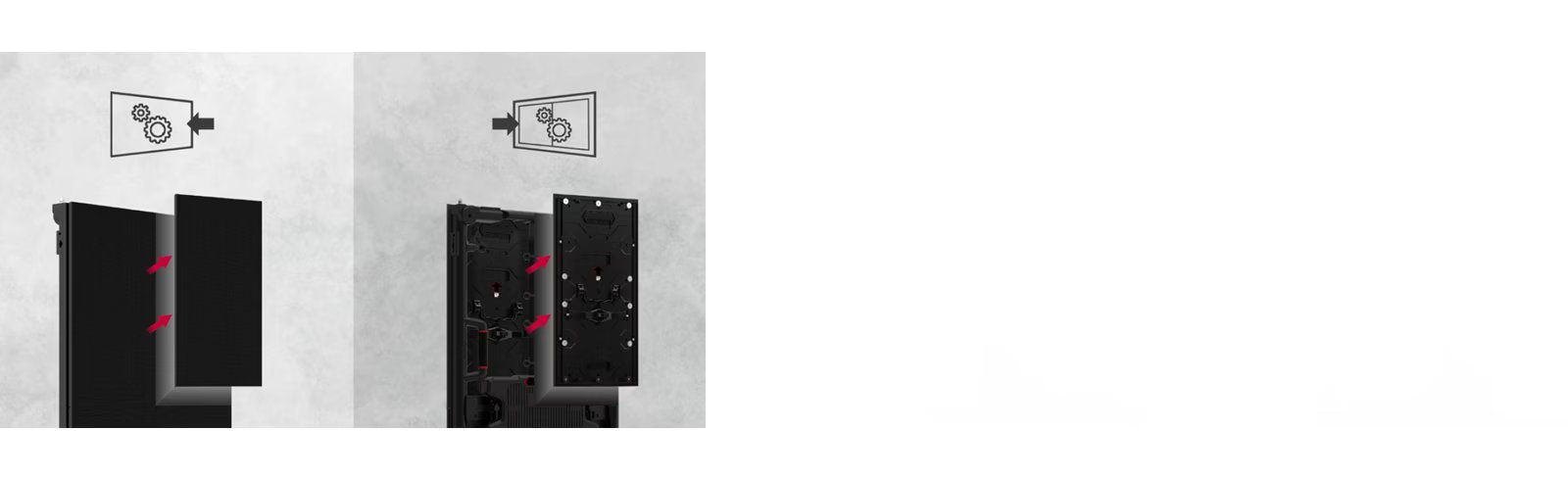

Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their need.

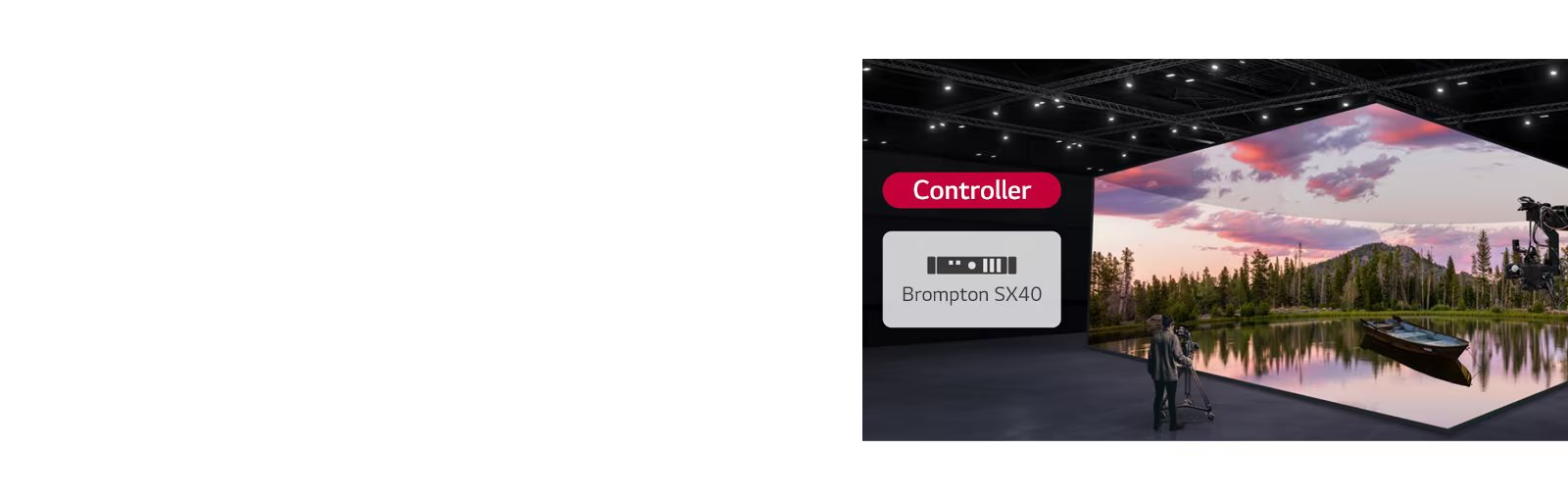

Brompton LED Processor & Data Distribution
As Brompton controllers are common in the broadcast and virtual production industry, LBCK series offers support for them.
High Brightness

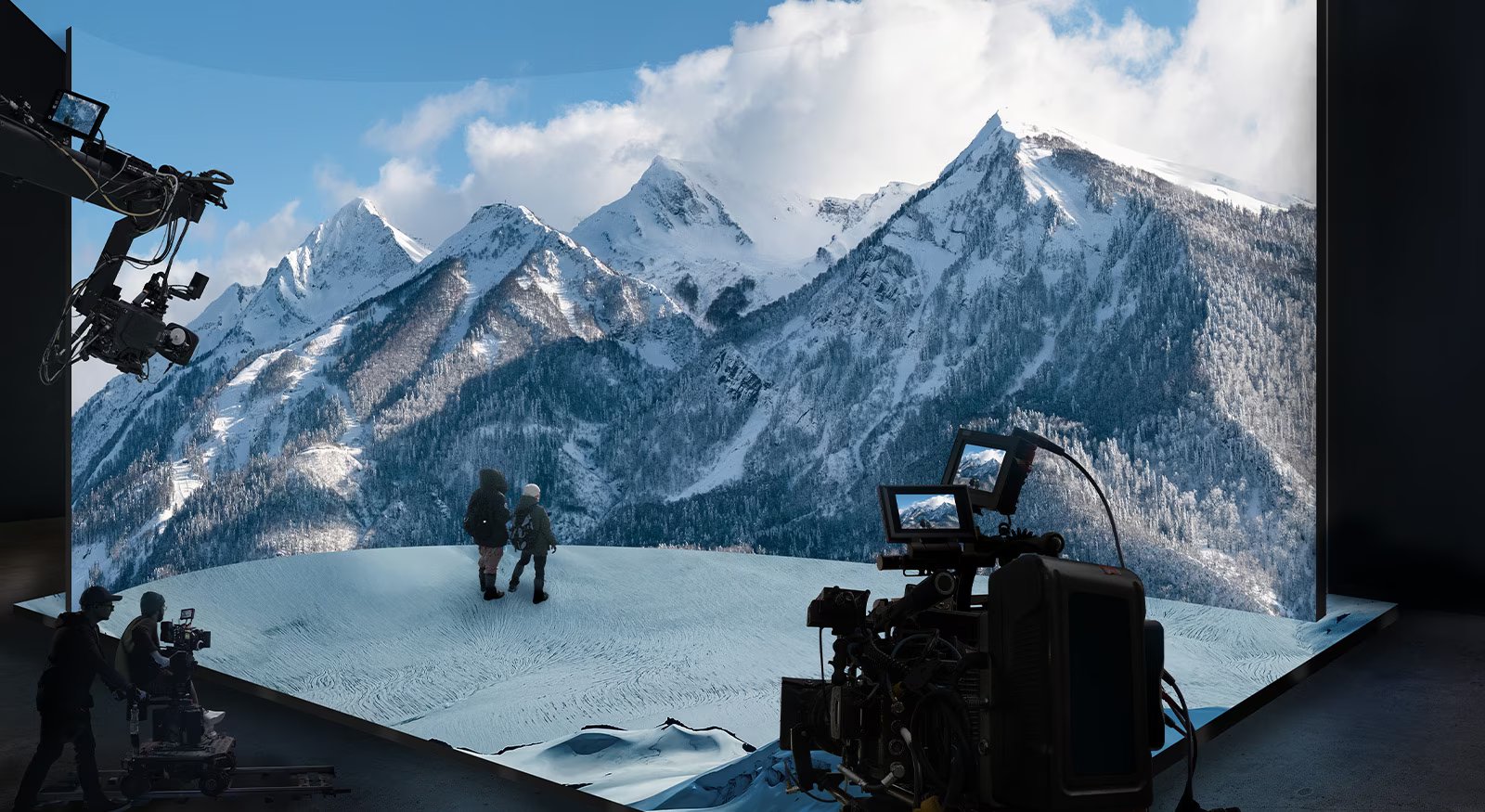

The ceiling LED with 5,000 nits enables LBCK series to be used for alternative lightings in XR and virtual production.
-
- Pixel Configuration
- 3 in 1
- Pixel Pitch(mm)
- 3.91
-
- Module Resolution (WxH)
- 64x128
- Module Dimensions(WxH,mm)
- 250x500
-
- Weight per Module (kg)
- 1.40
- No. of Modules per Cabinet (WxH)
- 2 x 2
-
- Cabinet Resolution (WxH)
- 128x256
- Cabinet Dimensions (W x H x D, mm)
- 500x1000x66.05
-
- Cabinet Surface Area (㎡)
- 0.500
- Weight per Cabinet (kg/unit)
- 12.5
-
- Weight per Square Meter (kg/m²)
- 24.9
- Physical Pixel Density (pixels/m²)
- 65,536
-
- Flatness of Cabinet (mm)
- ±0.3
- Cabinet Material
- Die-casting Magnesium
-
- Service Access
-
Front or Rear
(select one only)
-
- Max Brightness (After Calibration, nit)
- 5,000
- Color Temperature (K)
- 2,000-11,000
-
- Visual Viewing Angle (Horizontal)
- 160
- Visual Viewing Angle (Vertical)
- 155
-
- Brightness Uniformity
- 97%
- Color Uniformity
- ±0.003CxCy
-
- Contrast Ratio
- 6,000:1
- Processing Depth (bit)
- 14 (PQ, HLG)
-
- Power Consumption (W/Cabinet, Max.)
- 300
- Power Consumption (W/Cabinet, Avg.)
- 100
-
- Power Consumption (W/m², Max.)
- 600
- Heat Dissipation (BTU/h/Cabinet, Max.)
- 1,024
-
- Heat Dissipation (BTU/h/Cabinet, Avg.)
- 341
- Heat Dissipation (BTU/h/m², Max.)
- 2,047
-
- Power Supply (V)
- 100 to 240
- Frame Rate (Hz)
- 50 / 60
-
- Refresh Rate (Hz)
- 3,840
-
- LED Lifetime (Half brightness)
- 100,000
- Operating Temperature(℃)
- -30℃ to +45℃
-
- Operating Humidity
- 10-99%RH
-
- Certification
- CE,FCC,ETL
-
- Environment
- RoHS
-
- Controller
- Brompton SX40
