Vivid Color Expression Powered by HDR
With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
- For Business
- B2B Commercial
- Information Display
- LED Signage
- Compact Series

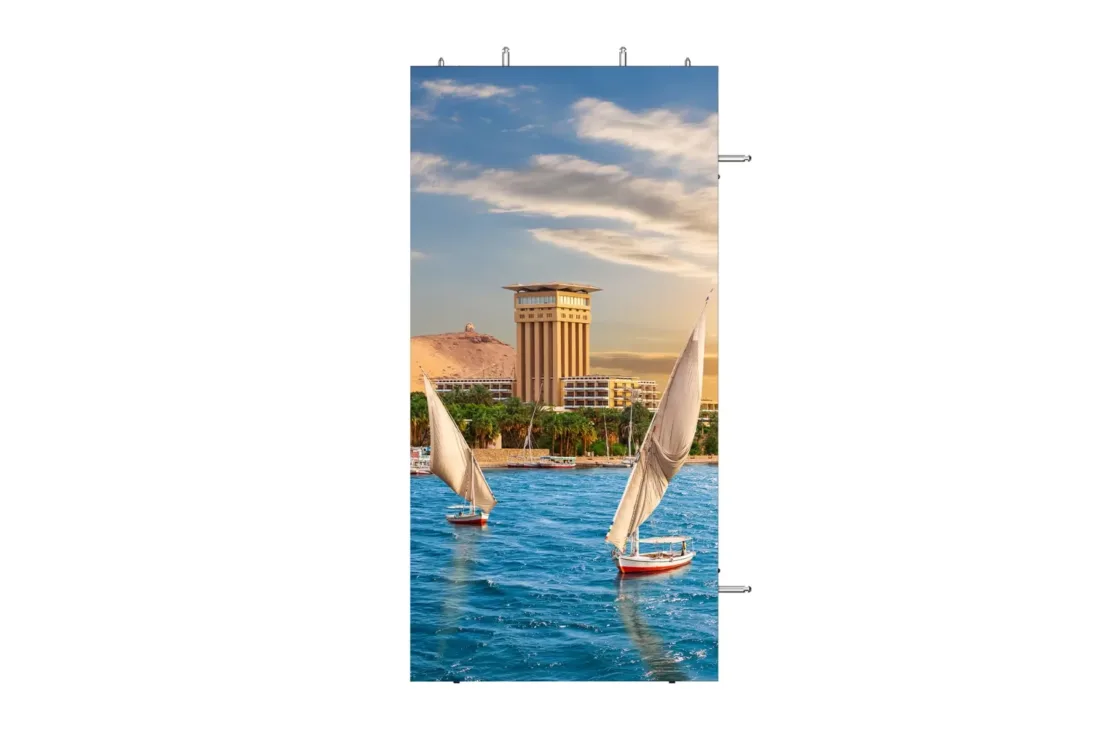

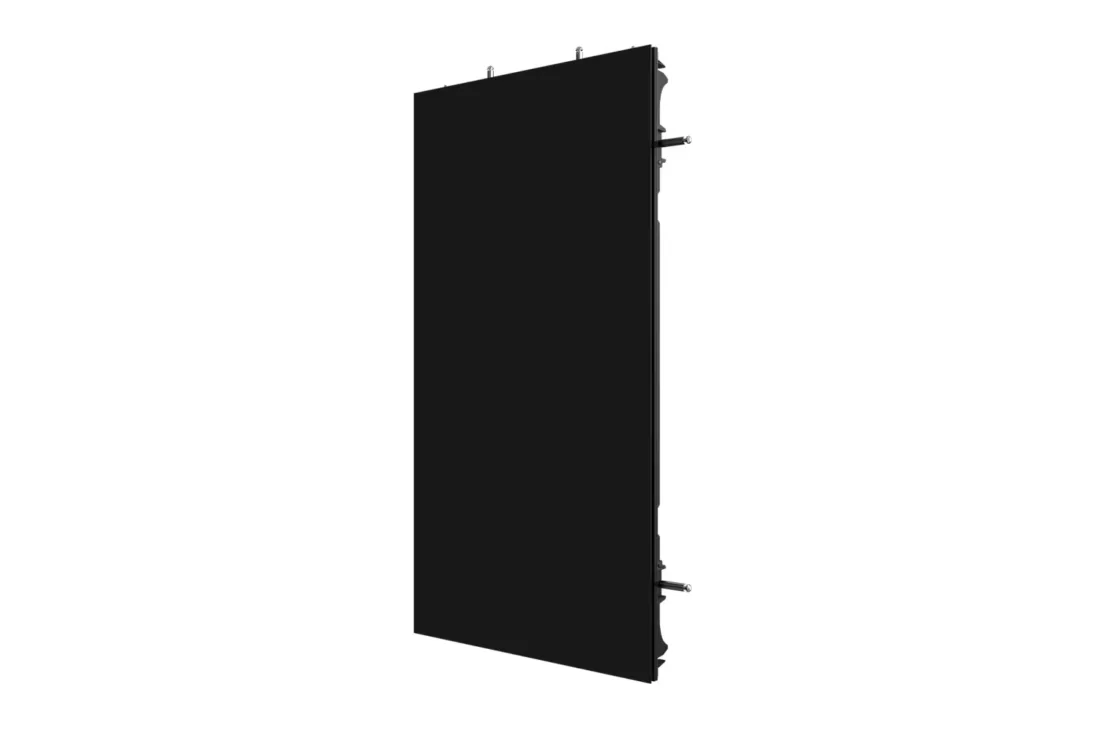

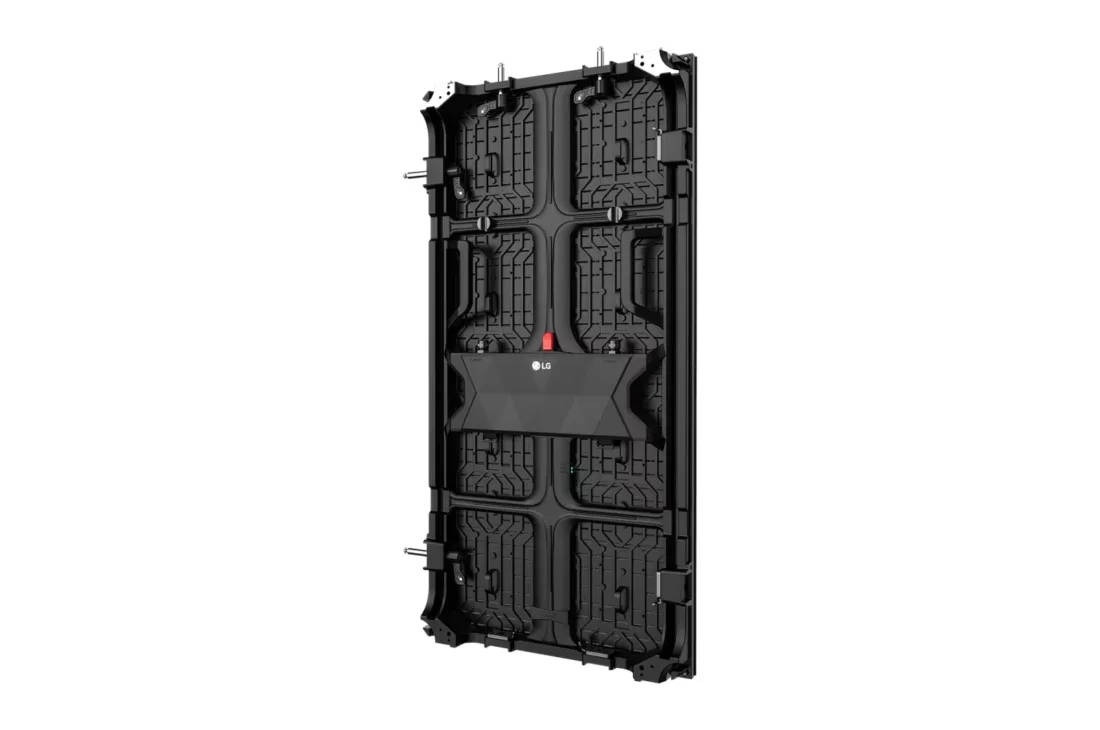

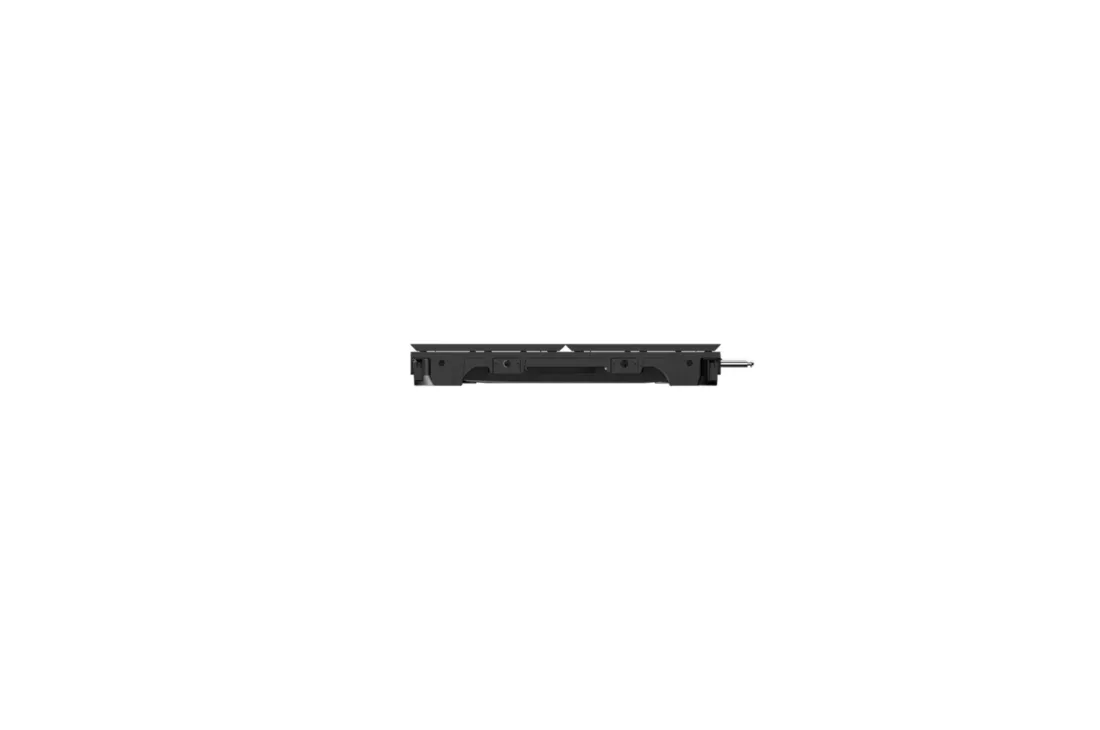

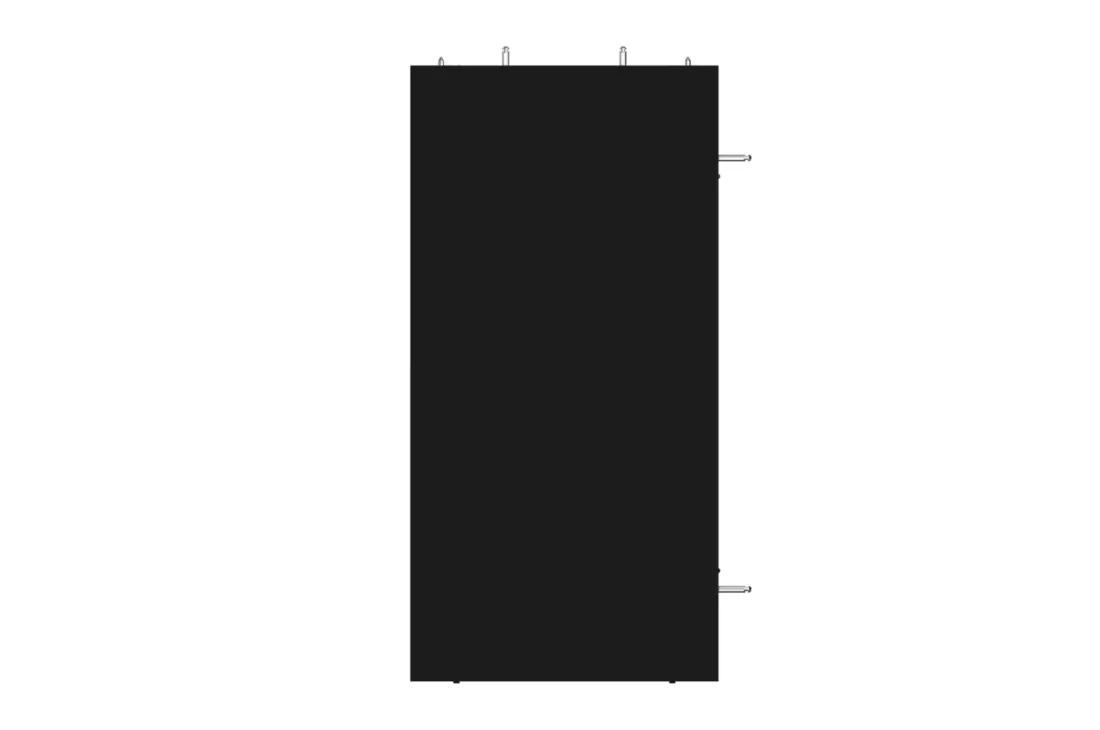

LSBC029
Compact Series
Features
Tech Specs
Resources

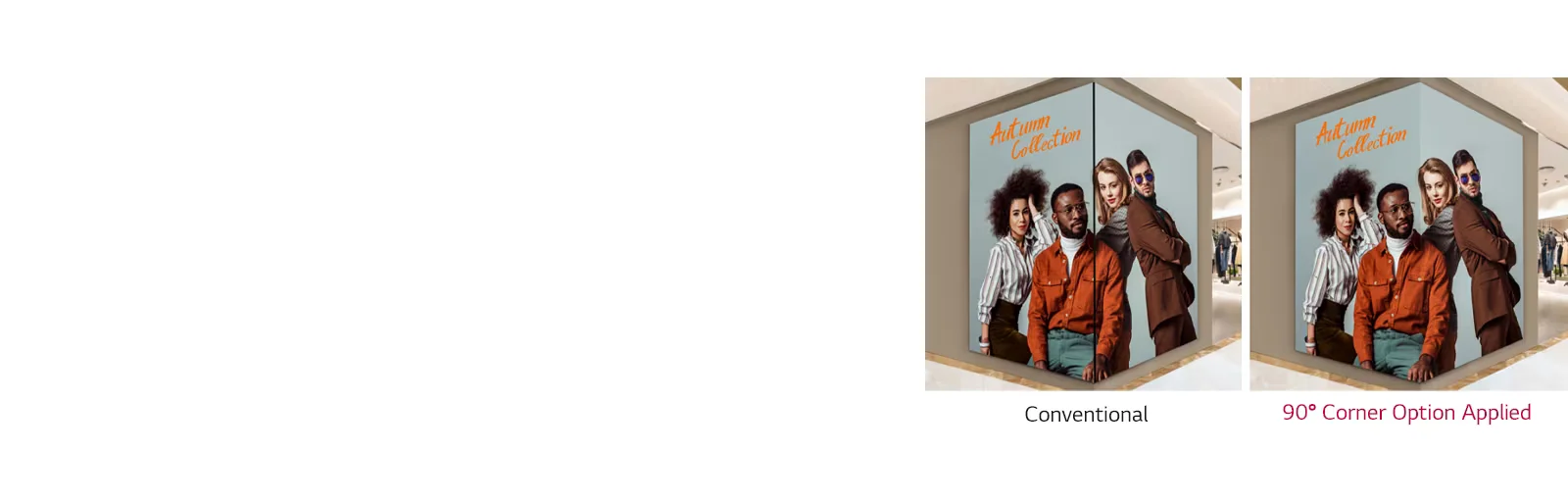

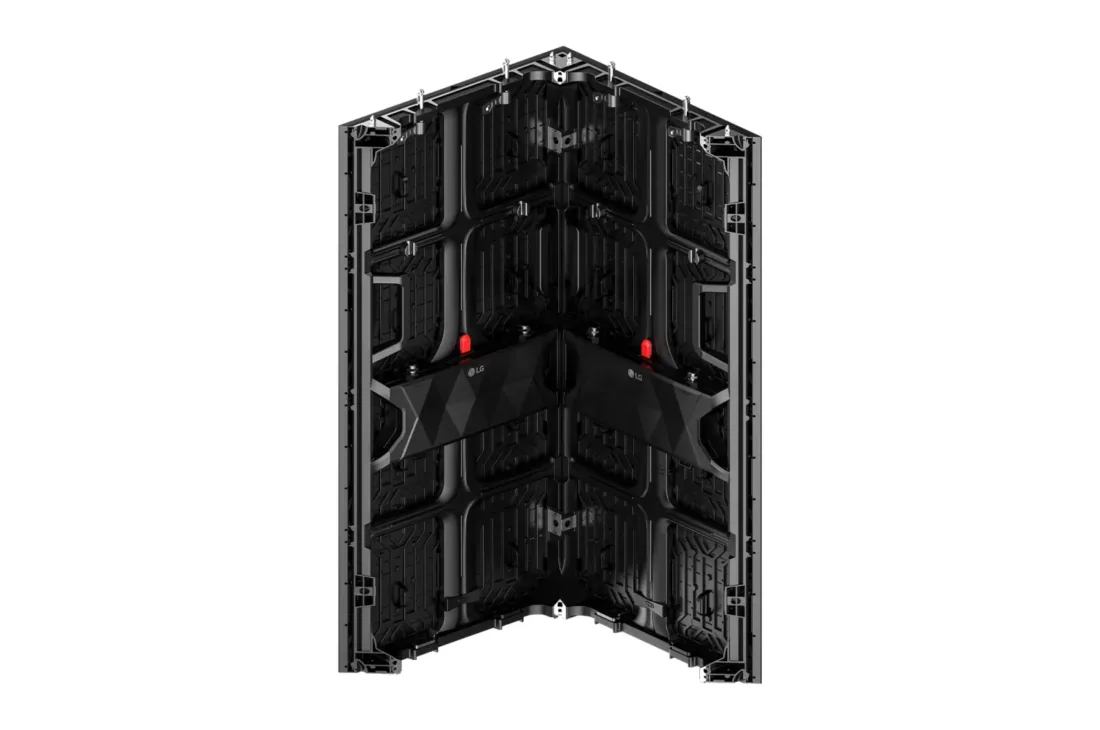

90° Corner Installation Available
Considering the use of corners, the cabinet is designed to stitch out a seamless 90 degree corner screen.

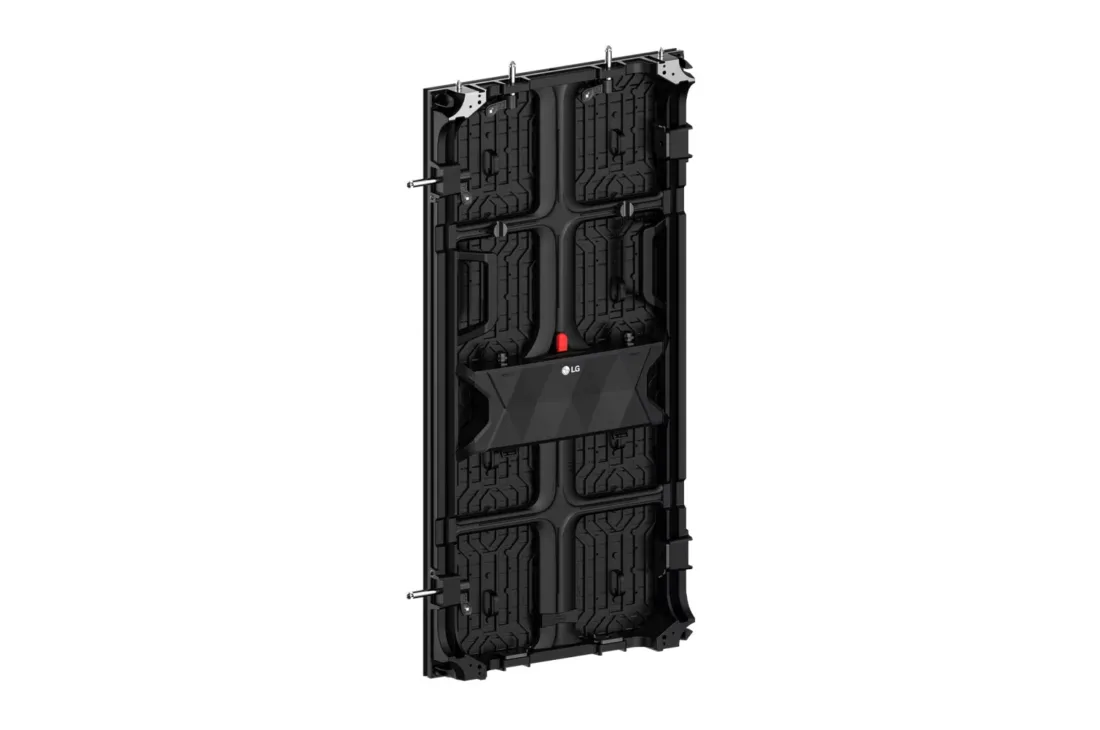

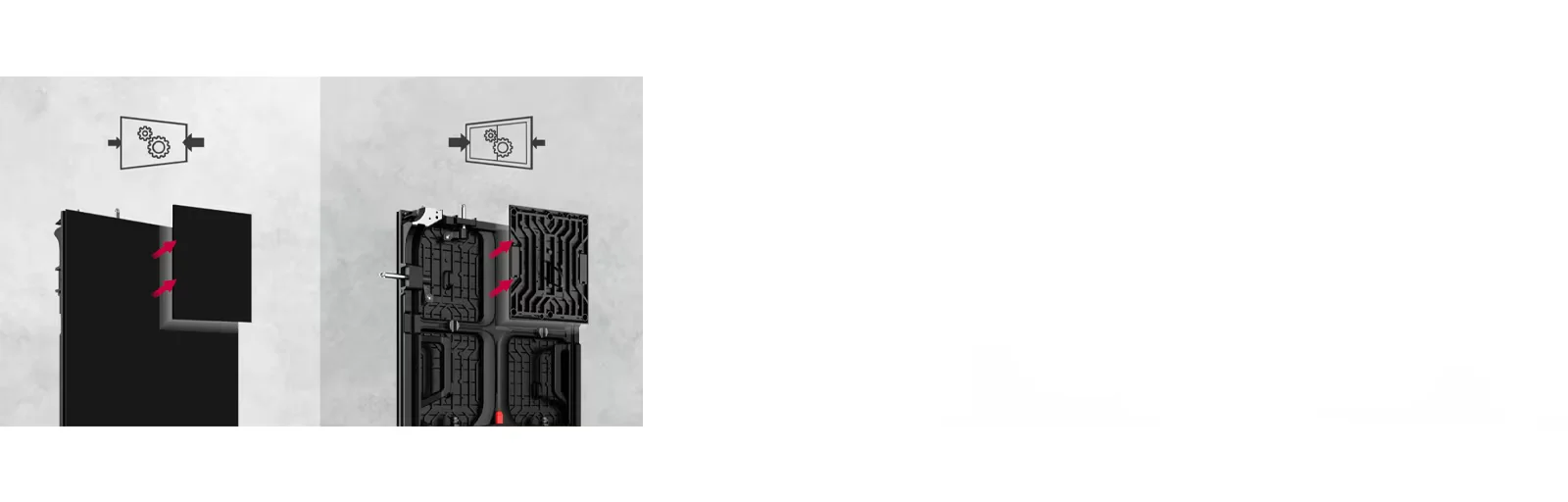

Front or Rear Installation & Maintenance
Easy access to front or rear cabinet for maintenance.
Compatibility with
LG Software Solution
Powered by LG’s high performance system controller, the LSBC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
-
- Pixel Configuration
- 3 in 1 SMD
- Pixel Pitch (mm)
- 2.976
-
- Module Resolution (W × H)
- 84 × 84
- Module Dimensions (W × H, mm)
- 250 × 250
-
- Weight per Module (kg, ±0.003 kg)
- 0.70
- No. of Modules per Cabinet (W × H)
- 2 × 4
-
- Cabinet Resolution (W × H)
- 168 × 336

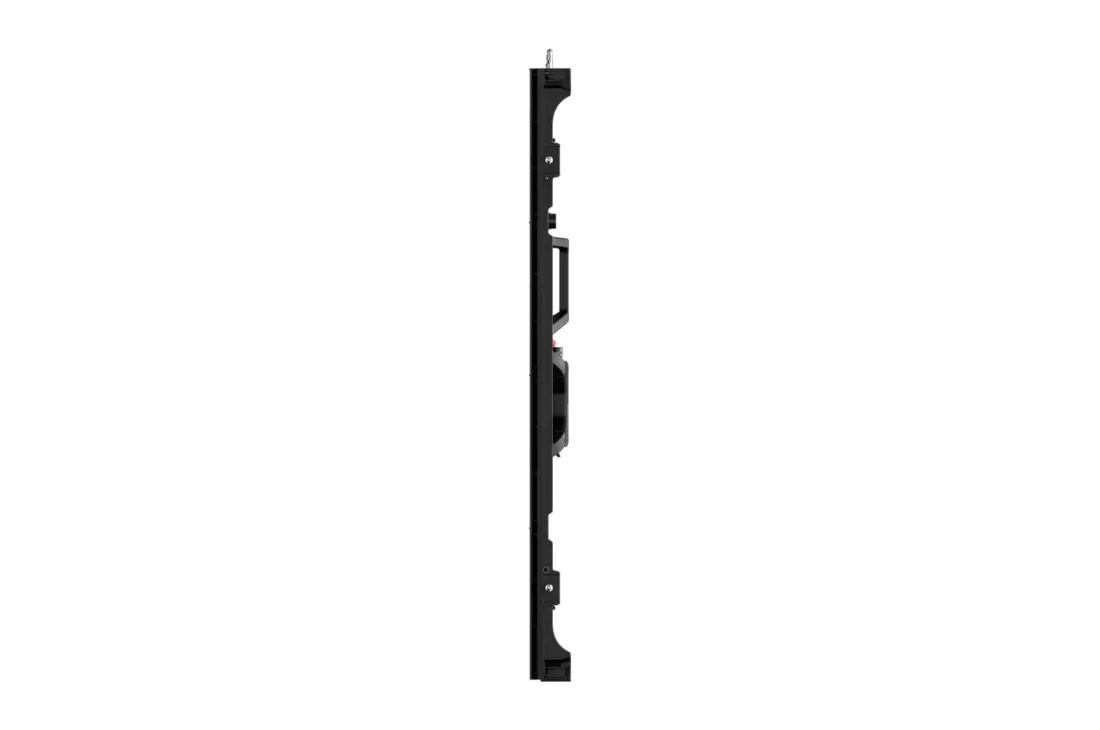

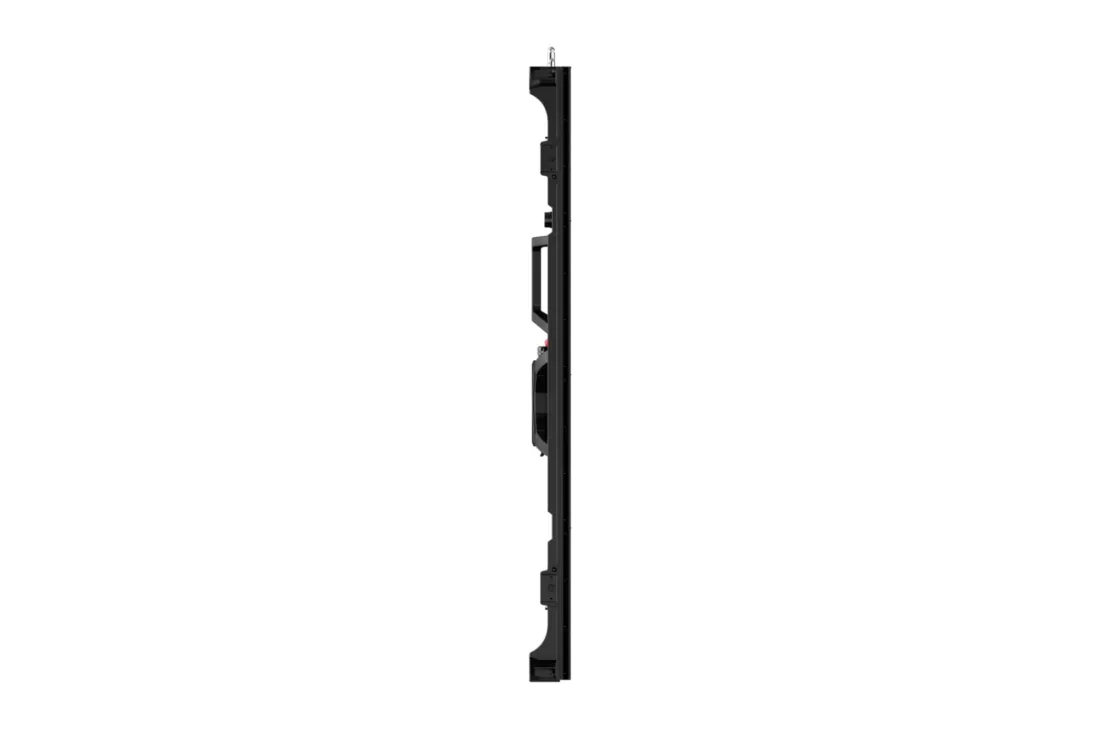

- Cabinet Dimensions (W × H × D, mm)
- 500 × 1,000 × 68
-
- Cabinet Surface Area (m²)
- 0.500
- Weight per Cabinet (kg/Cabinet)
- 12.0
-
- Weight per Square Meter (kg/m²)
- 24.0
- Physical Pixel Density (pixels/m²)
- 112,896
-
- Flatness of Cabinet (mm)
- 0.5
- Cabinet Material
- Die Casting Aluminum
-
- Service Access
- Front or Rear
-
- Max. Brightness (After Calibration)
- 1,000
- Color Temperature (K)
- 3,200-9,300
-
- Visual Viewing Angle (H × V)
- 160 × 140
- Brightness Uniformity
- 97%
-
- Color Uniformity
- ±0.003 Cx,Cy
- Contrast Ratio (Typ.)
- 5,000 : 1
-
- Processing Depth (bit)
- 16 (HDR10, HDR10 Pro)
-
- Power Consumption (W/Cabinet, Max.)
- 300
- Power Consumption (W/Cabinet, Avg.)
- 100
-
- Power Consumption (W/m², Max.)
- 600
- Power Consumption (BTU/Cabinet, Max.)
- 1,024
-
- Power Consumption (BTU/Cabinet, Avg.)
- 341
- Power Consumption (BTU/m², Max.)
- 2,047
-
- Power Supply (V)
- 100 to 240
- Frame Rate (Hz)
- 50 / 60
-
- Refresh Rate (Hz)
- ≥3,840
-
- Lifetime (Half brightness)
- 100,000
- Operating Temperature (°C)
- -20 to +40
-
- Operating Humidity
- 10-90% RH
- IP Rating Front / Rear
- IP5X / IP5X
