22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
- For Business
- B2B Commercial
- Information Display
- Digital signage
- LG 22″ Full HD Digita...

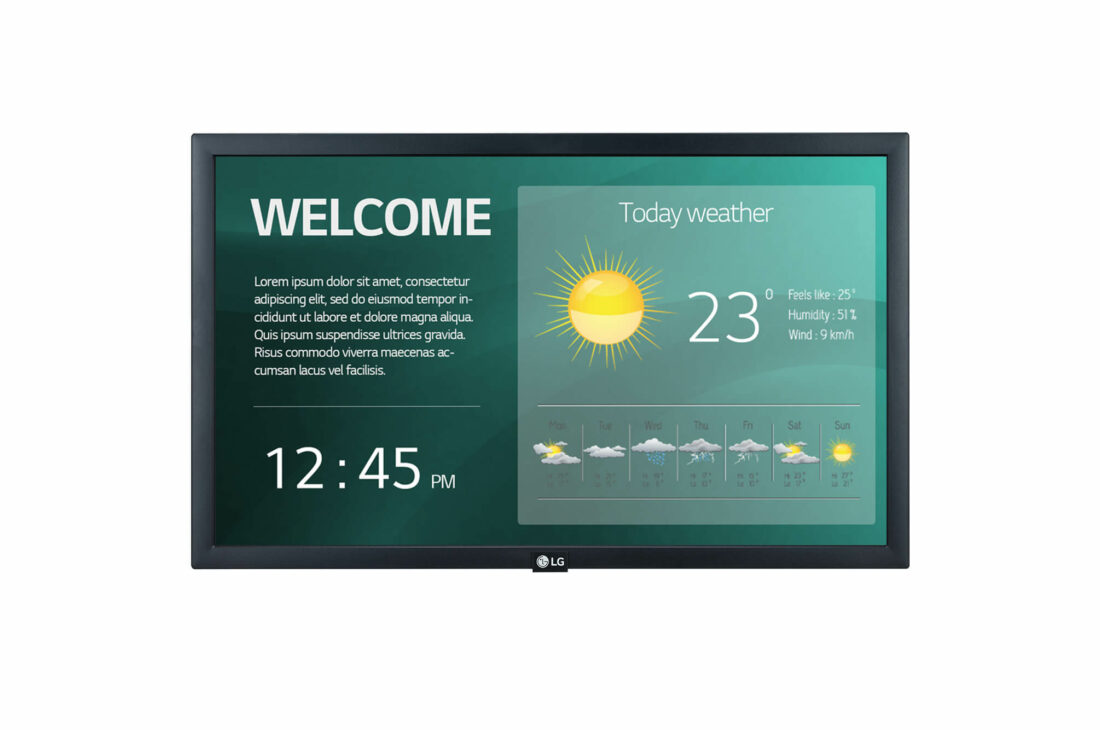

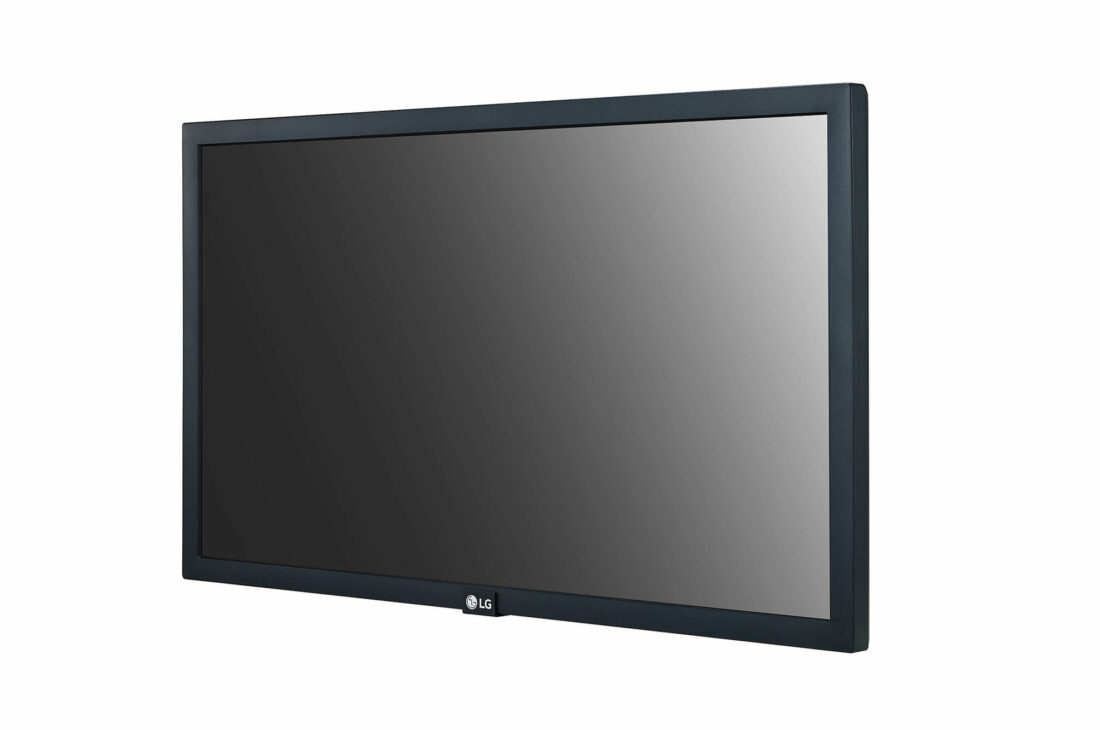

22SM3G-B
LG 22″ Full HD Digital Signage
Key Features
- Brightness(Typ.) : 250 cd/m²
- Bezel : 16.3mm

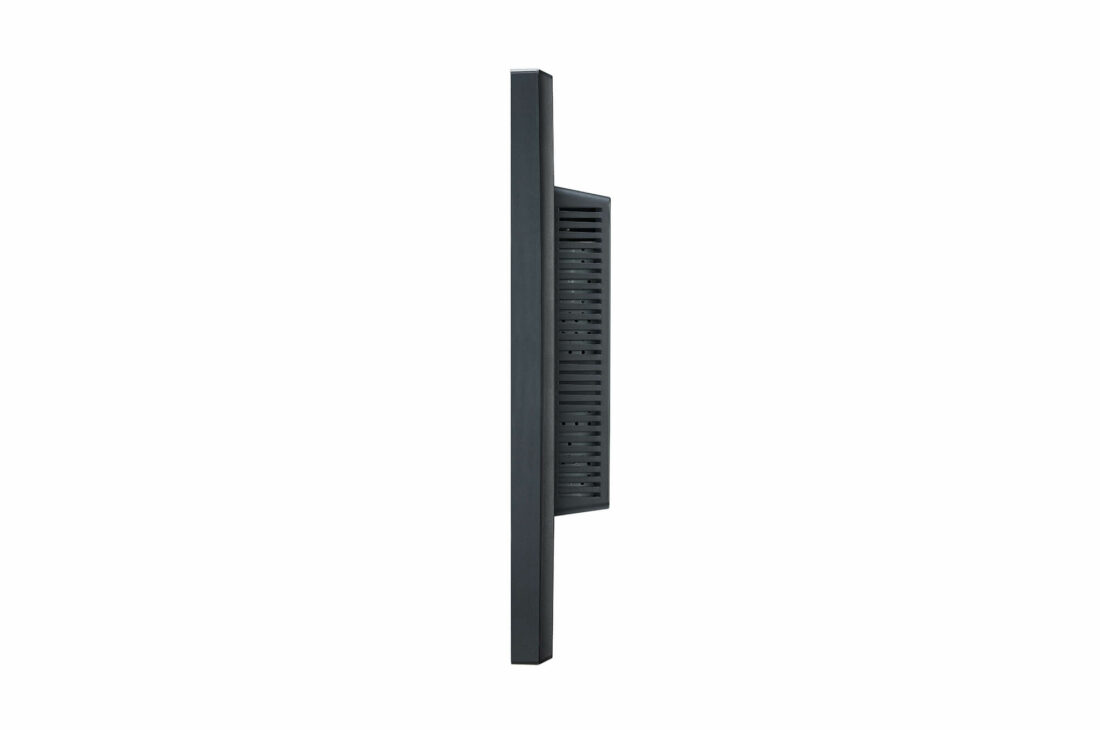

- Depth : 53.8mm
- Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
- USB Plug & Play, Built-in Wi-Fi
22SM3G-B
LG 22″ Full HD Digital Signage
Features
Tech Specs
Resources
Contact us
GGEAR Commercial
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

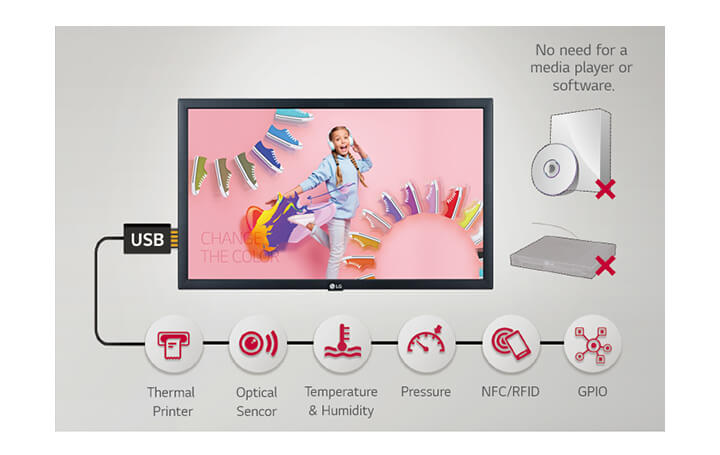

Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

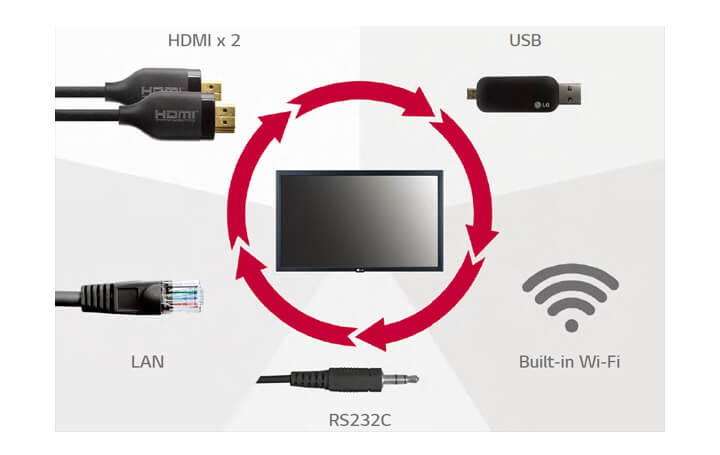

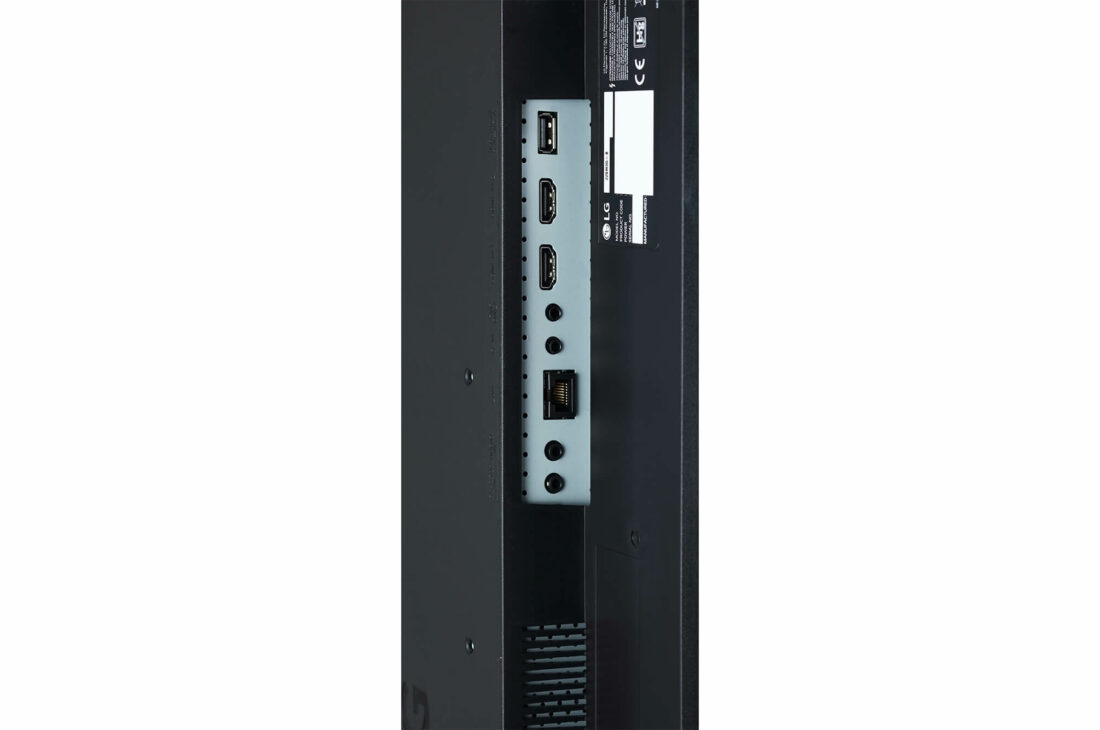

A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.
Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
Wireless Solution
22SM3G operates as a virtual router which can be a wireless access point for mobile devices.
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

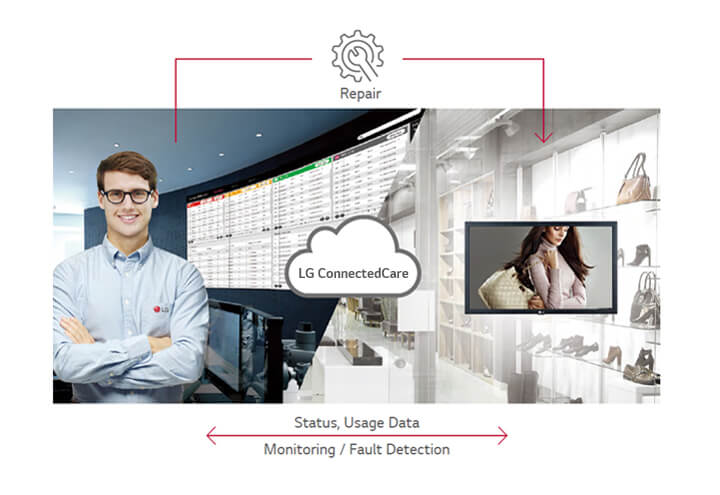

Real-time Care Service with LG ConnectedCare
The maintenance gets easier and faster with the optional service LG ConnectedCare*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
-
Panel
Panel spec Screen Size 21.5” Panel Technology IPS Aspect Ratio 16 : 9 Native Resolution 1,920 x 1,080 (FHD) Refresh Rate 60 Hz Brightness (Typ., cd/m²) 250 Contrast Ratio 1,000 : 1 Viewing Angle (H x V) 178 x 178 Response Time 14ms (G to G) Surface Treatment (Haze) 25 % Life Time (Min.) 30,000 Hrs Operation Hours (Hours / Day) 16 / 7 Portrait / Landscape Yes / Yes -
Connectivity
Connectivity spec Input HDMI (2, HDCP2.2), USB 2.0 Type A, Audio In Output - External Control RS232C In (Phone-jack), RJ45 (LAN) In, IR In -
Mechanical Specification
Mechanical Specification spec Bezel Color Black Bezel Width 16.3 mm (Even Bezel) Weight (Head) 3.34 kg Packed Weight 4.74 kg Monitor Dimension (W × H × D) 510.3 x 302.1 x 53.8 mm Carton Dimensions (W × H × D) 565.0 x 357.0 x 103.0 mm Handle No VESA™ Standard Mount Interface 100 x 100 mm -
Feature
Feature spec Key Feature Internal Memory 8GB, Built-in Wi-Fi, Temperature Sensor, Local Key Operation, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), PIP, PBP (2), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Crestron Connected® (Network based control), Smart Energy Saving, PM Mode, Wake on LAN,Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Server Setting, webRTC, Pro:Idiom -
Environment Conditions
Environment Conditions spec Operation Temperature 0 °C to 40 °C Operation Humidity 10 % to 80 % -
Power
Power spec Power Supply AC 100-240 V~, 50 / 60 Hz Power Type Built-In Power Power Consumption (Typ. / Max.) 30 W / 33 W Power Consumption (Smart Energy Saving) 15 W ± 5 % -
Certification
Certification spec Safety CB / NRTL EMC FCC Class “A” / CE ErP Yes (EU Only) ePEAT (US Only) No -
OPS Compatibility
OPS Compatibility spec OPS Type Compatible No OPS Power Built In No -
Software Compatibility
Software Compatibility spec Content Management Software SuperSign CMS Control and Monitoring Software SuperSign Control / Control+ LG ConnectedCare Yes (The availability of the “LG ConnectedCare” service differs by region.) -
Sound
Sound spec Speaker Yes (1 W x 2 ea) -
Accessory
Accessory spec Basic Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
