32SM5J-B

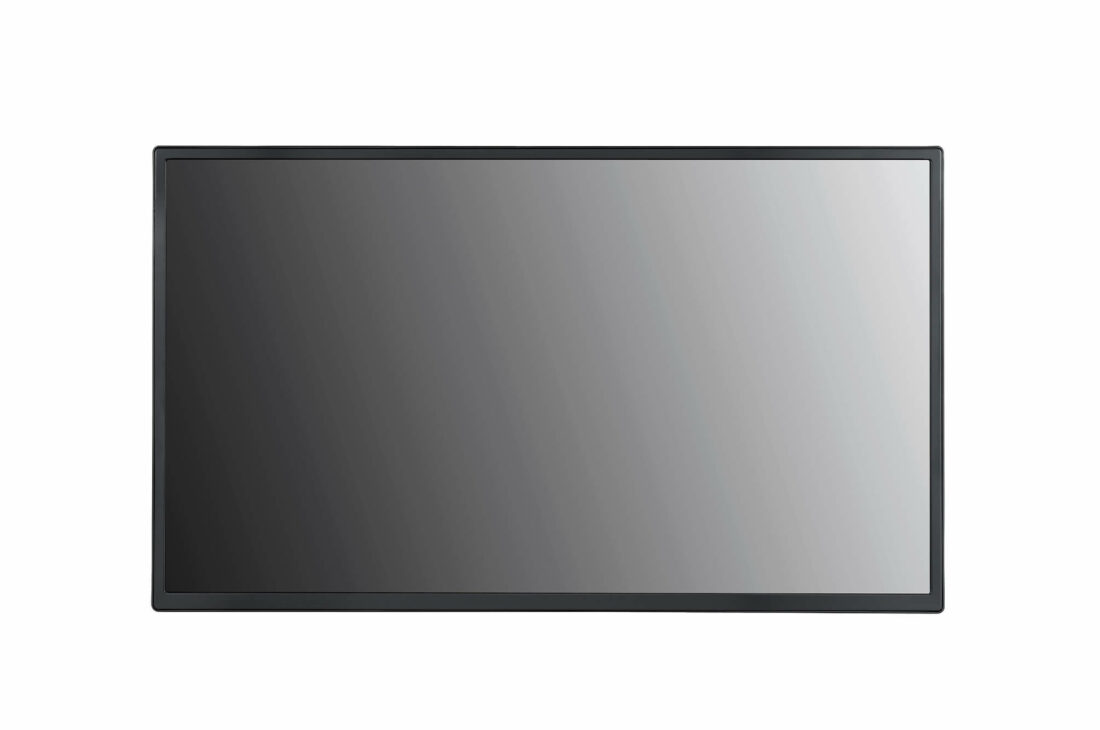

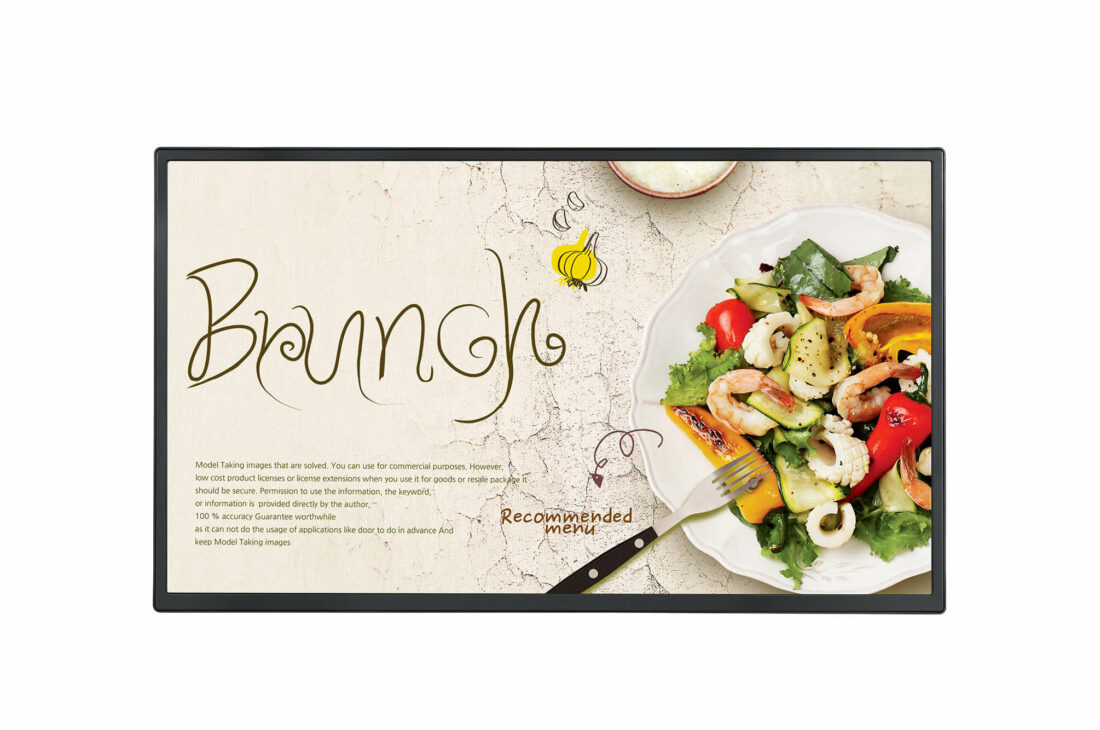

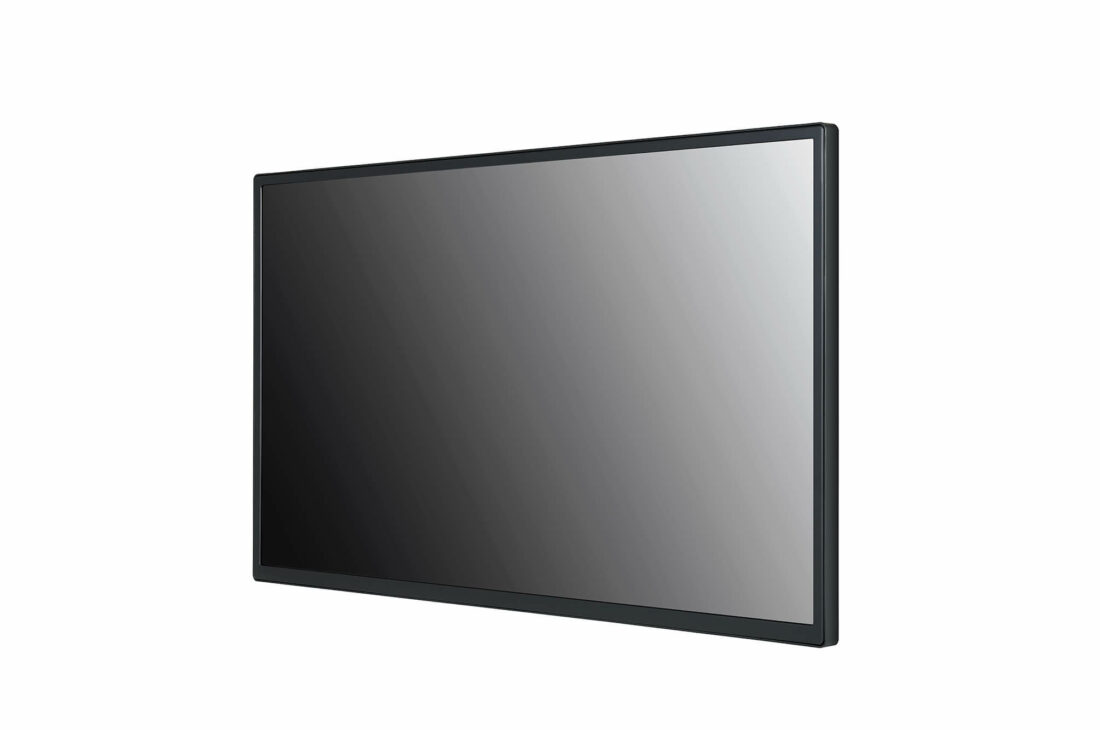

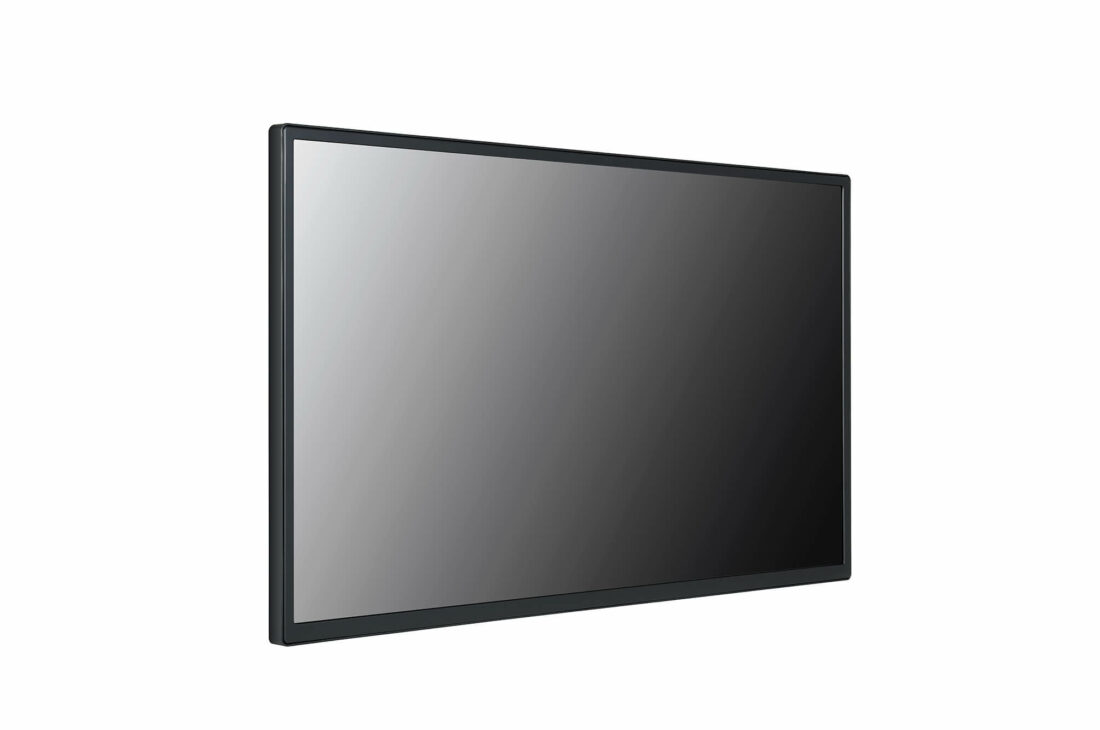

LG 32″ Full HD Digital Signage
Key Features
- Brightness(Typ.) : 400 cd/m²
- Bezel : 13 mm (T/R/L), 18 mm (B)
- Depth : 55.5 mm
- Interface : HDMI(3) /USB 2.0/ RS232C/ RJ45/ IR / Audio Out
- Built-in Speaker : 10W + 10W
32SM5J-B
LG 32″ Full HD Digital Signage
Features
Tech Specs
Resources
Contact us
GGEAR Commercial
High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC and web engine, is available on SM5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
Various Sensor Connection
LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
Mobile & Web Monitoring
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.
* The mobile devices need be connected with the Signage IP address and can control one Signage at a time.
** Control Manager is optimized for Google Chrome 56 version and above.

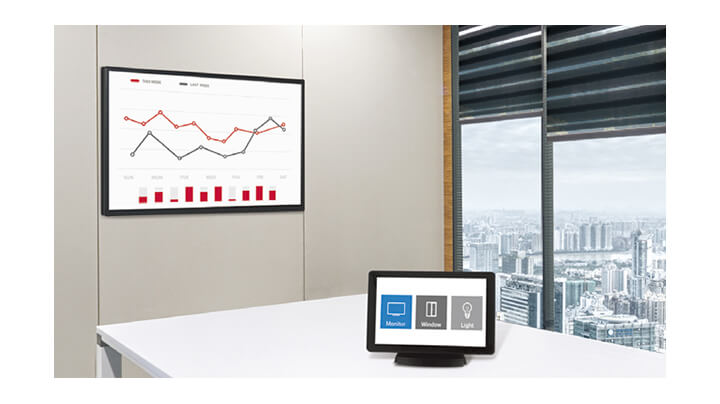

Compatible with AV Control System
The SM5J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network based control
Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.
LG's Simple Advertisement Helper, Promota
Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more while recommending easy-to-use templates relevant to your industry.
* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)
Real-Time Promotion
With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content Sharing
Content Mirroring among devices is available on a Wi-Fi network.
Wireless Access Point
The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.
-
Panel
Panel spec Screen Size 32" Panel Technology IPS Native Resolution 1,920 × 1.080 (FHD) Brightness (Typ.) 400 nit Contrast Ratio 1,100 : 1 Dynamic CR 1,000,000 : 1 Viewing Angle (H x V) 178 × 178 Response Time 10 ms (G to G) Surface Treatment (Haze) 1% Operation Hours (Hours / Day) 24/7 Orientation Portrait / Landscape -
Connectivity
Connectivity spec Input HDMI (3, HDCP 2.2), USB 2.0 ( Type A) Output Audio Out (Off / Fixed / Variable) External Control RS-232C In/Out (Phone-jack Type), RJ45 In (LAN), IR In (Phone-jack Type) -
Mechanical Specification
Mechanical Specification spec Bezel Color Black Bezel Width 13 mm (T/R/L), 18 mm (B) Weight (Head) 5.7 kg Weight (Head+Stand) 6.5 kg Monitor Dimension (W × H × D) 729.4 mm × 428.9 mm × 55.5 mm Monitor Dimensions with Stand (W × H × D) 729.4 mm × 481 mm × 154.2 mm VESA™ Standard Mount Interface 200 × 200 mm -
Feature
Feature spec Key Feature Internal Memory 8 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Sever Setting, webRTC, Pro:Idiom -
Environment Conditions
Environment Conditions spec Operation Temperature 0°C to 40°C Operation Humidity 10% to 80% -
Power
Power spec Power Supply AC 100-240 V~, 50/60 Hz Power Type Built-In Power -
Power Consumption
Power Consumption spec Typ./Max. 55 W / 75 W BTU (British Thermal Unit) 187.67 BTU/Hr (Typ.), 255.911 BTU/Hr (Max.) -
Certification
Certification spec Safety CB / NRTL EMC FCC Class “A” / CE ErP No -
Software Compatibility
Software Compatibility spec SuperSign CMS Yes SuperSign Control / Control+ Yes SuperSign WB Yes SuperSign Media Editor Yes LG ConnectedCare Yes Promota Yes (Not available for Europe/CIS Region) -
Sound
Sound spec Speaker Yes (10 W × 2 EA) -
Accessory
Accessory spec Basic Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS-232C Gender Optional Stand (ST-322T), Wall Bracket (LSW230B), VESA Adapter (AM-B220S)
