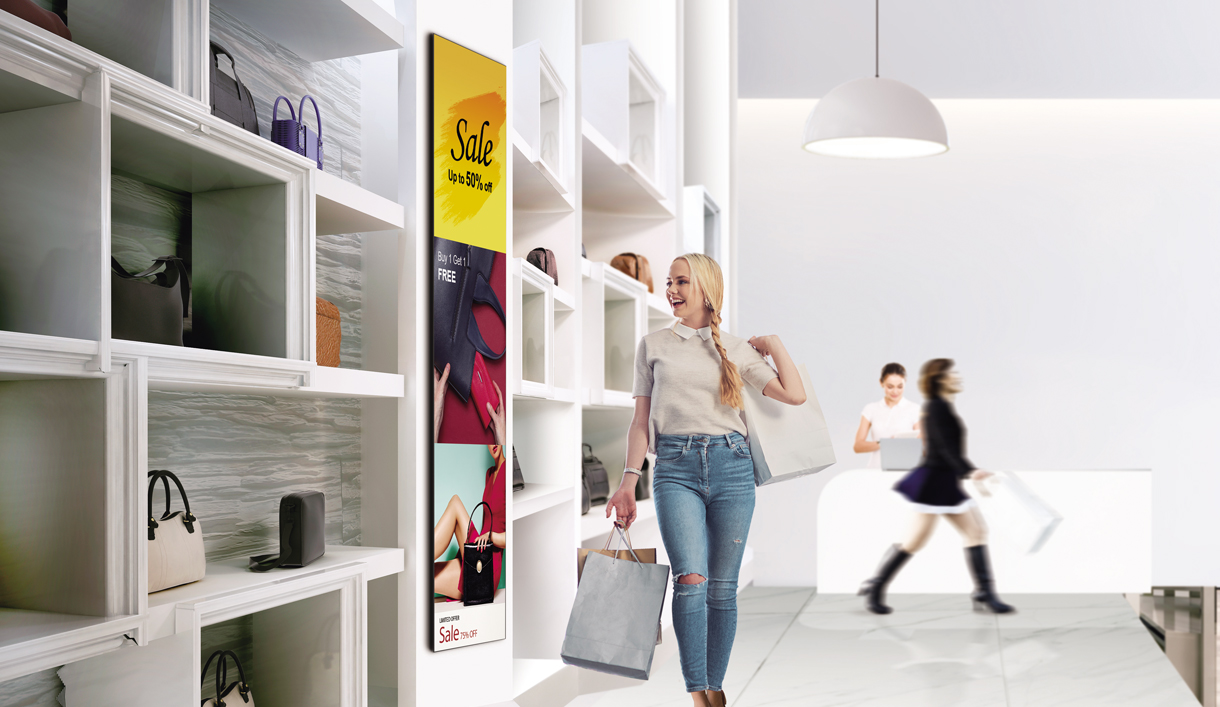

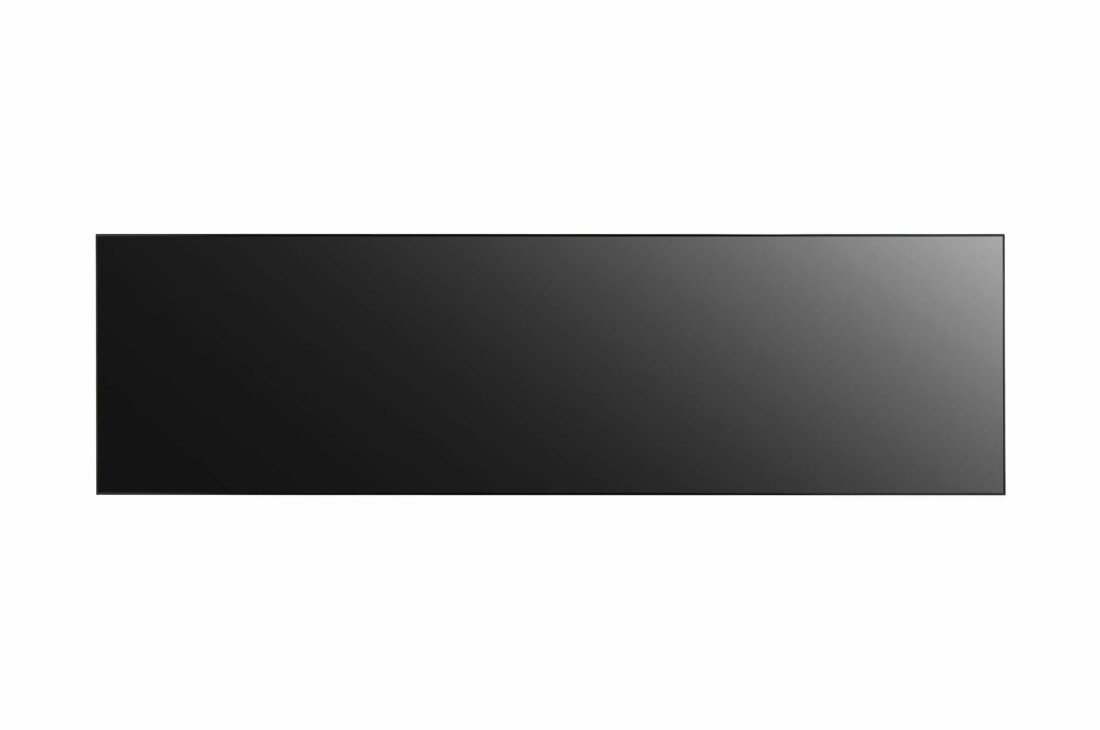

The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.

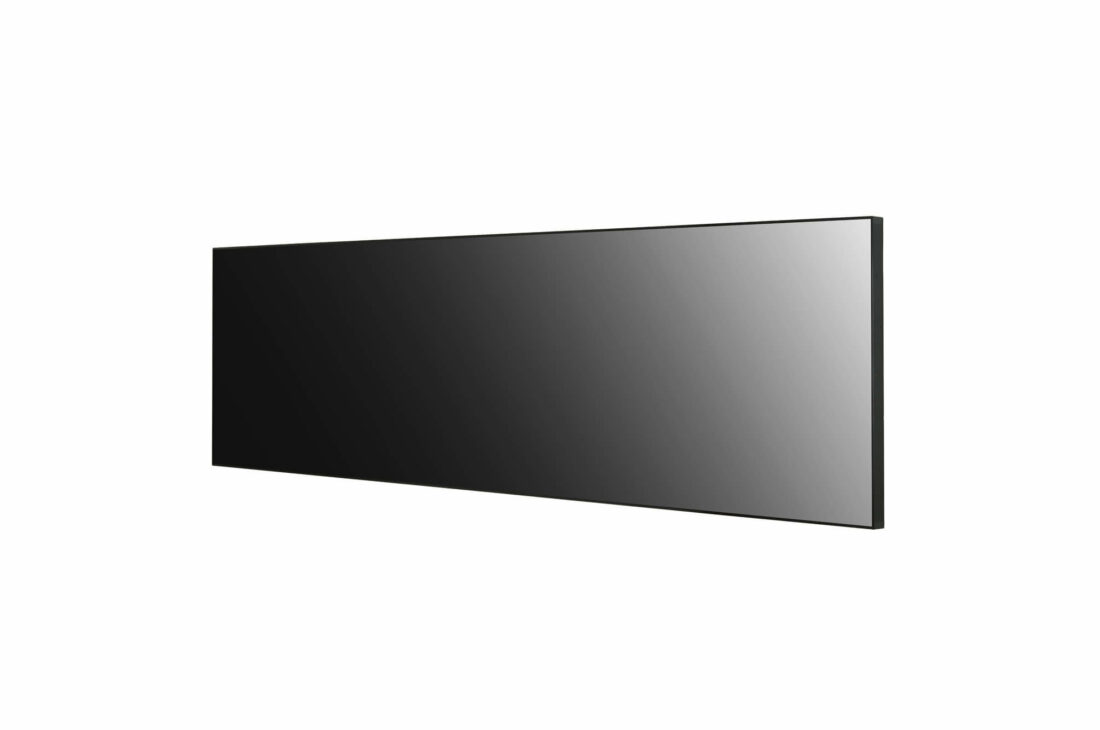

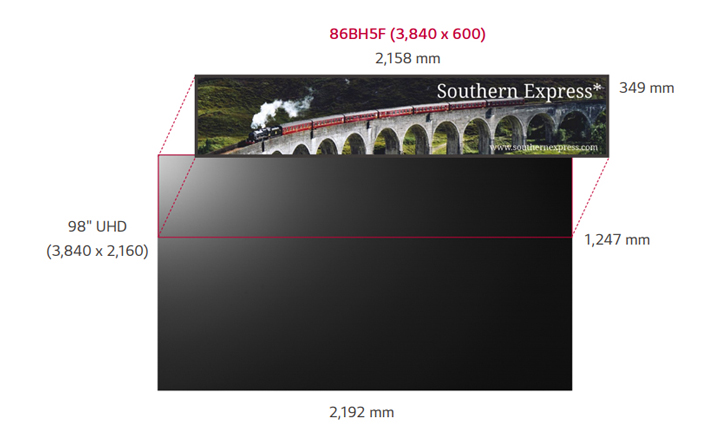

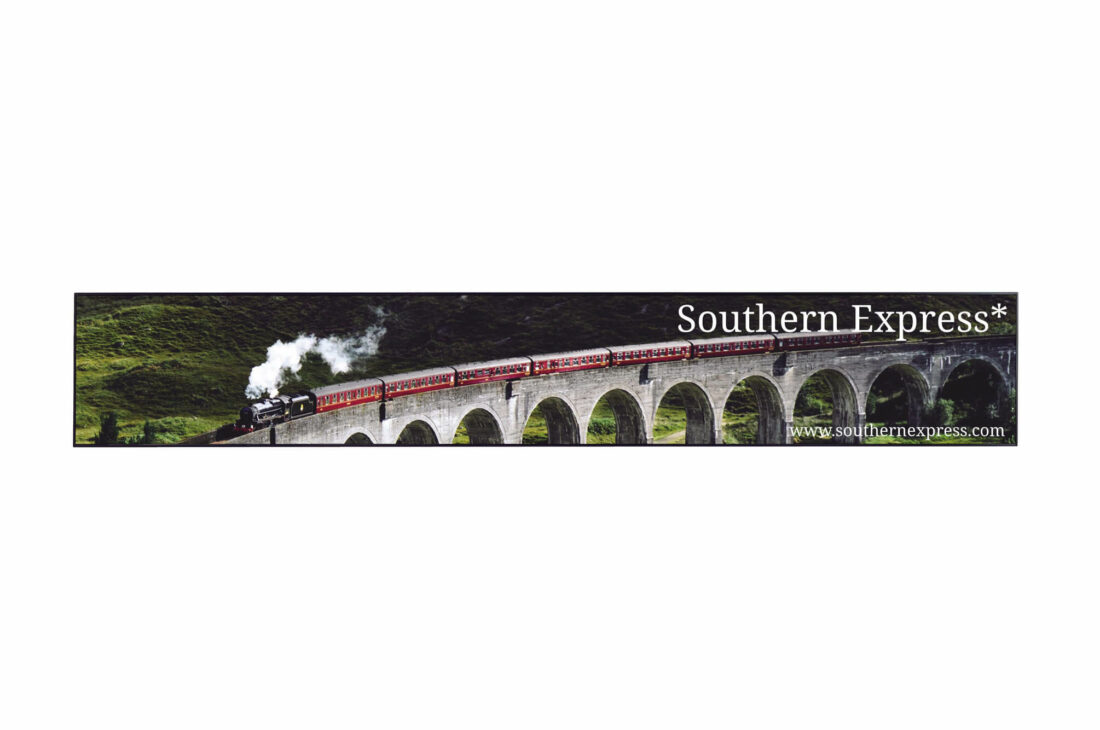

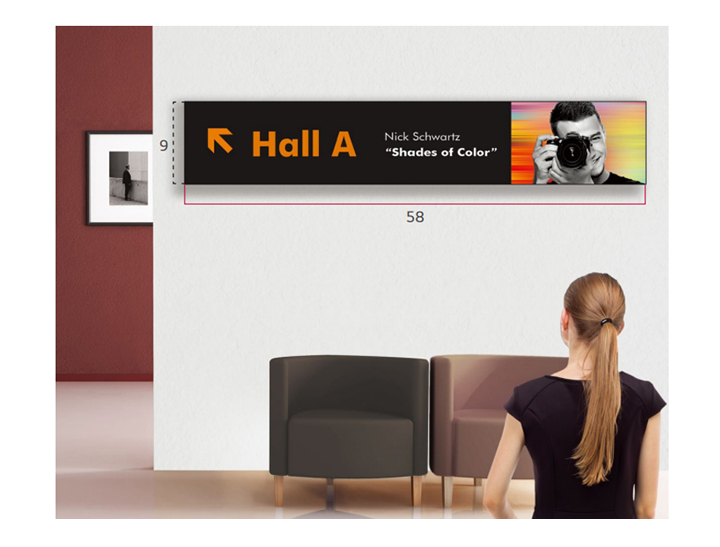

It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

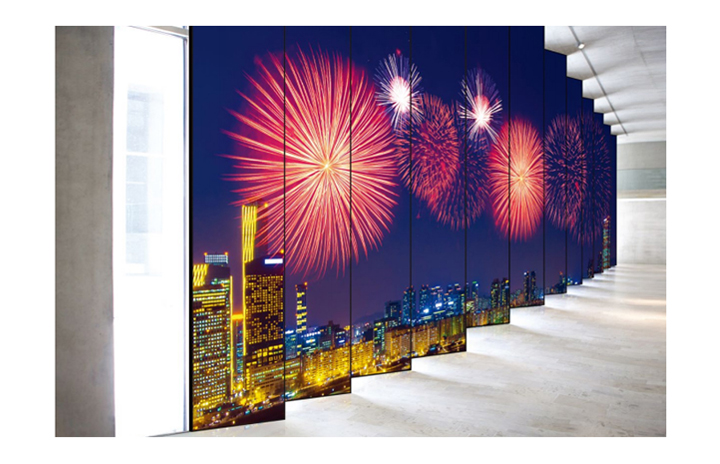

The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

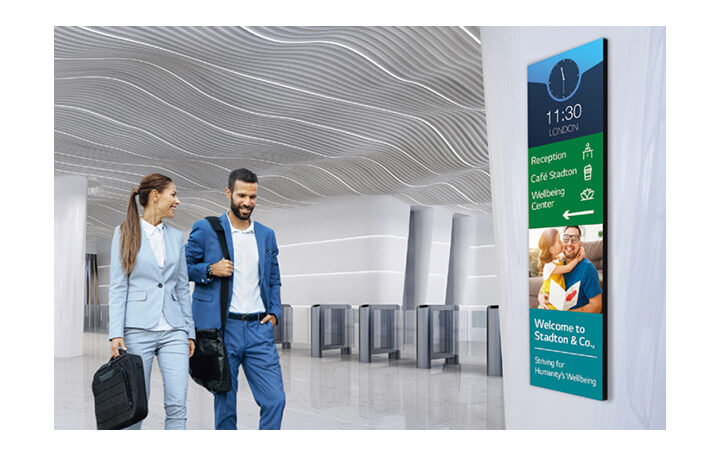

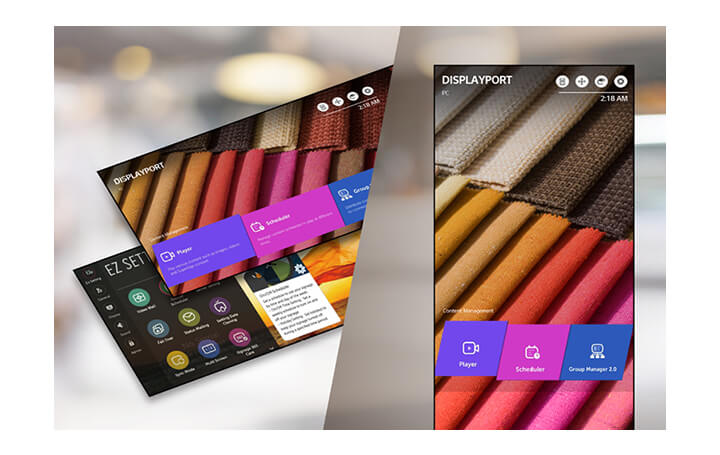

The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.
*OSD : On Screen Display

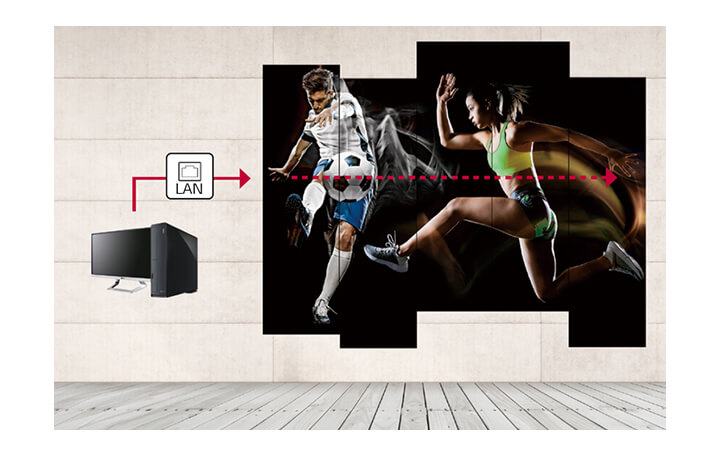

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
Panel
| Screen Size | 86" |
|---|---|
| Panel Technology | IPS |
| Aspect Ratio | 58:9 |
| Brightness (Typ., cd/m²) | 500 |
| Contrast Ratio | 1,100:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | 3% |
| Lifetime | 50,000 Hrs (Typ.) |
| Operation Hours | 24 Hrs / 7 Days |

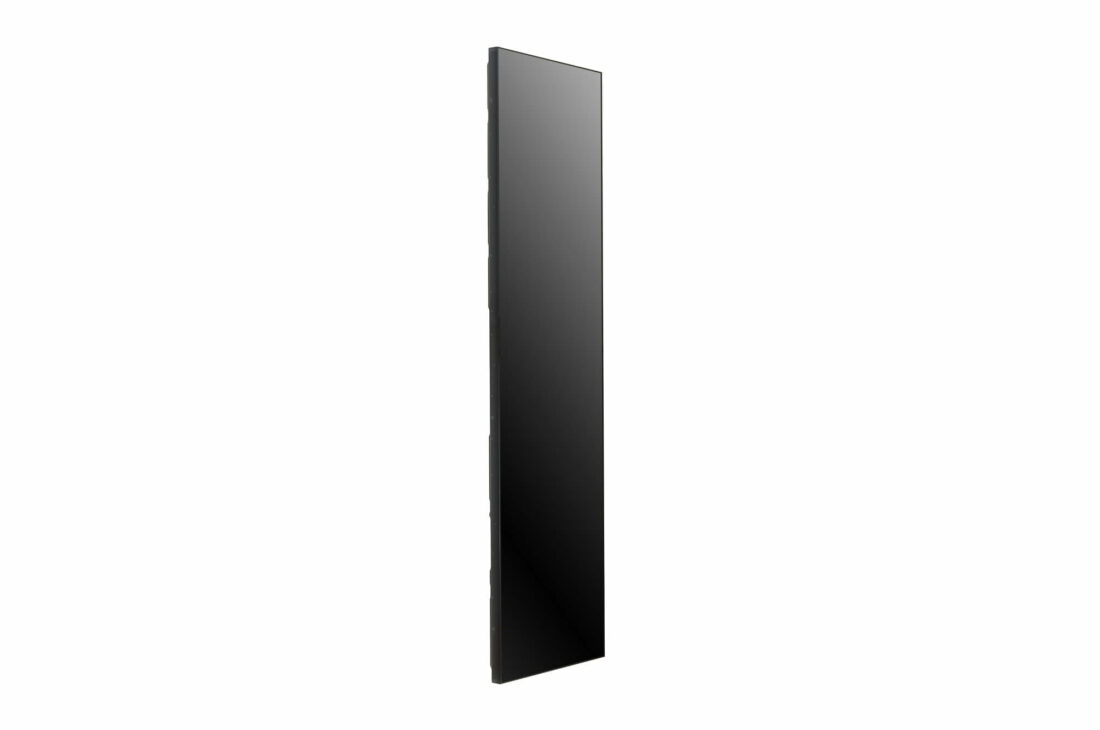

| Orientation | Landscape & Portrait |
Connectivity
| Input | HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) |
|---|---|
| Output | DP, Audio |
| External Control | RS232C In/out, RJ45 (LAN) In/out, IR In |
Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width | 4.4 mm (L/R), 5.9 mm (T/B) |
| Weight (Head) | 20.5 kg |
| Packed Weight | 38.2 kg |
| Monitor Dimension (W × H × D) | 2,158.3 x 348.5 × 81.7 mm |
| Carton Dimensions (W × H × D) | 2,290 x 599 x 228 mm |

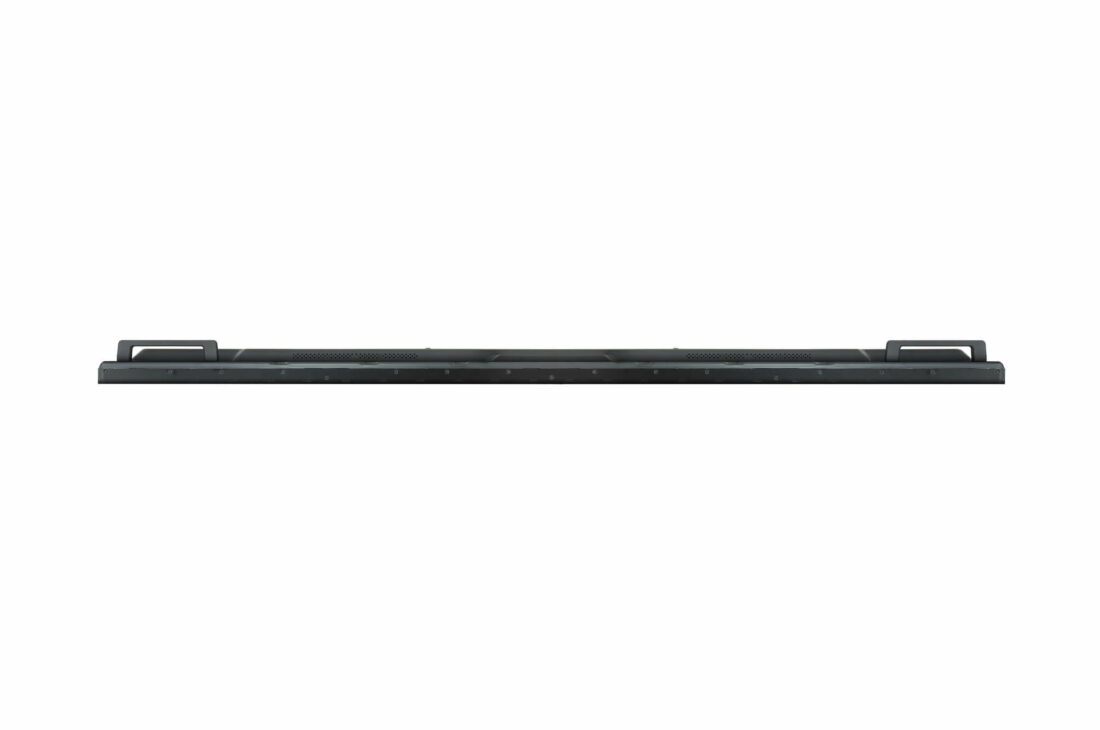

| Handle | Yes |
| VESA™ Standard Mount Interface | 600 x 200 mm |
Environment Conditions
| Operation Temperature Range | 0 °C to 40 °C |
|---|---|
| Operation Humidity Range | 10 % to 80 % |
Power
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 220 W / 240 W |
|---|---|
| Smart Energy Saving | 100 W |
Standard (Certification)
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE / KC |
| ErP | Yes (EU Only) |
Media Player Compatibility
| OPS type compatible | Yes (Piggyback) |
|---|
Software Compatibility
| Content Management Software | SuperSign CMS (The SuperSign Editor function is not supported.) |
|---|---|
| Control and Monitoring Software | SuperSign Control/ Control+ |
| LG ConnectedCare | Yes |
Accessory
| Basic | Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR/Light Sensor Receiver, Manual |
|---|---|
| Optional | OPS Kit (KT-OPSF) |
