88BH7G

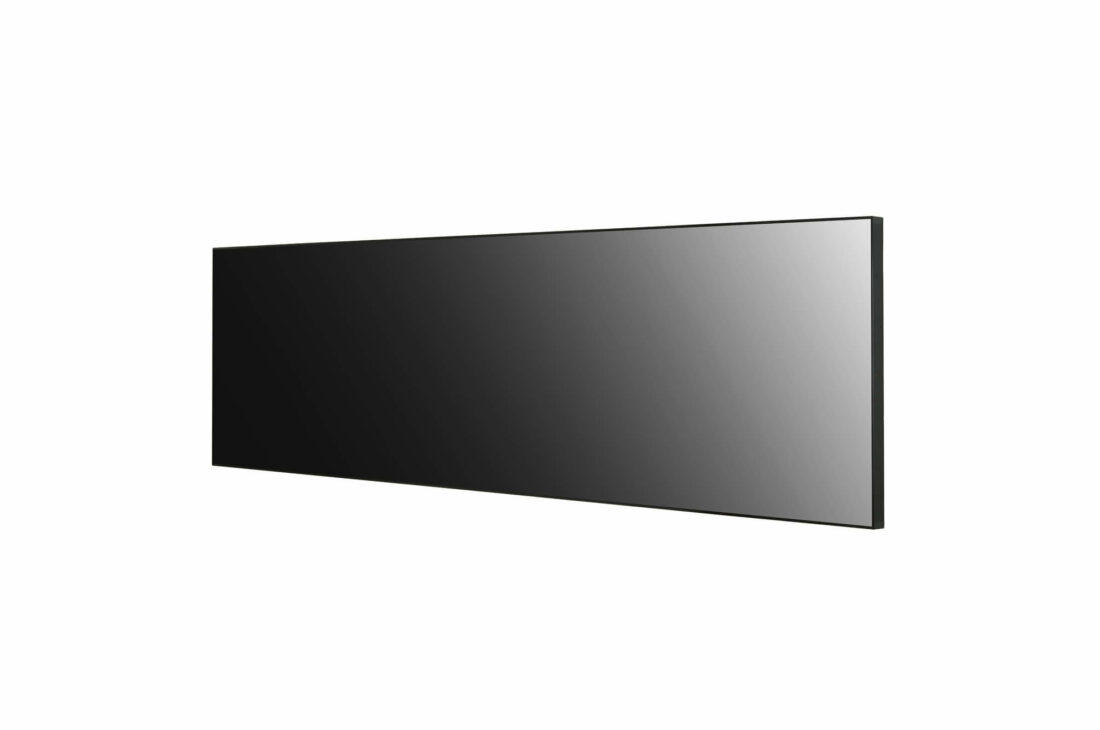

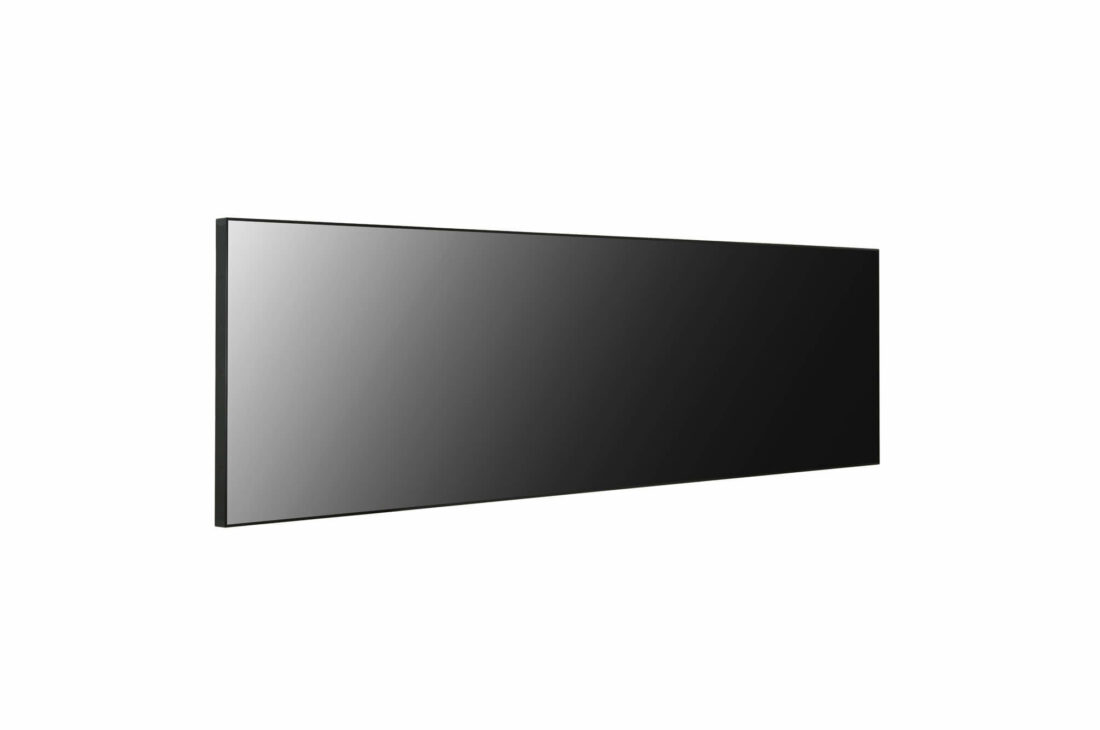

LG 88″ Ultra Stretch Signage

Key Features

  • Brightness(Typ.) : 700 cd/m²
  • Aspect Ratio: 32:9
  • Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
  • Depth: 84.8 mm
  • Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR

88BH7G

LG 88″ Ultra Stretch Signage
Features
Tech Specs
Resources

Contact us

GGEAR Commercial

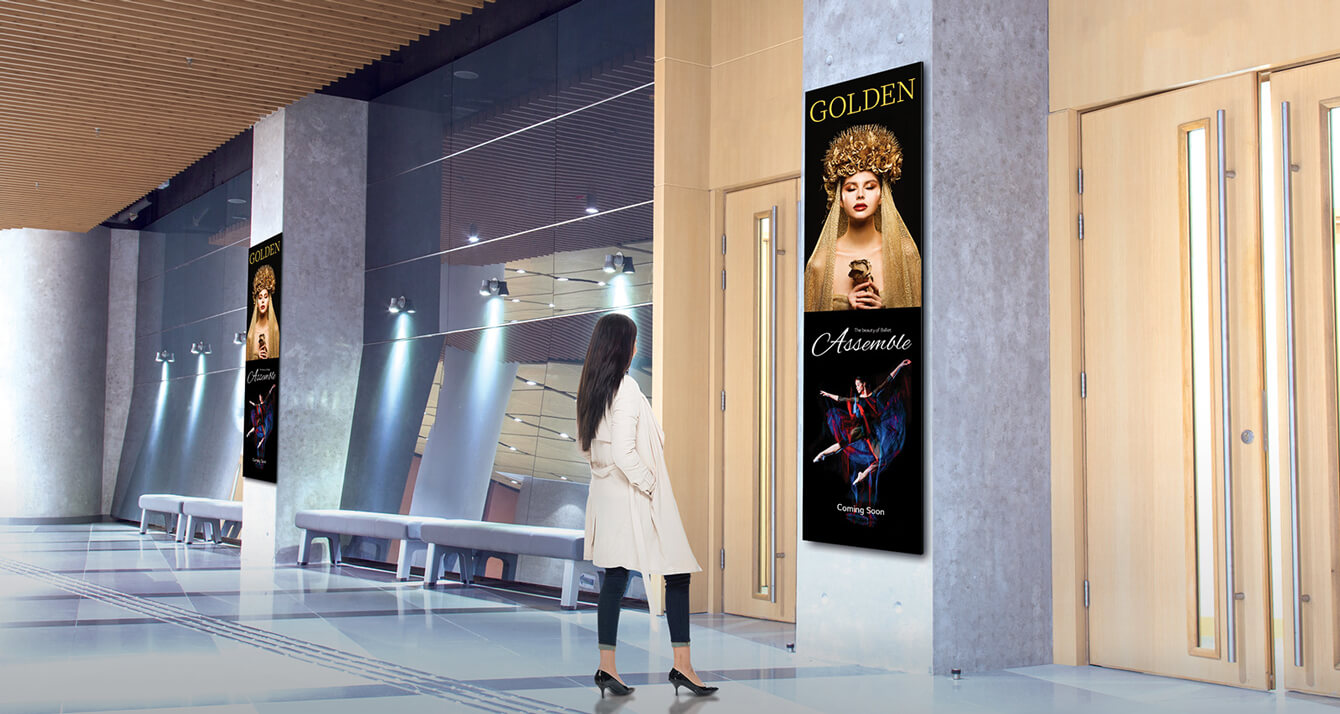

Ultra Stretch Signage, 32:9 Space-Fitting Wide Screen

The 88BH7G is a suitable display for delivering new forms of advertising and multiplexed information in a 32:9 widescreen format that brings you a new experience, captivating customers' attention.

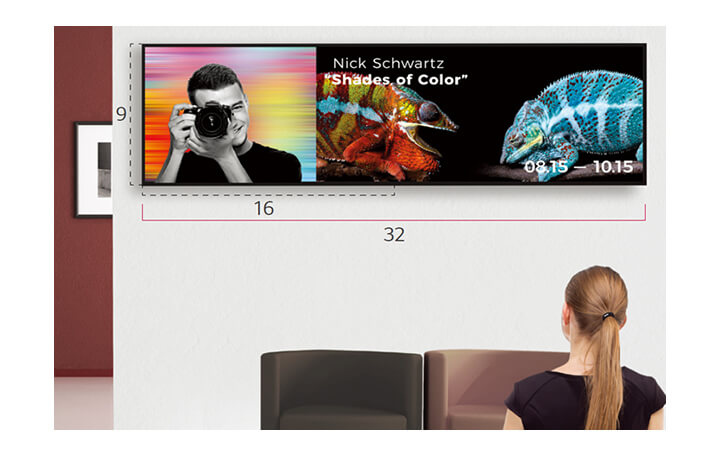

32:9 Extended Wide Format

It is a unique wide screen with 32:9 bar type which is twice as long as the previous 16:9 display, allowing more content and information to be shown on one screen.

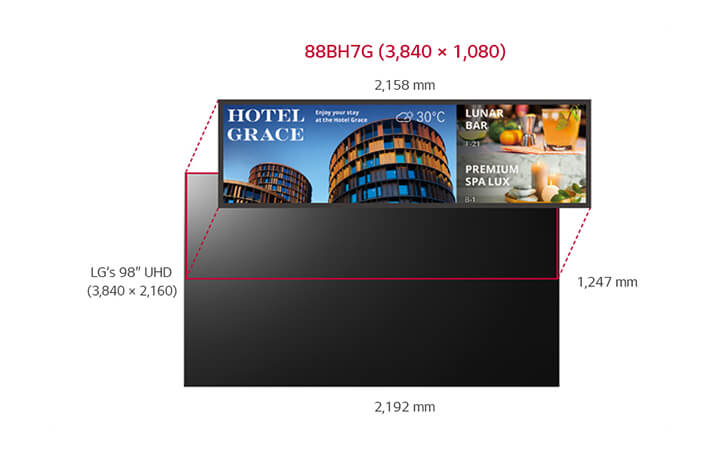

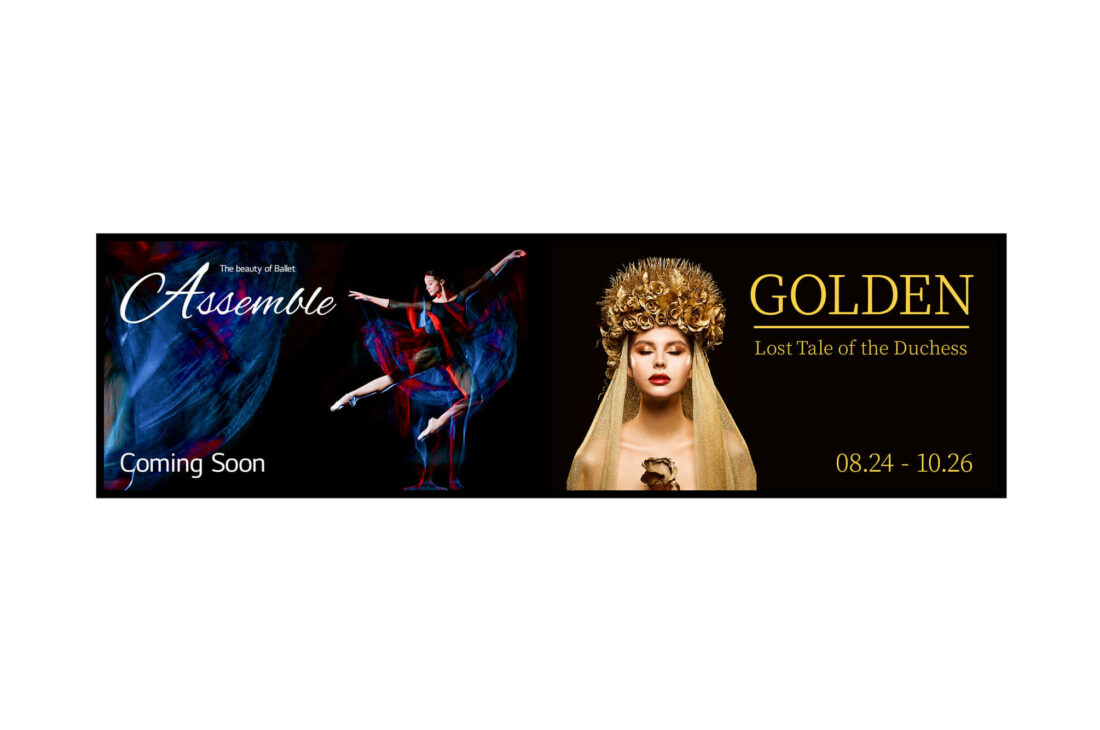

High Picture Quality (3,840 × 1,080)

LG Ultra Stretch display, which is about half the size of a 98-inch UHD display, delivers vivid and clear colors.

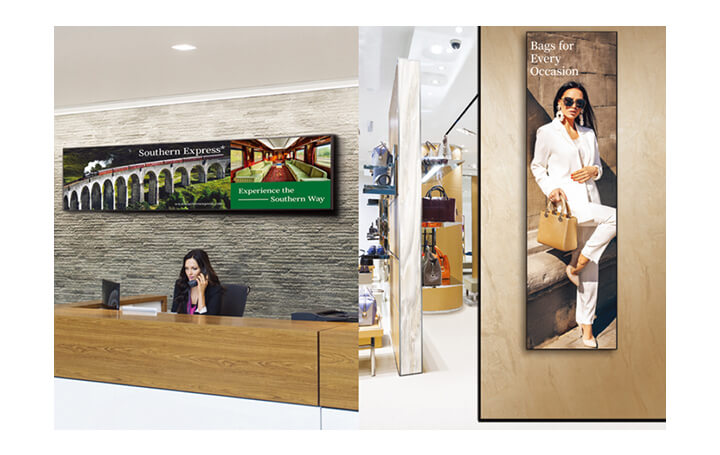

Flexibility for Content Management

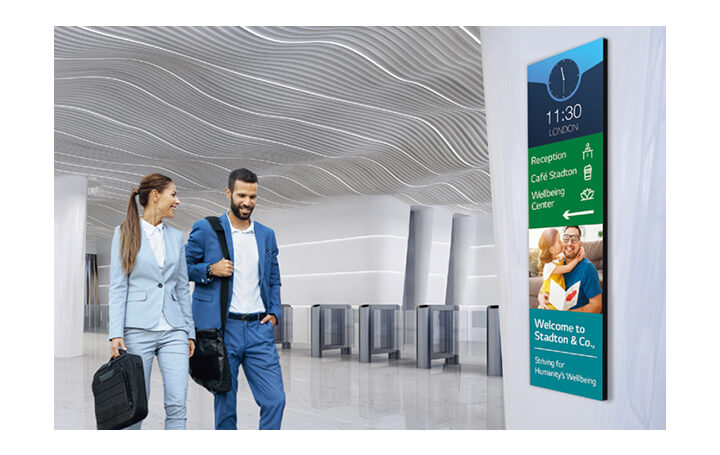

Thanks to its bar type format, it is optimized to show a vertical or horizontal object providing a memorable viewing experiences to the viewer.

Multi Screen Mode with 4PBP

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful to deliver various advertisements or pieces of information at the same time without bezels among them.

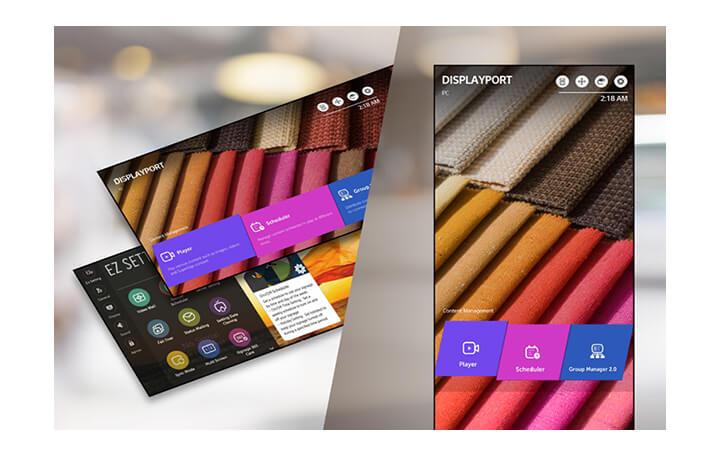

User-friendly Menu

The Ultra Stretch display offers a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, menu can also be adjusted accordingly.

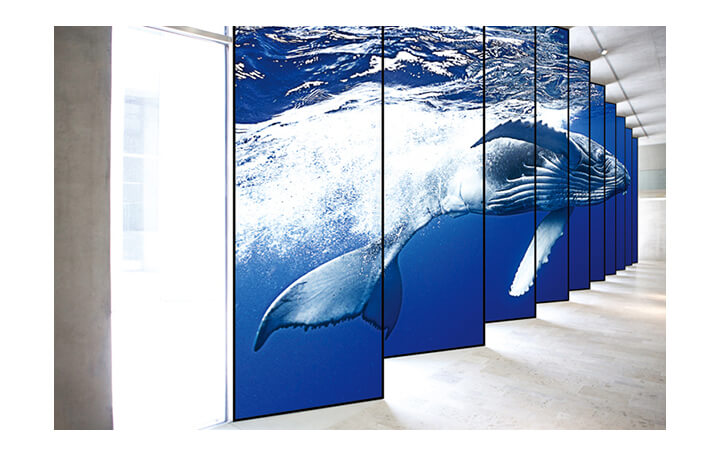

Tiled Scene with Immersive View

The 88BH7G can show a tiled scene by up to 15×15 configuration. It will be a good way to build a large screen or provide visual impacts to customers differently.

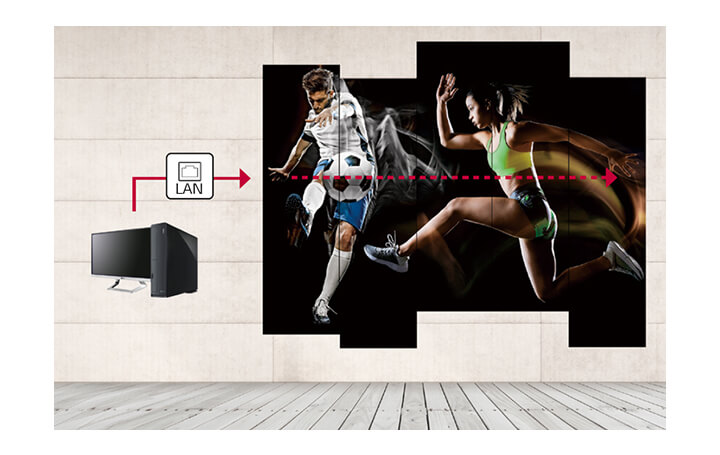

LAN Daisy Chain Management

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware for multiple displays at once.

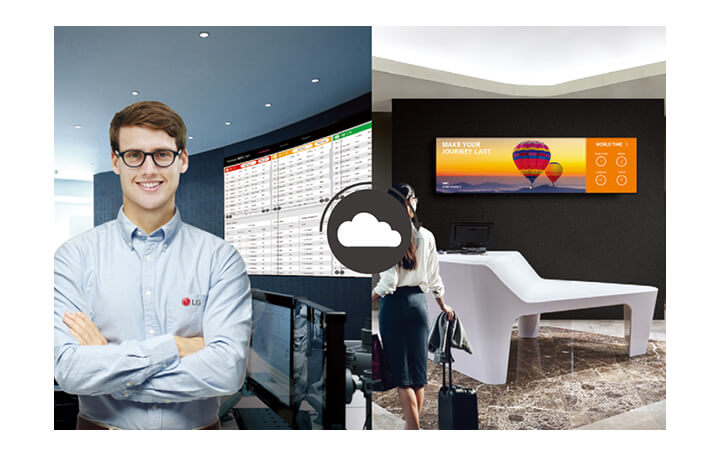

Real-Time Monitoring with LG ConnectedCare

Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

See all Specs

  • Panel

    Panel spec
    Screen Size 88"
    Panel Technology IPS
    Native Resolution 3,840 × 1,080
    Brightness 700
    Contrast Ratio 1,100 : 1
    Dynamic CR 500,000 : 1* The luminosity ratio of Full Black / Full White color on video input condition.
    Color gamut NTSC 72%
    Viewing Angle (H x V) 178 × 178
    Color Depth 1.07 Billion Colors (10 bit)
    Response Time 8 ms (G to G)
    Surface Treatment (Haze) 3%
    Operation Hours (Hours / Day) 24 / 7
    Portrait / Landscape Yes / Yes

  • Connectivity

    Connectivity spec
    Input HDMI (3, HDCP 2.2 / 1.4), DP (HDCP 2.2 / 1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A (2)
    Output DP, Audio
    External Control RS232C In / Out, RJ45 (LAN) In / Out, IR In

  • Mechanical Specification

    Mechanical Specification spec
    Bezel Color Black
    Bezel Width 4.4 mm (R/L), 5.9 mm (T/B)
    Weight (Head) 33.9 kg
    Monitor Dimension (W × H × D) 2,158.3 × 611.2 × 84.8 mm

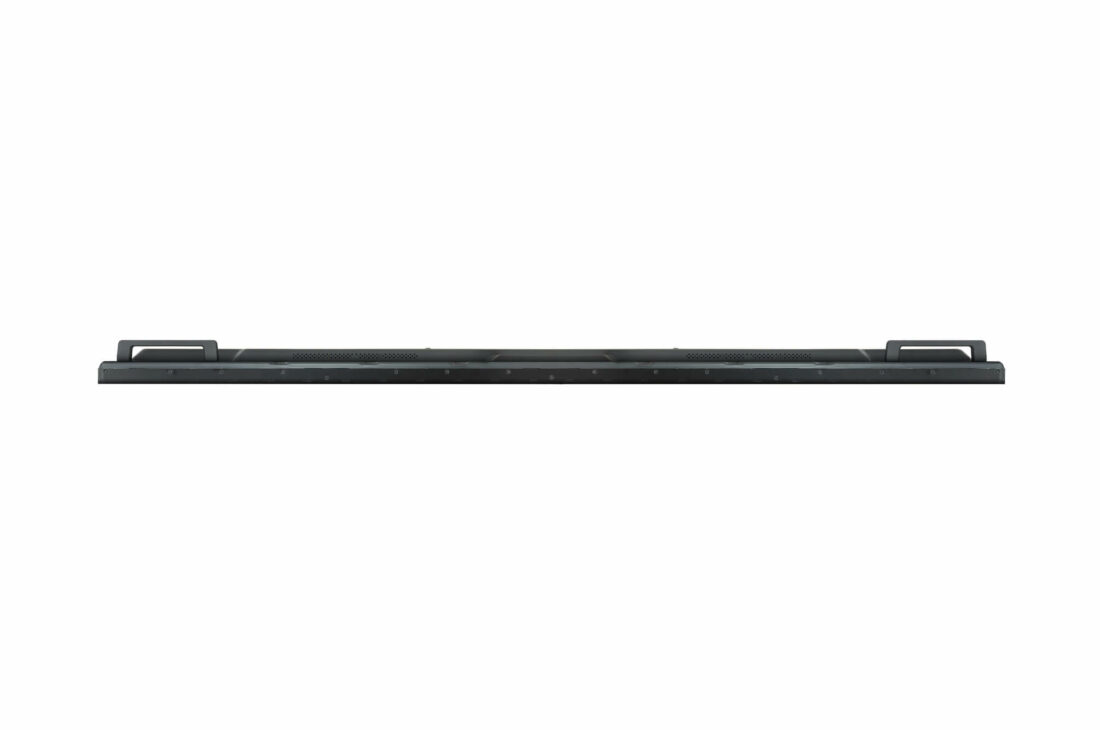

    Handle Yes

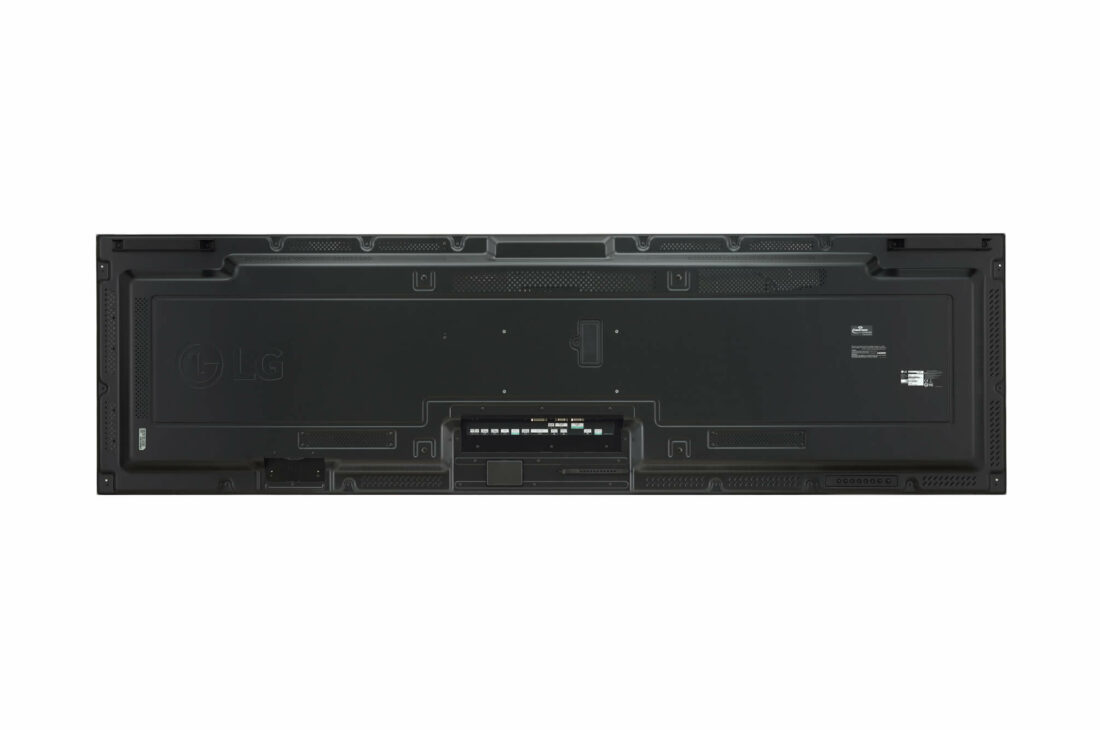

    VESA™ Standard Mount Interface 600 × 400 mm

  • Feature

    Feature spec
    Special Features Internal Memory (8GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, Local Key Operation, webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-Screen (PBP (4)), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 x 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected® (Network based control), Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC (Compatibility may differ by equipment.), SI Server Setting, webRTC, Pro:Idiom

  • Environment Conditions

    Environment Conditions spec
    Operation Temperature Range 0 °C to 40 °C
    Operation Humidity Range 10% to 80%

  • Power

    Power spec
    Power Supply AC 100-240 V ~, 50/60 Hz
    Power Type Built-in Power

  • Power Consumption

    Power Consumption spec
    Typ./Max. 450 W / 530 W
    BTU (British Thermal Unit) 1,535 BTU/Hr (Typ.), 1,808 BTU/Hr (Max.)

  • Certification

    Certification spec
    Safety CB, NRTL
    EMC FCC Class "A" / CE / KC
    ErP Yes

  • OPS Compatibility

    OPS Compatibility spec
    OPS Type Compatible Yes (Piggyback)
    OPS Power Built In No

  • Software Compatibility

    Software Compatibility spec
    Content Management Software SuperSign CMS
    Control and Monitoring Software SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor
    LG ConnectedCare Yes * The availability can differ by region.

  • Sound

    Sound spec
    Speaker No

  • Accessory

    Accessory spec
    Basic Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR / Light Sensor Receiver, Manual
    Optional OPS Kit (KT-OPSF)

Datasheet

Leaflet
icon
88BH7G_Datasheetweb_LG-Ultra-Stretch-Signage_012720210201_134134.pdf
1.82 MB
Download
