LSBC026
LG Indoor LED
Features
Tech Specs

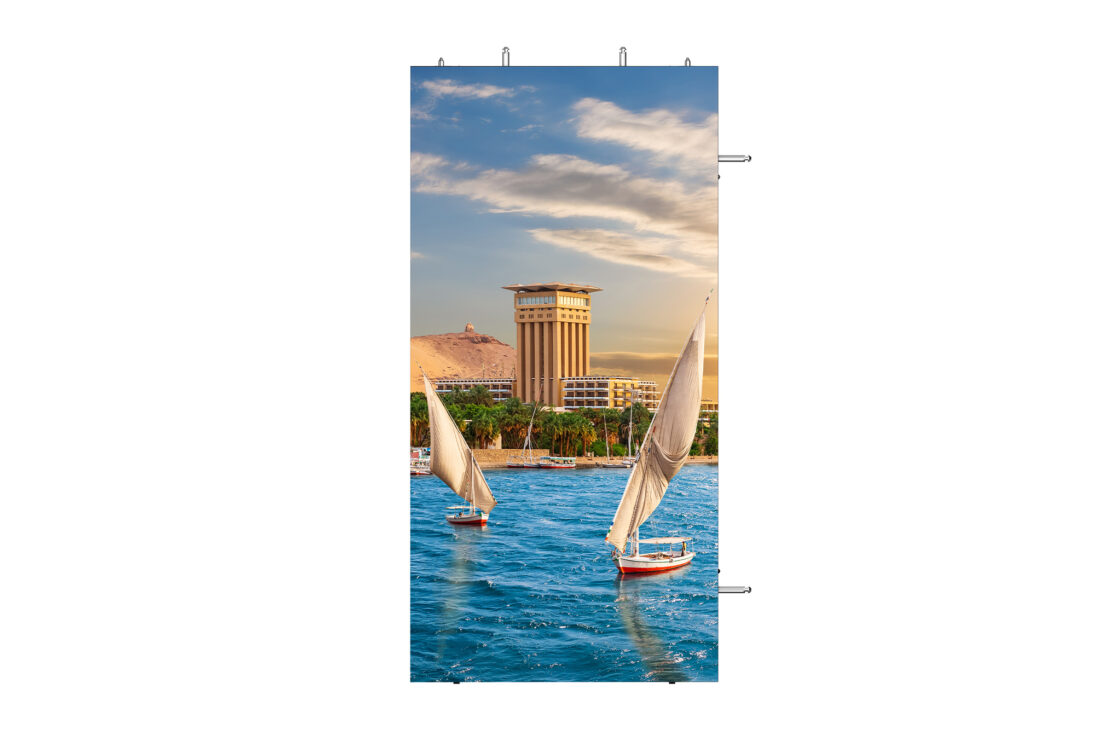

Vivid Color Expression Powered by HDR
With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.

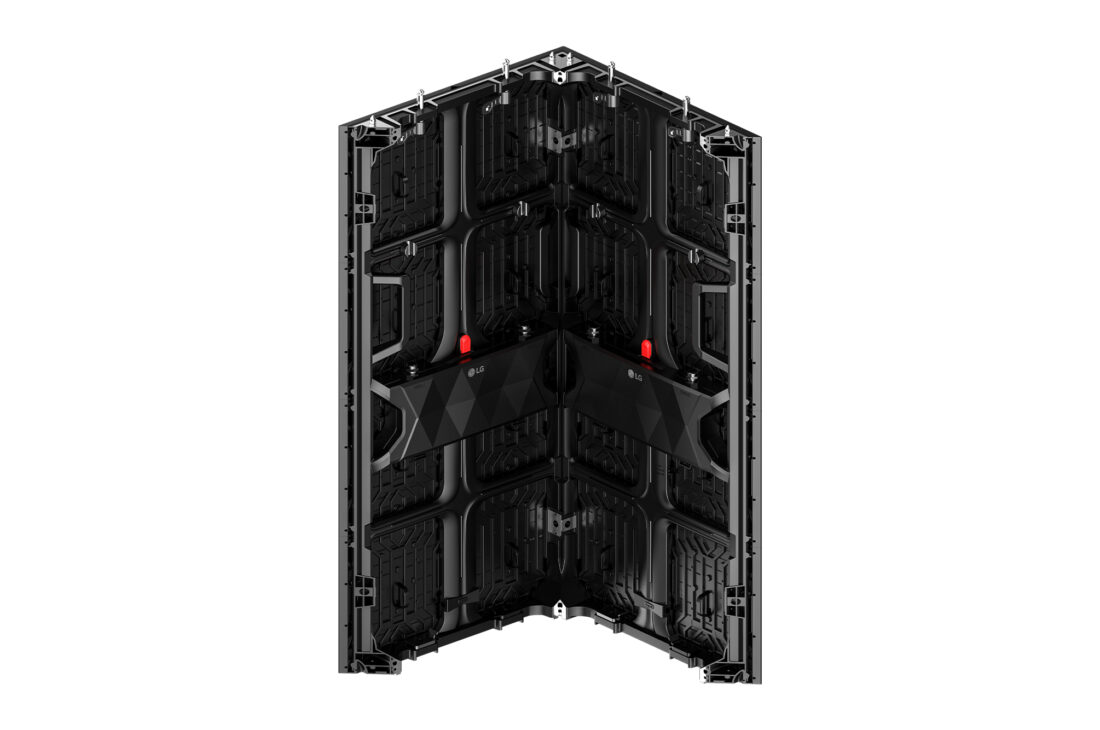

90° Corner Installation Available
Considering the use of corners, the cabinet is designed to stitch out a seamless 90 degree corner screen.

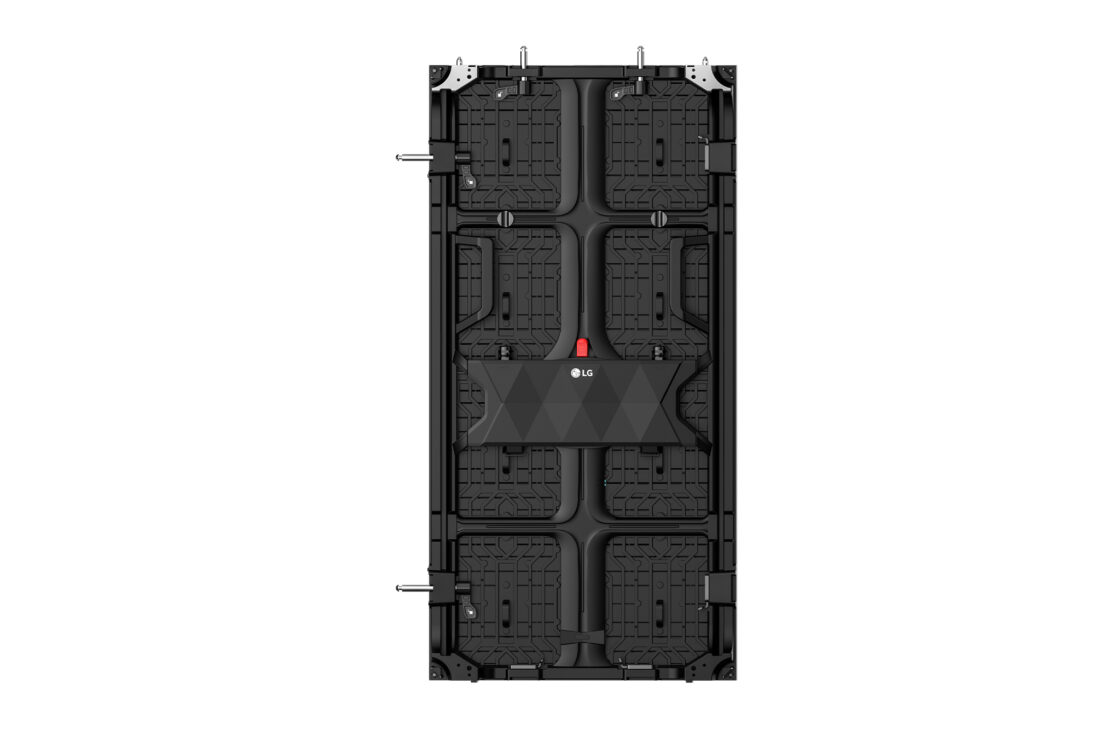

Front or Rear Installation & Maintenance
Easy access to front or rear cabinet for maintenance.

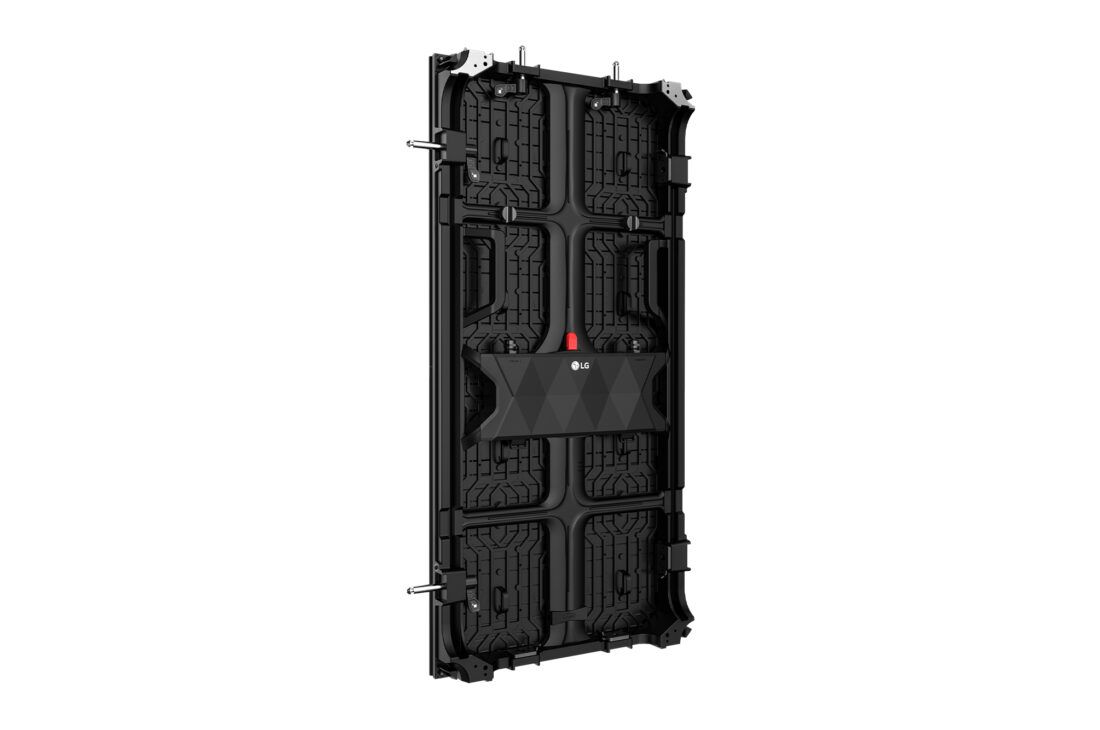

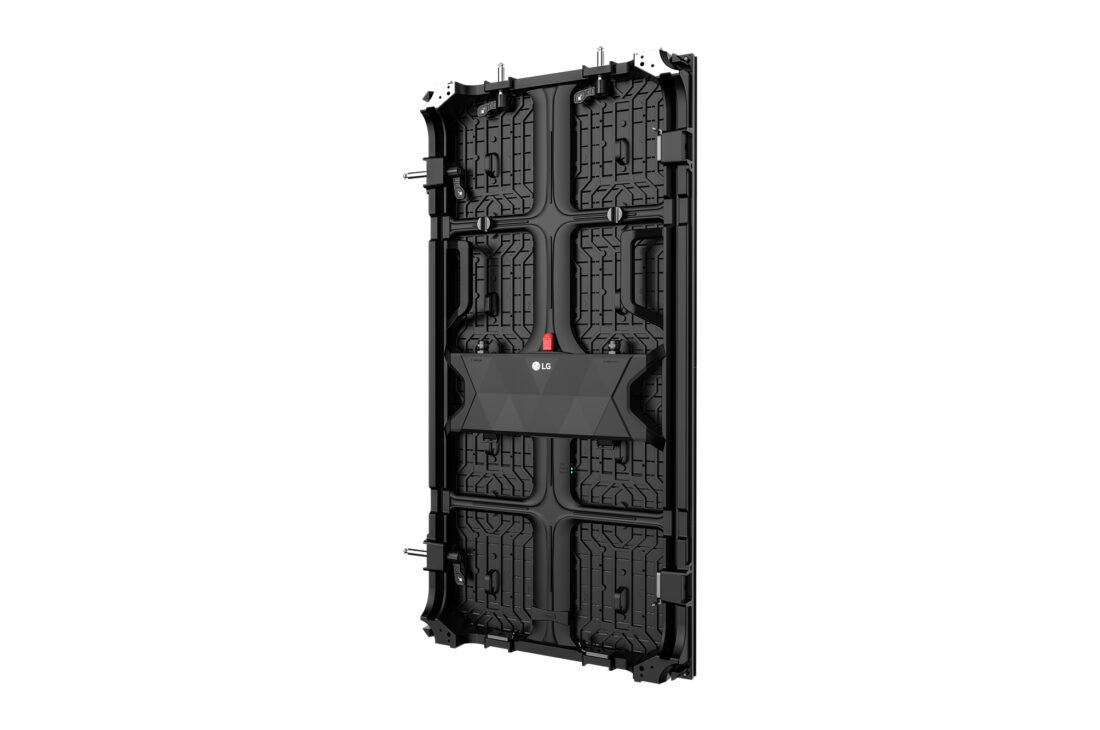

Quick Lock & Flip Design
Easy installation with quick lock system and maintains an outstanding alignment. Also the flip design makes easy repair and replace of integrated power system and reception card.
Compatibility with LG Software Solutions
Powered by LG’s high performance system controller, the LSBC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
| Pixel Configuration | 3 in 1 SMD |
|---|---|
| Pixel Pitch (mm) | 2.604 |
| Module Resolution (W x H) | 96 × 96 |
| Module Dimensions (W x H, mm) | 250 × 250 |
| Weight per Module (kg) | 0.70 |
| No. of Modules per Cabinet (W × H) | 2 x 4 |
| Cabinet Resolution (W × H) | 192 x 384 |
| Cabinet Dimensions (W × H × D, mm) | 500 x 1,000 x 68 |
| Cabinet Surface Area (m²) | 0.500 |
| Weight per Cabinet (kg/cabinet) | 12.0 |
| Weight per Square Meter (kg/m²) | 24.0 |
| Physical Pixel Density (pixels/m²) | 147,456 |
| Flatness of Cabinet | 0.5 |
| Cabinet Material | Die Casting Aluminum |
| Service Access | Front or Rear |
| Power Consumption (W/Cabinet, Max.) | 300 |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 100 |
| Power Consumption (W/m², Max.) | 600 |
| Power Consumption (BTU/Cabinet, Max.) | 1,024 |
| Power Consumption (BTU/Cabinet, Avg.) | 341 |
| Power Consumption (BTU/㎡, Max.) | 2,047 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | ≥3,840 |
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | -20 to +40 |
| Operating Humidity | 10-90% RH |
| IP rating Front / Rear | IP5X / IP5X |
