LSBC039
LG Indoor LED
Features
Tech Specs
Vivid Color Expression Powered by HDR
With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.

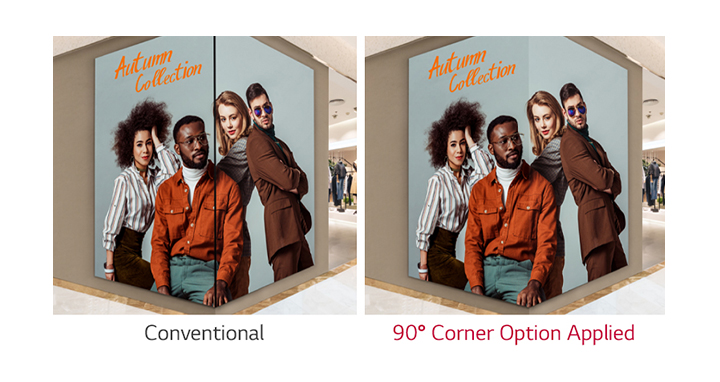

90° Corner Installation Available
Considering the use of corners, the cabinet is designed to stitch out a seamless 90 degree corner screen.

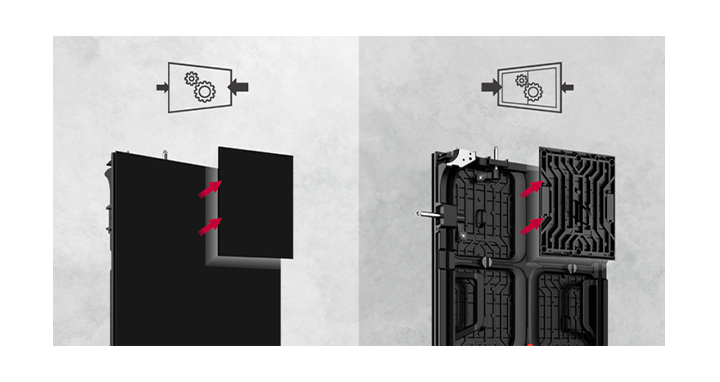

Front or Rear Installation & Maintenance
Easy access to front or rear cabinet for maintenance.

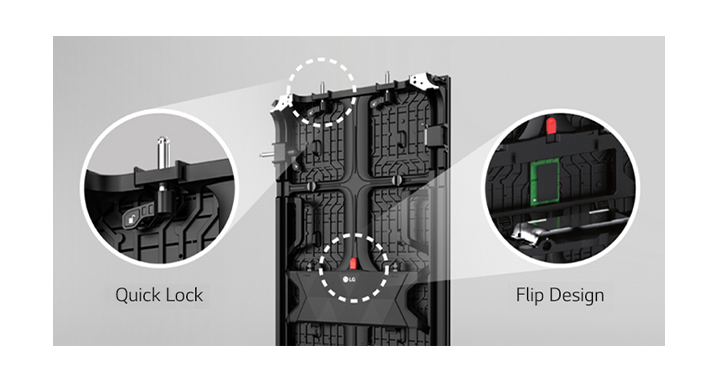

Quick Lock & Flip Design
Easy installation with quick lock system and maintains an outstanding alignment. Also the flip design makes easy repair and replace of integrated power system and reception card.

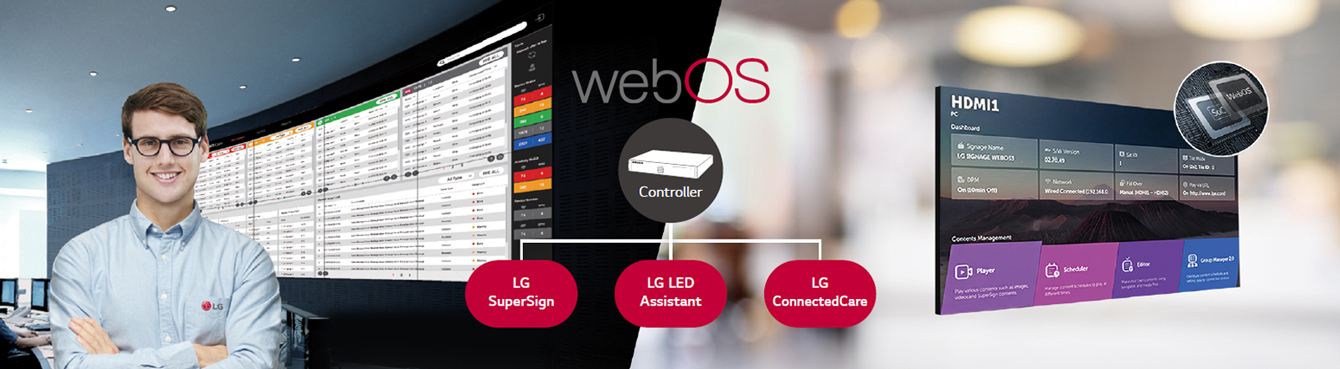

Compatibility with LG Software Solutions
-
Physical Parameter
Physical Parameter spec Pixel Configuration 3 in 1 SMD Pixel Pitch (mm) 3.906 Module Resolution (W x H) 64 × 64 Module Dimensions (W x H, mm) 250 × 250 Weight per Module (kg) 0.70 No. of Modules per Cabinet (W × H) 2 x 4 Cabinet Resolution (W × H) 128 x 256 Cabinet Dimensions (W × H × D, mm) 500 x 1,000 x 68 Cabinet Surface Area (m²) 0.500 Weight per Cabinet (kg/cabinet) 12.0 Weight per Square Meter (kg/m²) 24.0 Physical Pixel Density (pixels/m²) 65,536 Flatness of Cabinet 0.5 Cabinet Material Die Casting Aluminum Service Access Front or Rear -
Optical Parameter
Optical Parameter spec Max. Brightness (After Calibration) 1,000 Color Temperature 3,200-9,300 Visual Viewing Angle (Horizontal/Vertical) 160 × 140 Brightness Uniformity 97% Color Uniformity ±0.003 Cx,Cy Contrast Ratio 5,000 : 1 (Typ.) Processing Depth (bit) 16 (HDR10, HDR10 Pro) -
Electrical Parameter
Electrical Parameter spec Power Consumption (W/Cabinet, Max.) 300 Power Consumption (W/Cabinet, Avg.) 100 Power Consumption (W/m², Max.) 600 Power Consumption (BTU/Cabinet, Max.) 1,194 Power Consumption (BTU/Cabinet, Avg.) 396 Power Consumption (BTU/㎡, Max.) 2,388 Power Supply (V) 100 to 240 Frame Rate (Hz) 50 / 60 Refresh Rate (Hz) ≥3,840 -
Operation Conditions
Operation Conditions spec Lifetime (Hours to Half Brightness) 100,000 Operating Temperature (°C) -20 to +40 Operating Humidity 10-90% RH IP rating Front / Rear IP5X / IP5X
