LCCM025
LG LED Curve Series
Features
Tech Specs

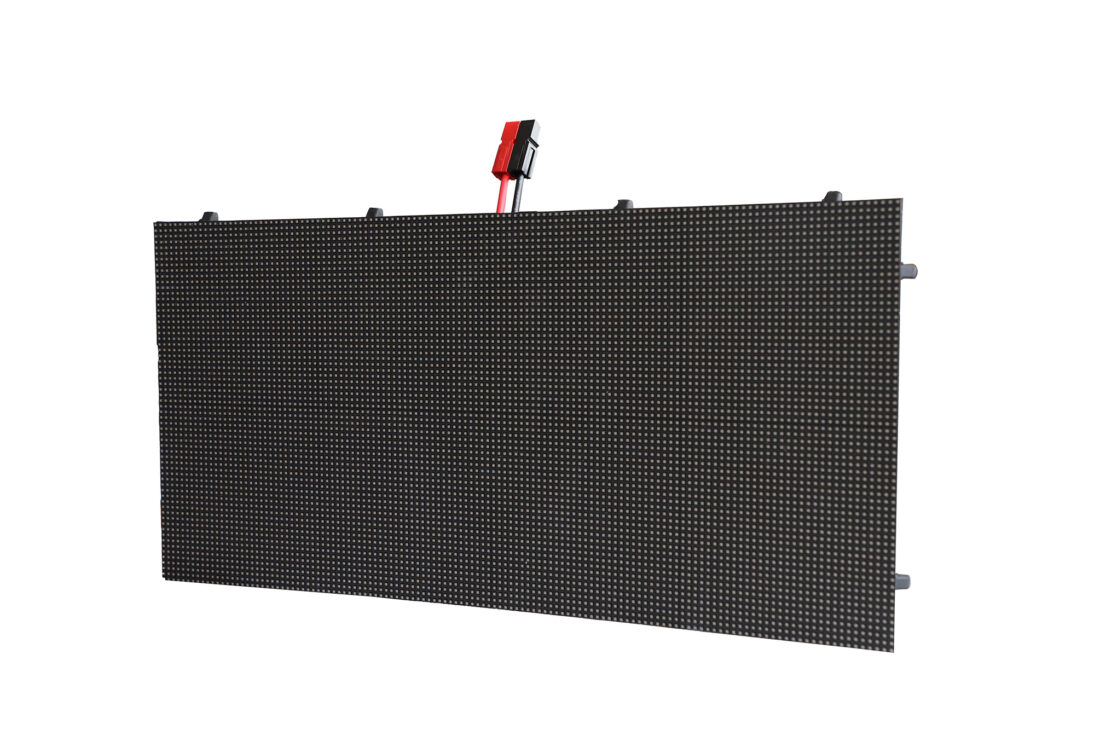

Flexible LED Display
With a specially designed flexible LDM (LED Display Module), the LCCM series supports true concave and convex curvature from 611R. The LCCM series also greatly amplifies design flexibility, providing users with the ability to create true curved screens.

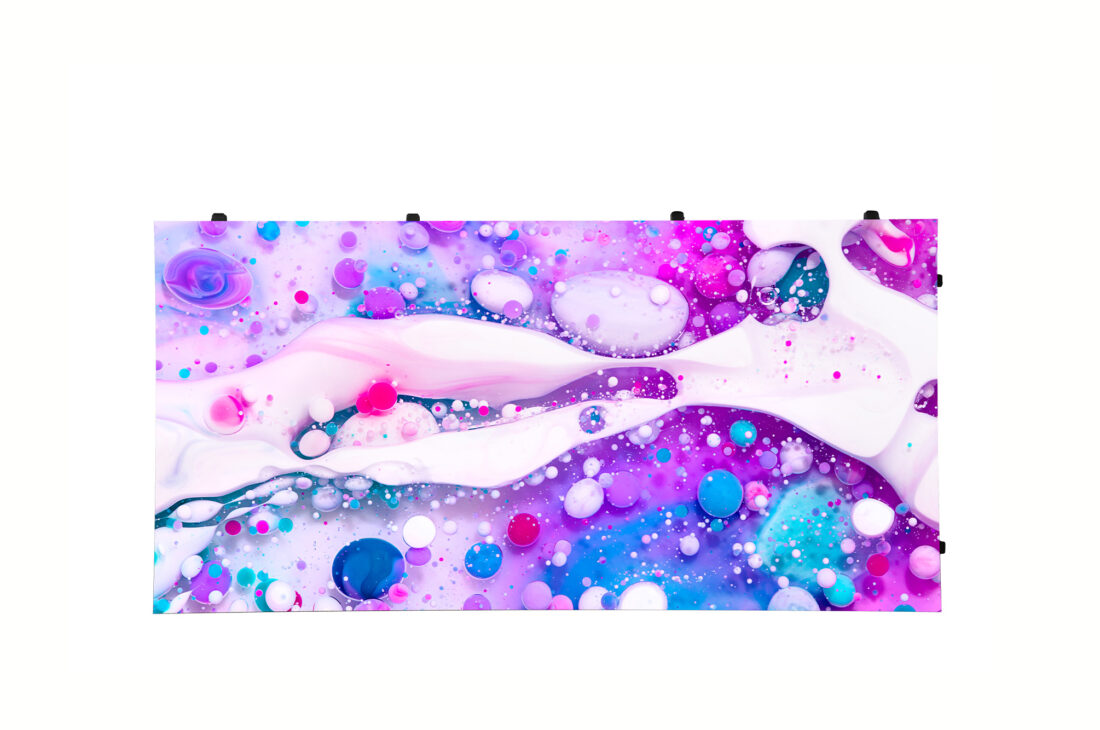

Creative LED Screen

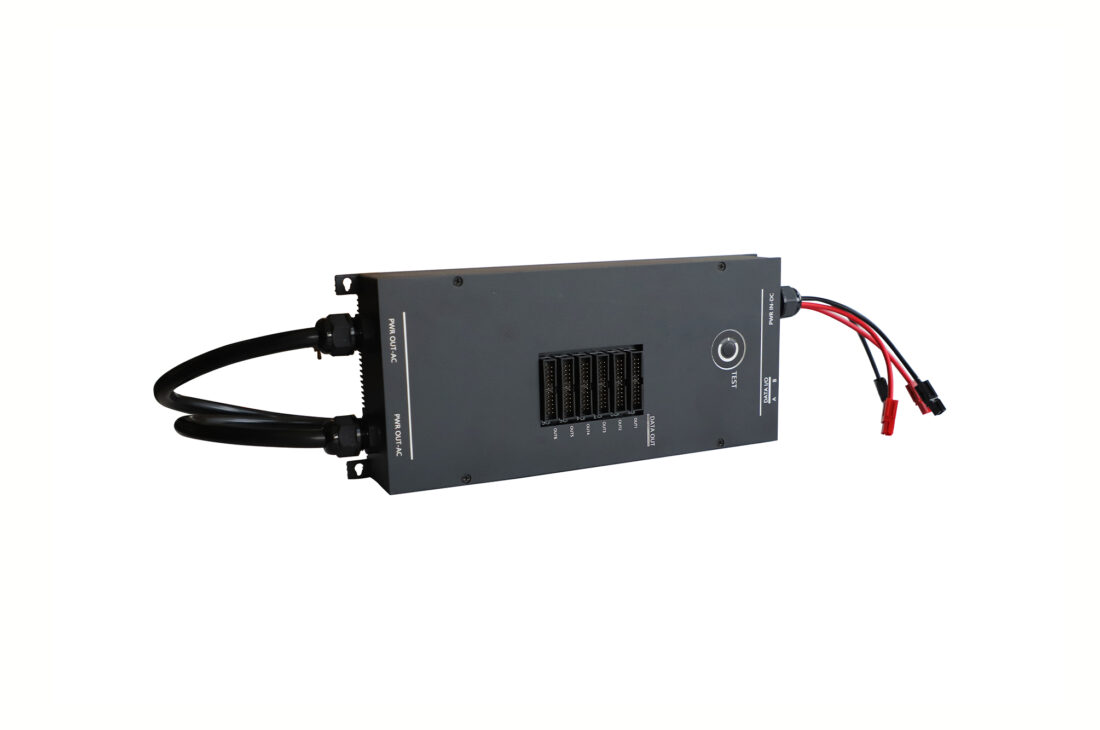

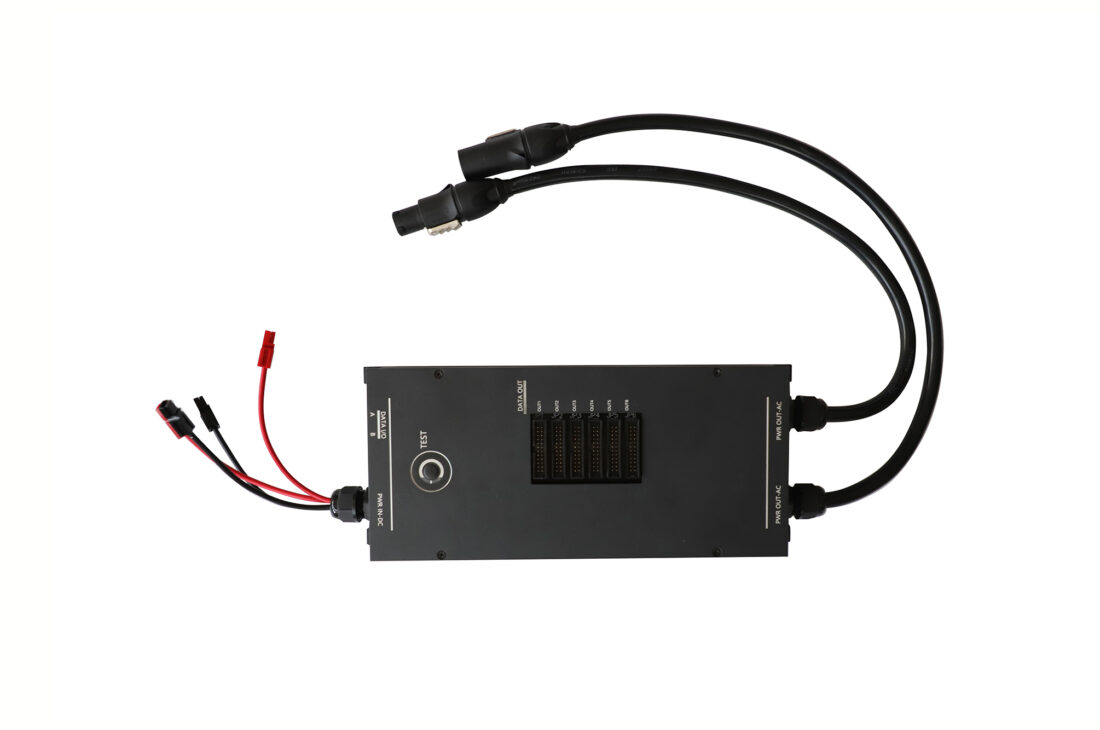

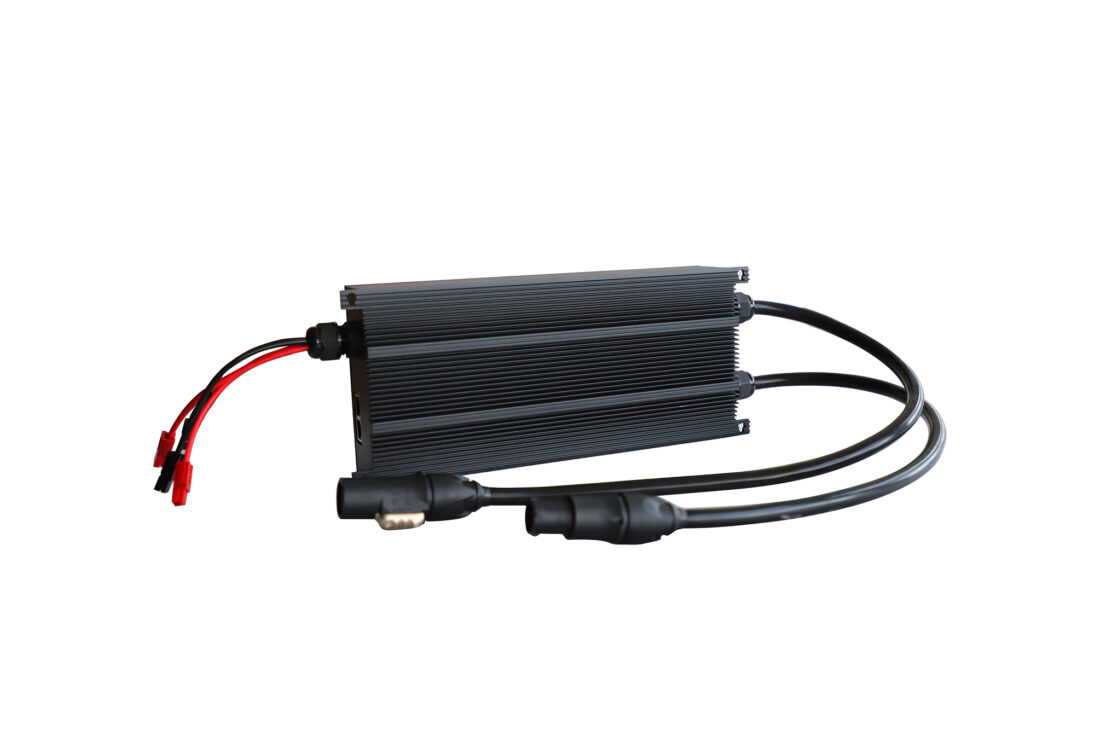

Different from the conventional LED display, LCCM series breaks free from the rectangular shape, allowing to be designed in various shapes as to display highly creative content on screen. In addition, the separation of the PDU (Power & Data Unit) from the cabinet gives a lot of freedom and advantage for creative installations.
Easy Installation & Maintenance

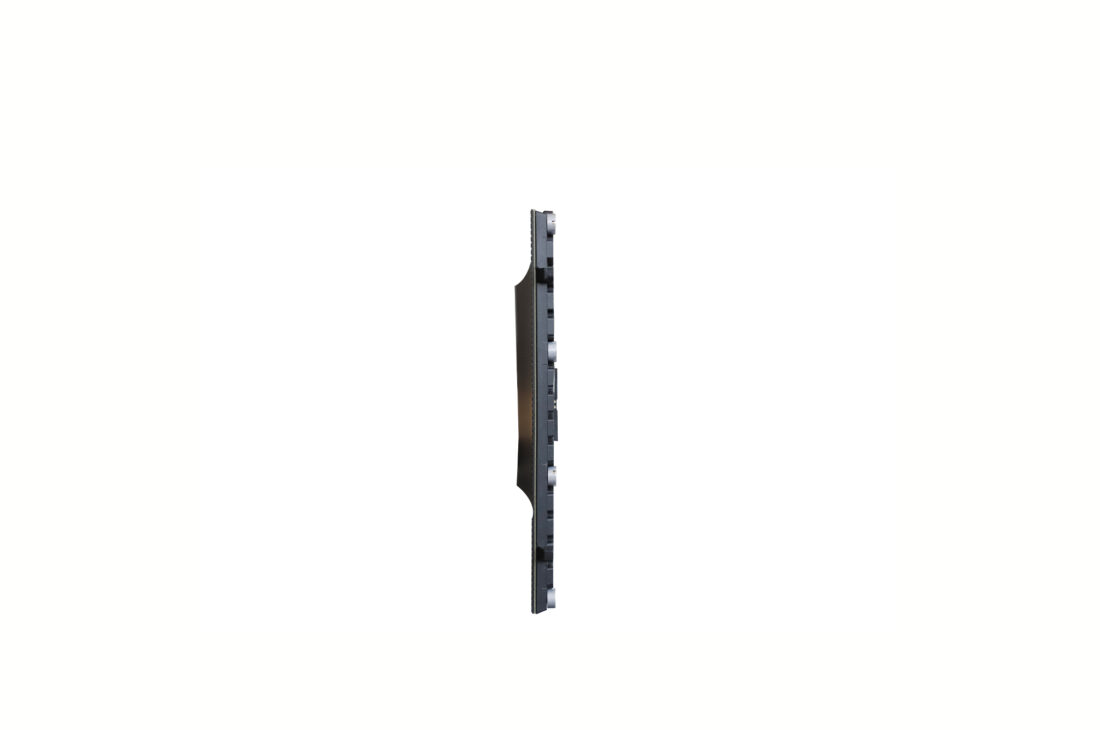

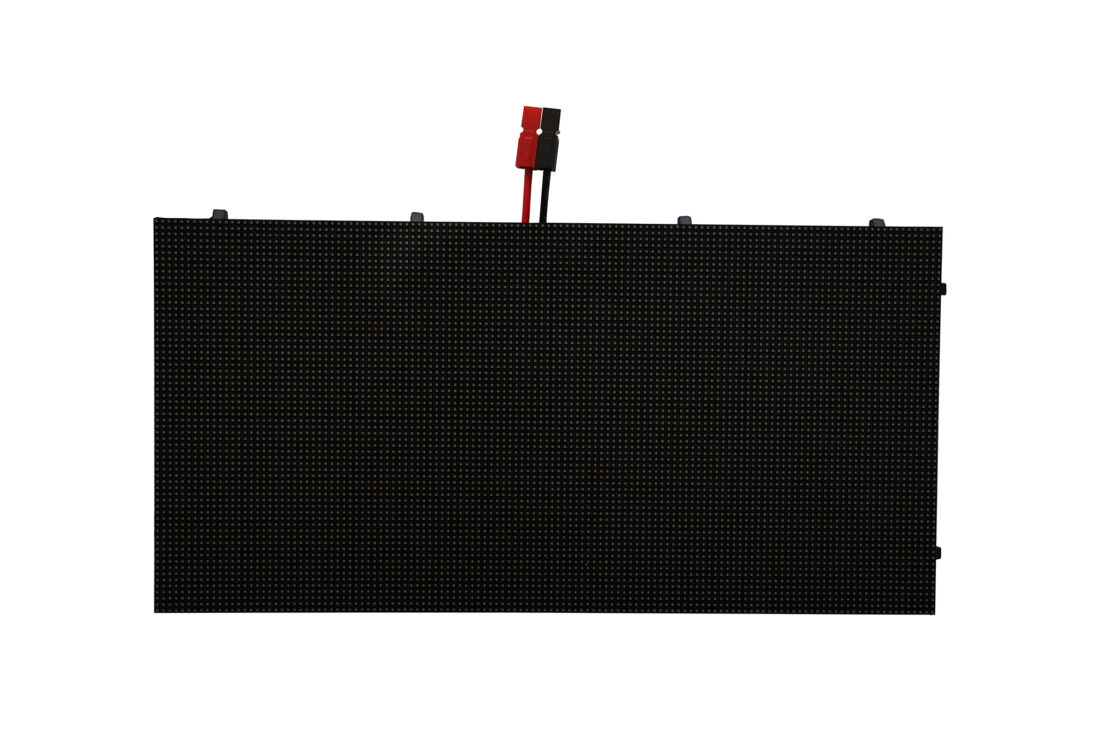

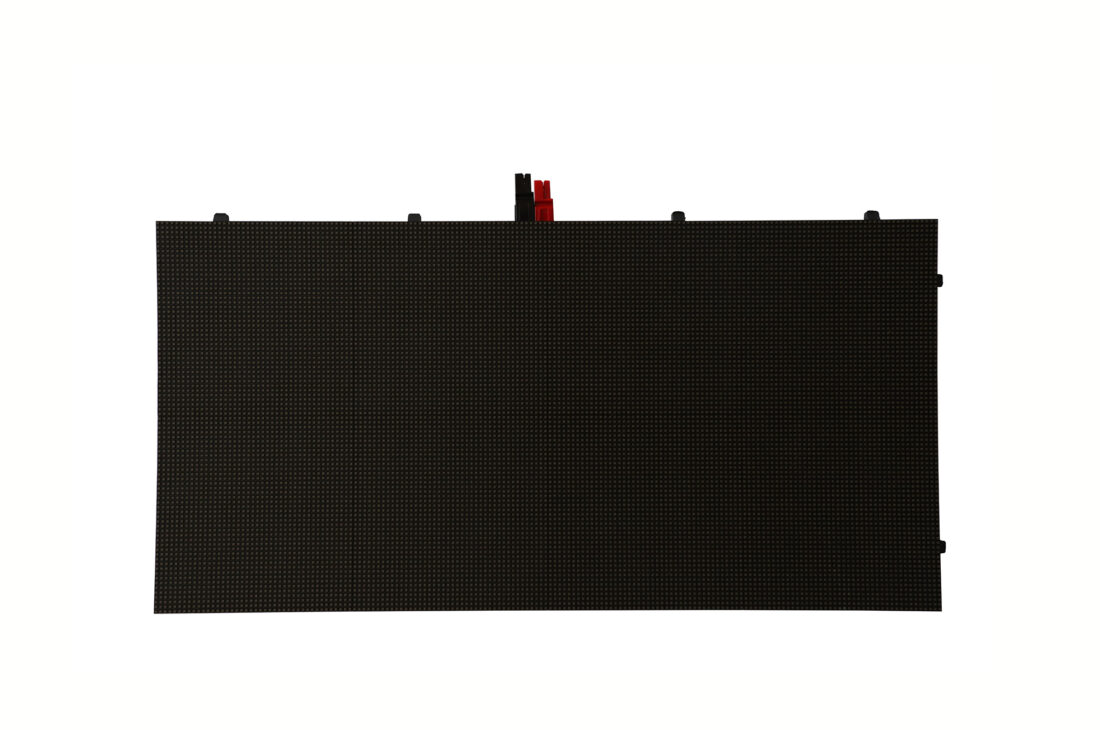

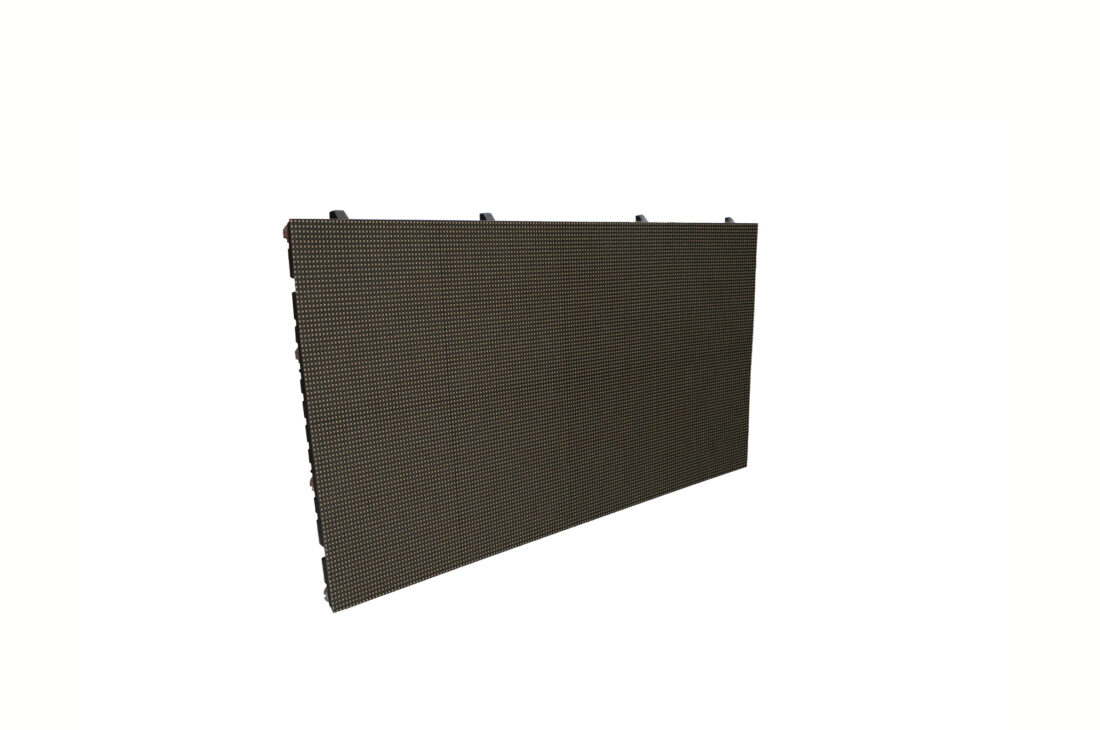

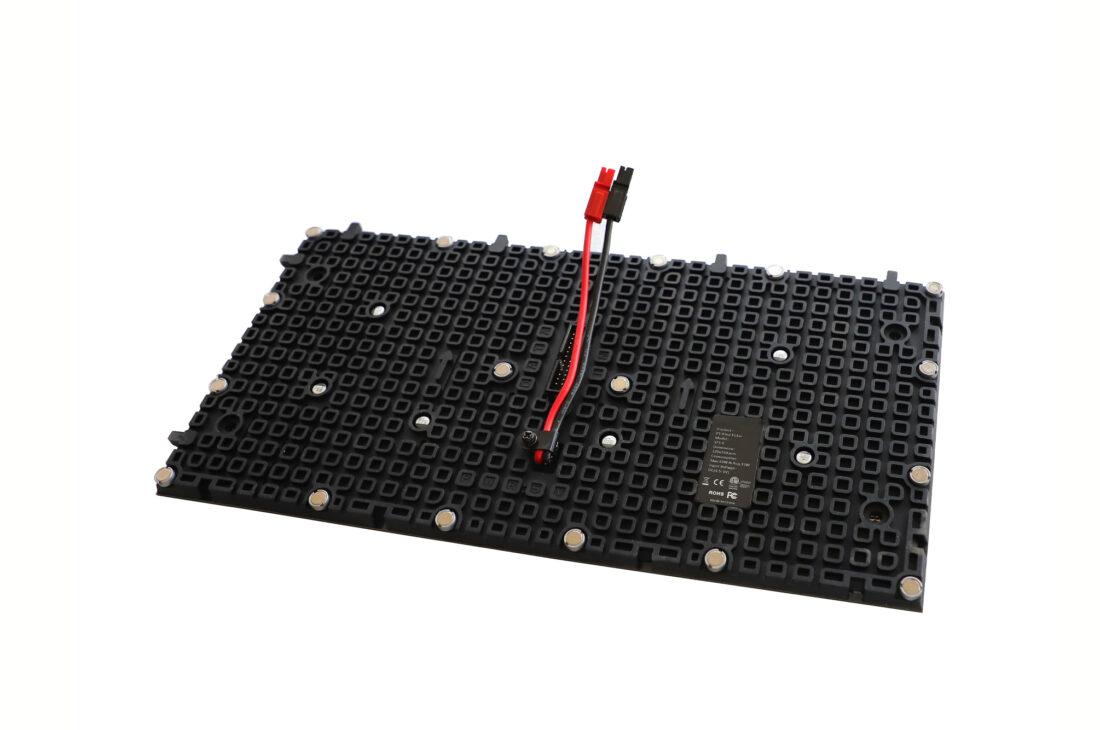

The easy-handling lightweight LDM (LED Display Module) makes installation easy. Also, with various factors including magnets and positioning pins, the installers can easily install and dismantle the LED screen with dedicated tool, making it convenient to manage.
Compatibility with LG Software Solutions
Powered by LG’s high performance system controller, the LCCM series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
Pixel Configuration
3 in 1
Pixel Pitch (mm)
2.50
Module Resolution (W x H)
128 × 64
Module Dimensions (W x H, mm)
320 × 160
Weight per Module (kg)
0.50
Physical Pixel Density (pixels/m²)
160,000
Service Access
Front
Max. Brightness (After Calibration)
1,200
Color Temperature (K)
3,200-9,300
Visual Viewing Angle (Horizontal/Vertical)
160
Brightness Uniformity
97%
Color Uniformity
±0.003 Cx, Cy
Contrast Ratio
5,000 : 1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
36
Power Consumption (W/Cabinet, Avg.)
12
Power Consumption (W/m², Max.)
720
Heat Dissipation (BTU/Cabinet, Max.)
123
Heat Dissipation (BTU/Cabinet, Avg.)
41
Heat Dissipation (BTU/m², Max.)
2,457
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
1,920
LED Lifetime (Half Brightness)
100,000
Operating Temperature (°C)
-10°C to +45°C
Operating Humidity
10-90% RH
IP rating Front / Rear
IP30 / IP30
