55EW5PG-S
Transparent OLED Signage
Key Features
- Brightness(Typ.) : 400nit (APL 25%, Without Glass)
- Transparency(Typ.) : 38%
- Standalone Design
55EW5PG-S
Transparent OLED Signage
Features
Tech Specs
Resources

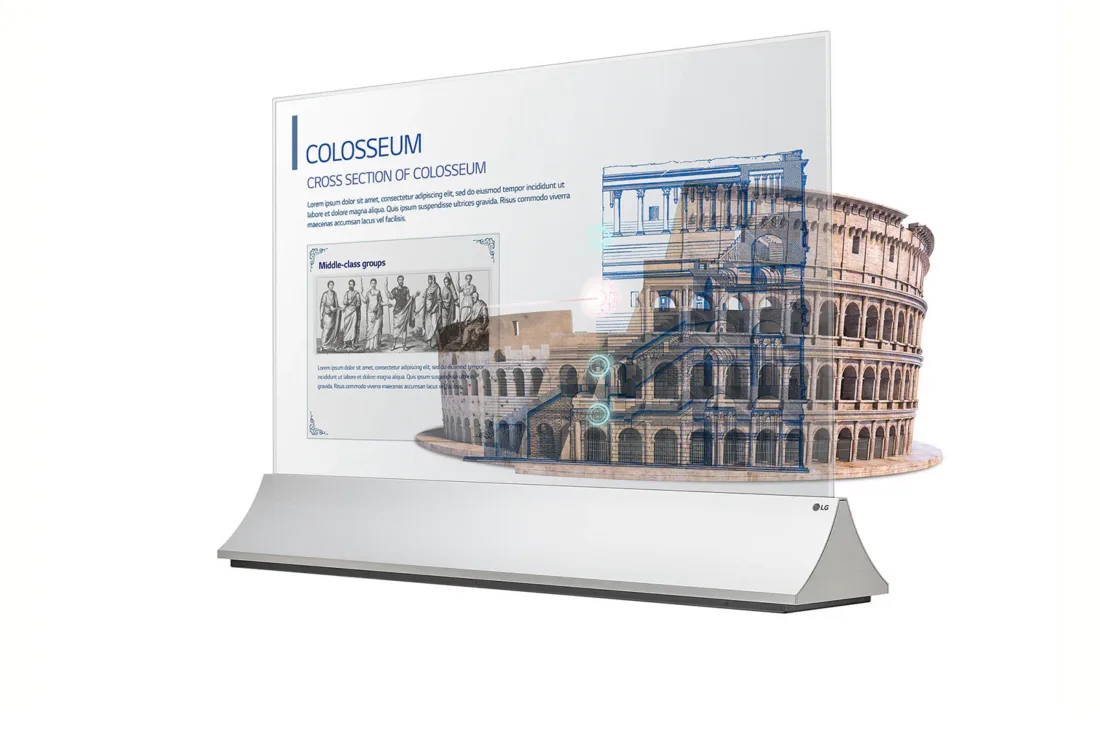

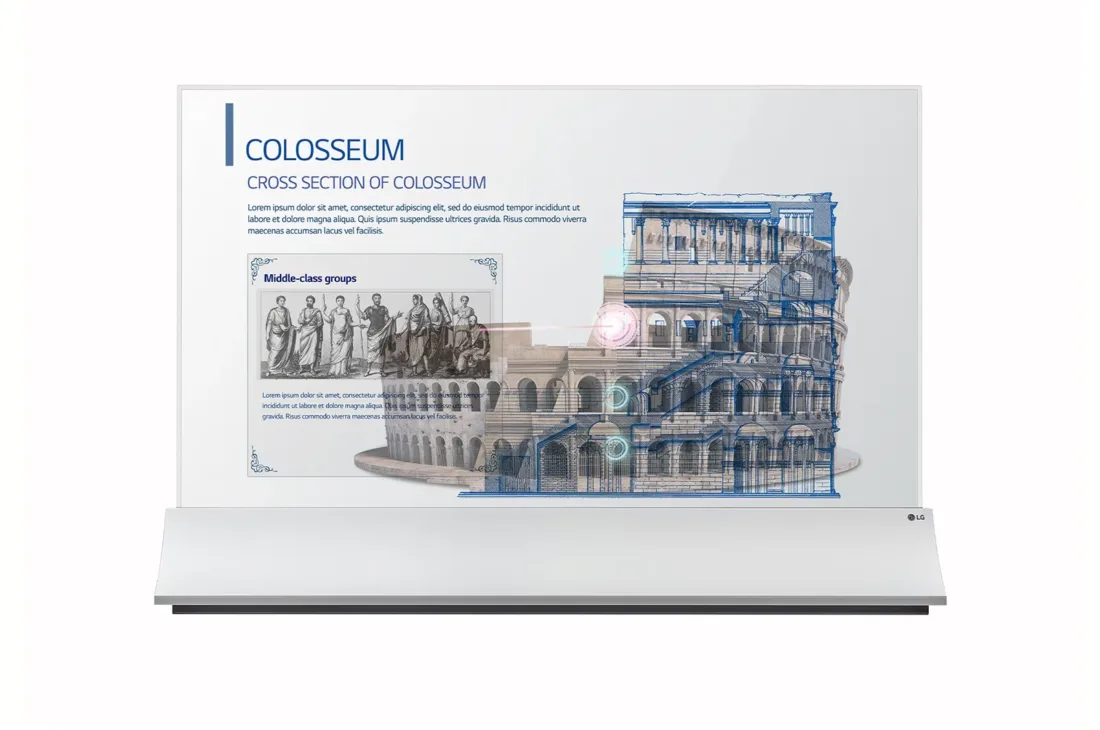

See the Unseen,
High Transparency
LG’s OLED technology gives the Transparent OLED Signage a slimmer structure without a backlight unit nor a liquid crystal layer, achieving a high transparency of 38%, much higher than conventional LCD transparent displays (10%*). While clearly showing objects behind the screen, it overlays the relevant information right before them.
Accurate and Vivid Colors
Featuring self-lighting pixels, the display maintains vivid colors and a high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
Protective Tempered Glass
Touching a display directly can cause damage or scratches. The tempered glass in front protects the product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

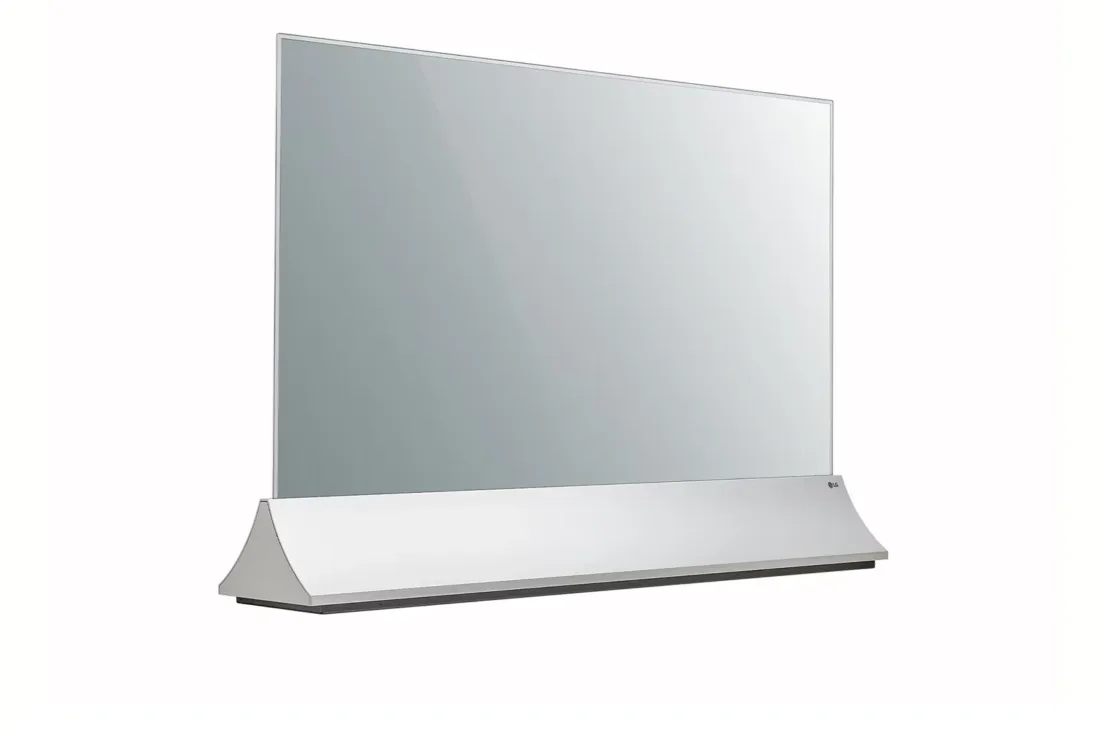

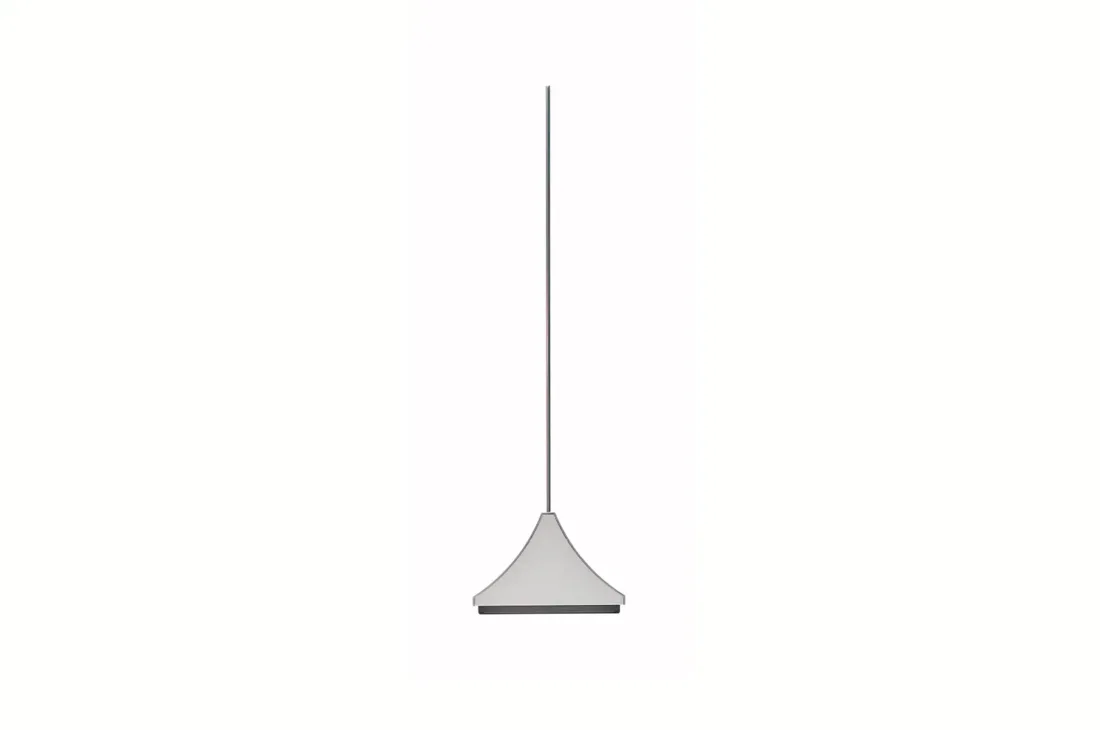

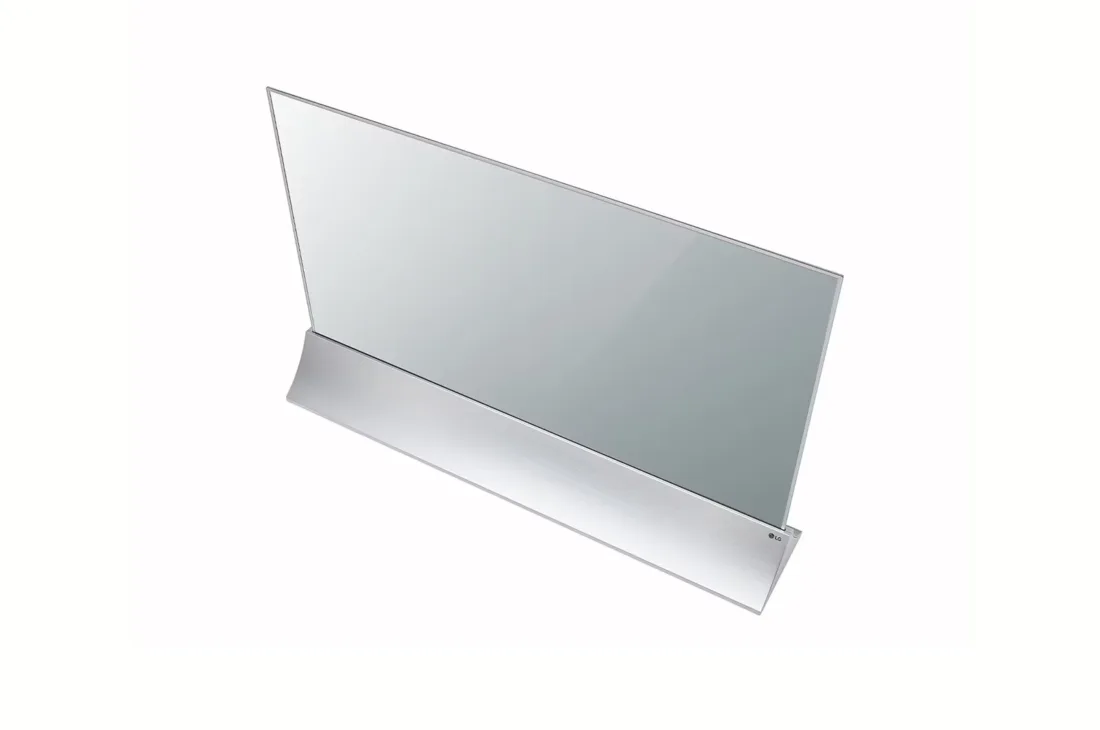

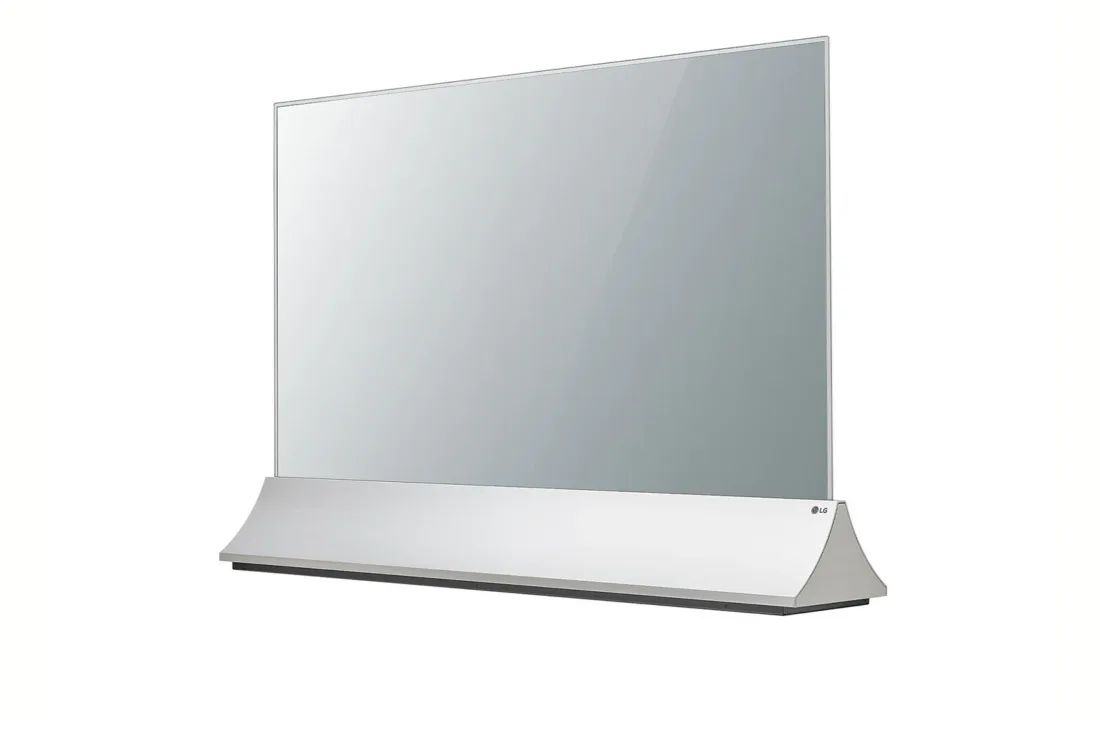

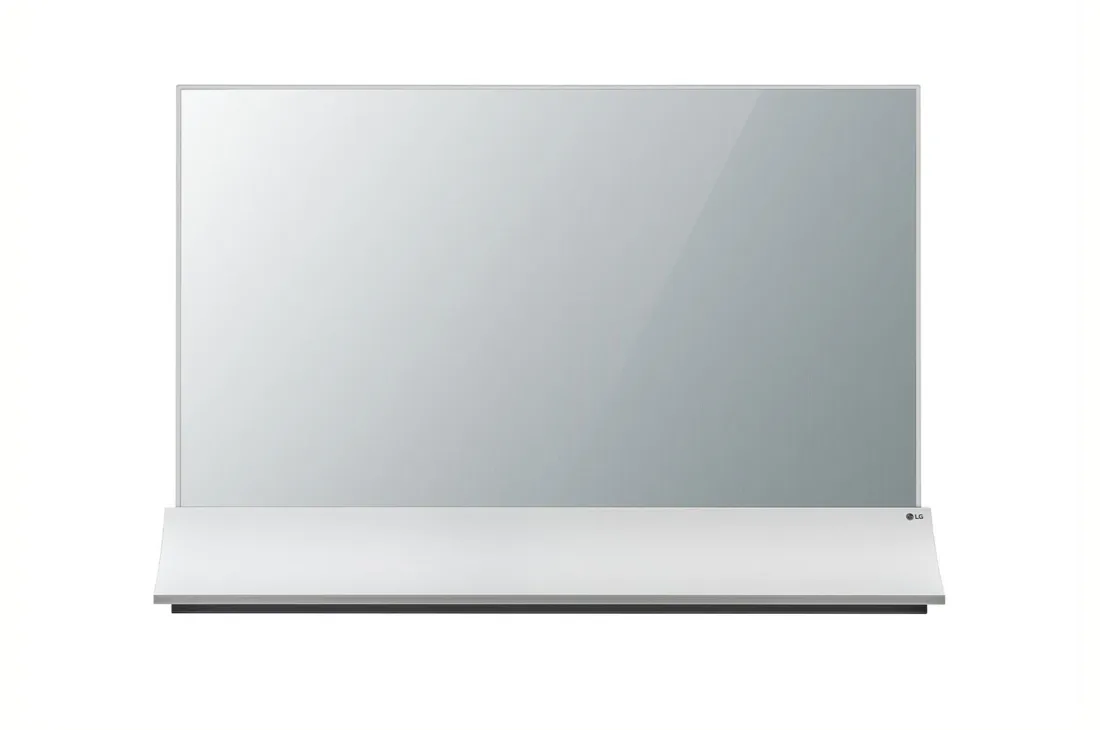

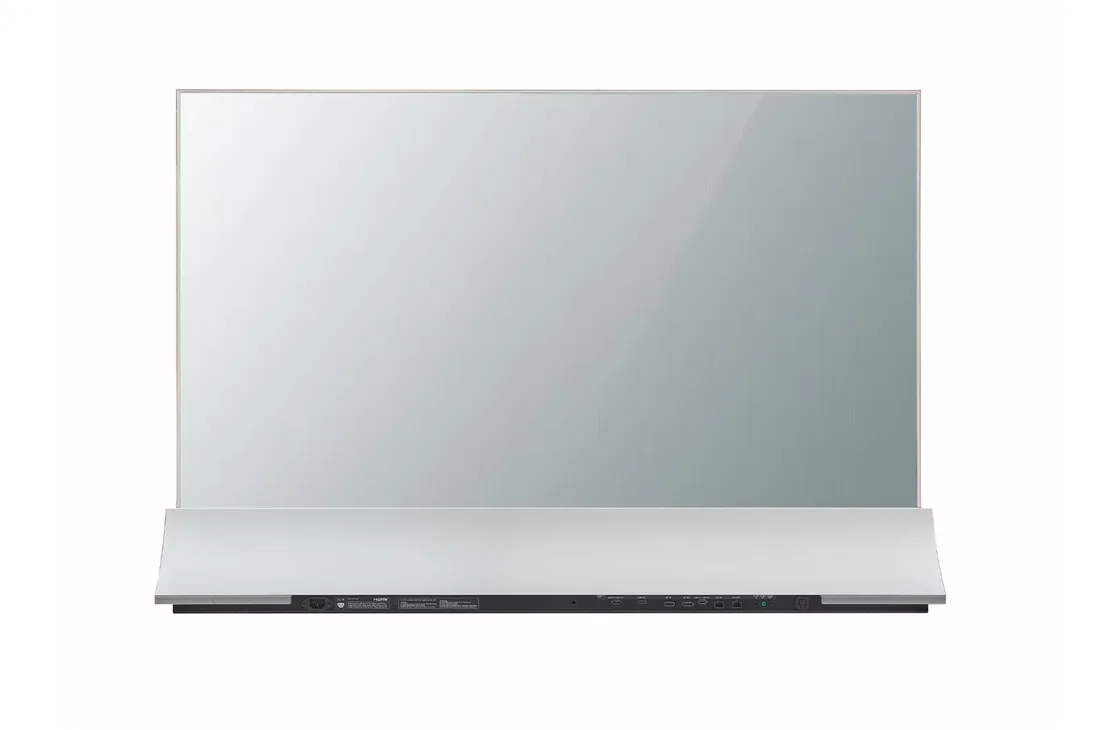

Alluring Design with a Stand
LG's alluring display concept takes a step forward. The transparent OLED with an alluring stand maintains the tone and manner of the design in harmony with its surroundings rather than dominating your space.
-
- Screen Size
- 55"
- Panel Technology
- OLED
-
- Back Light Type
- OLED
- Aspect Ratio
- 16:9
-
- Native Resolution
- 1920x1080 (FHD)
- Refresh Rate
- 120 Hz
-
- Brightness
- 150/400nit (APL 100%/25%, Without Glass)
- Contrast Ratio
- 150,000 : 1
-
- Color gamut
- BT709 120%
- Viewing Angle (H x V)
- 178 x 178
-
- Color Depth
- 10bit(R), 1.07Bilion colors
- Response Time
- 1ms (G to G), 8ms (MPRT)
-
- Surface Treatment(Haze)
- Hard coating (2H)
- Life time
- 30,000 Hrs (Typ.)
-
- Operation Hours (Hours/Day)
- 18/7 (Moving Content Only)
- Portrait / Landscape
- Yes
-
- Input
- HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45(LAN), IR IN (No, Internal IR Receiver), USB2.0 Type A (2)
- Output
- DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45(LAN)
-
- Bezel Color
- Transparent
- Bezel Width
- T/R/L/B : 7.9/7.9/7.9/168.6mm
-
- Weight(Head)
- 28.3Kg
- Packed Weight
- 36.8Kg (with Pallet = 44.1Kg)
-
- Monitor Dimension(W x H x D)
- 1256.2 x 856.9 x 242mm
- Carton Dimensions(W x H x D) (Box outer size)
-
1344 x 334 x 965mm
(with Pallet = 1370 x 360 x 1100mm)
-
- Protection Glass
- Depth 3.0mm, Tempered / Chemical strengthening (Chemical strengthening), Anti-Reflective (Film), Shatter-Proof
-
- HW
- Internal Memory 16GB, Temperature Sensor, Local Key Operation
- SW
- webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting , Pro:Idiom
-
- Operation Temperature
- 0 °C to 40 °C
- Operation Humidity
- 10 % to 80 %
-
- Power Supply
- AC 100-240V~, 50/60Hz
- Power Type
- Built-In Power
| Safety | IEC 60950-1 / EN 60950-1 / UL 60950-1 |
|---|---|
| EMC | FCC Class "A" / CE / KC |
| ErP | Yes |
-
- Safety
- IEC 60950-1 / EN 60950-1 / UL 60950-1
- EMC
- FCC Class "A" / CE / KC
-
- ErP / Energy Star
- Yes / No
-
- SuperSign CMS
- Yes (v3.0)
- SuperSign Control / Control+
- Yes (v1.7 / v1.9)
-
- SuperSign WB
- Yes (v3.7.15)
- SuperSign Media Editor
- Yes (v3.7)
-
- Signage 365 Care
- Yes (v2.9)
-
- OSD
- English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
-
- Basic
- Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, HDMI Cable(3M), Cable Holder 2EA
