See the unseen,
LG Transparent OLED

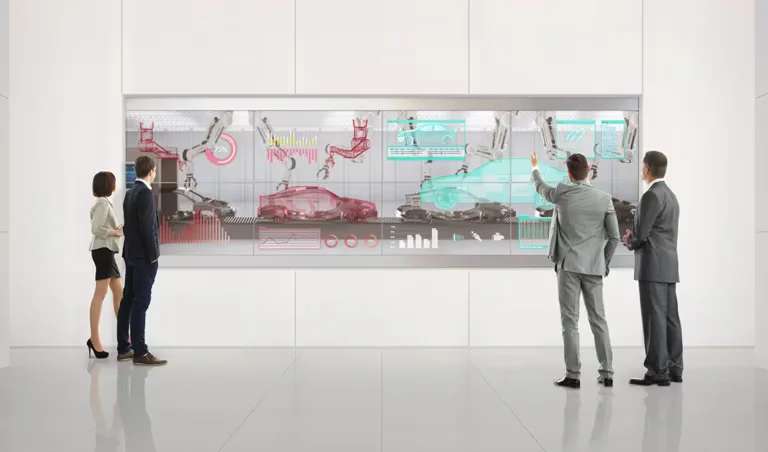

LG Transparent OLED Signage offers new ways to communicate visually and opens up a whole new level of creativity that even conventional digital signage cannot offer.
- For Business
- B2B Commercial
- Information Display
- OLED Signage
- Transparent OLED Signage

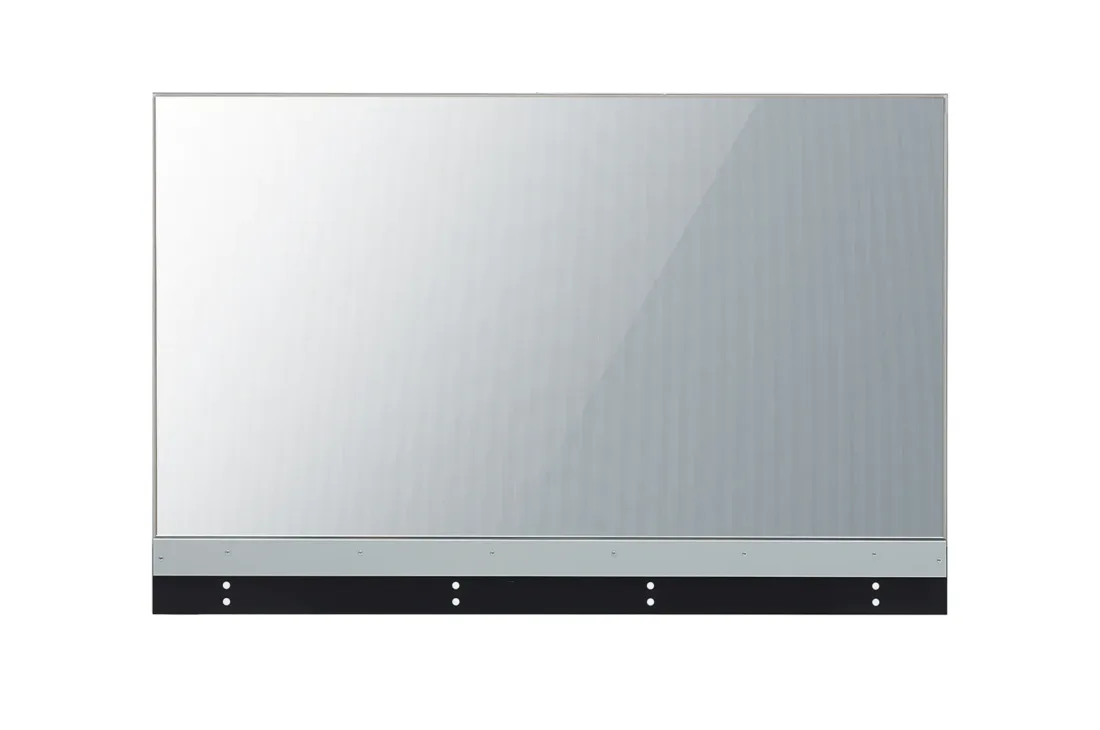

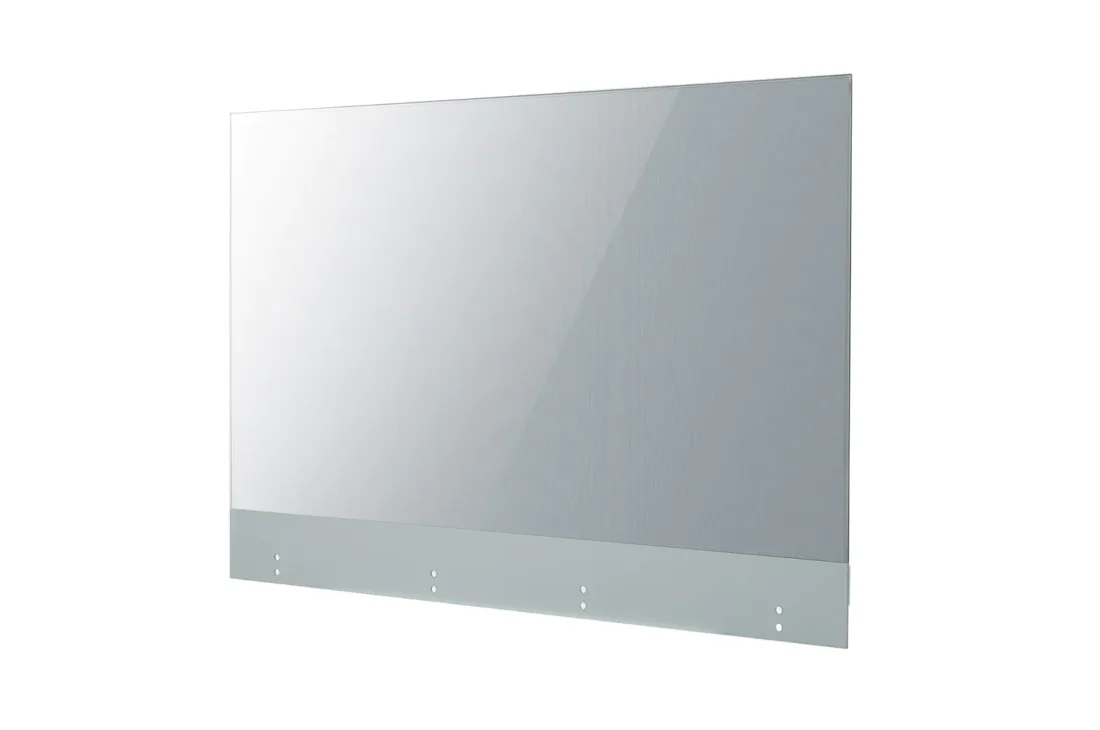

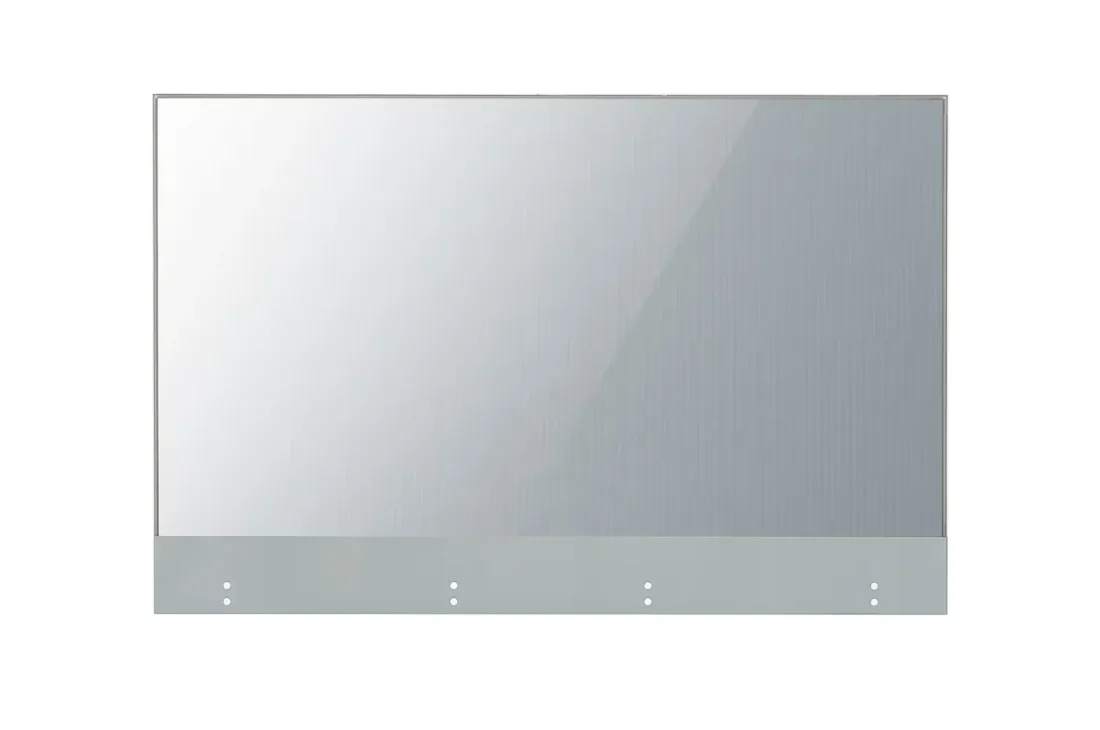

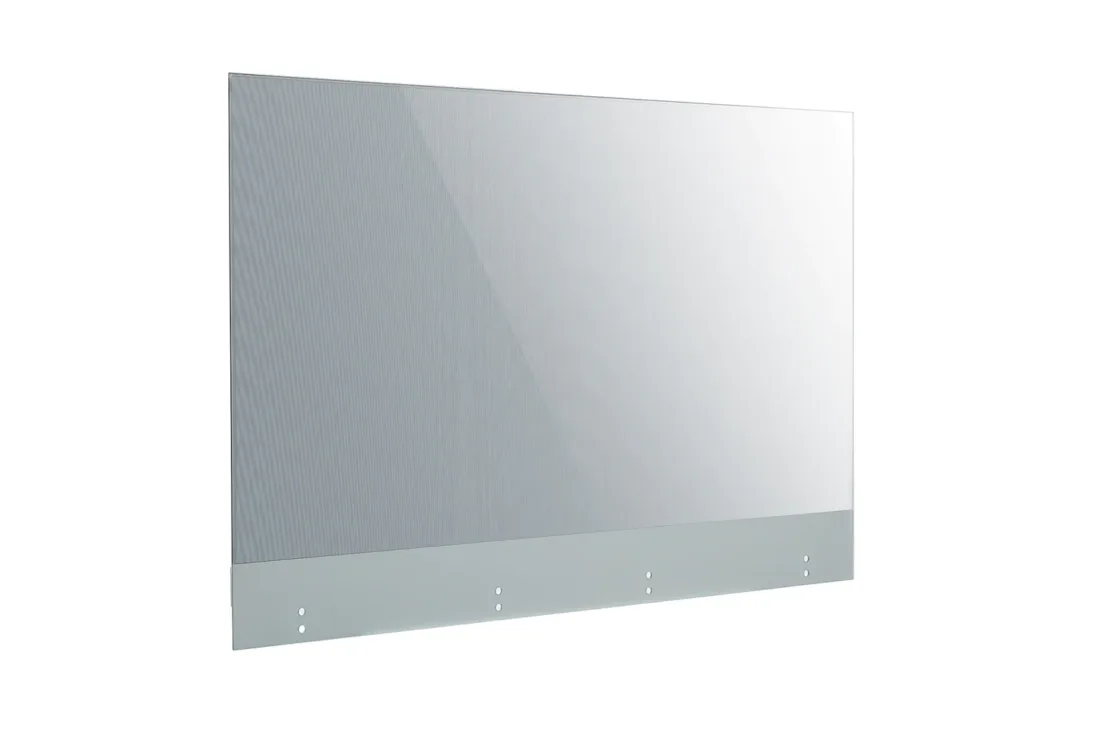

55EW5G-V
Transparent OLED Signage
Key Features
- Brightness(Typ.): 400nit (APL 25%, Without Glass)
- Transparency(Typ.) : 38%
- Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
- Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
55EW5G-V
Transparent OLED Signage
Features
Tech Specs
Resources
See the unseen,

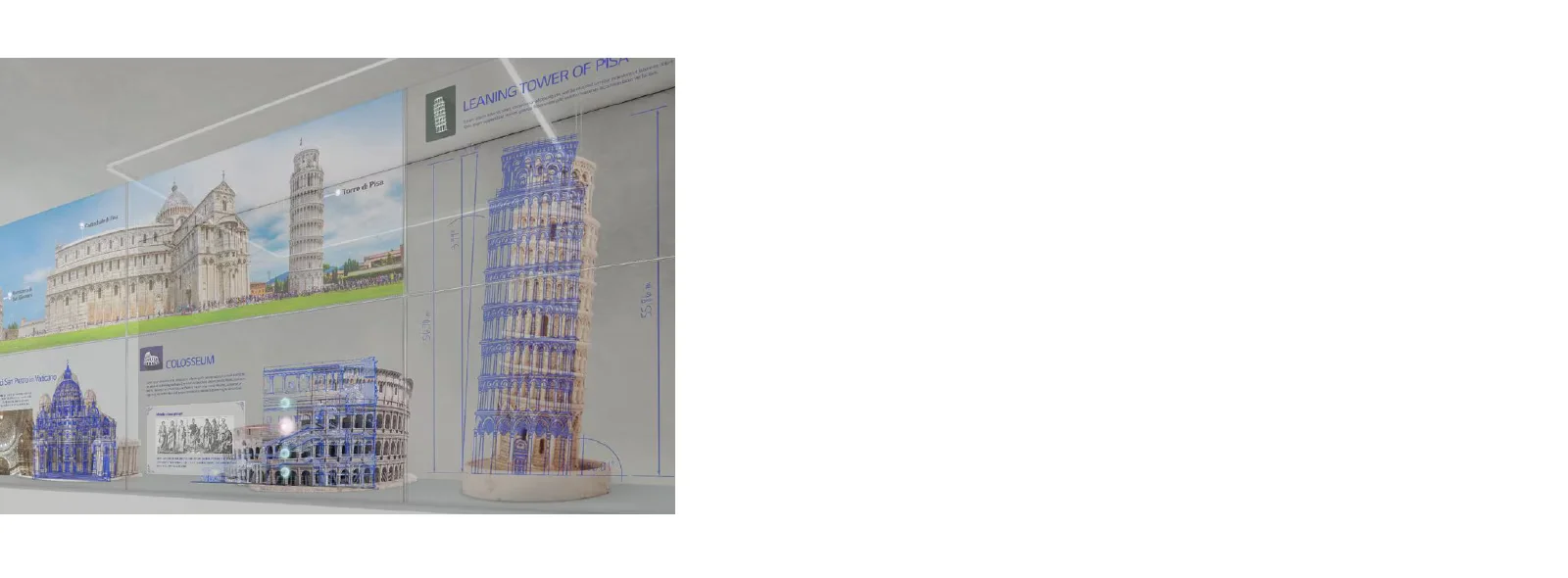

High Transparency
LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38%* much higher than conventional LCD transparent displays (10%**). While clearly showing objects behind the screen, it overlays the relevant information right before them.

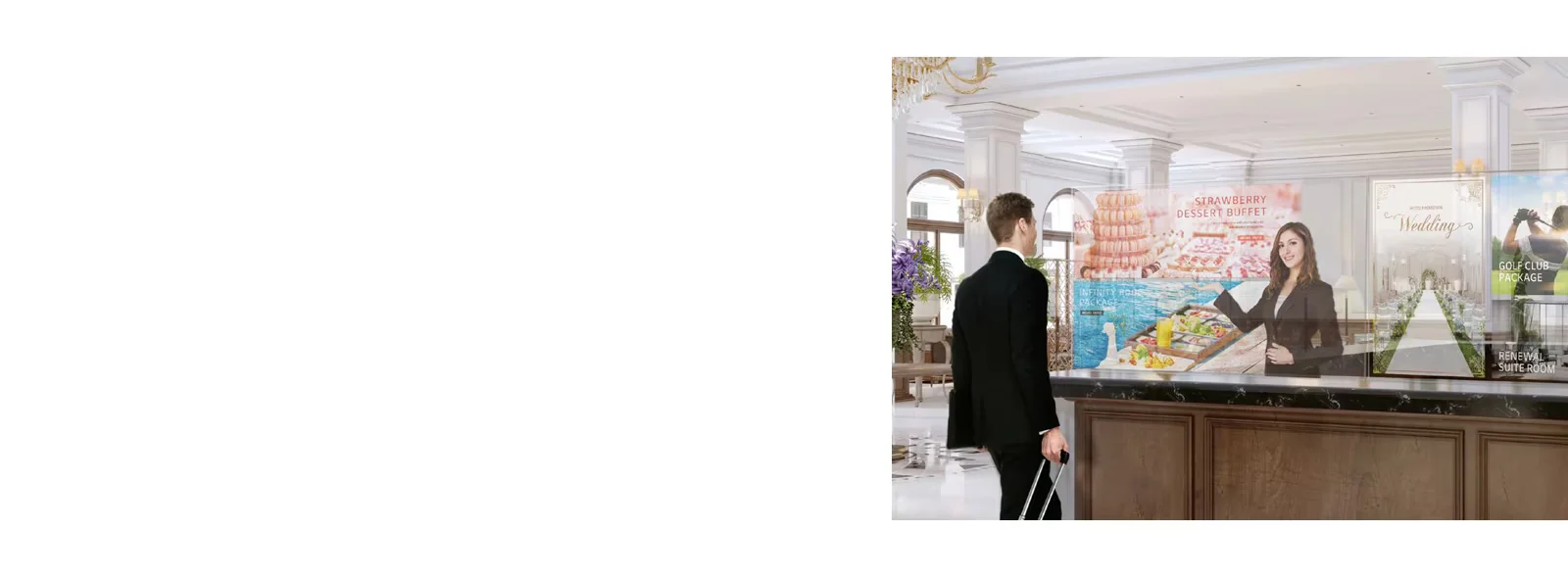

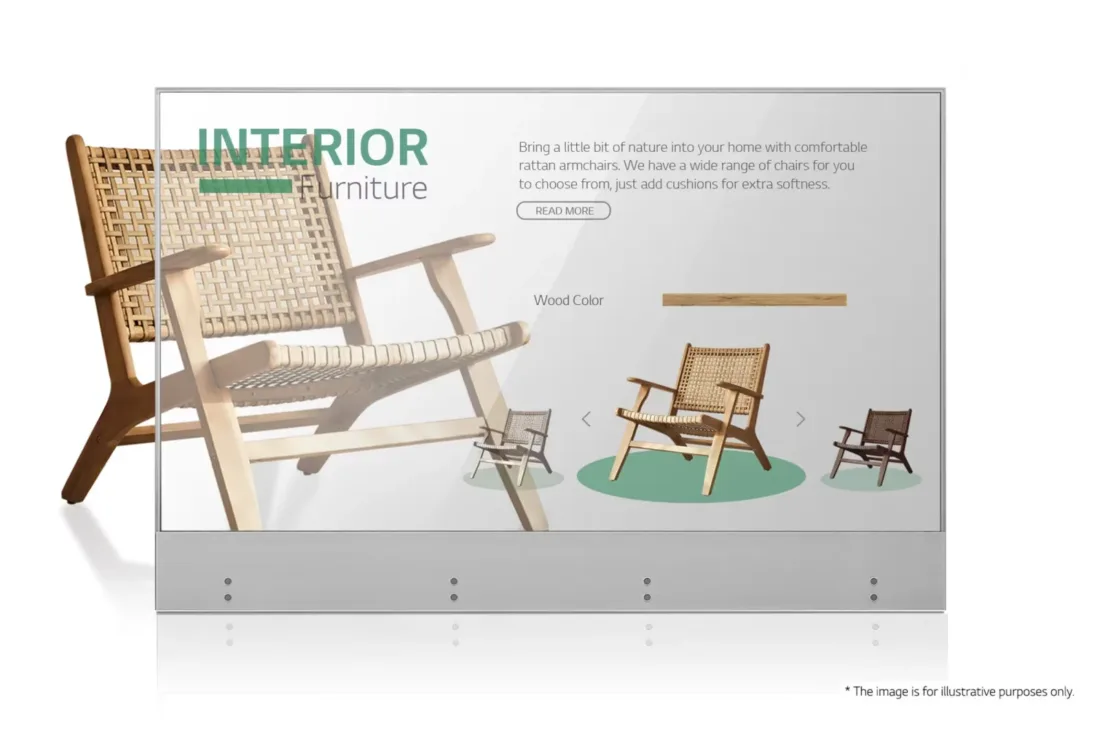

Accurate
and Vivid Colors
Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

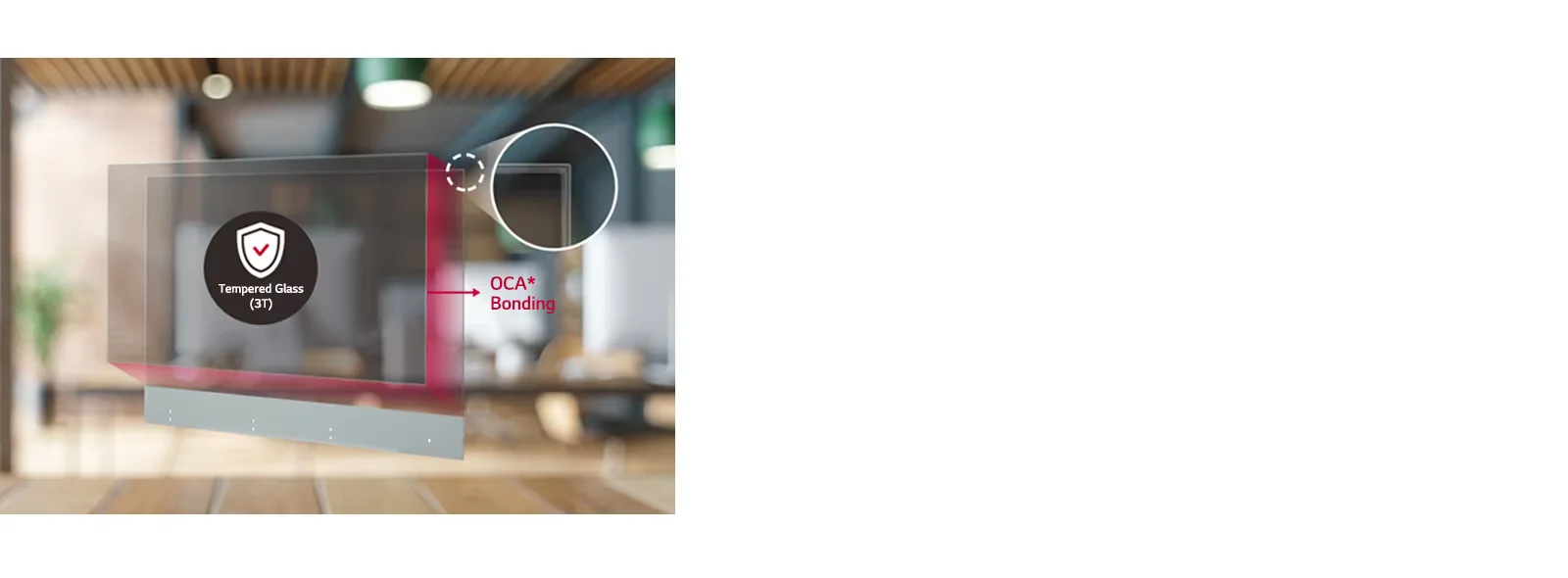

Protective Tempered Glass
Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

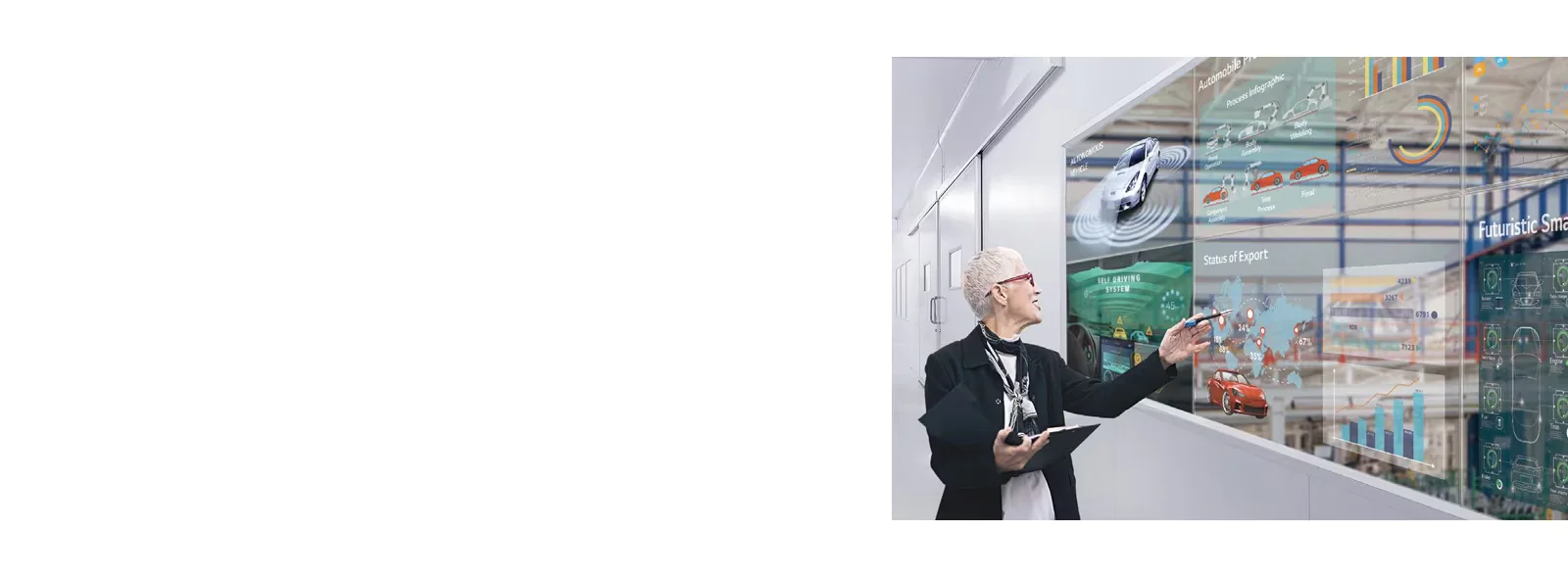

Expandable Design
(2×N Tiling)
LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.
-
- Screen Size
- 55"
- Panel Technology
- OLED
-
- Native Resolution
- 1,920 x 1,080 (FHD)
- Brightness
- 150/400nit (APL 100%/25%, Without Glass)
-
- Contrast Ratio
- 150,000 : 1
- Dynamic CR
- No
-
- Color gamut
- BT709 120 %
- Viewing Angle (H x V)
- 178 x 178
-
- Color Depth
- 10bit(R), 1.07Bilion colors
- Response Time
- 1ms (G to G), 8ms (MPRT)
-
- Surface Treatment (Haze)
- Hard coating (2H)
- Operation Hours (Hours / Day)
- 18 / 7 (Moving Content Only)
-
- Input
- HDMI (1, HDCP 1.4), DP (1, HDCP 1.3), RS232C IN , RJ45(LAN), IR IN (1,External IR Receiver,) USB2.0 Type A(2)
- Output
- DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45(LAN)
-
- Bezel Width
- T/R/L/B : 7.9/7.9/7.9/121.7mm
- Weight (Head)
- 11.6Kg (Head), 3.4Kg (Signage Box)
-
- Monitor Dimension (W x H x D)
-
1225.5 x 810.1 x 4.9mm (Head)
782.8 x 238.4 x 34.7mm (Signage Box)
- VESA™ Standard Mount Interface
- No
-
- Protection Glass
- Depth 3.0 mm , Tempered / Chemical Strengthening, Anti-Reflective (Film), Shatter-Proof
-
- HW
- Temperature Sensor
- SW
- Fail over, Screen Rotation, External Input Rotation, Tile Mode Setting,
-
- Operation Temperature
- 0 °C to 40 °C
- Operation Humidity
- 10 % to 80 %
-
- Power Supply
- AC 100-240V~, 50/60Hz
- Power Type
- Built-In Power
-
- Typ.
- 171W
- Max.
- 280W
-
- Typ. / Max.
- 171W / 280 W
- BTU (British Thermal Unit)
- 853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max)
-
- Speaker
- No
-
- Safety
- IEC 60950-1 / EN 60950-1 / UL 60950-1
- EMC
- FCC Class "A" / CE / KC
-
- Basic
- Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea) for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5,8EA / M3xL3.5, 20EA), Shield Cover Assy', Rubber Damper 4EA, MCX cable Holder 4ea
- Optional
- Stand (ACC-S-EW5F, 2 Pole)
