55EJ5K
Wallpaper OLED Signage
Key Features
- Brightness(Typ.) : 150/400 nit (APL 100% / 25%)
- Bezel : 5.3 mm (T/B/L), 11.0 mm (B)
- Interface : HDMI / DP / USB(2) / RS232C / RJ45 / Audio / IR
55EJ5K
Wallpaper OLED Signage
Features
Tech Specs
Resources
Absolute Black
Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.

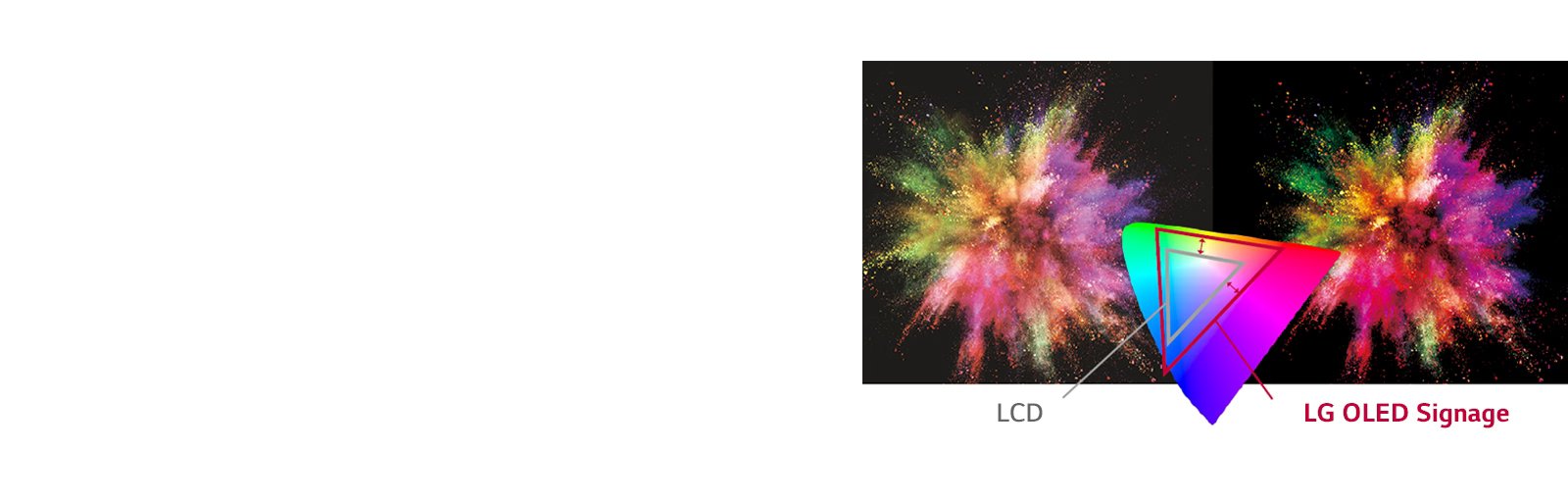

Rich Color
LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.

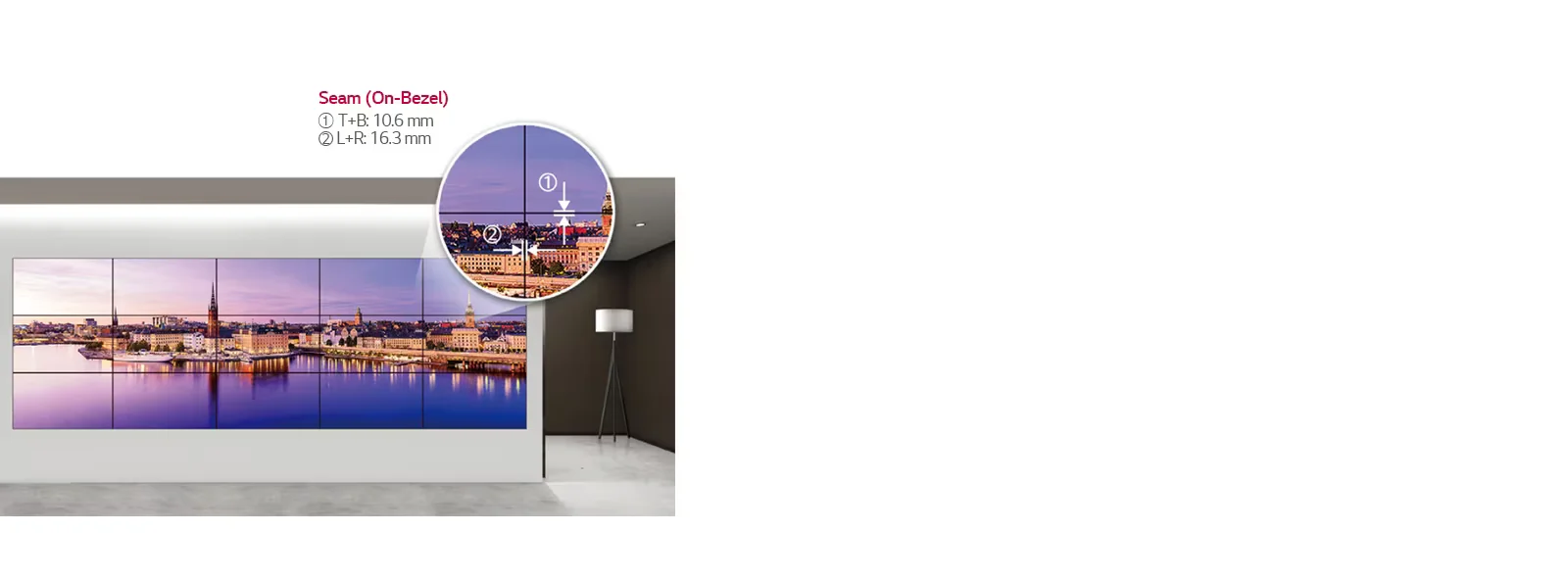

N×N Expandable Screen Size
By tiling up displays horizontally and vertically, the screen size can be as large as users want. Expansive, large screens are more effective at moving viewers by providing an incredibly immersive viewing experience.

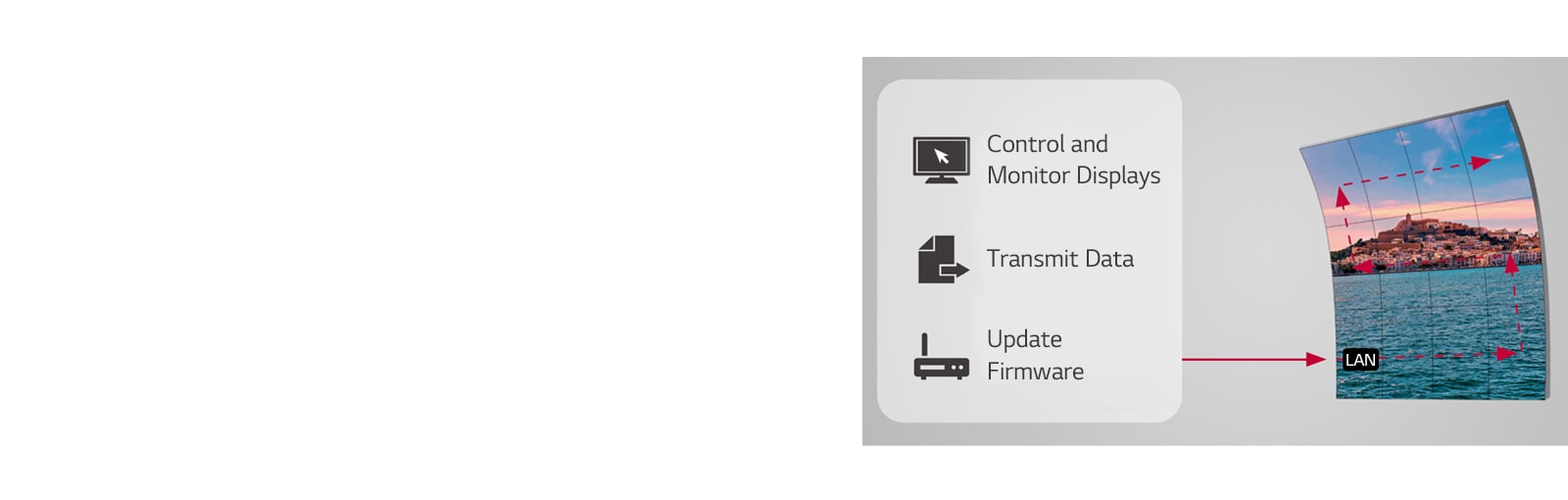

LAN Daisy Chain Management
A LAN daisy chain is supported, allowing you to execute commands to control and monitor the displays and even update their firmware.

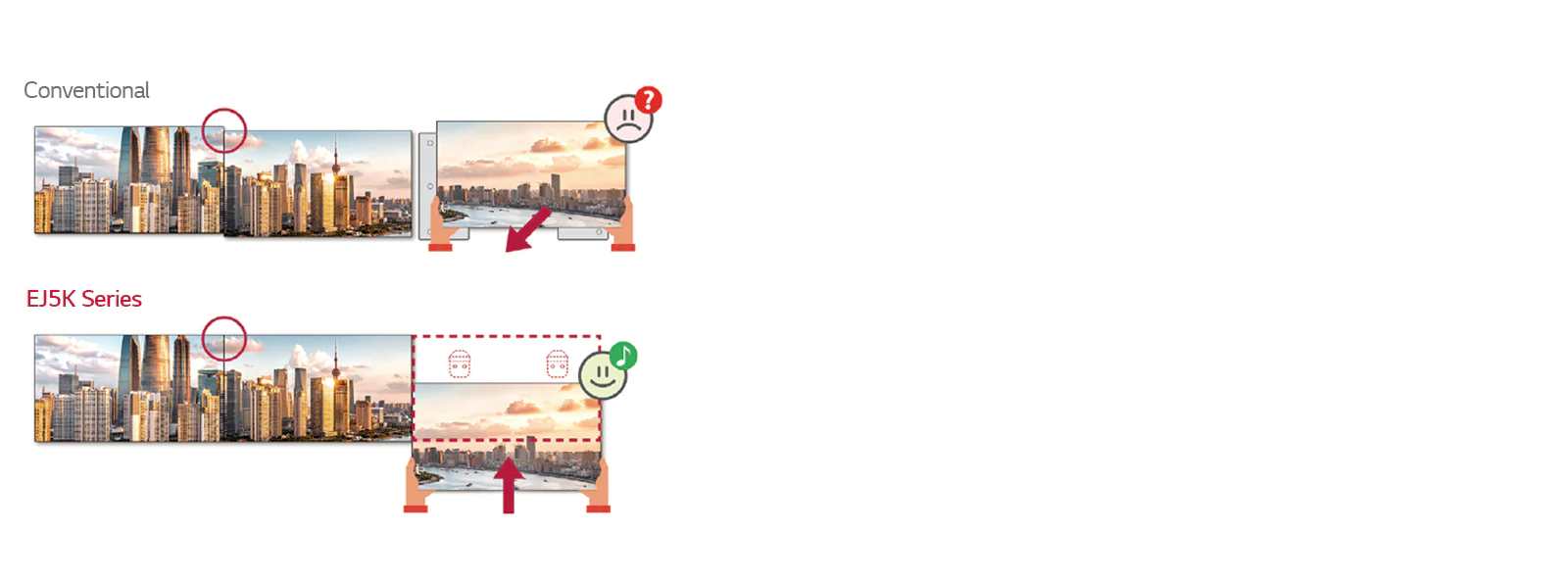

Wall Fixers Optimized for Simple Tiling
The overall installation process of the wallpaper OLED has gotten much easier. Once the dedicated wall fixers are driven into a wall, a display can be easily hung on them. Video wall tiling has become more convenient, thanks to its front installation feature, which departs from the conventional sidesliding method.

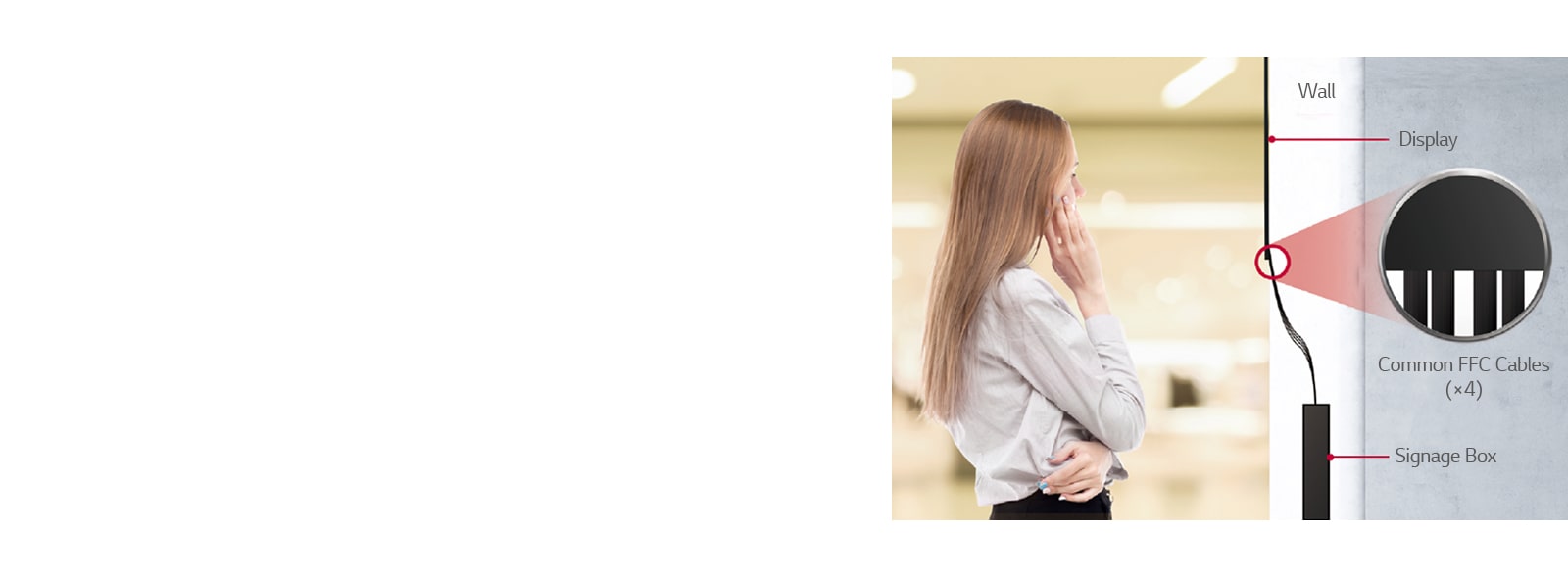

Enhanced Flexibility of Cables
As a result of in-depth consideration of usage scenarios, improvements have been made to the flexibility of common cables connecting the display to the signage box. These new cables are pliable enough to be easily embedded in a wall or other structures.

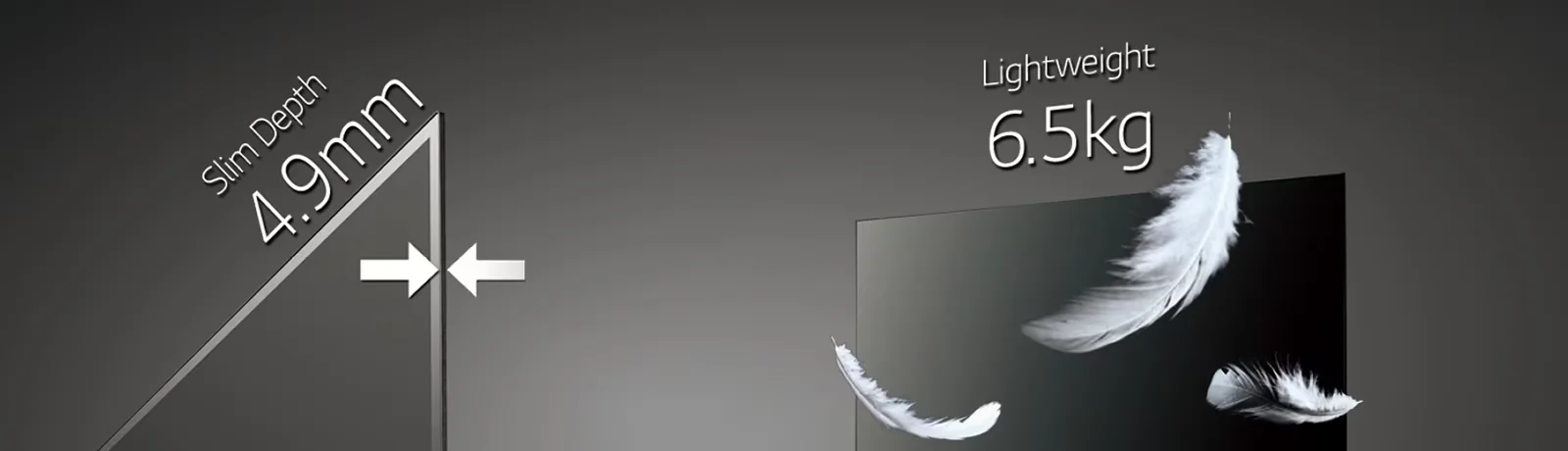

Splendid Design
LG’s OLED technology unlocks the new worlds of design flexibility with unbelievably lightweight and slim display. The advantages the OLED display brings are countless from the easier installation to a sleek look.

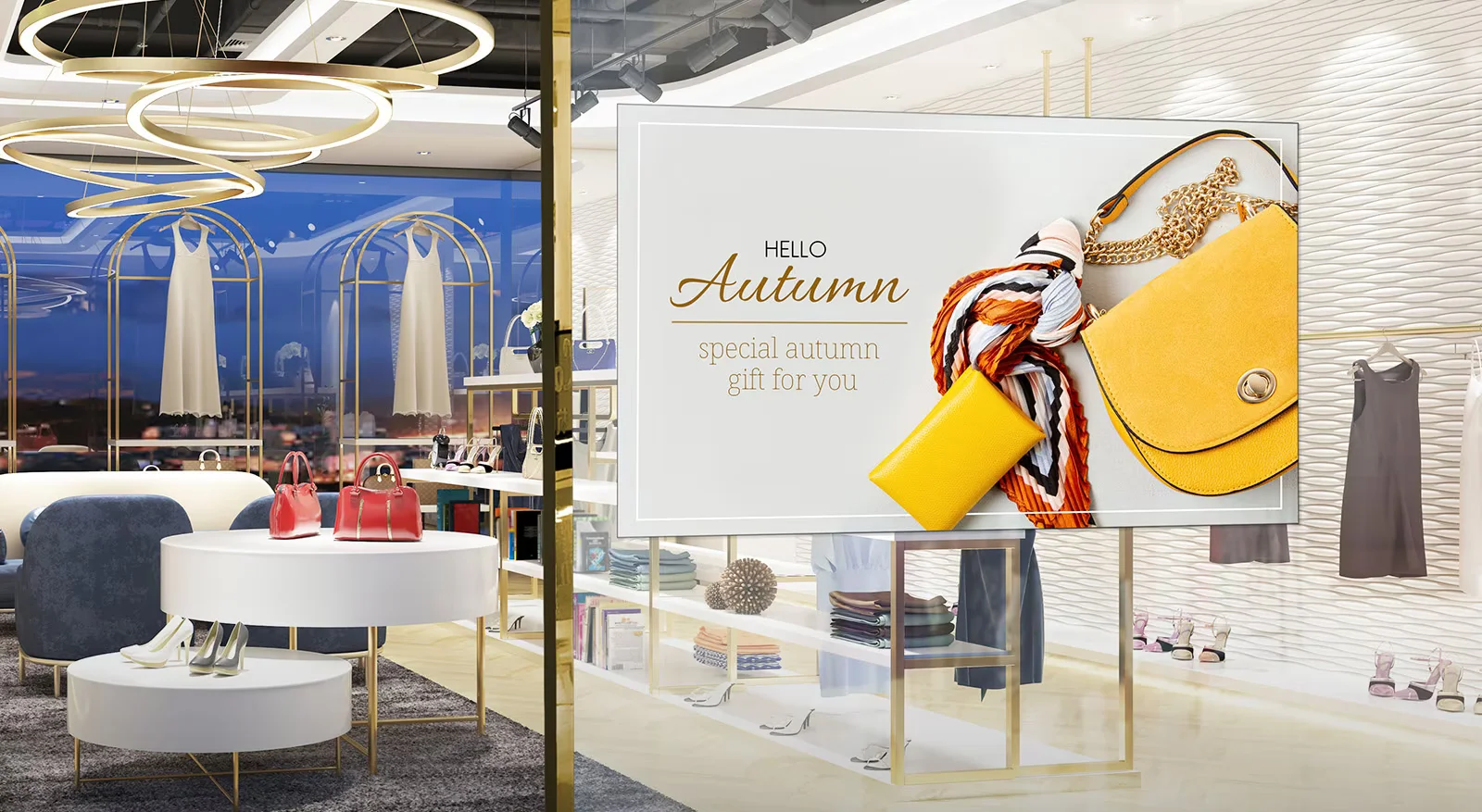

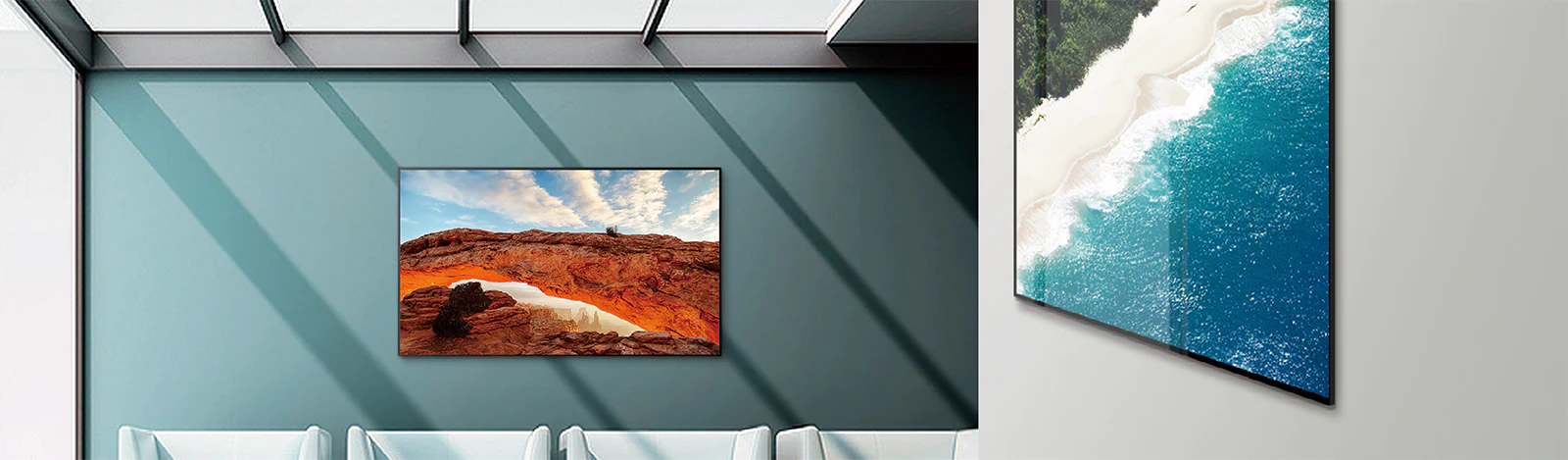

Hide in Plain Sight
The subtle edge of the wallpaper OLED totally blends in with the wall, giving audiences the sensation that content is being played directly within the wall itself. Integrating with and adding to a luxurious interior design, the wallpaper OLED is an effective method for delivering advertisements and information.
-
- Screen Size
- 55"
- Panel Technology
- OLED
-
- Back Light Type
- OLED
- Aspect Ratio
- 16:9
-
- Native Resolution
- 1920x1080 (FHD)
- Refresh Rate
- 120Hz
-
- Brightness
- 150/400nit (APL 100%/25%)
- Contrast Ratio
- 150,000 : 1
-
- Color gamut
- BT709 120%
- Viewing Angle(H x V)
- 178 X 178
-
- Color Depth
- 10bit(R), 1.07Bilion colors
- Response Time
- 1ms (G to G), 8ms (MPRT)
-
- Surface Treatment(Haze)
-
Hard coating (2H)
Reflectance Typ. 1.2%
- Life time
- 30,000 Hrs (Typ.)
-
- Operation Hours (Hours/Day)
- 18/7 (Moving Content Only)
- Portrait / Landscape
- Yes
-
- Input
- HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45 (LAN), IR IN (1, External IR Receiver), USB2.0 Type A (2)
- Output
- DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45 (LAN)
-
- Bezel Color
- Black
- Bezel Width
-
Even Bezel : 0.9mm (Off Bezel)
T/R/L/B : 5.3/5.3/5.3/11.0mm (On Bezel)
-
- Weight(Head)
-
6.5Kg (Head)
3.4Kg (Signage Box)
- Packed Weight
- 23.1Kg
-
- Monitor Dimension(W x H x D)
-
1220.3 x 696.8 x 4.9mm (Head)
782.8x 238.4 x 34.7mm (Signage Box)
- Carton Dimensions(W x H x D) (Box outer size)
- 1345 x 804 x 207mm
-
- HW
- Internal Memory 16GB, Temperature Sensor
- SW
- webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over,Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting, Pro:Idiom, Scan Inversion
-
- Operation Temperature
- 0 °C to 40 °C
- Operation Humidity
- 10 % to 80 %
-
- Power Supply
- AC 100-240V~, 50/60Hz
- Power Type
- Built-In Power
-
- Typ.
- 116W
- Max.
- 318W
-
- BTU (British Thermal Unit)
- 1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)
- DPM
- 0.5W
-
- Power off
- 0.5W
-
- Safety
- IEC 60950-1 / EN 60950-1 / UL 60950-1
- EMC
- FCC Class "A" / CE / KC
-
- ErP / Energy Star
- Yes / No
-
- SuperSign CMS
- Yes (v3.0)
- SuperSign Control / Control+
- Yes (v1.7 / v1.9)
-
- SuperSign WB
- Yes (v3.7.15)
- SuperSign Media Editor
- Yes (v3.7)
-
- Signage 365 Care
- Yes (v2.9)
-
- OSD
- English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
-
- Basic
-
Remote Controller(include battery 2ea), Power Cord, QSG,
IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(1600mmx4ea for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Wall Fixer(4EA), Wall Fixer Install Guide, Install Guide Sheet(2EA), Tape(10EA for Cabling/2EA for Dust proof), Screw(M4xL25,10EA / M3xL5.5,8EA)
